Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

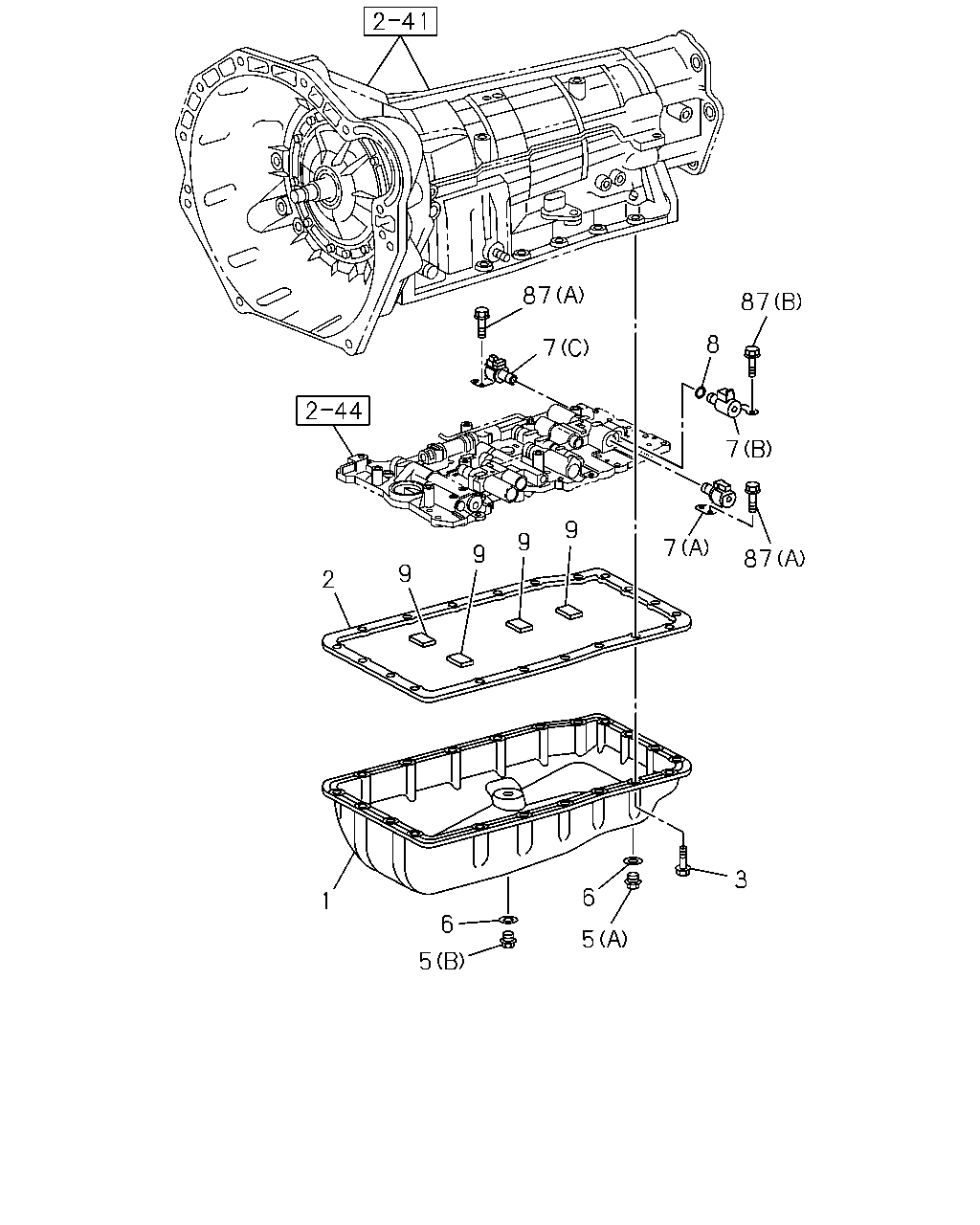

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#160374) — 13 parça
87
7
87
8
7
87
7
9
9
9
9
2
1
6
5
6
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL,A/T
8-98209-424-0
01
1
1504-
2
GASKET; OIL PAN,A/T
8-98189-738-0
01
1
1504-
3
BOLT; OIL PAN TO CASE
M6X15
8-98189-751-0
20
1
1504-
5
PLUG; OIL PAN
(A) M10X9
8-97367-573-0
01
1
1504-
5
PLUG; OIL PAN
(B) M10X9
8-98189-752-0
01
1
1504-
6
GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
02
1
1504-
7
SOLENOID; DOWN SHIFT,A/T
(A)
8-98189-501-0
01
1
1504-
7
SOLENOID; DOWN SHIFT,A/T
(B)
8-98189-502-0
01
1
1504-
7
SOLENOID; DOWN SHIFT,A/T
(C)
8-98189-503-0
01
1
1504-
8
GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1
8-94480-101-0
01
1
1504-
9
MAGNET; OIL PAN
5-34138-004-0
04
1
1504-
87
BOLT; SOLENOID
(A) M5X12
8-94405-335-0
03
1
1504-
87
BOLT; SOLENOID
(B) M6X12
8-94479-927-0
01
1
1504-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
