2-30 — GEAR SHIFTER AND QUADRANT BOX (#160370) — 85 parça

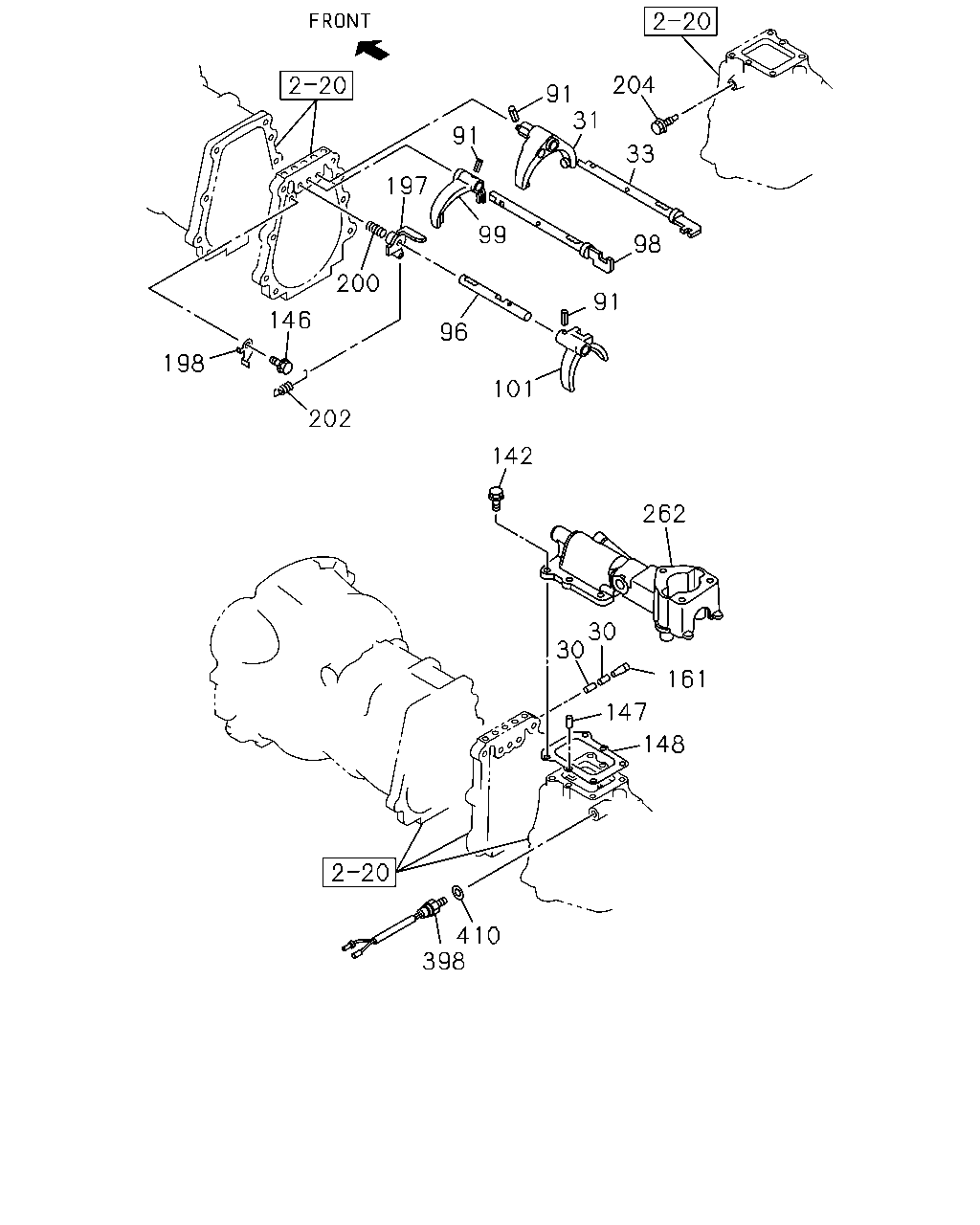

197 91 99 91 204 33 31 98 91 101 96 200 146 198 202 142 262 30 30 147 161 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1504-	●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1504-	●
31	ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1504-		●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1504-	●
33	ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1504-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	1504-	●
96	ROD; SHIFT,5TH	8-97232-886-0	01	1	1504-	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1504-	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1504-	●
99	ARM; SHIFT,4TH & 3RD	8-97362-439-2	01	1	1504-		●
101	ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1504-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1504-	●
142	BOLT; QUAD BOX M8X35 FLANGE	0-28650-835-0	04	1	1504-		●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28650-820-0	01	1	1504-	●
147	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1504-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1504-	●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	1504-	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1504-	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1504-	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1504-	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1504-	●
204	STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1504-	●
262	BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1504-	●
398	SWITCH; REV LAMP	8-98103-750-0	01	1	1504-	●
398	SWITCH; REV LAMP	8-98180-973-0	01	1	1504-		●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0	9-09571-414-0	01	1	1504-	●

288 262 271 271 268 289 261 459 274 248 132 22 172 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1504-	●
132	SPRING; SELECT STOP	8-97181-395-0	02	1	1504-	●
171	SWITCH; NEUTRAL	8-98103-743-0	01	1	1504-	●
171	SWITCH; NEUTRAL	8-98180-974-0	01	1	1504-		●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	1504-	●
248	RETAINER; CONT BOX	8-98210-983-0	02	1	1504-	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	1504-	●
261	ROD; GEAR CONT	8-97362-444-0	01	1	1504-		●
262	BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1504-	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1504-	●
271	BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1504-	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1504-	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	1504-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1504-	●
459	PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1504-	●

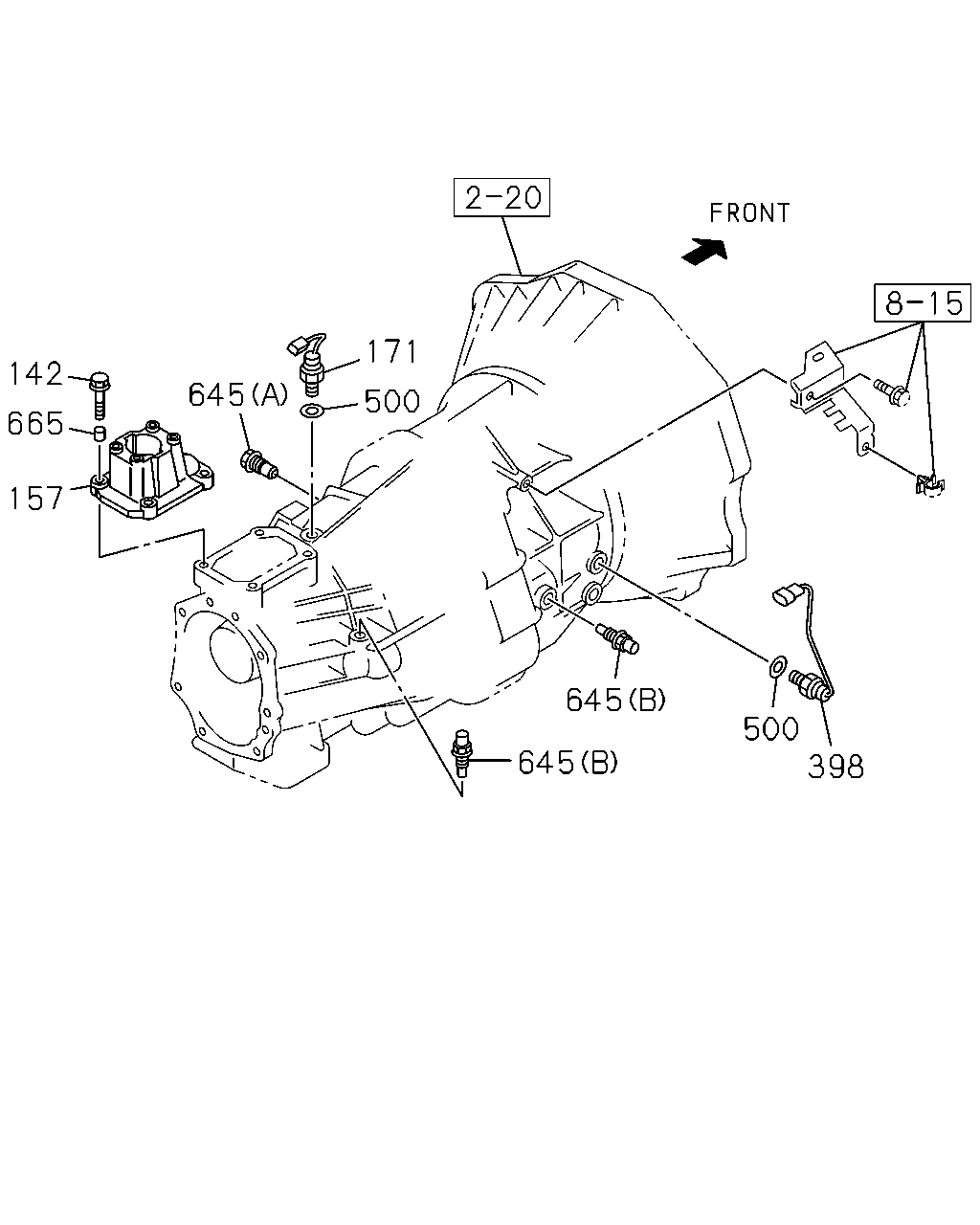

171 645 142 157 665 500 645 645 500 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1504-	●
142	BOLT; QUAD BOX M8X35 FLANGE	0-28650-835-0	04	1	1504-		●
157	BOX; QUAD,TRANS	8-98094-798-1	01	1	1504-		●
171	SWITCH; NEUTRAL	8-98103-743-0	01	1	1504-	●
171	SWITCH; NEUTRAL	8-98180-974-0	01	1	1504-		●
398	SWITCH; REV LAMP	8-98103-750-0	01	1	1504-	●
398	SWITCH; REV LAMP	8-98180-973-0	01	1	1504-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0	9-09571-414-0	02	1	1504-		●
645	DETENT ASM (B)	8-98019-536-0	02	1	1504-		●
645	DETENT ASM (A)	8-98244-364-0	01	1	1504-		●
665	DOWEL OD=11 L=8	9-11229-058-1	02	1	1504-		●

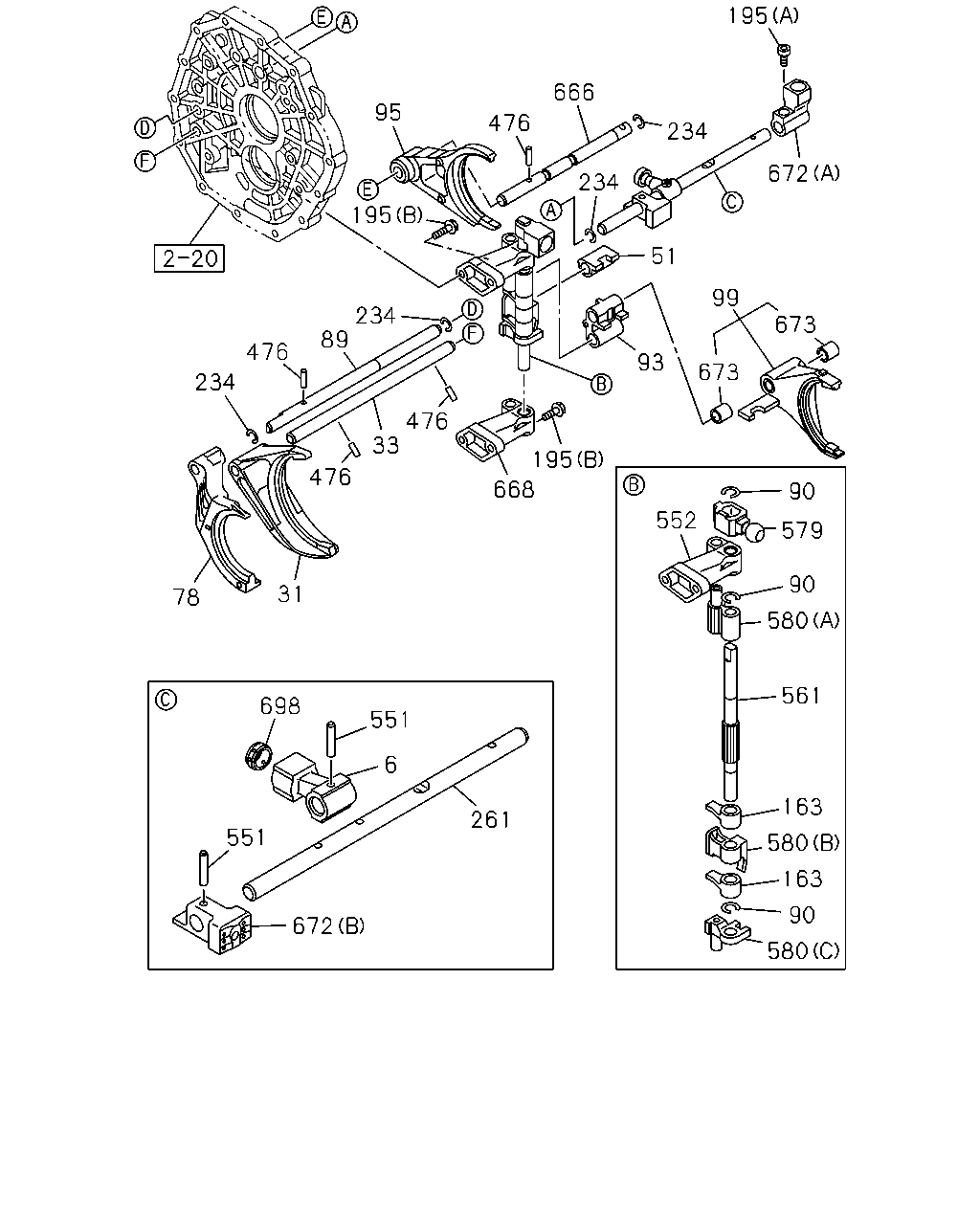

195 234 672 99 95 476 666 234 51 93 673 673 195 668 476 33 476 31 78 234 476 89 234 195 552 90 579 90 580 561 163 580 163 90 580 672 551 551 6 261 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	8-98095-658-1	01	1	1504-		●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1504-	●
31	ARM; SHIFT,LOW & 2ND	8-97362-435-0	01	1	1504-		●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1504-	●
33	ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1504-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98186-703-0	01	1	1504-		●
78	ARM; SHIFT,REV	8-97362-434-1	01	1	1504-		●
89	ROD; SHIFT,REV	8-98106-032-0	01	1	1504-		●
90	RING; SNAP,SHIFT ROD ID=12	8-94460-357-0	03	1	1504-		●
93	BLOCK; SHIFT,REV & 5TH	8-98106-035-0	01	1	1504-		●
95	ARM; SHIFT,5TH	8-97362-436-1	01	1	1504-		●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1504-	●
99	ARM; SHIFT,4TH & 3RD	8-97362-439-2	01	1	1504-		●
163	LEVER; SELECT,INTERNAL	8-98052-461-0	02	1	1504-		●
195	BOLT (A) M8X8.5 TAPER	8-97250-975-0	01	1	1504-		●
195	BOLT (B) M8X30 FLANGE	8-98034-764-0	04	1	1504-		●
234	RING; SNAP ID=12	8-94460-357-0	04	1	1504-		●
261	ROD; GEAR CONT	8-97257-909-0	01	1	1504-	●
261	ROD; GEAR CONT	8-97362-444-0	01	1	1504-		●
476	PIN; SHIFT ROD D=4.2 L=25	8-94171-541-0	04	1	1504-		●
551	PIN; SPRING D=4.2 L=25	8-94171-541-0	02	1	1504-		●
552	BRACKET	8-97362-465-1	01	1	1504-		●
561	ROD; SHIFT	8-98095-659-1	01	1	1504-		●
579	BLOCK; SHIFT,ROD GUIDE	8-98095-657-0	01	1	1504-		●
580	BLOCK; INTERLOCK (A)	8-97362-461-1	01	1	1504-		●
580	BLOCK; INTERLOCK (B)	8-98052-462-0	01	1	1504-		●
580	BLOCK; INTERLOCK (C)	8-98186-700-0	01	1	1504-		●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH	8-97362-442-2	01	1	1504-		●
668	BRACKET; SHIFT ROD	8-97362-465-1	01	1	1504-		●
672	BLOCK; SHIFT,T/M CONTROL (A)	8-97362-467-0	01	1	1504-		●
672	BLOCK; SHIFT,T/M CONTROL (B)	8-98095-689-1	01	1	1504-		●
673	BEARING; SHIFT ARM	8-97362-853-0	02	1	1504-		●
698	SEAT; SHIFT CONT	8-98073-812-0	01	1	1504-		●
