2-26 — MANUAL TRANSMISSION GEAR (#160369) — 178 parça

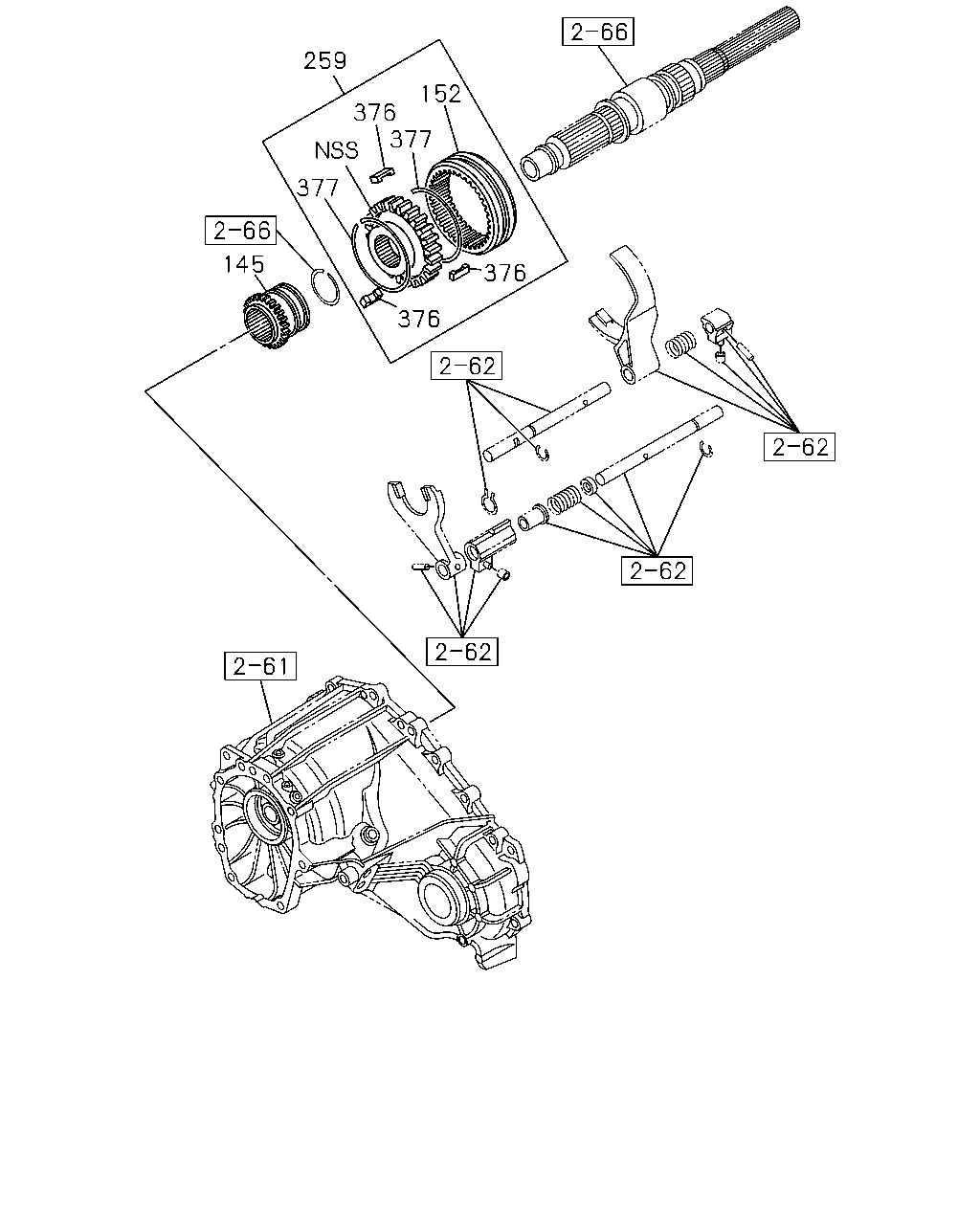

259 376 377 377 152 376 376 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-98063-369-1	01	1	1504-	●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(UCS***)	8-98063-369-1	01	1	1504-		●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER NSK	8-94363-060-0	01	1	1504-	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(UCS***) NSK	8-94363-060-0	01	1	1504-		●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	1504-	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(UCS***)	8-97234-225-0	01	1	1504-		●
376	INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	1504-	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-97238-590-0	03	1	1504-		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	1504-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-94448-045-0	02	1	1504-		●

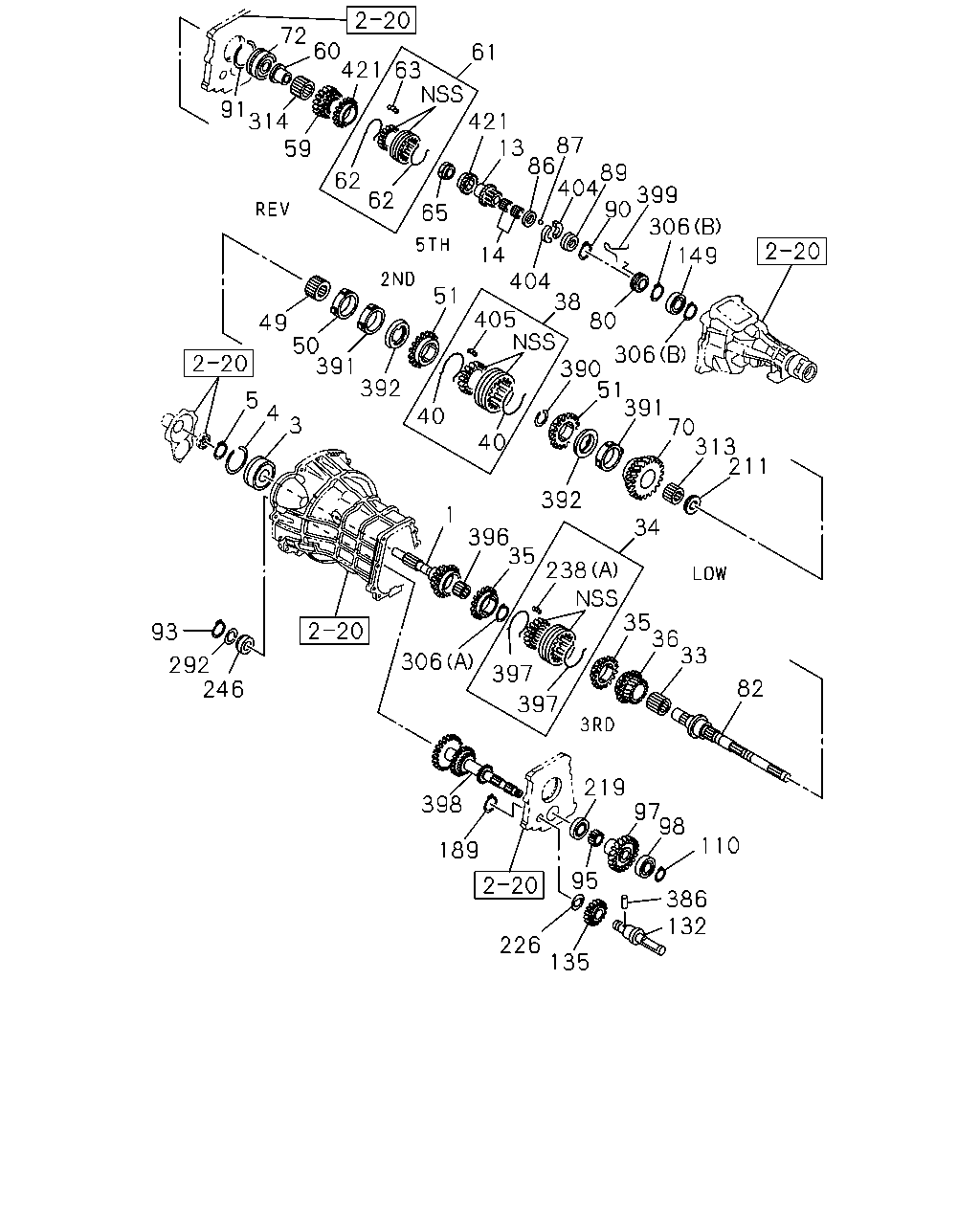

61 72 60 421 63 421 13 86 87 404 89 90 399 306 149 306 80 38 404 14 65 62 62 59 314 91 51 405 390 51 391 70 313 211 34 392 40 40 392 391 50 49 1 5 4 3 396 35 238 35 36 33 82 397 397 306 93 292 246 398 189 226 135 95 219 97 98 110 386 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1504-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1504-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1504-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1504-		●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1504-		●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1504-		●
14	BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1504-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1504-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1504-		●
34	SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1504-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1504-		●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1504-		●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1504-		●
38	SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1504-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1504-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1504-		●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1504-		●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1504-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1504-		●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1504-		●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1504-		●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1504-		●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1504-		●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1504-		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1504-		●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1504-		●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1504-		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1504-		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1504-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1504-		●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1504-		●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1504-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1504-		●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1504-		●
90	RING; SNAP,THRUST RING ID=29.6	9-09180-032-0	01	1	1504-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1504-		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1504-		●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1504-		●
95	GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1504-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1504-		●
97	GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1504-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1504-		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1504-		●
132	SHAFT; REV	8-98245-493-0	01	1	1504-		●
132	SHAFT; REV	8-98023-113-0	01	1	1504-	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1504-		●
135	GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1504-	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	8-94173-863-0	01	1	1504-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1504-		●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1504-		●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1504-		●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1504-		●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1504-		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1504-		●
238	INSERT (A)	8-94448-202-2	03	1	1504-		●
238	INSERT (B)	8-94249-576-2	03	1	1504-	●
238	INSERT (C)	8-98004-522-0	06	1	1504-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1504-		●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1504-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1504-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1504-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1504-		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9 CHI	9-09180-030-0	02	1	1504-		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1504-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1504-		●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1504-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1504-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1504-		●
386	PIN; REV SHAFT OD=4 L=8	9-08160-408-0	01	1	1504-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1504-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1504-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1504-		●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1504-		●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1504-		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1504-		●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1504-		●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1504-		●
398	GEAR; COUNTER Z=23	8-98106-584-0	01	1	1504-	●
399	CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1504-		●
404	PLATE; THRUST	8-94421-892-0	02	1	1504-		●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1504-	●	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1504-		●

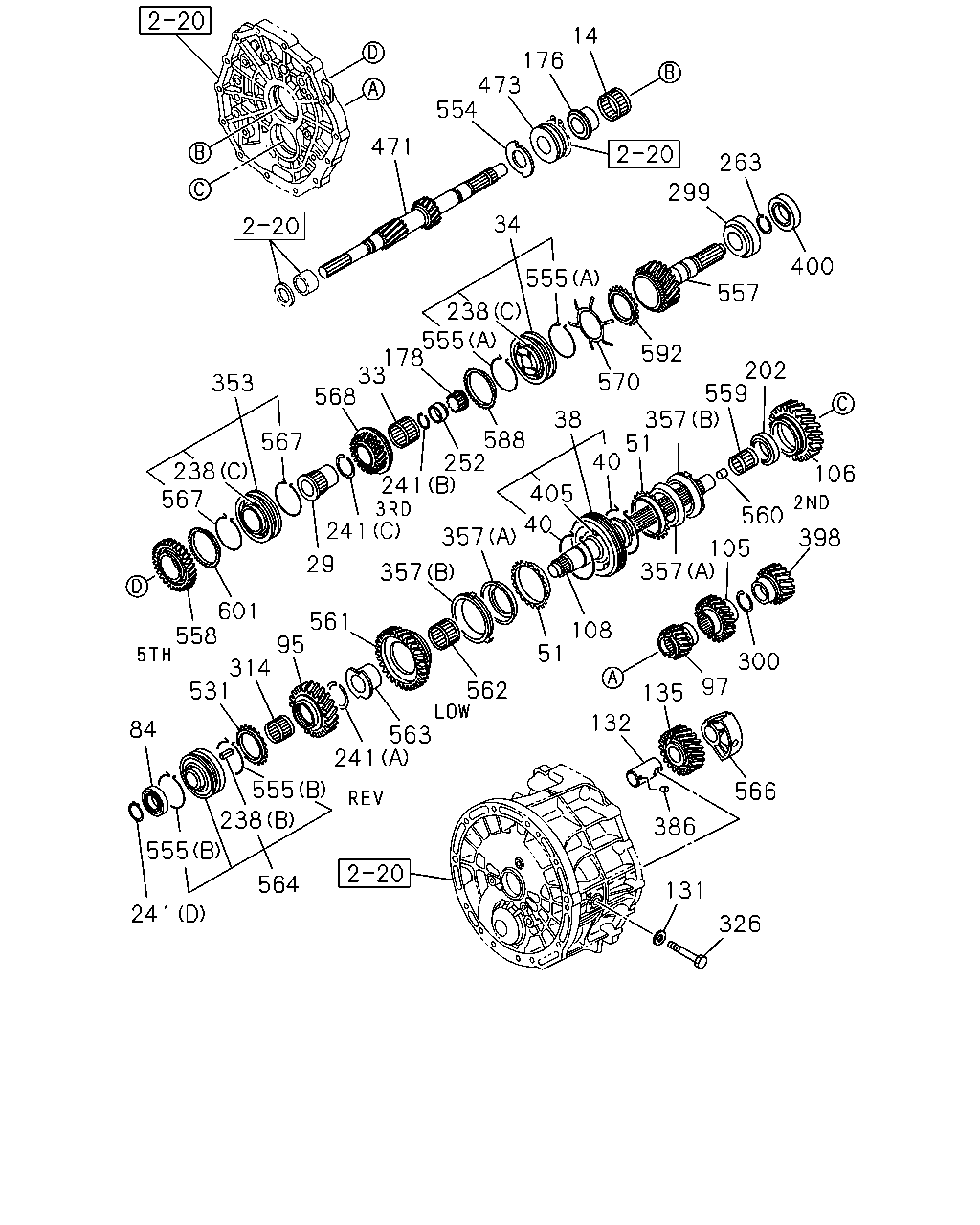

471 554 473 176 14 34 299 263 400 557 592 570 555 238 555 178 33 568 567 353 238 567 241 241 29 601 558 252 588 38 202 559 357 51 40 405 40 357 357 561 95 314 531 84 555 241 564 238 555 241 563 562 51 357 105 560 106 398 300 97 135 132 108 566 386 131 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1504-		●
14	BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1504-	●
29	COLLAR; 3RD GEAR	8-97362-568-1	01	1	1504-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1504-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1504-		●
34	SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1504-	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1504-		●
38	SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1504-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1504-	●	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1504-	●	●
84	BEARING; COUNTER SHAFT,FRT	8-97362-724-0	01	1	1504-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1504-		●
95	GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1504-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1504-		●
97	GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1504-	●
105	GEAR; 3RD,COUNTER Z=31	8-98233-612-0	01	1	1504-	●
106	GEAR; 2ND,COUNTER Z=38	8-98210-236-0	01	1	1504-	●
108	SHAFT; COUNTER Z=26-34-26-26	8-98023-108-1	01	1	1504-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=12.2	9-09571-412-0	01	1	1504-	●
132	SHAFT; REV	8-98245-493-0	01	1	1504-		●
132	SHAFT; REV	8-98023-113-0	01	1	1504-	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1504-		●
135	GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1504-	●
176	COLLAR; 5TH GEAR	8-97362-567-0	01	1	1504-	●
178	BEARING; NEEDLE,MAINSHAFT	8-97362-869-0	01	1	1504-	●
202	BEARING; COUNTER GEAR	8-97362-725-0	01	1	1504-	●
238	INSERT (A)	8-94448-202-2	03	1	1504-		●
238	INSERT (B)	8-94249-576-2	03	1	1504-	●
238	INSERT (C)	8-98004-522-0	06	1	1504-	●
241	RING; SNAP (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1504-	●
241	RING; SNAP (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1504-	●
241	RING; SNAP (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1504-	●
241	RING; SNAP (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1504-	●
241	RING; SNAP (C) ID=37 T=1.95	8-98004-523-1	01	1	1504-	●
241	RING; SNAP (C) ID=37 T=2.1	8-98004-524-1	01	1	1504-	●
241	RING; SNAP (D) ID=27.9 CHI	9-09180-030-0	01	1	1504-	●
252	SPACER	8-98024-456-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1	8-98004-525-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2	8-98004-526-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3	8-98004-527-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4	8-98004-528-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5	8-98004-529-0	01	1	1504-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6	8-98004-530-0	01	1	1504-	●
299	BEARING; OUTPUT SHAFT FRT	8-97362-722-0	01	1	1504-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3	8-98024-222-1	01	1	1504-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5	8-98024-223-1	01	1	1504-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7	8-98024-224-1	01	1	1504-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1504-		●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1504-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1504-	●
326	BOLT; REV SHAFT M12X70	9-92621-270-0	01	1	1504-	●
353	SYNCHRONIZER; 5TH	8-98004-511-1	01	1	1504-	●
357	RING (B) OD=95.8	8-94363-056-0	02	1	1504-	●
357	RING (A) OD=90.0	8-98115-793-0	02	1	1504-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1504-		●
386	PIN; REV SHAFT OD=4 L=8	9-08160-408-0	01	1	1504-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1504-		●
398	GEAR; COUNTER Z=23	8-98106-584-0	01	1	1504-	●
400	BEARING; OUTPUT SHAFT RR	8-97362-723-0	01	1	1504-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1504-	●	●
471	SHAFT; INPUT Z=24-14-20-27	8-98106-034-0	01	1	1504-	●
473	BEARING; INPUT SHAFT	8-97362-721-1	01	1	1504-	●
531	RING; BLOCK,REV OD=74	8-98037-846-0	01	1	1504-	●
554	IMPELLER; OIL	8-97362-730-0	01	1	1504-	●
555	SPRING; INSERT (A)	5-33264-012-0	02	1	1504-	●
555	SPRING; INSERT (B)	8-97109-690-0	02	1	1504-	●
557	GEAR; OUTPUT Z=31-27	8-98210-239-0	01	1	1504-	●
558	GEAR; 5TH,INPUT SHAFT Z=46	8-98233-610-0	01	1	1504-	●
559	BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	1504-	●
560	RING; DUM	8-97078-729-1	01	1	1504-	●
561	GEAR; LOW,COUNTER Z=45	8-98210-235-0	01	1	1504-	●
562	BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	1504-	●
563	COLLAR; 1ST GEAR	8-97362-569-1	01	1	1504-	●
564	SYNCHRONIZER; REV	8-97362-496-1	01	1	1504-	●
566	BRACKET; REV IDLER	8-97362-516-0	01	1	1504-	●
567	SPRING; INSERT,5TH	5-33264-012-0	02	1	1504-	●
568	GEAR; 3RD,INPUT SHAFT Z=28	8-98233-608-0	01	1	1504-	●
570	SPRING; PLATE	8-98072-467-2	01	1	1504-	●
588	RING; BLOCK,3RD Z=36	8-98052-559-0	01	1	1504-	●
592	RING; BLOCK,4TH	8-98197-460-0	01	1	1504-	●
601	RING; BLOCK,5TH	8-98283-241-0	01	1	1504-	●
