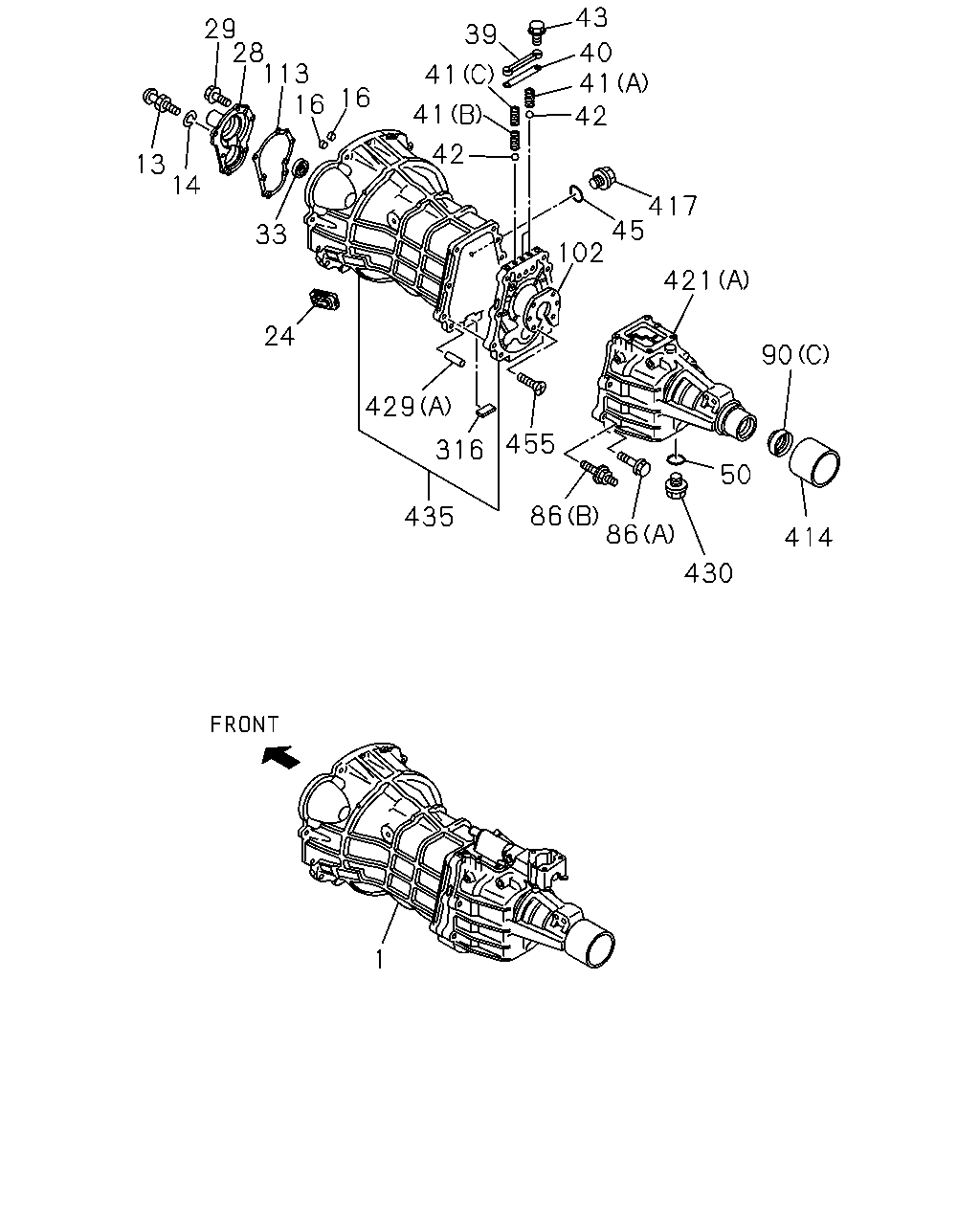

2-20 — MANUAL TRANSMISSION ASM AND CASE (#160367) — 141 parça

90 421 417 42 41 43 39 41 41 42 16 16 113 28 29 13 14 33 24 429 316 455 86 435 86 430 414 50 45 102 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	8-98172-462-0	01	1	1504-	●
1	TRANSMISSION ASM; MANUAL	8-97978-011-0	01	1	1504-		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1504-	●	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1504-	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1504-	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1504-	●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1504-	●
28	COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1504-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1504-	●
29	BOLT; FRT COVER M8X20 FLANGE	0-28650-820-0	03	1	1504-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1504-	●	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1504-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1504-	●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1504-	●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1504-	●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1504-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1504-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1504-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1504-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1504-			●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1504-	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1504-	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1504-		●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1504-		●
86	BOLT; RR COVER (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-		●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97947-840-0	01	1	1504-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT	8-98004-531-0	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) (B) NOK	8-97046-705-3	01	1	1504-			●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1504-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1504-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1504-	●	●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	1504-	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-		●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1504-			●
421	COVER; RR,TRANS (A)	8-97978-059-0	01	1	1504-	●
421	COVER; RR,TRANS (B)	8-97362-423-1	01	1	1504-		●
421	COVER; RR,TRANS (C)	8-98108-319-0	01	1	1504-		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1504-	●
429	PIN; STRAIGHT (B) OD=10 L=20	8-97135-423-0	02	1	1504-		●
429	PIN; STRAIGHT 4X4(UCS***) (B) OD=10 L=20	8-97135-423-0	02	1	1504-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-		●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1504-			●
435	CASE; TRANS	8-98047-230-0	01	1	1504-	●
435	CASE; TRANS	8-98108-317-1	01	1	1504-		●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1504-	●

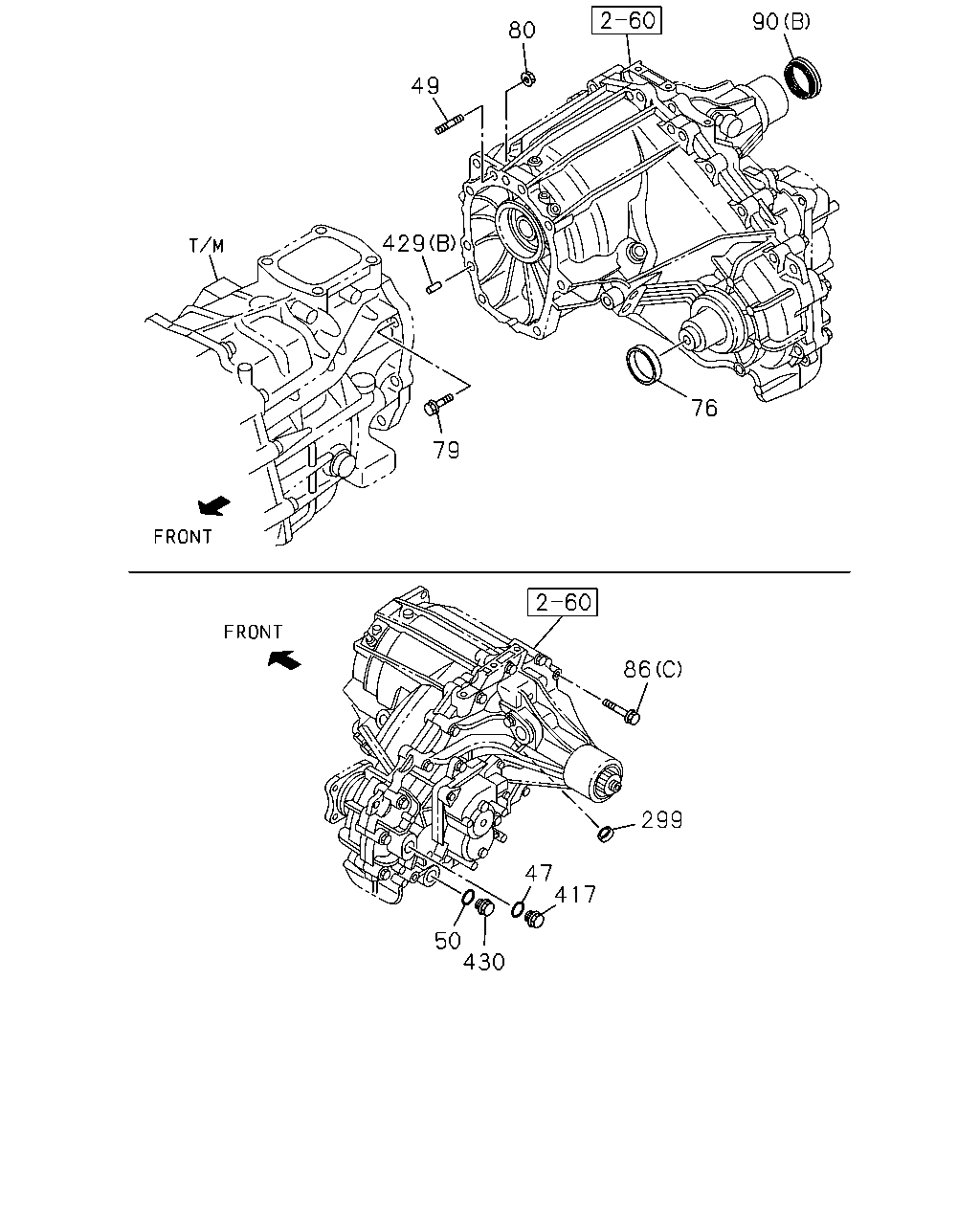

80 90 49 429 79 76 86 299 417 47 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-		●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1504-			●
49	STUD; TRANSFER CASE M10X30 L=45	8-98035-675-0	01	1	1504-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1504-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97238-999-0	01	1	1504-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) NOK	8-97238-999-0	01	1	1504-			●
79	BOLT; TRANSFER CASE 4X4(UCS***) M10X45 FLANGE	0-28051-045-0	07	1	1504-			●
79	BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	06	1	1504-		●
80	NUT; TRANSFER CASE M10 FLANGE	0-91180-110-0	01	1	1504-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1504-	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1504-	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1504-		●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1504-		●
86	BOLT; RR COVER (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-		●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97947-840-0	01	1	1504-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT	8-98004-531-0	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) (B) NOK	8-97046-705-3	01	1	1504-			●
299	PLUG; SHIFTER ROD OD=15.6	8-94173-641-0	02	1	1504-		●
299	PLUG; SHIFTER ROD 4X4(UCS***) OD=15.6	8-94173-641-0	02	1	1504-			●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-		●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1504-			●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1504-	●
429	PIN; STRAIGHT (B) OD=10 L=20	8-97135-423-0	02	1	1504-		●
429	PIN; STRAIGHT 4X4(UCS***) (B) OD=10 L=20	8-97135-423-0	02	1	1504-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-		●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1504-			●

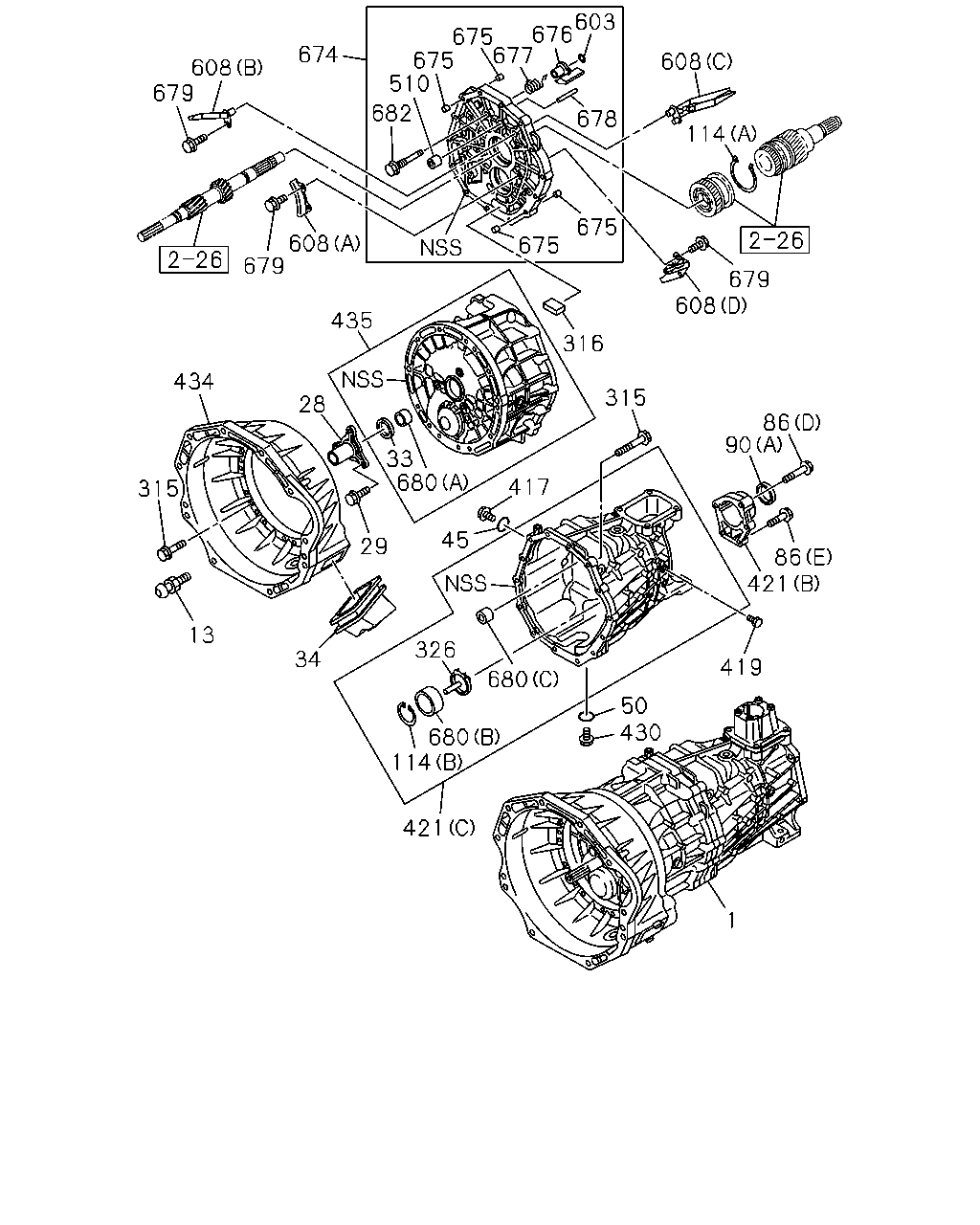

608 114 679 608 86 90 86 421 419 50 430 1 680 114 421 680 45 417 315 316 675 675 678 603 676 677 675 675 510 682 674 608 679 679 608 435 28 434 315 13 34 326 33 680 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	8-98172-462-0	01	1	1504-	●
1	TRANSMISSION ASM; MANUAL	8-97978-011-0	01	1	1504-		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1504-	●	●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1504-	●
28	COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1504-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1504-	●
29	BOLT; FRT COVER M8X20 FLANGE	0-28650-820-0	03	1	1504-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1504-	●	●
34	COVER; DUST,SHIFT FORK	8-98097-470-0	01	1	1504-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1504-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1504-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	1504-			●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1504-	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1504-	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1504-		●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1504-		●
86	BOLT; RR COVER (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-		●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1504-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97947-840-0	01	1	1504-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT	8-98004-531-0	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1504-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) (B) NOK	8-97046-705-3	01	1	1504-			●
114	RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1504-		●
114	RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1504-		●
315	BOLT; CASE M8X60 FLANGE	0-28050-860-0	14	1	1504-		●
315	BOLT; CASE M8X35 FLANGE	8-98046-876-0	11	1	1504-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1504-	●	●
326	NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1504-		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1504-		●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	1504-			●
419	PLUG; RR COVER M12X9	8-98047-054-0	01	1	1504-		●
421	COVER; RR,TRANS (A)	8-97978-059-0	01	1	1504-	●
421	COVER; RR,TRANS (B)	8-97362-423-1	01	1	1504-		●
421	COVER; RR,TRANS (C)	8-98108-319-0	01	1	1504-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1504-		●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	1504-			●
434	HOUSING; CLU	8-98108-316-0	01	1	1504-		●
435	CASE; TRANS	8-98047-230-0	01	1	1504-	●
435	CASE; TRANS	8-98108-317-1	01	1	1504-		●
510	BEARING	8-97362-853-0	01	1	1504-		●
603	RING; SNAP	8-98039-270-0	01	1	1504-		●
608	GUTTER; OIL (A)	8-97362-391-0	01	1	1504-		●
608	GUTTER; OIL (B)	8-97362-564-1	01	1	1504-		●
608	GUTTER; OIL (D)	8-98004-505-0	01	1	1504-		●
608	GUTTER; OIL (C)	8-98142-574-0	01	1	1504-		●
674	PLATE; INTERMEDIATE	8-98042-863-0	01	1	1504-		●
675	DOWEL OD=11 L=8	9-11229-058-1	04	1	1504-		●
676	INHIBITOR	8-98037-604-1	01	1	1504-		●
677	SPRING; INHIBITOR	8-97362-852-0	01	1	1504-		●
678	PIN	9-08160-436-0	01	1	1504-		●
679	BOLT; GUTTER M6X12 FLANGE	0-28050-612-0	04	1	1504-		●
680	BEARING (A)	8-97362-720-1	01	1	1504-		●
680	BEARING (C)	8-97362-853-0	01	1	1504-		●
680	BEARING (B)	8-98024-431-0	01	1	1504-		●
682	BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1504-		●
