◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#160363) — 23 parça

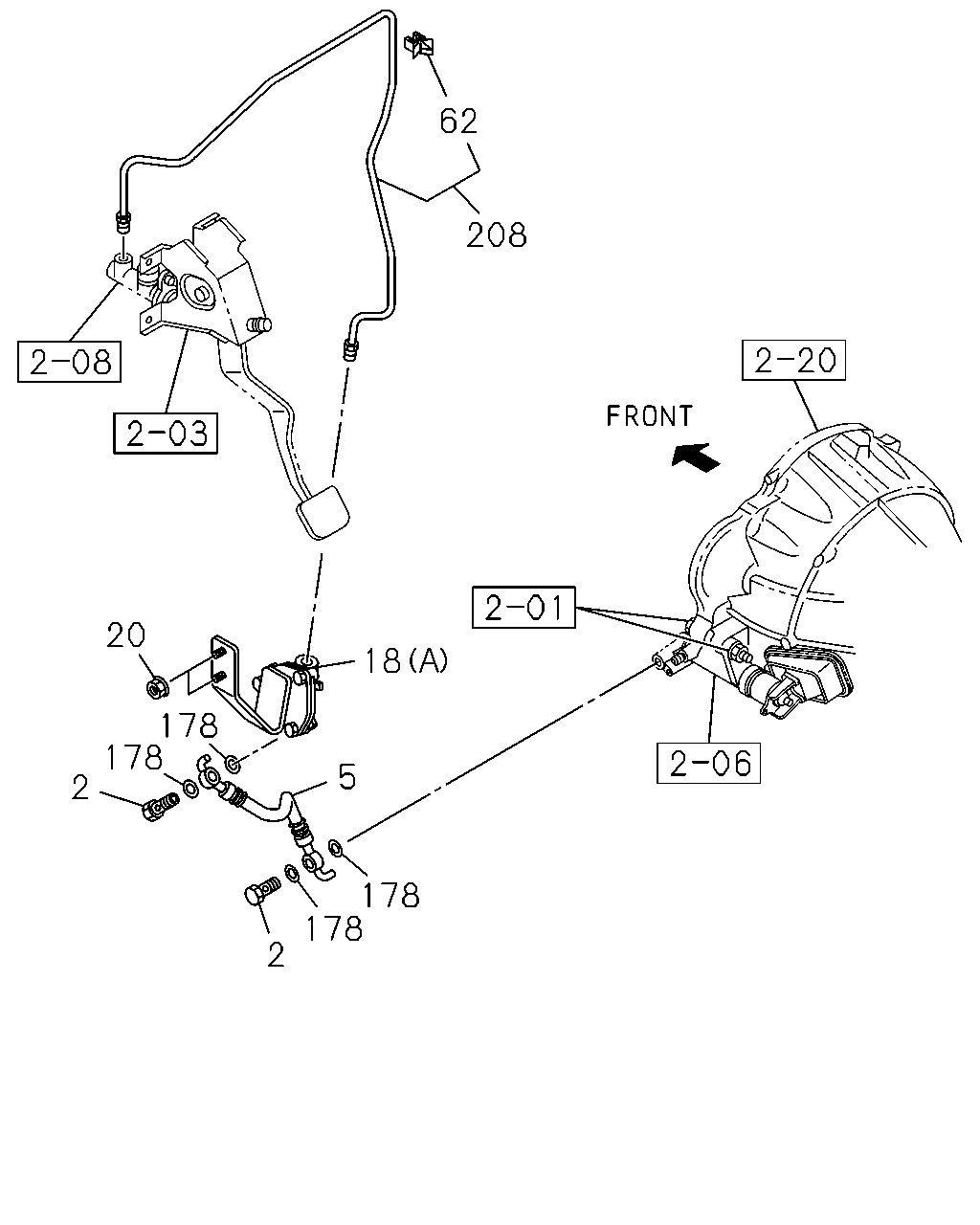

çizim 471102
62 208 18 5 178 178 2 2 20 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 		8-97359-818-0 02 1 1504- ● ●
5 HOSE; FLEX,CLU PIPE 8-98098-317-1 01 1 1504- ●
5 HOSE; FLEX,CLU PIPE 8-98098-315-1 01 1 1504- ●
18 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1504- ● ●
18 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1504- ●
20 NUT; CLU OIL DAMPER
M6 FLANGE 		0-91180-106-0 02 1 1504- ● ●
62 CLIP; CLU PIPE 8-98181-751-0 01 1 1504- ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 		9-09571-410-0 04 1 1504- ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-270-1 01 1 1504- ● ●

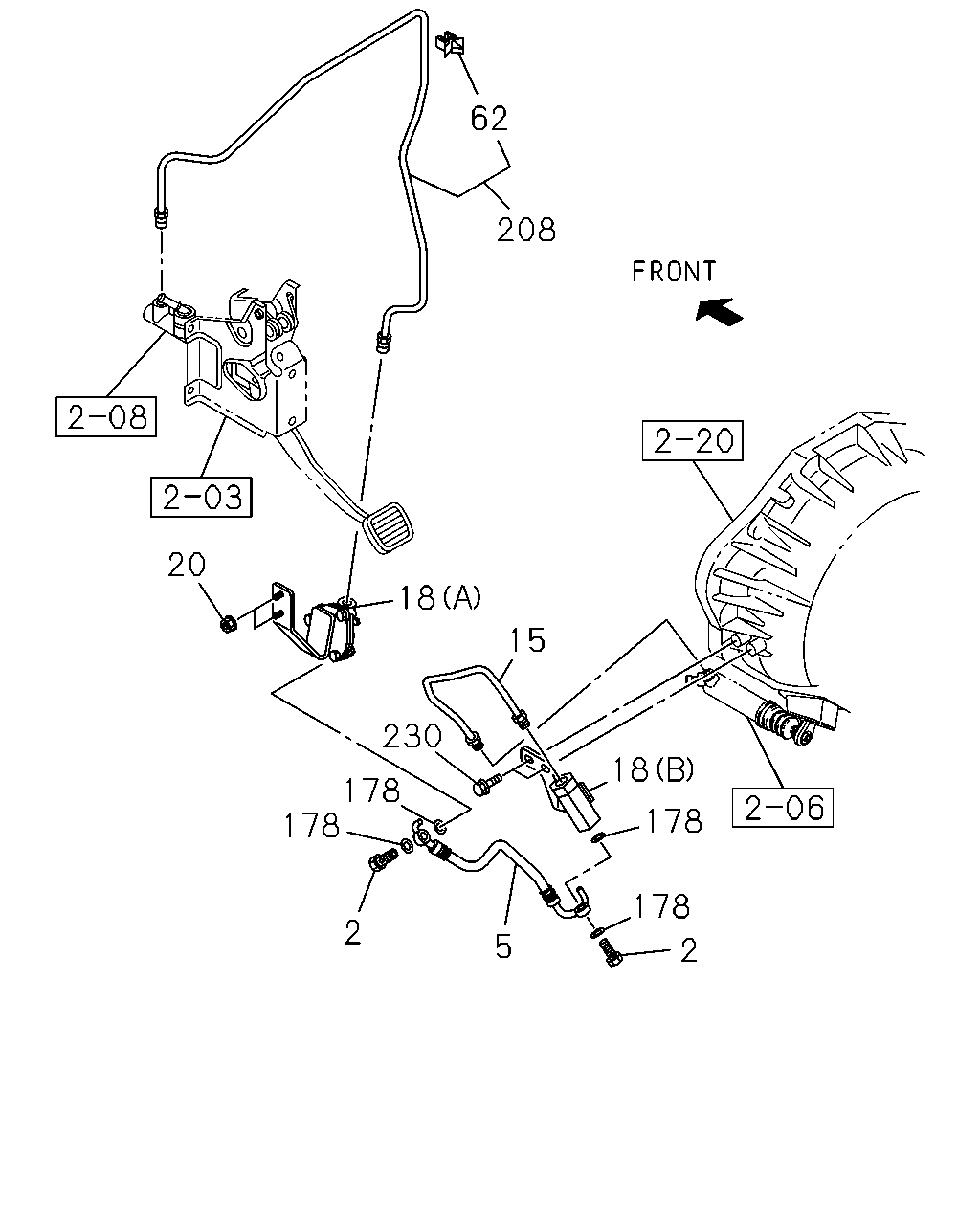

çizim 471302
62 208 20 18 15 18 178 178 2 5 2 178 230 178
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 		8-97359-818-0 02 1 1504- ● ●
5 HOSE; FLEX,CLU PIPE 8-98098-317-1 01 1 1504- ●
5 HOSE; FLEX,CLU PIPE 8-98098-315-1 01 1 1504- ●
15 PIPE; CLU,FLEX HOSE 8-98097-509-0 01 1 1504- ●
18 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1504- ● ●
18 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1504- ●
20 NUT; CLU OIL DAMPER
M6 FLANGE 		0-91180-106-0 02 1 1504- ● ●
62 CLIP; CLU PIPE 8-98181-751-0 01 1 1504- ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 		9-09571-410-0 04 1 1504- ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-270-1 01 1 1504- ● ●
230 BOLT; ACTUATOR
M6X16 FLANGE 		0-28650-616-0 02 1 1504- ●

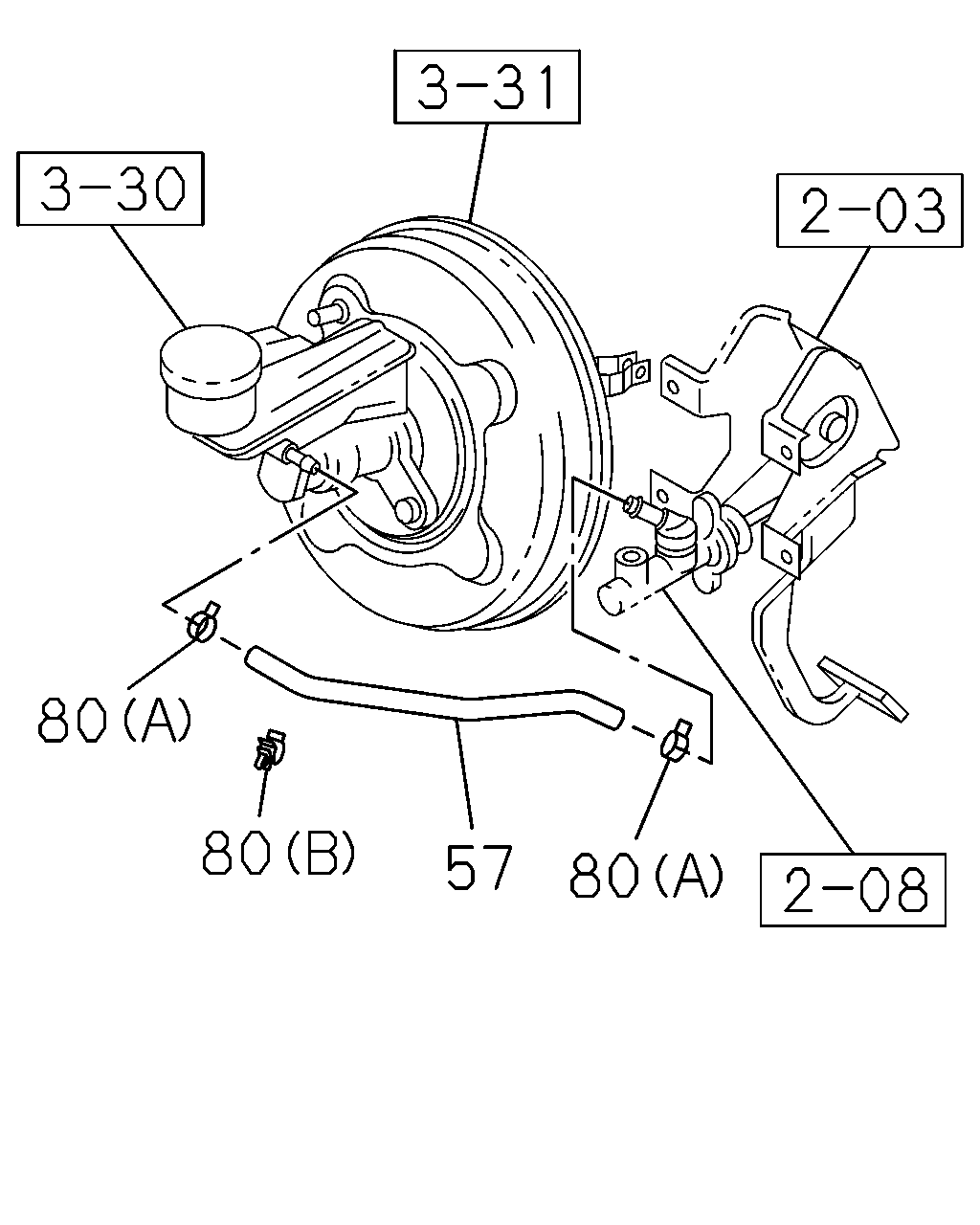

çizim 471719
80 80 57 80
BalonParca AdiParca NoAdetTipApplied Date A B
57 HOSE; CLU M/CYL TO OIL TANK 8-98097-544-1 01 1 1504- ● ●
80 CLIP; HOSE
(B) 		8-97947-817-0 01 1 1504- ● ●
80 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1504- ● ●
