Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

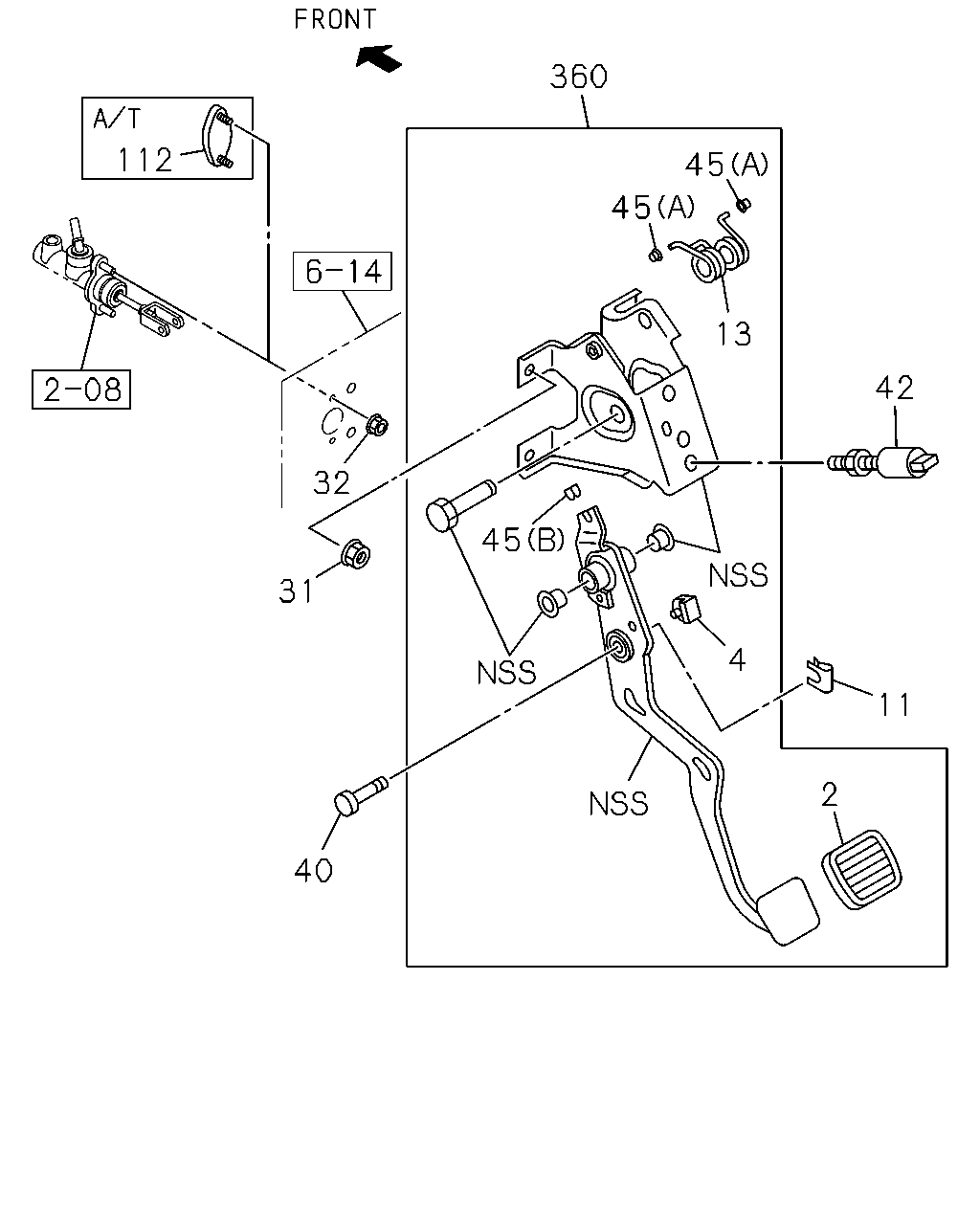

2-03 — CLUTCH PEDAL AND CONTROL
(#160362) — 13 parça
Tümü
A - UCB6VC
B - UCS6VC
360
45
45
13
42
11
4
2
40
45
31
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-97318-799-0
01
1
1504-
●
●
4
STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-97947-783-0
01
1
1504-
●
●
11
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-98007-161-0
01
1
1504-
●
●
13
SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-97942-312-0
01
1
1504-
●
●
31
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M8 FLANGE
0-91180-108-0
04
1
1504-
●
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91180-108-0
02
1
1504-
●
●
40
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5
8-97312-338-0
01
1
1504-
●
●
42
SWITCH; CLU
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-98154-210-0
01
1
1504-
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (A)
8-97942-313-0
02
1
1504-
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)
8-97942-314-0
01
1
1504-
●
●
112
PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1)
8-97945-168-0
01
1
1504-
●
●
360
PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-97947-853-0
01
1
1504-1512
●
●
360
PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)
8-98317-405-0
01
1
1601-
●
●
