Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#160361) — 29 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - M/T MUX 5 SPEED 5S
◀

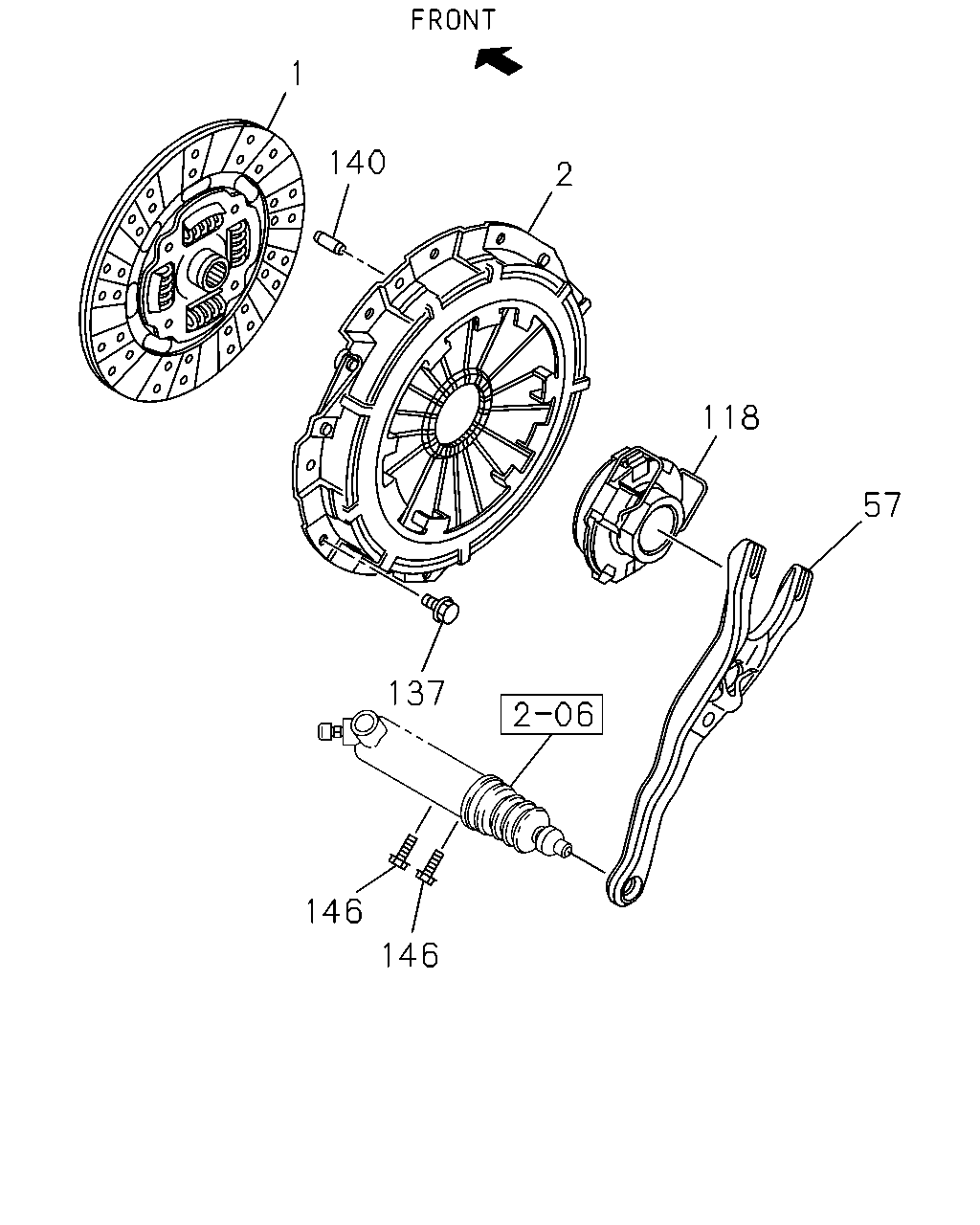

[201A] M/T MUA (15 parça)

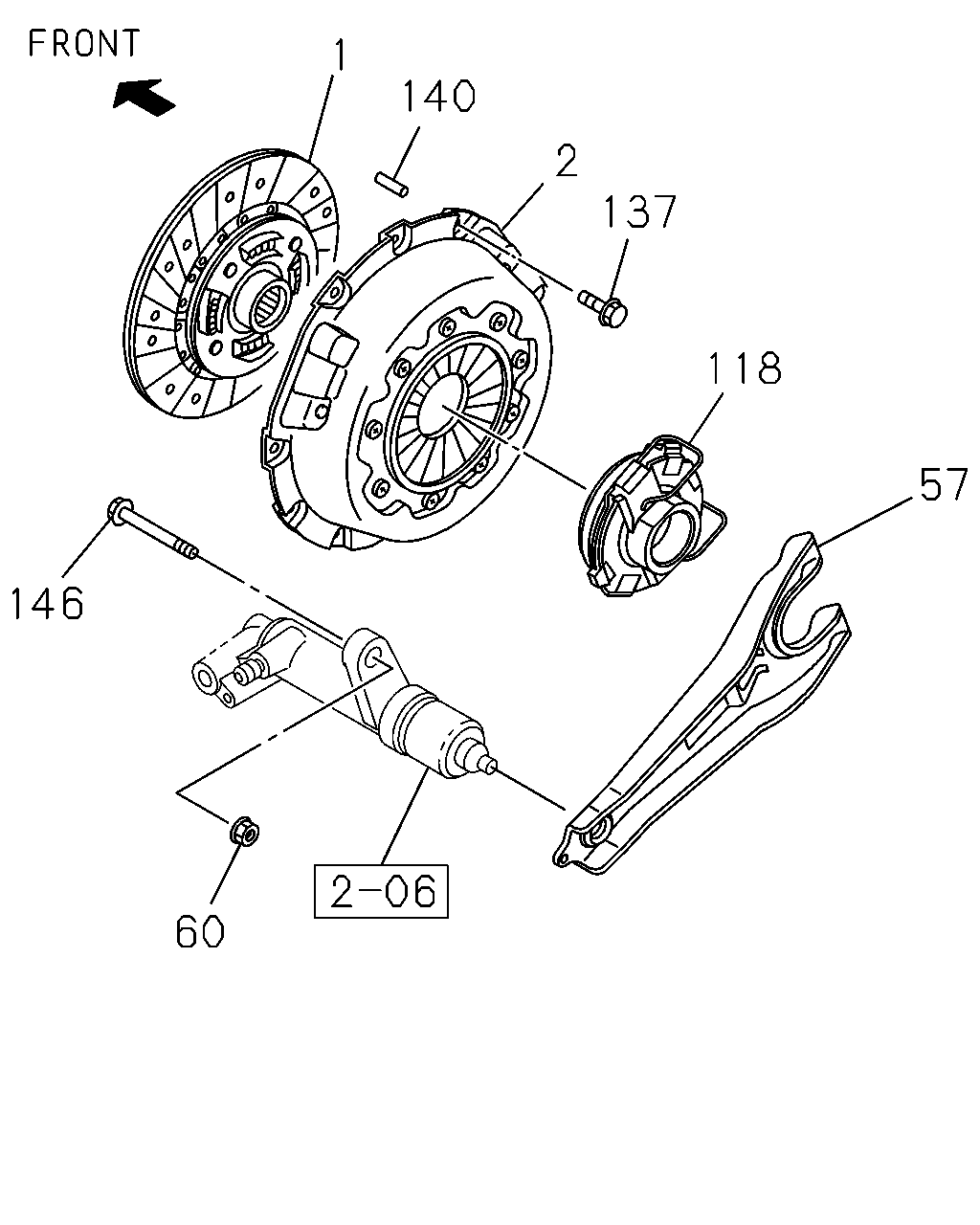

[201A] M/T MUX (14 parça)
▶
57
118
137
2
140
1
146
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
8-98280-855-0
01
1
1504-
●
1
DISC; CLUTCH
8-98156-299-2
01
1
1504-
●
2
PLATE ASM; PRESSURE,CLU
8-97947-516-0
01
1
1504-
●
2
PLATE ASM; PRESSURE,CLU
8-98283-194-0
01
1
1504-
●
57
FORK; SHIFT,CLU
8-97365-654-0
01
1
1504-
●
57
FORK; SHIFT,CLU
8-97946-622-1
01
1
1504-
●
60
NUT; SLAVE CYL
M12 FLANGE
0-91180-112-0
01
1
1504-
●
118
BEARING; CLU RELEASE
NSK ID=44.1 OD=78
8-98096-168-0
01
1
1504-
●
118
BEARING; CLU RELEASE
NSK ID=44.1 OD=78
8-98169-826-1
01
1
1504-
●
137
BOLT; CLU COVER
M8X16 FLANGE
0-28050-816-0
06
1
1504-
●
137
BOLT; CLU COVER
M8X16 FLANGE
0-28050-816-0
08
1
1504-
●
140
PIN; STRAIGHT
OD=6 L=27
8-97945-592-0
02
1
1504-
●
140
PIN; STRAIGHT
OD=6 L=27
8-97945-592-0
04
1
1504-
●
146
BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE
0-28051-290-0
02
1
1504-
●
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28651-025-0
02
1
1504-
●
57
118
2
1
140
137
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
8-98280-855-0
01
1
1504-
●
1
DISC; CLUTCH
8-98156-299-2
01
1
1504-
●
2
PLATE ASM; PRESSURE,CLU
8-97947-516-0
01
1
1504-
●
2
PLATE ASM; PRESSURE,CLU
8-98283-194-0
01
1
1504-
●
57
FORK; SHIFT,CLU
8-97365-654-0
01
1
1504-
●
57
FORK; SHIFT,CLU
8-97946-622-1
01
1
1504-
●
118
BEARING; CLU RELEASE
NSK ID=44.1 OD=78
8-98096-168-0
01
1
1504-
●
118
BEARING; CLU RELEASE
NSK ID=44.1 OD=78
8-98169-826-1
01
1
1504-
●
137
BOLT; CLU COVER
M8X16 FLANGE
0-28050-816-0
06
1
1504-
●
137
BOLT; CLU COVER
M8X16 FLANGE
0-28050-816-0
08
1
1504-
●
140
PIN; STRAIGHT
OD=6 L=27
8-97945-592-0
02
1
1504-
●
140
PIN; STRAIGHT
OD=6 L=27
8-97945-592-0
04
1
1504-
●
146
BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE
0-28051-290-0
02
1
1504-
●
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28651-025-0
02
1
1504-
●
