1-50 — EXHAUST PIPE AND SILENCER (#160360) — 30 parça

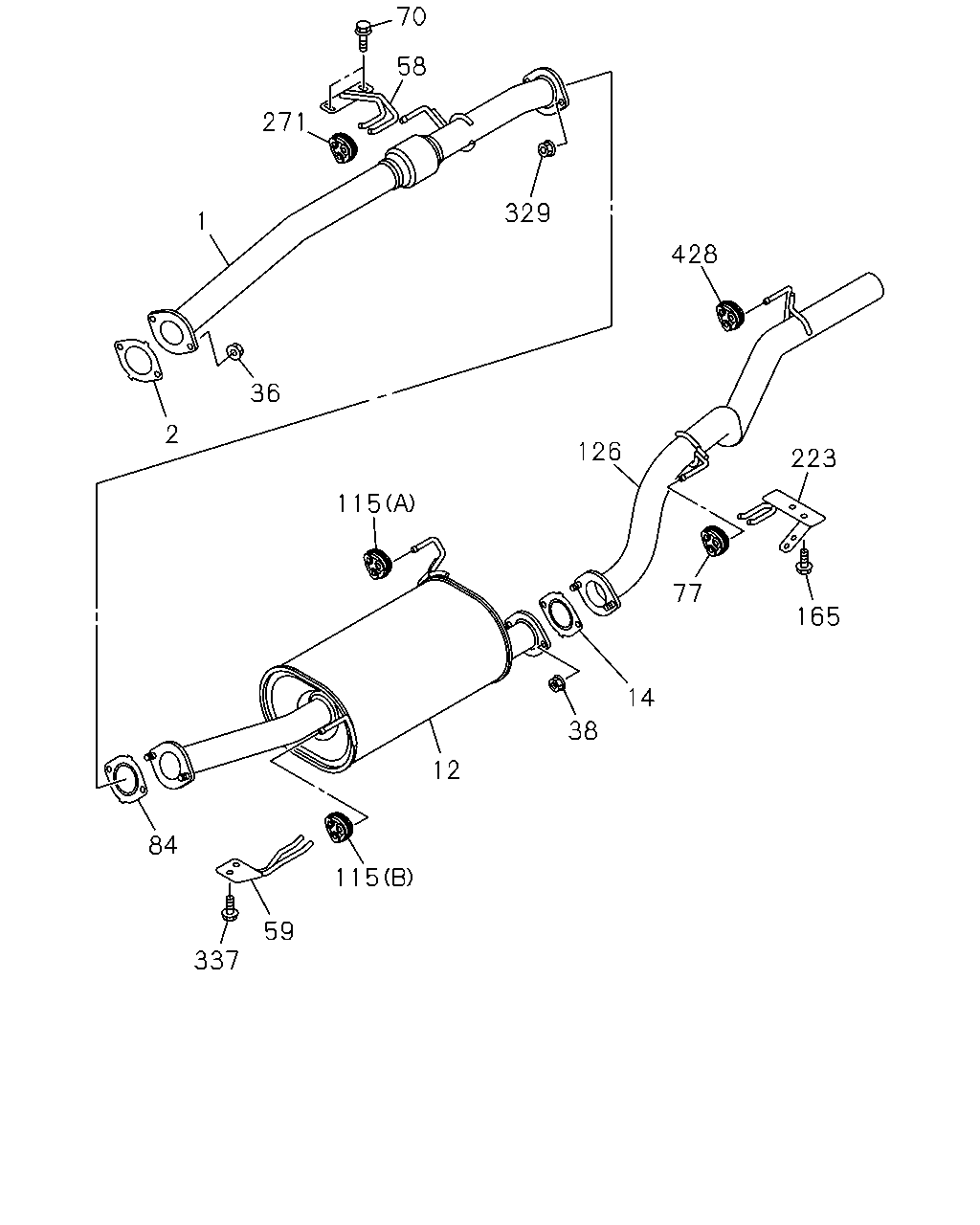

çizim 471249
70 58 271 329 1 36 2 115 428 126 223 165 77 14 38 12 115 59 337 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 8-98196-222-1 01 1 1504- ● ●
2 GASKET; PIPE TO MANIF
ID=65 		8-97263-052-0 01 1 1504- ● ●
12 SILENCER ASM; EXH
CHI 		8-98270-722-0 01 1 1504- ●
12 SILENCER ASM; EXH
CHI 		8-98270-723-0 01 1 1504- ●
14 GASKET; SILENCER TO EXH PIPE
ID=65 		8-97263-052-0 01 1 1504- ●
14 GASKET; SILENCER TO EXH PIPE
ID=73 		8-98196-638-0 01 1 1504- ●
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1504- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 1504- ● ●
58 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1504- ● ●
59 BRACKET; EXH SILENCER,FRT 8-98196-903-0 01 1 1504- ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1504- ● ●
77 RUBBER; CUSHION,BRKT 8-97289-169-0 01 1 1504- ● ●
84 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1504- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-97289-169-0 01 1 1504- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 01 1 1504- ● ●
126 PIPE; EXH,RR
CHI 		8-98293-066-0 01 1 1504- ●
126 PIPE; EXH,RR
CHI 		8-98293-067-0 01 1 1504- ●
165 BOLT; SUPPORT RUBBER
M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1504- ● ●
223 BRACKET; EXH PIPE 8-98227-677-0 01 1 1504- ● ●
271 RUBBER; HANGER,RR PIPE 8-97289-169-0 01 1 1504- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91180-110-0 02 1 1504- ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1504- ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1504- ● ●

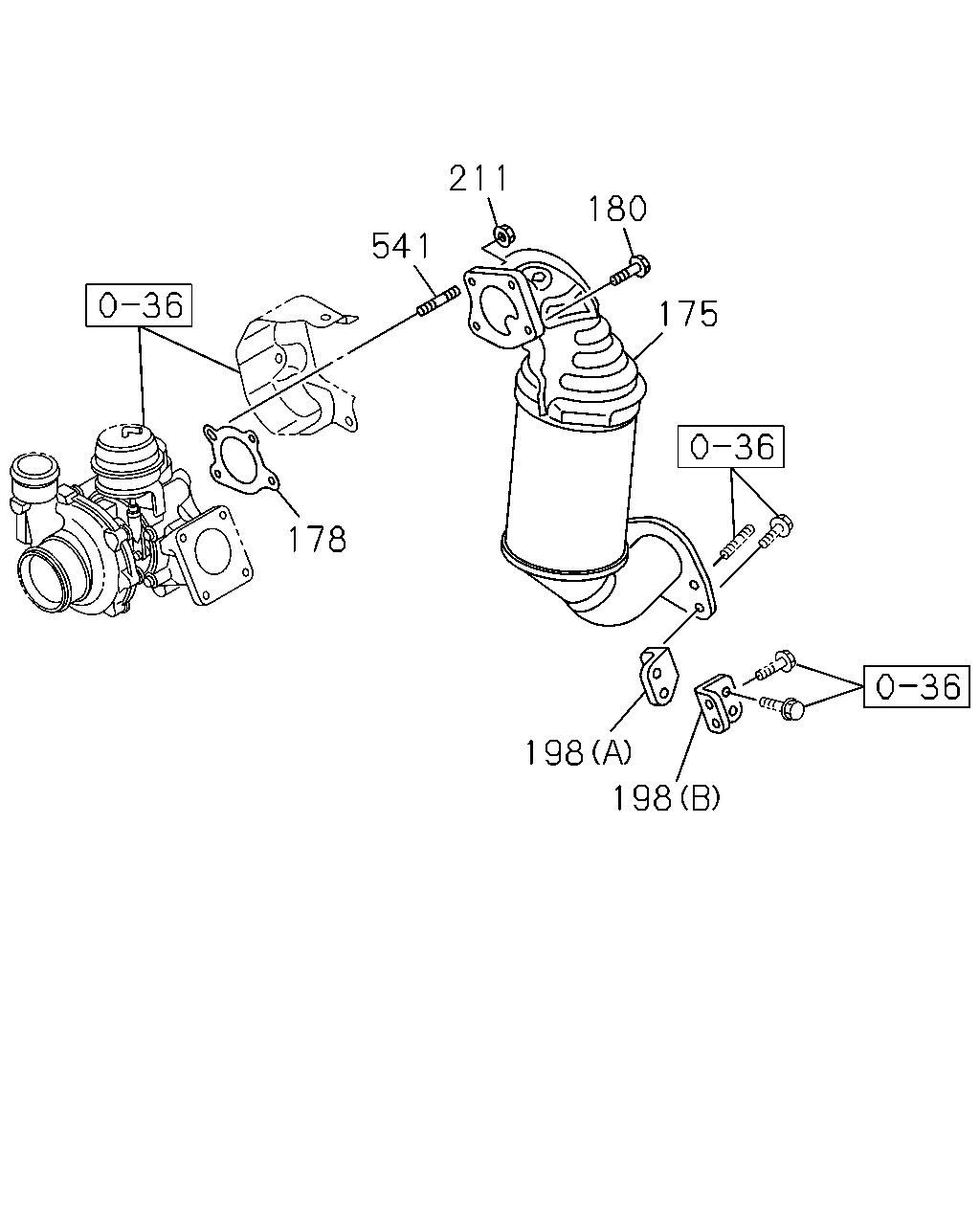

çizim 471756
211 541 180 175 198 198 178
BalonParca AdiParca NoAdetTipApplied Date A B
175 CONVERTER; CATALYST 8-97435-008-0 01 1 1504- ● ●
178 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1504- ● ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE 		8-97378-077-0 02 1 1504- ● ●
198 BRACKET; CONV MTG
(B) 		8-98196-696-1 01 1 1504- ● ●
198 BRACKET; CONV MTG
(A) 		8-98203-739-0 01 1 1504- ● ●
211 NUT; CONV
M8 FLANGE 		8-97379-384-0 02 1 1504- ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 		8-97378-062-0 02 1 1504- ● ●
