1-41 — FUEL PIPING; CHASSIS (#160359) — 44 parça

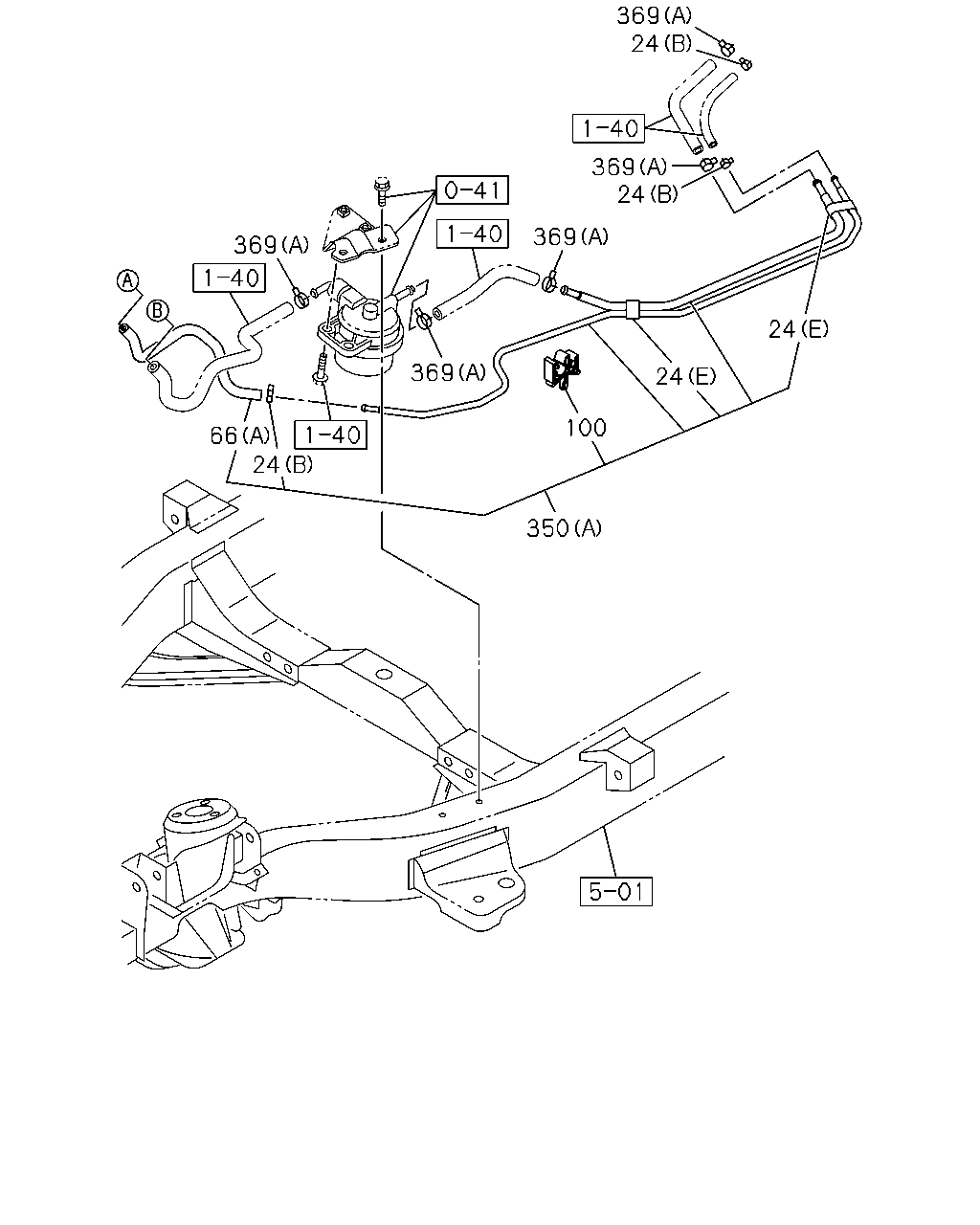

çizim 471197
350 100 24 24 369 24 369 24 369 66 369 24 369
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(C) ID=16 		8-98030-682-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 07 1 1504- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 		8-98052-395-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(A) ID=13 		8-98150-357-0 02 1 1504- ● ●
24 CLIP; FUEL HOSE
(E) 		8-98233-886-0 02 1 1504- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98100-725-2 01 1 1504- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) 		8-98248-703-0 01 1 1504- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1504- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
4X2(UCB***) (A) 		8-98248-732-0 01 1 1504- ●
350 PIPE; FUEL,DEL & RET
(B) 		8-98113-293-6 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
(C) 		8-98248-692-0 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
4X4(UCS***) (A) 		8-98248-733-0 01 1 1504- ●
350 PIPE; FUEL,DEL & RET
(A) 		8-98248-733-0 01 1 1504- ●
369 CLAMP; HOSE,FUEL
(C) ID=16 		8-98030-682-0 01 1 1504- ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 		8-98052-395-0 08 1 1504- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 		8-98186-048-0 01 1 1504- ● ●

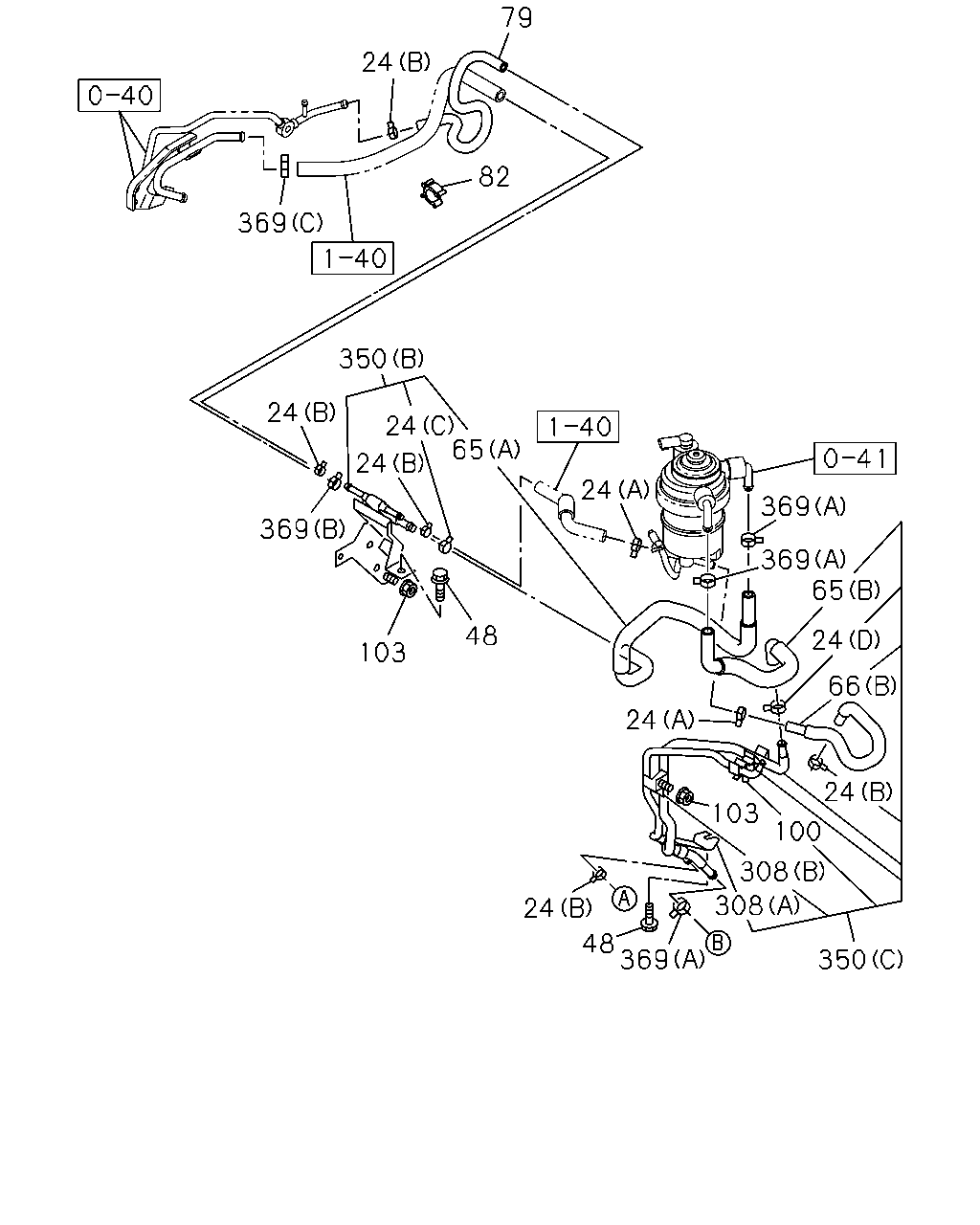

çizim 471280
24 48 369 308 350 100 103 24 48 103 369 24 24 24 350 65 24 369 65 369 24 66 24 308 369 24 82 79
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(C) ID=16 		8-98030-682-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98051-892-0 07 1 1504- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 		8-98052-395-0 01 1 1504- ● ●
24 CLIP; FUEL HOSE
(A) ID=13 		8-98150-357-0 02 1 1504- ● ●
24 CLIP; FUEL HOSE
(E) 		8-98233-886-0 02 1 1504- ● ●
48 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1504- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-98100-729-4 01 1 1504- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98100-731-2 01 1 1504- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) 		8-98100-725-2 01 1 1504- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) 		8-98248-703-0 01 1 1504- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98222-040-0 01 1 1504- ● ●
82 CLIP; FUEL HOSE
ID=17 		8-94382-792-1 01 1 1504- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1504- ● ●
100 CLIP; FUEL PIPE 8-98113-581-0 01 1 1504- ● ●
103 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1504- ● ●
308 BRACKET; FUEL PIPE
(B) 		8-98233-889-0 01 1 1504- ● ●
308 BRACKET; FUEL PIPE
(A) 		8-98233-890-0 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
4X2(UCB***) (A) 		8-98248-732-0 01 1 1504- ●
350 PIPE; FUEL,DEL & RET
(B) 		8-98113-293-6 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
(C) 		8-98248-692-0 01 1 1504- ● ●
350 PIPE; FUEL,DEL & RET
4X4(UCS***) (A) 		8-98248-733-0 01 1 1504- ●
350 PIPE; FUEL,DEL & RET
(A) 		8-98248-733-0 01 1 1504- ●
369 CLAMP; HOSE,FUEL
(C) ID=16 		8-98030-682-0 01 1 1504- ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 		8-98052-395-0 08 1 1504- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 		8-98186-048-0 01 1 1504- ● ●
