Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#160358) — 40 parça

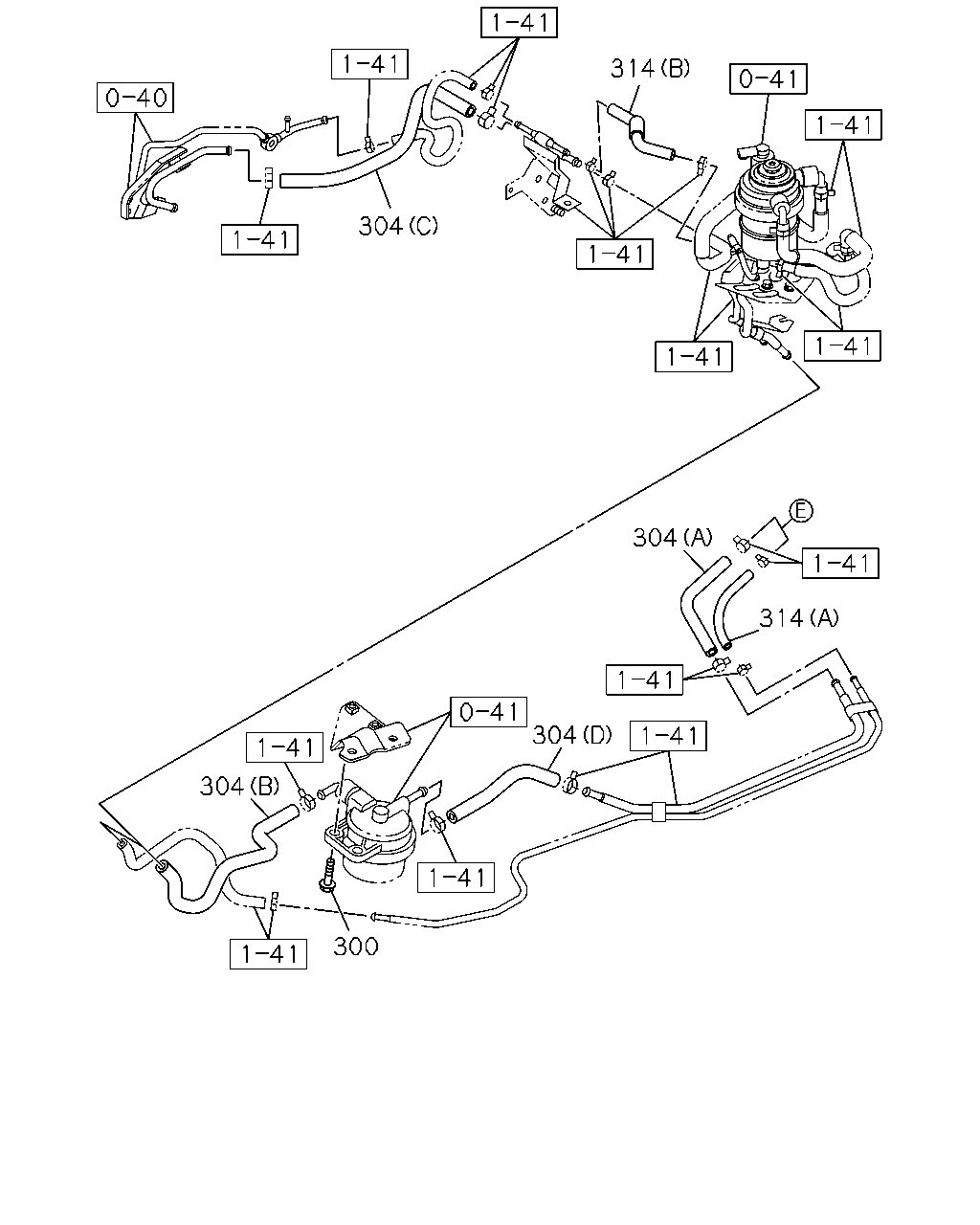

304 314 304 314 304 300 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; BRKT TO BODY M8X30 FLANGE	0-28650-830-0	02	1	1504-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X2(UCB***) (D)	8-98196-949-0	01	1	1504-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-98164-019-0	01	1	1504-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (C)	8-98222-043-0	01	1	1504-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B)	8-98248-704-0	01	1	1504-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP 4X4(UCS***) (D)	8-97351-313-0	01	1	1504-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (D)	8-97351-313-0	01	1	1504-		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98100-723-2	01	1	1504-	●	●
314	HOSE; RUBBER,FUEL RETURN (A)	8-98258-246-0	01	1	1504-	●	●

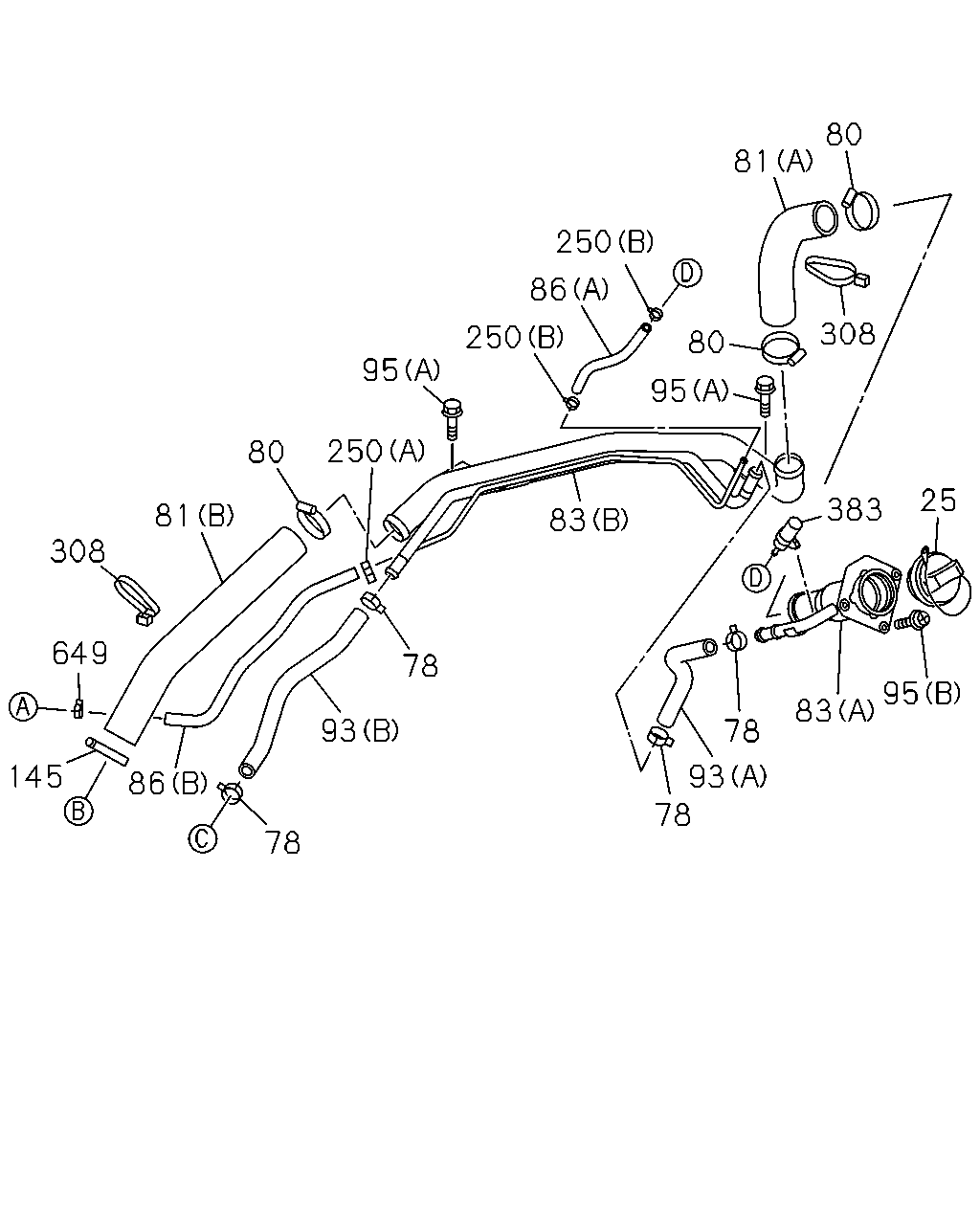

80 81 308 25 383 95 83 78 93 78 80 95 250 86 250 95 250 83 80 78 81 93 308 649 86 145 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK	8-98088-024-0	01	1	1504-	●	●
78	CLIP; BREATHER HOSE ID=20.8	8-97944-127-0	04	1	1504-	●	●
80	CLIP; FILLER HOSE	8-98232-268-0	03	1	1504-	●	●
81	HOSE; FUEL FILLER (A)	8-98230-137-0	01	1	1504-	●	●
81	HOSE; FUEL FILLER (B)	8-98230-139-0	01	1	1504-	●	●
83	NECK; FUEL FILLER (A)	8-98230-128-0	01	1	1504-	●	●
83	NECK; FUEL FILLER (B)	8-98230-133-0	01	1	1504-	●	●
86	HOSE; EVAP (A)	8-98230-134-0	01	1	1504-	●	●
86	HOSE; EVAP (B)	8-98230-135-0	01	1	1504-	●	●
93	HOSE; BREATHER,FUEL TANK (A)	8-98230-136-0	01	1	1504-	●	●
93	HOSE; BREATHER,FUEL TANK (B)	8-98230-138-0	01	1	1504-	●	●
95	SCREW; FILLER NECK (A) BOLT M8X20 FLANGE	0-28660-820-0	02	1	1504-	●	●
95	SCREW; FILLER NECK (B)	8-98139-595-0	03	1	1504-	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1504-	●	●
250	CLIP; BAND,EVAP HOSE (A) ID=11.5	8-98051-892-0	01	1	1504-	●	●
250	CLIP; BAND,EVAP HOSE (B)	8-98232-266-0	02	1	1504-	●	●
308	CLIP; HOSE	8-98234-324-0	02	1	1504-	●	●
383	VALVE; 2 WAY	8-98230-130-0	01	1	1504-	●	●
649	CLAMP; FUEL PIPE ID=11.5	8-98051-892-0	01	1	1504-	●	●

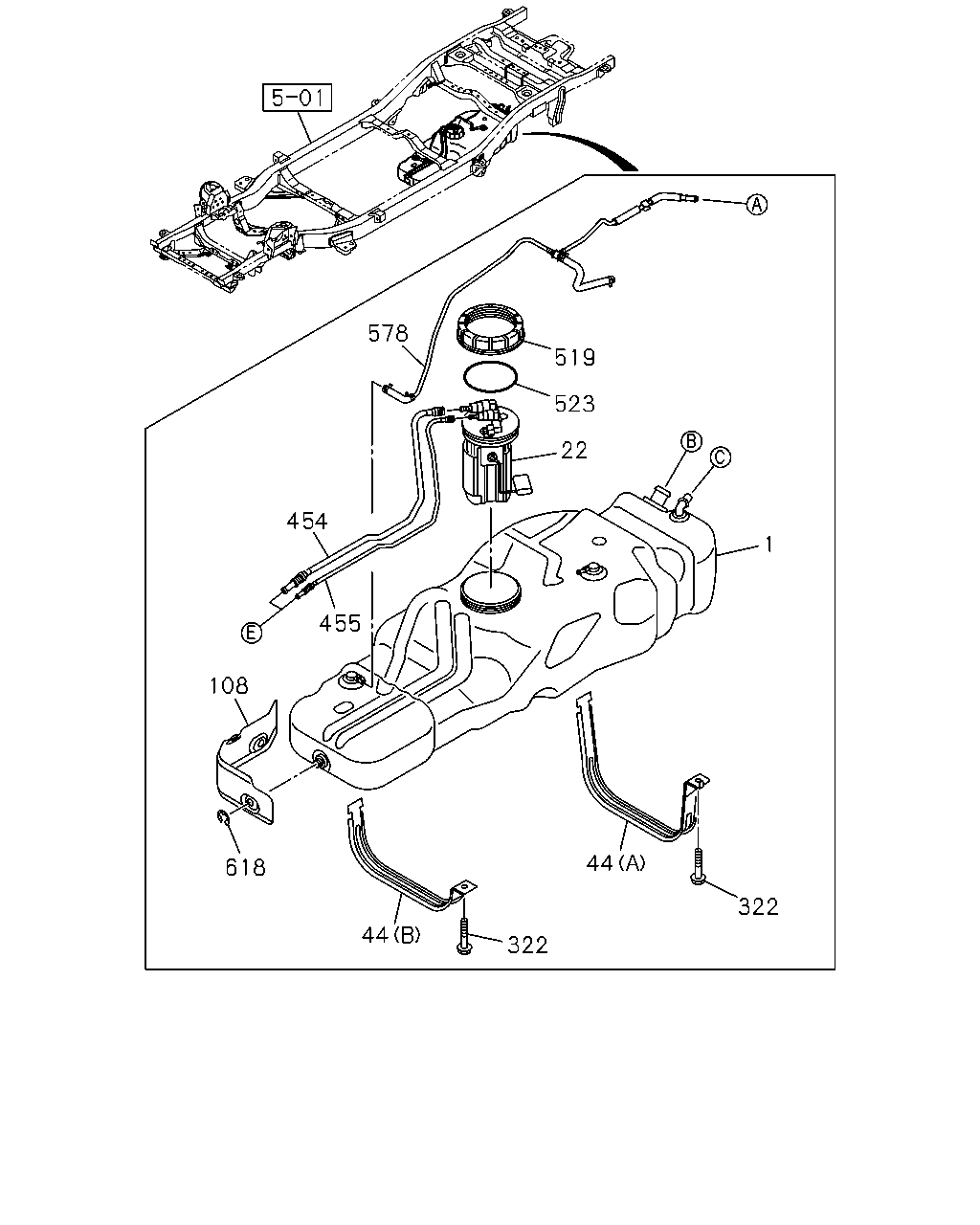

578 519 523 22 1 322 44 322 44 455 454 108 618

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL	8-98212-990-1	01	1	1504-	●	●
22	UNIT; FUEL TANK	8-98212-993-0	01	1	1504-	●	●
44	BAND; FUEL TANK (A)	8-98204-957-0	01	1	1504-	●	●
44	BAND; FUEL TANK (B)	8-98204-958-0	01	1	1504-	●	●
108	PROTECTOR; FUEL TANK	8-98212-997-0	01	1	1504-	●	●
322	BOLT; BRKT FIX M10X50 FLANGE	8-97301-165-0	02	1	1504-	●	●
454	PIPE; FUEL,DELIVERY	8-98212-991-0	01	1	1504-	●	●
455	PIPE; FUEL,RETURN	8-98212-992-0	01	1	1504-	●	●
519	RETAINER; FUEL PUMP	8-98212-995-0	01	1	1504-	●	●
523	SEAL; FUEL SENSOR	8-98212-994-0	01	1	1504-	●	●
578	TUBE; FUEL,EVAPO	8-98228-330-0	01	1	1504-	●	●
618	RETAINER; FUEL TANK	8-98212-998-0	03	1	1504-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
