◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#160351) — 14 parça

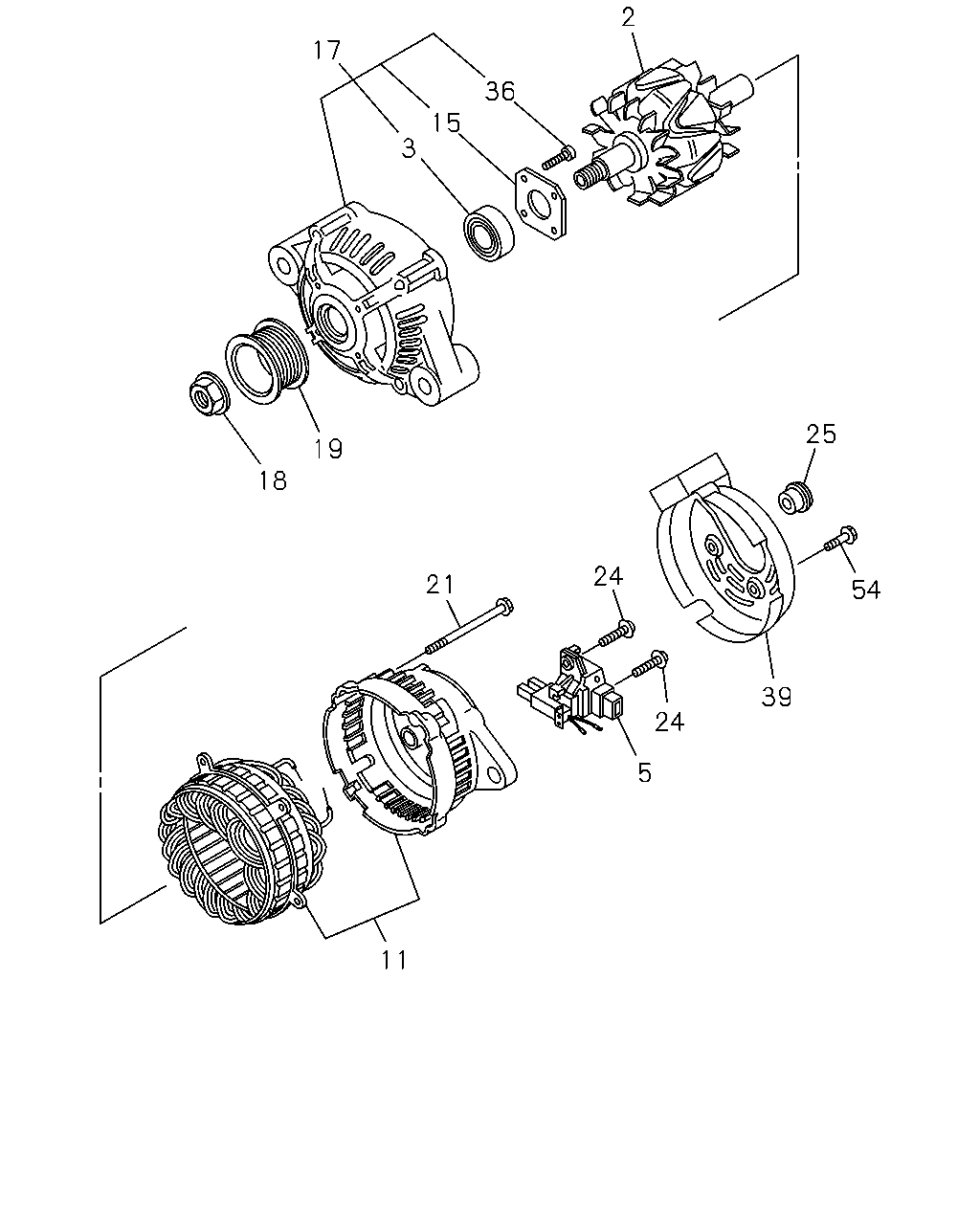

çizim 471138
15 17 3 36 2 18 19 21 24 24 5 11 39 54 25
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
ASM PART: A = 8-98225-157-0 		8-98231-360-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: A = 8-98225-157-0 		8-98231-355-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 8-98225-157-0 		8-97378-926-0 01 1 -
11 COVER; RR,GEN
ASM PART: A = 8-98225-157-0 		8-98231-362-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-98225-157-0 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98225-157-0 		8-98231-353-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98225-157-0 		8-94123-043-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98225-157-0 		8-98231-352-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-98225-157-0 		8-98231-358-0 04 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98225-157-0 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
ASM PART: A = 8-98225-157-0 		8-98231-365-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-98225-157-0 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-98225-157-0 		8-98231-363-0 01 1 -
54 BOLT; RECTIFIER,GEN
ASM PART: A = 8-98225-157-0 		8-98231-359-0 03 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
