◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#160330) — 46 parça

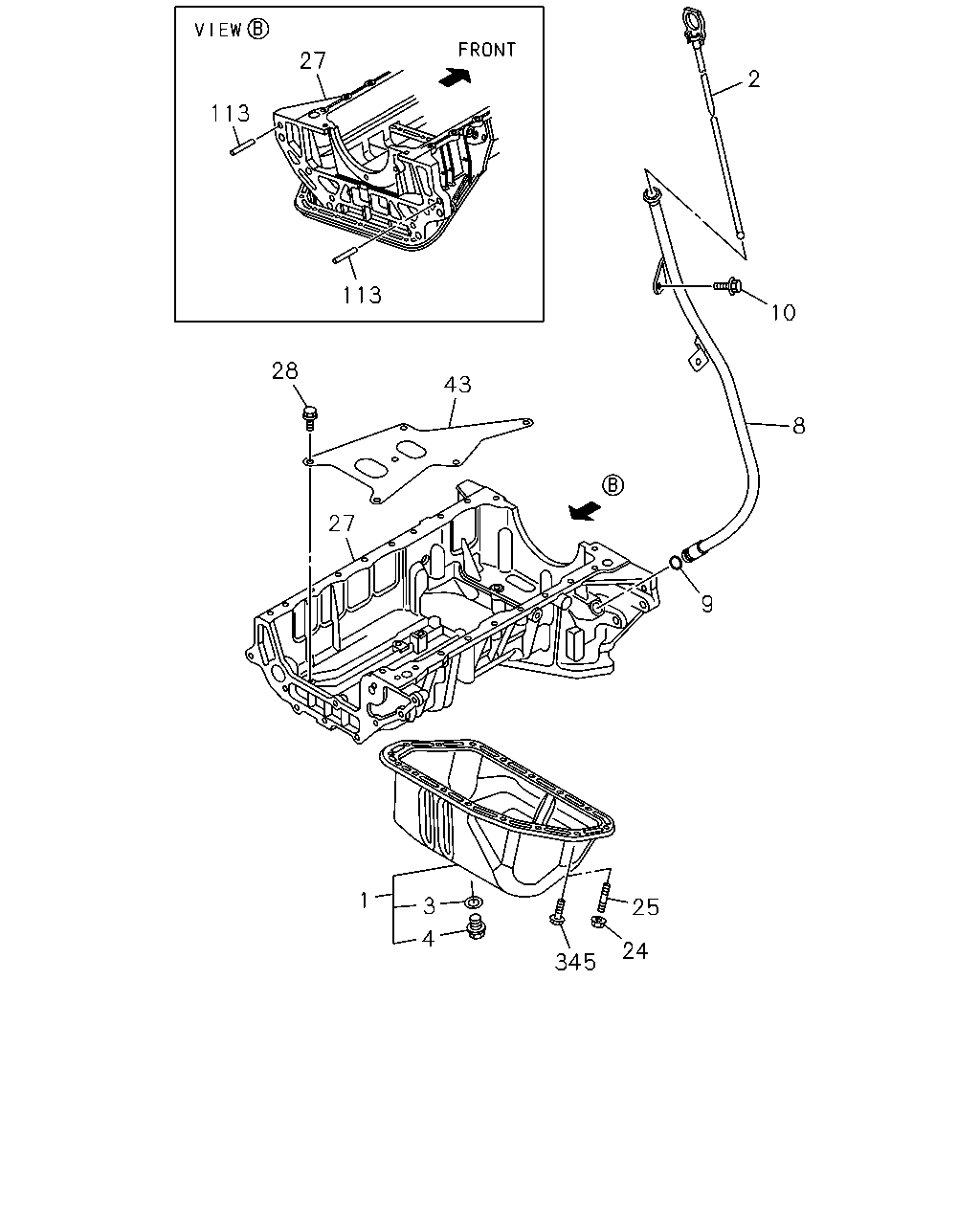

çizim 471003
8 10 2 113 113 27 43 27 28 1 3 4 345 25 24 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2(UCB***) 		8-98156-371-0 01 1 1504- ●
1 PAN ASM; OIL
4X4(UCS***) 		8-98132-001-2 01 1 1504- ●
1 PAN ASM; OIL 8-98132-001-2 01 1 1504- ●
2 GAUGE; OIL LEVEL
4X2(UCB***) 		8-98228-327-2 01 1 1504- ●
2 GAUGE; OIL LEVEL
4X4(UCS***) 		8-98228-328-2 01 1 1504- ●
2 GAUGE; OIL LEVEL 8-98228-328-2 01 1 1504- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1504- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1504- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98228-277-2 01 1 1504- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8 		8-98034-629-0 01 1 1504- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE 		0-28050-816-0 01 1 1504- ● ●
24 NUT; OIL PAN
M8 FLANGE CHI 		0-91180-208-0 02 1 1504- ● ●
25 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1504- ● ●
27 CRANKCASE
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 		8-98225-709-3 01 1 1504- ●
27 CRANKCASE
M/T MUA 5 SPEED 5H(MWQ) 		8-98225-707-3 01 1 1504- ●
27 CRANKCASE
4X4(UCS***) 		8-98225-710-2 01 1 1504- ●
27 CRANKCASE 8-98225-710-2 01 1 1504- ●
28 BOLT; CRANKCASE TO C/BL
M8X16 FLANGE 		0-28050-816-0 06 1 1504- ● ●
43 PLATE; CRANKCASE 8-98225-711-0 01 1 1504- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) OD=10 L=32 		9-08161-032-0 02 1 1504- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2(UCB***) M8X12 FLANGE 		0-28050-812-0 21 1 1504- ●
345 BOLT; SENSOR,OIL LEVEL
4X4(UCS***) M8X12 FLANGE 		0-28050-812-0 14 1 1504- ●
345 BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE 		0-28050-812-0 14 1 1504- ●

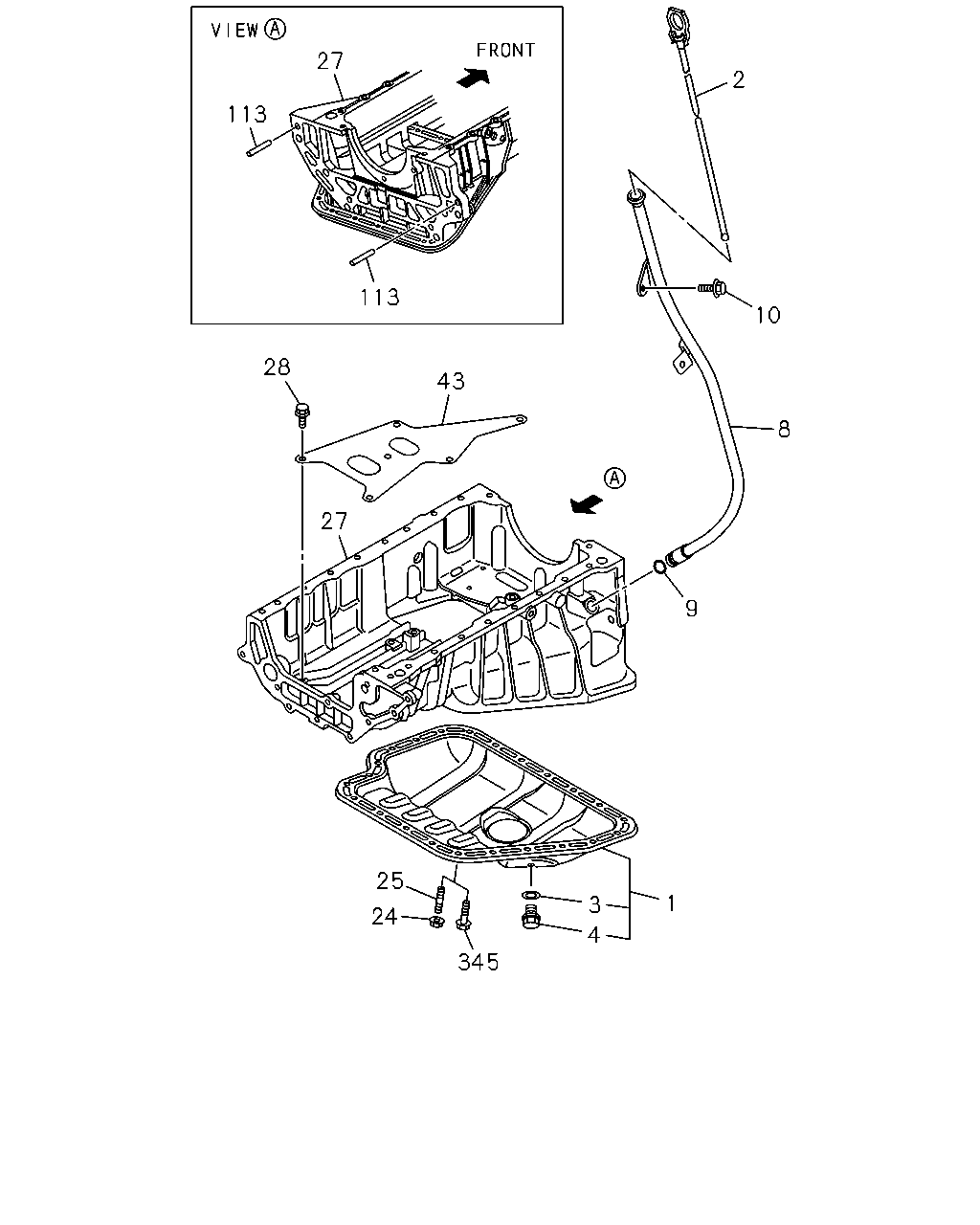

çizim 471022
27 113 113 28 27 25 24 345 4 3 1 9 8 10 2 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2(UCB***) 		8-98156-371-0 01 1 1504- ●
1 PAN ASM; OIL
4X4(UCS***) 		8-98132-001-2 01 1 1504- ●
1 PAN ASM; OIL 8-98132-001-2 01 1 1504- ●
2 GAUGE; OIL LEVEL
4X2(UCB***) 		8-98228-327-2 01 1 1504- ●
2 GAUGE; OIL LEVEL
4X4(UCS***) 		8-98228-328-2 01 1 1504- ●
2 GAUGE; OIL LEVEL 8-98228-328-2 01 1 1504- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1504- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1504- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98228-277-2 01 1 1504- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8 		8-98034-629-0 01 1 1504- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE 		0-28050-816-0 01 1 1504- ● ●
24 NUT; OIL PAN
M8 FLANGE CHI 		0-91180-208-0 02 1 1504- ● ●
25 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1504- ● ●
27 CRANKCASE
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 		8-98225-709-3 01 1 1504- ●
27 CRANKCASE
M/T MUA 5 SPEED 5H(MWQ) 		8-98225-707-3 01 1 1504- ●
27 CRANKCASE
4X4(UCS***) 		8-98225-710-2 01 1 1504- ●
27 CRANKCASE 8-98225-710-2 01 1 1504- ●
28 BOLT; CRANKCASE TO C/BL
M8X16 FLANGE 		0-28050-816-0 06 1 1504- ● ●
43 PLATE; CRANKCASE 8-98225-711-0 01 1 1504- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) OD=10 L=32 		9-08161-032-0 02 1 1504- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2(UCB***) M8X12 FLANGE 		0-28050-812-0 21 1 1504- ●
345 BOLT; SENSOR,OIL LEVEL
4X4(UCS***) M8X12 FLANGE 		0-28050-812-0 14 1 1504- ●
345 BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE 		0-28050-812-0 14 1 1504- ●
