0-10 — CYLINDER HEAD COVER (#160327) — 14 parça

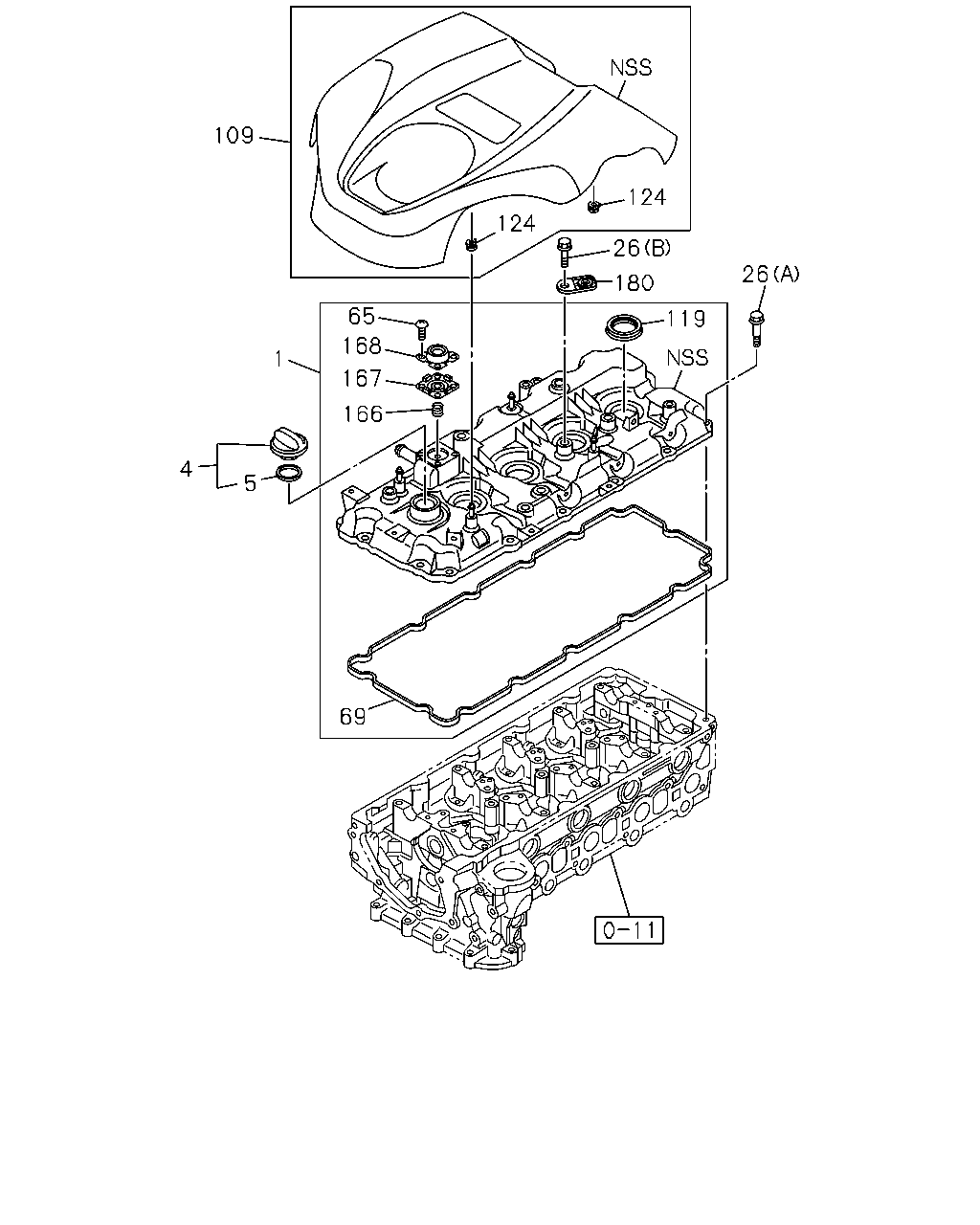

çizim 471012
69 5 4 1 166 167 168 65 119 26 180 26 124 124 109
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-98228-367-4 01 1 1504- ● ●
4 CAP; OIL FILLER 8-98026-084-0 01 1 1504- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 1504- ● ●
26 BOLT; CYL HD COVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1504- ● ●
26 BOLT; CYL HD COVER
(A) M6X25.7 FLANGE 		8-98228-370-0 15 1 1504- ● ●
65 SCREW; ADAPTER
M4X10 		8-98209-387-0 04 1 1504- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98228-369-0 01 1 1504- ● ●
109 COVER; ENG 8-98147-401-0 01 1 1504- ● ●
119 COVER; SEAL,NOZZLE 8-98228-371-0 04 1 1504- ● ●
124 RUBBER; MTG,COVER 8-98269-869-0 04 1 1504- ● ●
166 SPRING; VENTILATOR 8-97088-445-0 01 1 1504- ● ●
167 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 1504- ● ●
168 COVER; VENTILATOR 8-98234-092-0 01 1 1504- ● ●
180 DAMPENER; CYL HEAD 8-98244-154-0 01 1 1504- ● ●
