◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#160324) — 87 parça

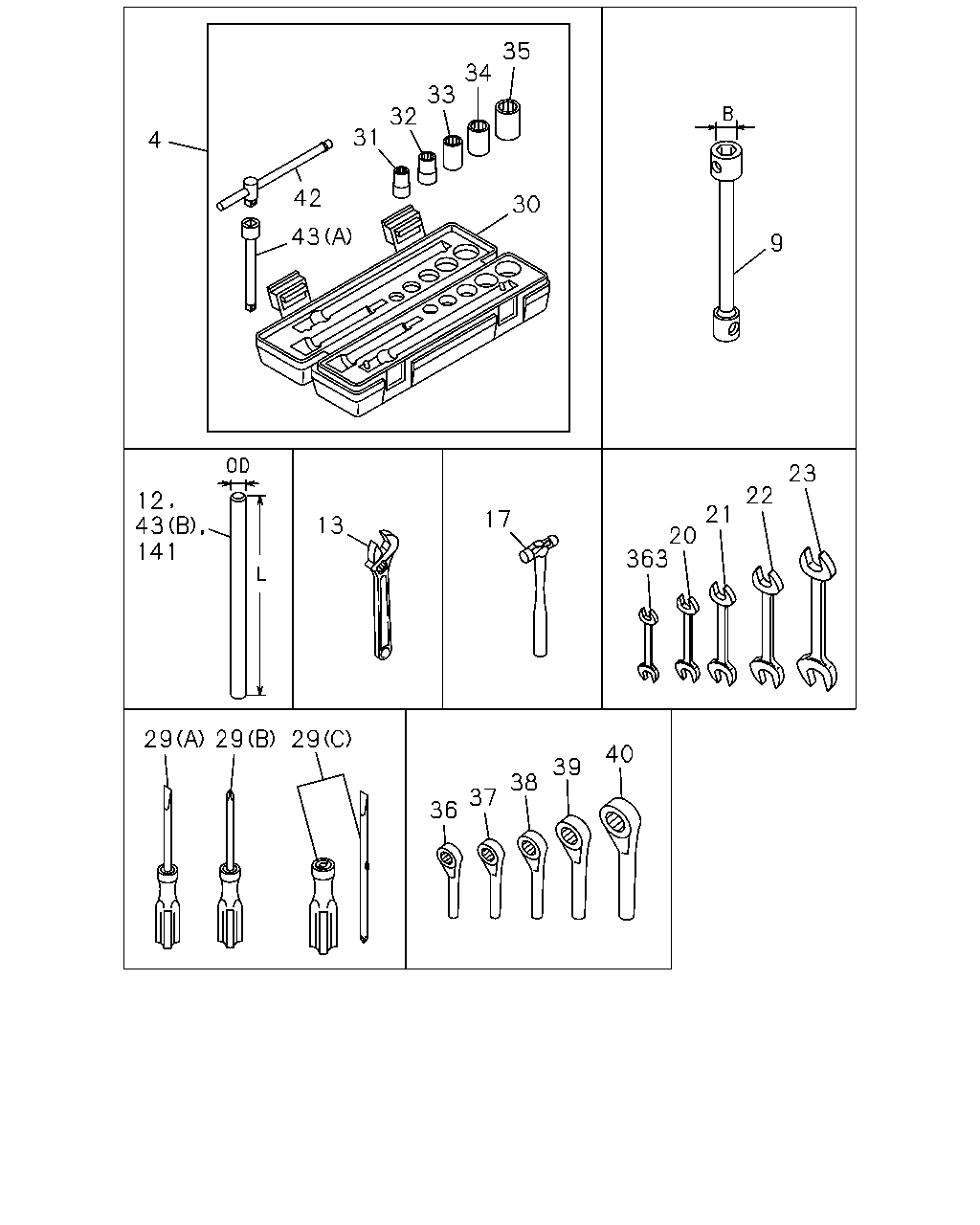

çizim 471379
4 42 43 31 32 33 34 35 30 9 12 141 43 13 17 363 23 22 21 20 29 29 29 36 40 39 38 37
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 1504-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1504-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1504-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1504-
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1504-
17 HAMMER 9-85121-406-0 01 1 1504-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1504-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1504-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1504-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1504-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 1504-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1504-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 1504-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 1504-
31 WRENCH; 12 1-85000-495-0 01 1 1504-
32 WRENCH; 14 1-85000-496-0 01 1 1504-
33 WRENCH; 17 1-85000-497-0 01 1 1504-
34 WRENCH; 19 1-85000-498-0 01 1 1504-
35 WRENCH; 22 1-85000-499-0 01 1 1504-
36 WRENCH; 24 9-85111-377-0 01 1 1504-
37 WRENCH; 27 9-85111-375-0 01 1 1504-
38 WRENCH; 32 9-85111-358-0 01 1 1504-
39 WRENCH; 36 9-85111-374-0 01 1 1504-
40 WRENCH; 41 9-85111-356-0 01 1 1504-
42 HANDLE; SLIDING 1-85000-500-0 01 1 1504-
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 1504-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1504-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 1504-
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 1504-
çizim 471409
135 143 144 145 146 151 153 154 156 160 163 163 167
BalonParca AdiParca NoAdetTipApplied Date
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1504-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1504-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1504-
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 1504-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1504-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1504-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1504-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1504-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1504-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1504-
163 TOOL; SETTING
MJX16P M/T(Y3Z) (B) L=195 		1-85221-162-1 01 1 1507-
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1504-
167 ALIGNER; CLU PILOT
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5 		1-85253-025-0 01 1 1507-

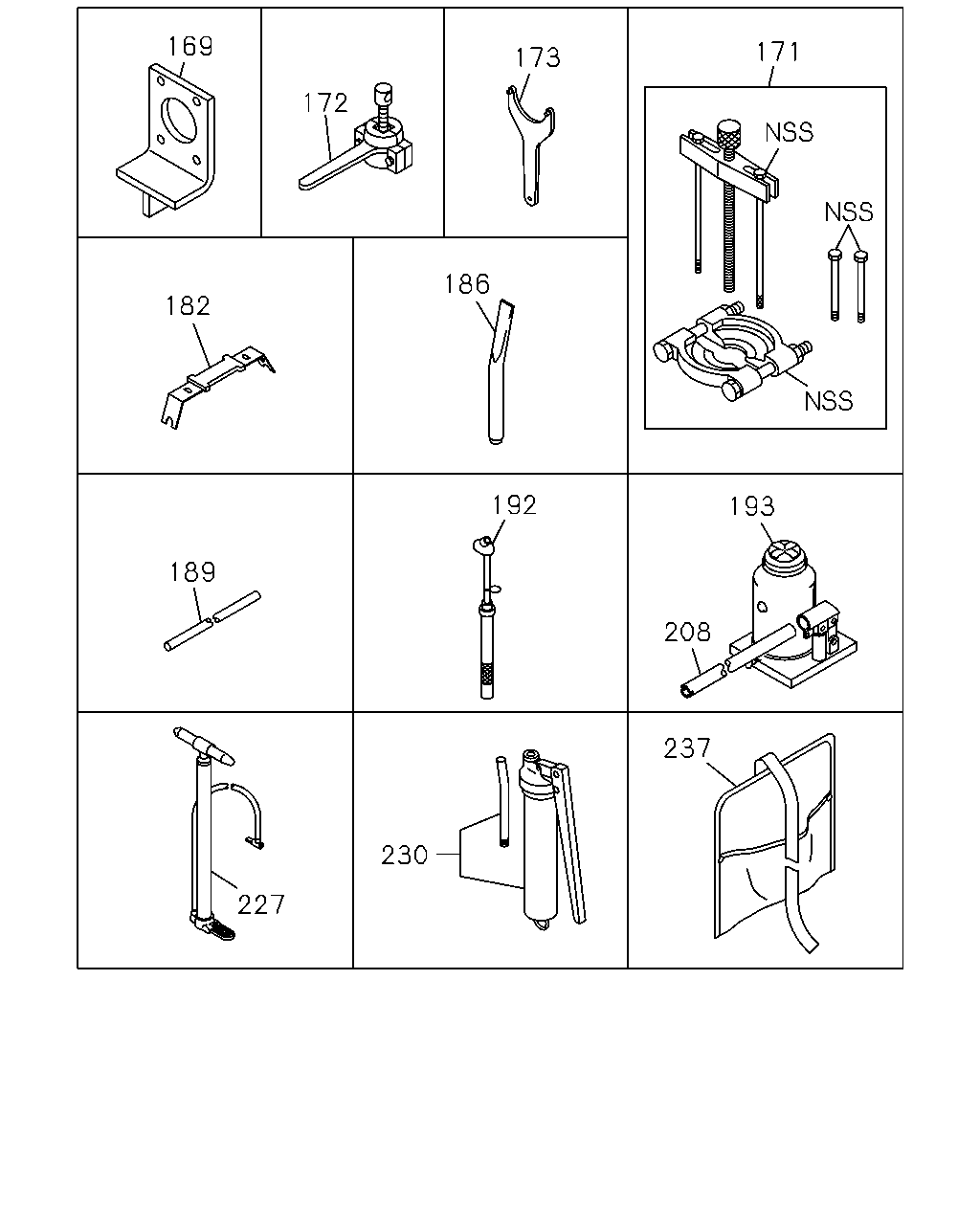

çizim 471416
169 172 173 171 186 182 189 192 193 208 237 230 227
BalonParca AdiParca NoAdetTipApplied Date
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1504-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1504-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1504-
173 WRENCH; COUPLING DRIVER 9-85111-944-0 01 1 1504-
182 REMOVER ASM 1-85239-008-0 01 1 1504-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1504-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 1504-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1504-
193 JACK ASM
15TON 		1-85510-019-2 01 1 1504-
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1504-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1504-
230 PUMP; GREASE 1-85556-007-5 01 1 1504-
237 BAG; TOOL 8-97130-902-1 01 1 1504-

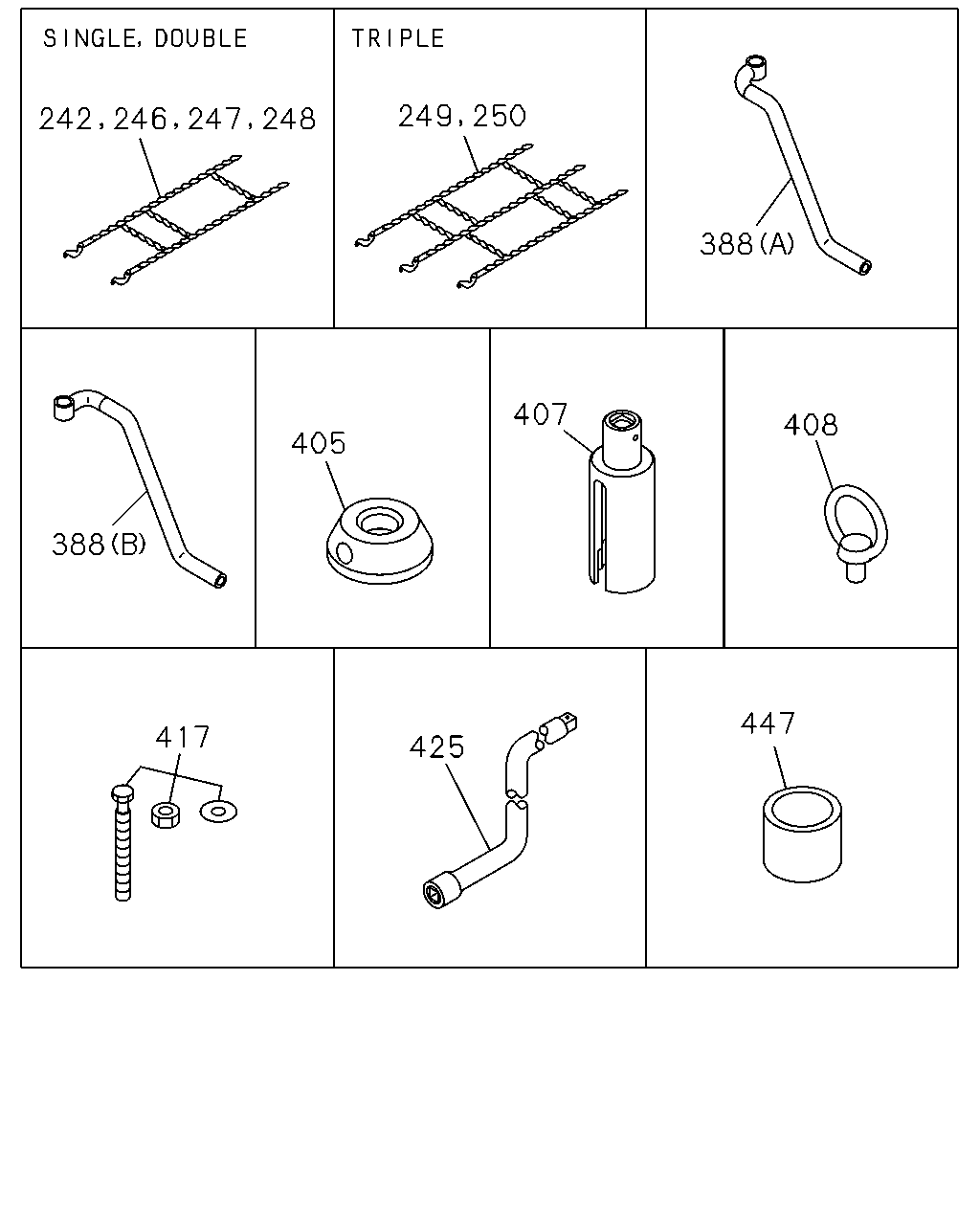

çizim 471421
242 247 246 248 249 250 388 408 407 405 388 417 425 447
BalonParca AdiParca NoAdetTipApplied Date
242 DRAWER ASM; ENG TRANS & DIFF
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 1504-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 1504-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 1504-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 1504-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 1504-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 1504-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 1504-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 1504-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 1504-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1504-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1504-
405 GUIDE; COUNTER
MJX16P M/T(Y3Z) 		1-85221-264-0 01 1 1507-
407 SOCKET; SW
MJX16P M/T(Y3Z) 		1-85221-267-1 01 1 1507-
408 TOOL; SETTING,SHIFT ASSISTER
MJX16P M/T(Y3Z) 		1-85221-262-0 02 1 1507-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1504-
425 EXTENSION; T/M
MJX16P M/T(Y3Z) L=500 		8-98300-004-0 01 1 1602-
425 EXTENSION; T/M
MJX16P M/T(Y3Z) L=550 		1-85221-321-0 01 1 1507-1601
425 EXTENSION; T/M
MJX16P M/T(Y3Z) L=550 		8-98300-006-0 01 1 1602-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65 		8-97608-200-0 01 1 1504-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65 		8-97608-274-0 01 1 1504-
çizim 472030
130 129 128 125 126 127 124 122 121 108 115 120
BalonParca AdiParca NoAdetTipApplied Date
108 WRENCH; SOCKET 9-85113-132-0 01 1 1504-
115 PLIER 8-98282-845-0 01 1 1504-
120 PULLER ASM; MAIN REAR BRG
MJX16P M/T(Y3Z) L=285 		9-85210-184-0 01 1 1507-
121 PULLER ASM; COUNTER REAR
MJX16P M/T(Y3Z) 		1-85210-069-0 01 1 1507-
122 PULLER ASM; COUNTER FRT
MJX16P M/T(Y3Z) 		9-85210-195-0 01 1 1507-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1504-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1504-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1504-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1504-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 1504-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1504-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 1504-
