8-60 — HEATER UNIT; FRONT (#160317) — 38 parça

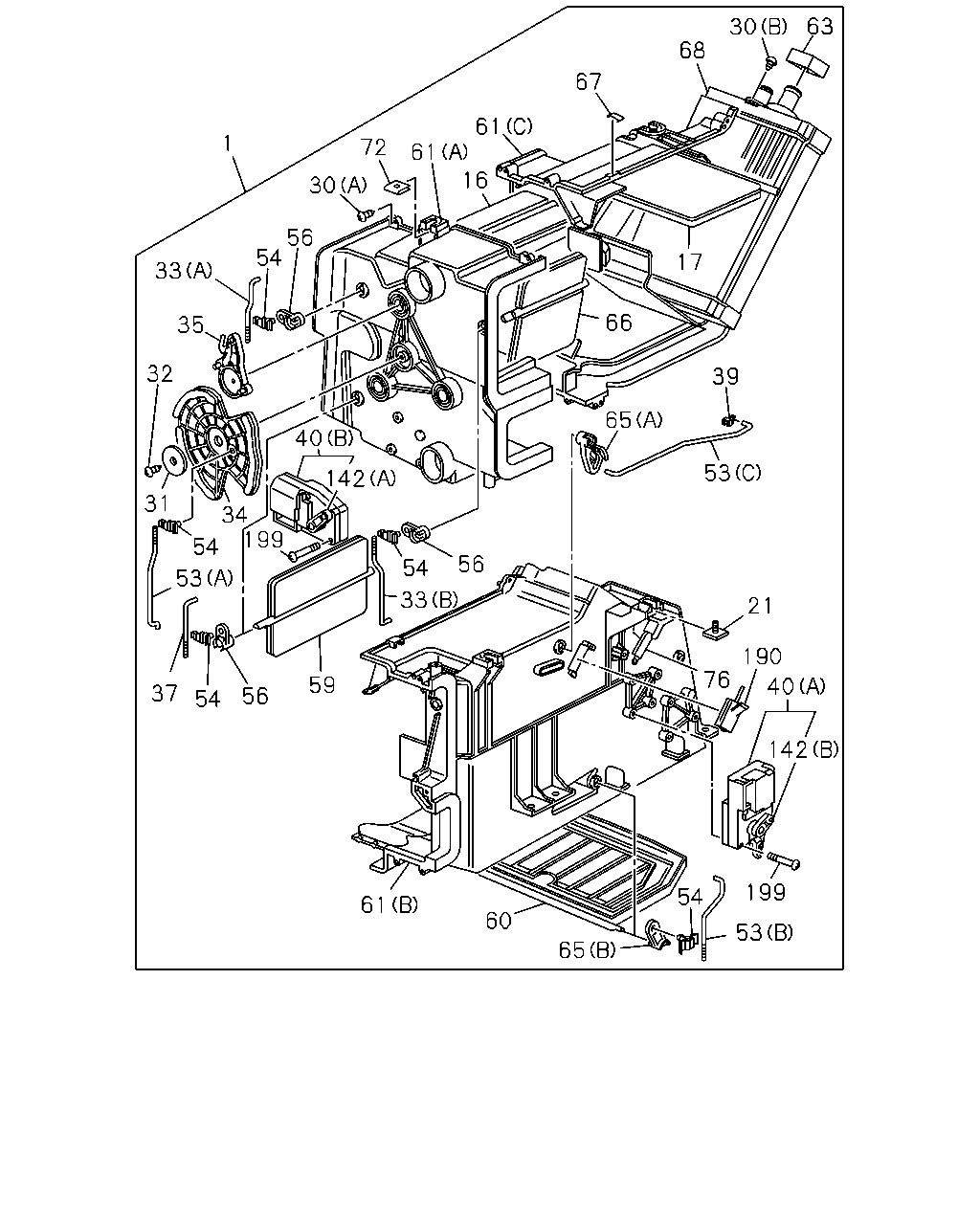

çizim 471870
53 54 199 65 60 61 142 40 190 21 76 33 59 56 54 37 56 54 53 65 39 66 17 142 199 53 54 34 31 32 35 33 1 54 56 30 72 61 61 16 40 67 68 30 63
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-482-0 01 1 1504-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1504-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1504-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1504-
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1504-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1504-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1504-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1504-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1504-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1504-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1504-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1504-
37 ROD; LEVER 1-83579-620-1 01 1 1504-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1504-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1504-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1504-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1504-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1504-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1504-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1504-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1504-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1504-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1504-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1504-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1504-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1504-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1504-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1504-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1504-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1504-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1504-
68 CORE; HTR UNIT 8-98238-475-0 01 1 1504-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1504-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1504-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1504-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1504-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1504-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1504-
