Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#160312) — 230 parça

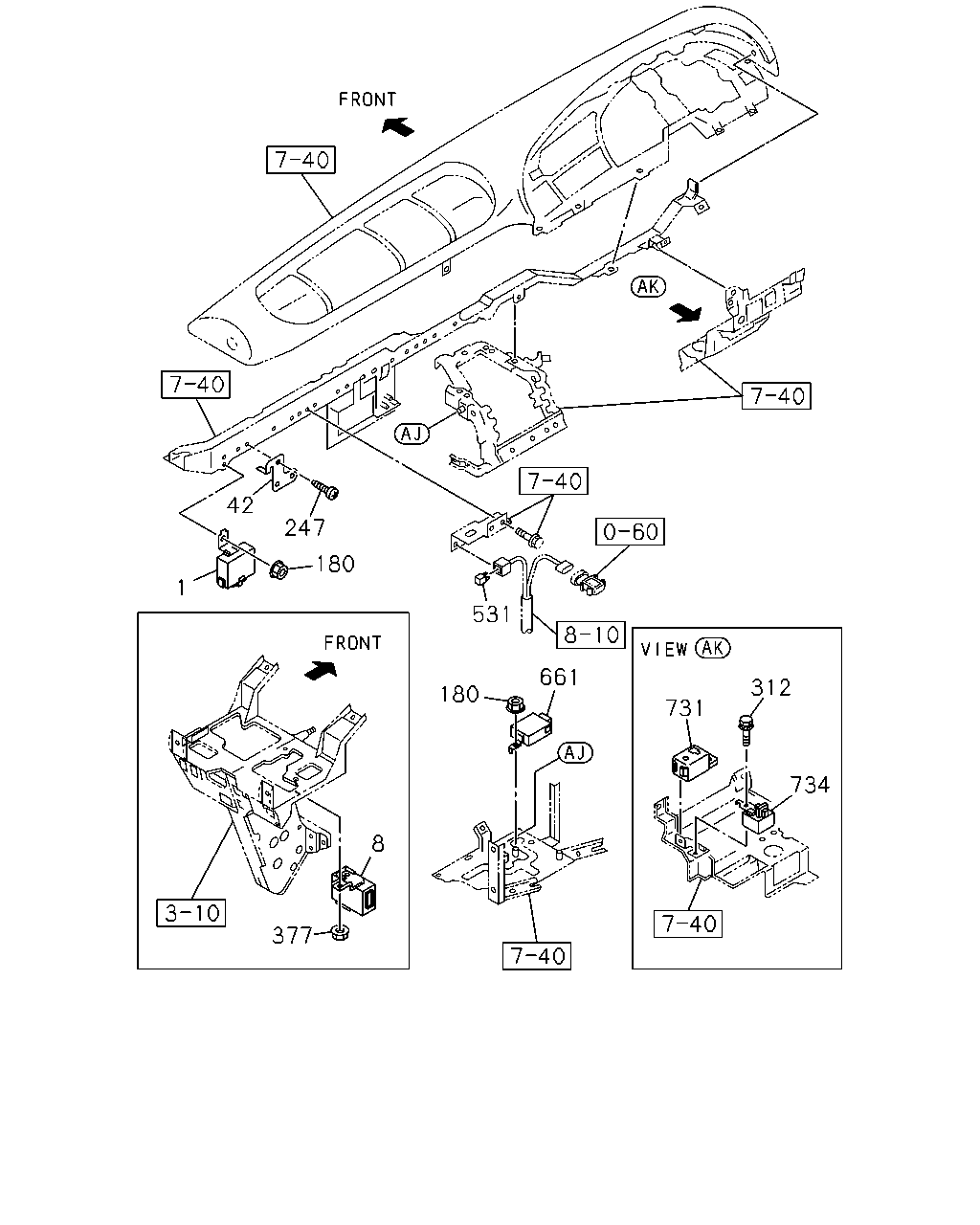

42 247 180 1 531 180 661 731 312 734 377 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1504-
8	RELAY; WIPER	1-83316-002-4	01	1	1504-
42	BRACKET; RELAY	1-82698-128-2	01	1	1504-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	02	1	1504-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1504-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1504-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1507-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1504-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1504-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1504-
731	ALARM; INFORMATION	1-83460-051-1	01	1	1504-
734	ALARM; MULTI	1-83460-106-0	01	1	1504-

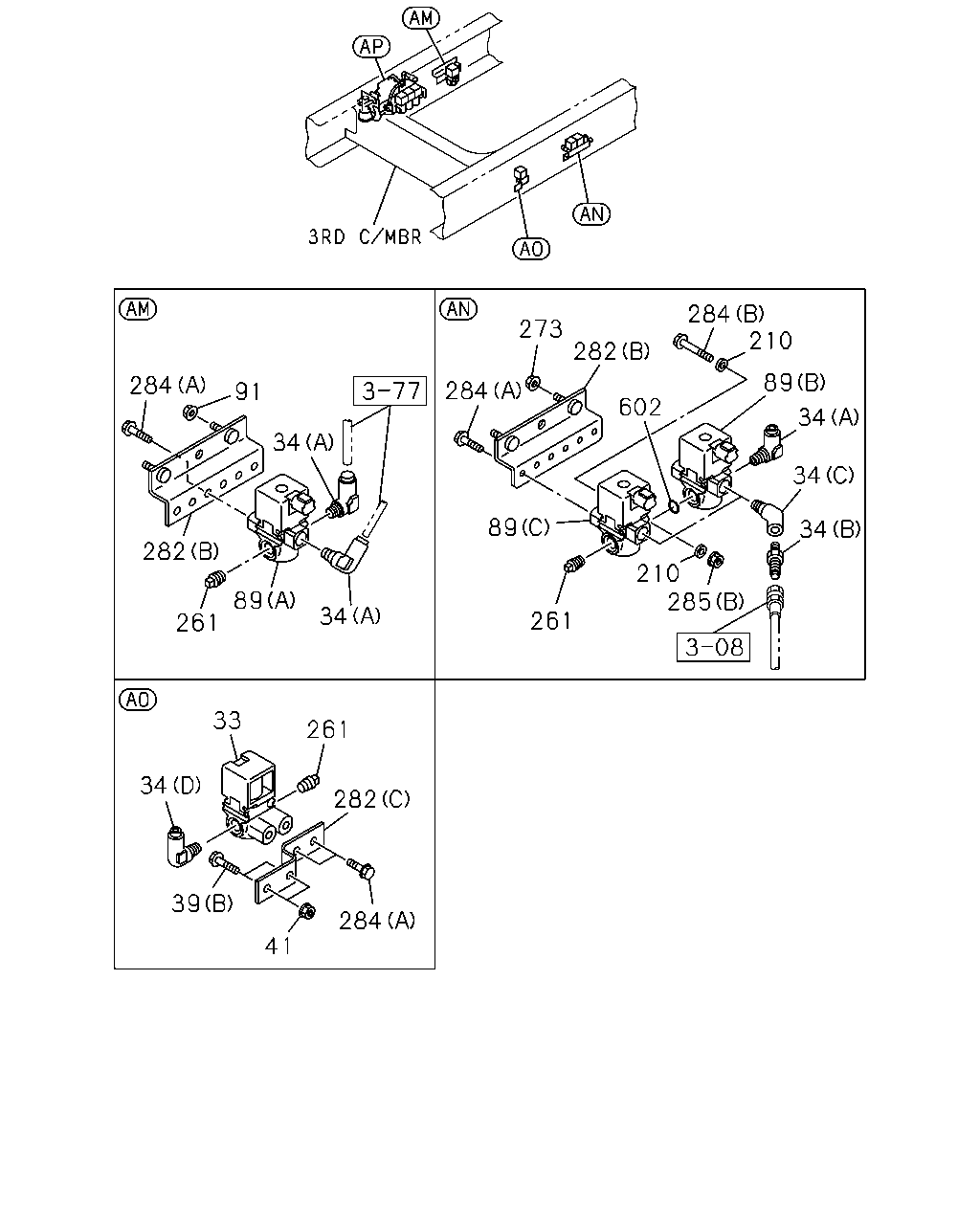

284 91 34 34 89 261 282 33 261 282 284 41 39 34 284 273 602 282 284 210 89 34 34 34 285 210 261 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	1507-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1507-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (C) R1/4 & RC1/4	1-09664-211-0	02	1	1504-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X30 FLANGE	0-28650-830-0	02	1	1507-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	1507-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-095-1	02	1	1507-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-279-1	01	1	1507-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (F)	8-98160-652-1	01	1	1507-
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	01	1	1504-
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1504-
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1504-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1504-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	1507-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1504-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1504-1506
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1504-
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1504-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-278-0	01	1	1507-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1504-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1504-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1504-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (D) M6X50 FLANGE	0-28050-650-0	04	1	1507-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X12 FLANGE	0-28050-812-0	02	1	1507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	1504-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-1506
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-1506
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	05	1	1507-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M5	0-91110-505-0	03	1	1507-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M6 FLANGE	0-91180-106-0	04	1	1507-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	01	1	1504-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	1507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1504-

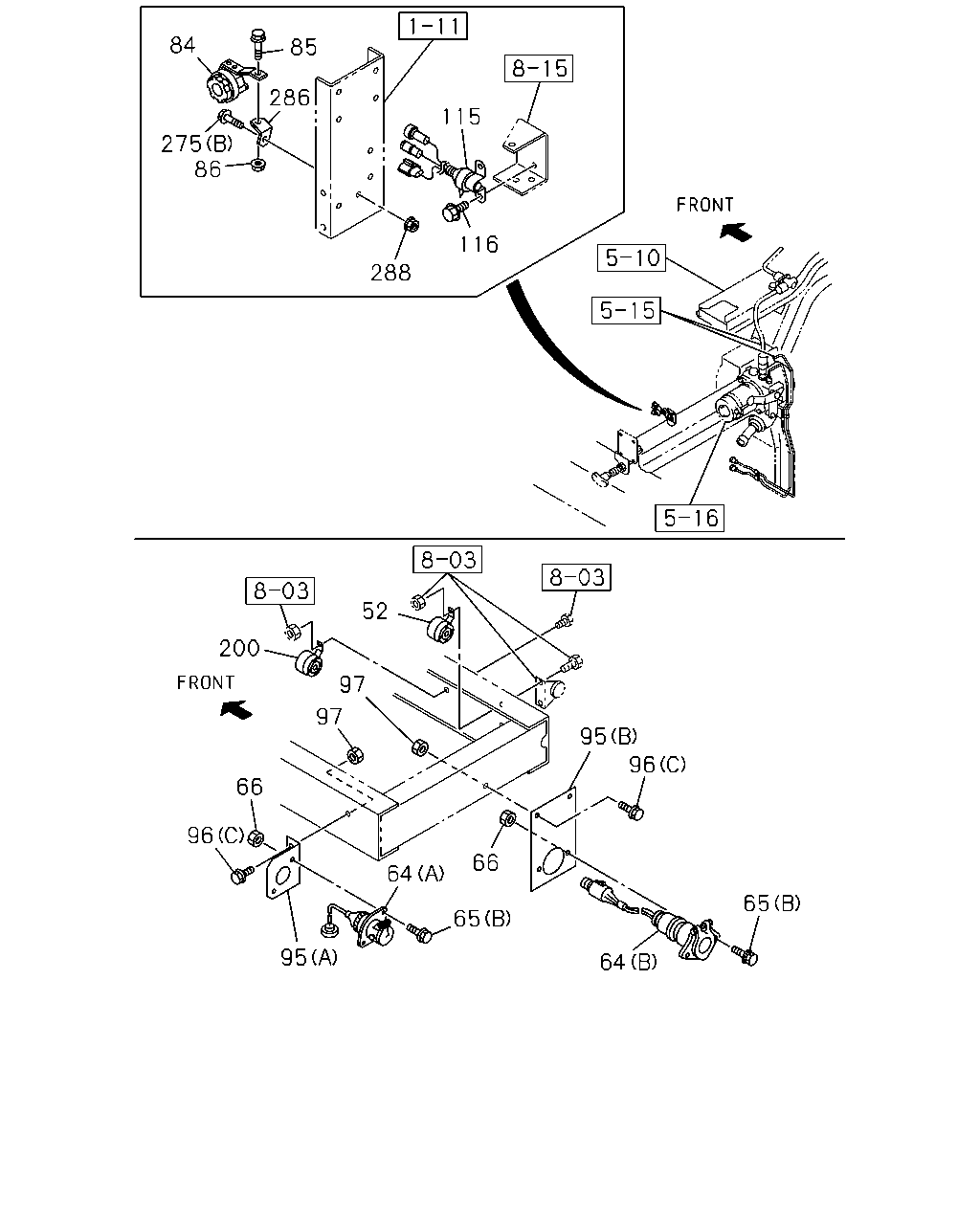

275 86 286 85 84 115 116 288 95 96 65 64 65 66 64 97 97 52 200 66 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK METRO DENSO	8-98069-861-0	01	1	1504-
64	SOCKET; TRAILER (B)	1-82523-019-0	01	1	1504-
64	SOCKET; TRAILER (A) L=860	8-98172-008-0	01	1	1504-
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1504-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (B) M6X25 FLANGE	0-28050-625-0	02	1	1504-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1504-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1504-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1504-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1504-
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	1504-
95	BRACKET; SOCKET,TRAILER (A)	8-97985-137-0	01	1	1504-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-1505
96	BOLT; BRKT FIX (B),(C) M8X25 FLANGE	0-28650-825-0	05	1	1506-
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	1504-1505
96	BOLT; BRKT FIX (A) M10X25 FLANGE	0-28651-025-0	01	1	1504-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1504-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1504-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1504-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	1504-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1504-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1504-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
286	BRACKET	1-82699-199-0	01	1	1504-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1504-

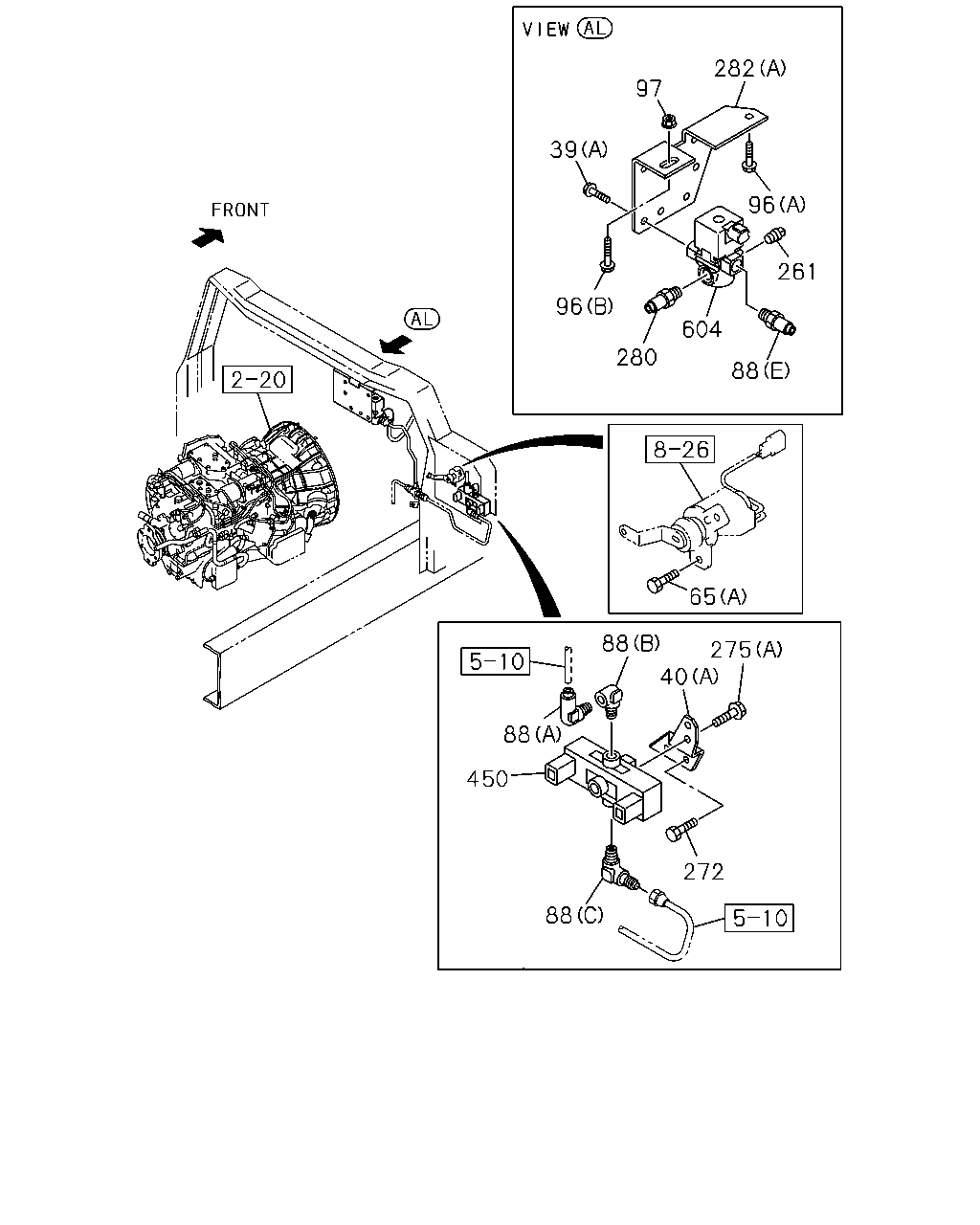

97 282 96 261 88 604 280 96 39 40 275 88 88 450 88 272 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X30 FLANGE	0-28650-830-0	02	1	1507-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (B)	8-98293-783-0	01	1	1507-
40	BRACKET; MAG VLV (A)	1-53458-380-0	01	1	1504-
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1504-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (B) M6X25 FLANGE	0-28050-625-0	02	1	1504-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1507-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1504-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1504-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1504-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1504-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1504-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-1505
96	BOLT; BRKT FIX (B),(C) M8X25 FLANGE	0-28650-825-0	05	1	1506-
96	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	1504-1505
96	BOLT; BRKT FIX (A) M10X25 FLANGE	0-28651-025-0	01	1	1504-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1504-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1504-1506
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1504-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) M10X30 FLANGE	0-28651-030-0	02	1	1507-
272	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1504-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1504-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1504-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1504-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-278-0	01	1	1507-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1504-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1504-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1504-
450	VALVE; MAG	1-53458-378-2	02	1	1504-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1504-

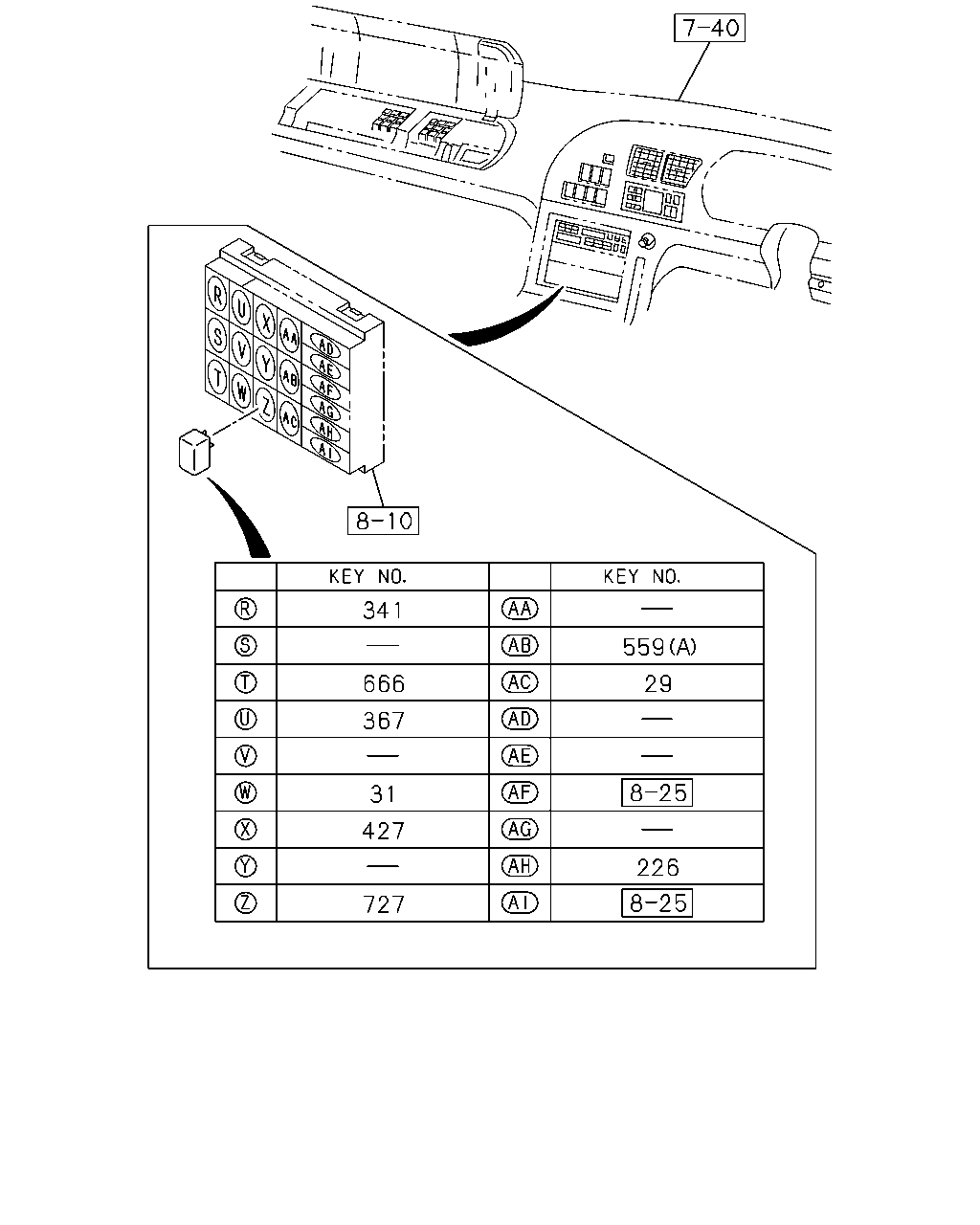

341 666 367 31 427 727 226 29 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1504-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1504-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1504-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1504-1506
367	RELAY; NEUTRAL MJX16P M/T(Y3Z) 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
427	RELAY; RETARDER 24V 10A PANASONIC	8-97173-035-1	02	1	1504-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1507-
666	RELAY; STARTER MJX16P M/T(Y3Z) 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1504-

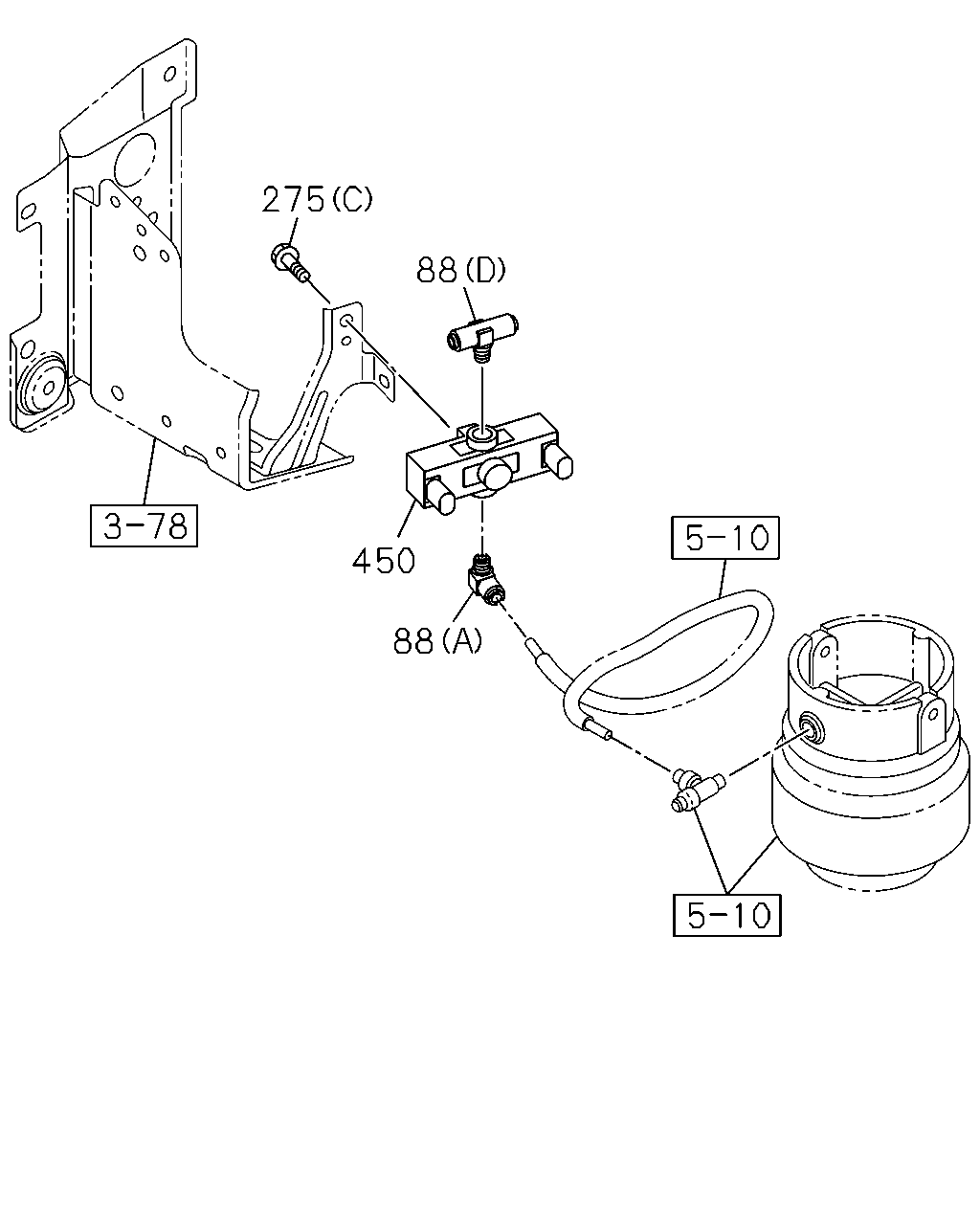

275 88 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1507-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1504-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1504-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1504-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1504-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1504-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1504-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1504-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
450	VALVE; MAG	1-53458-378-2	02	1	1504-

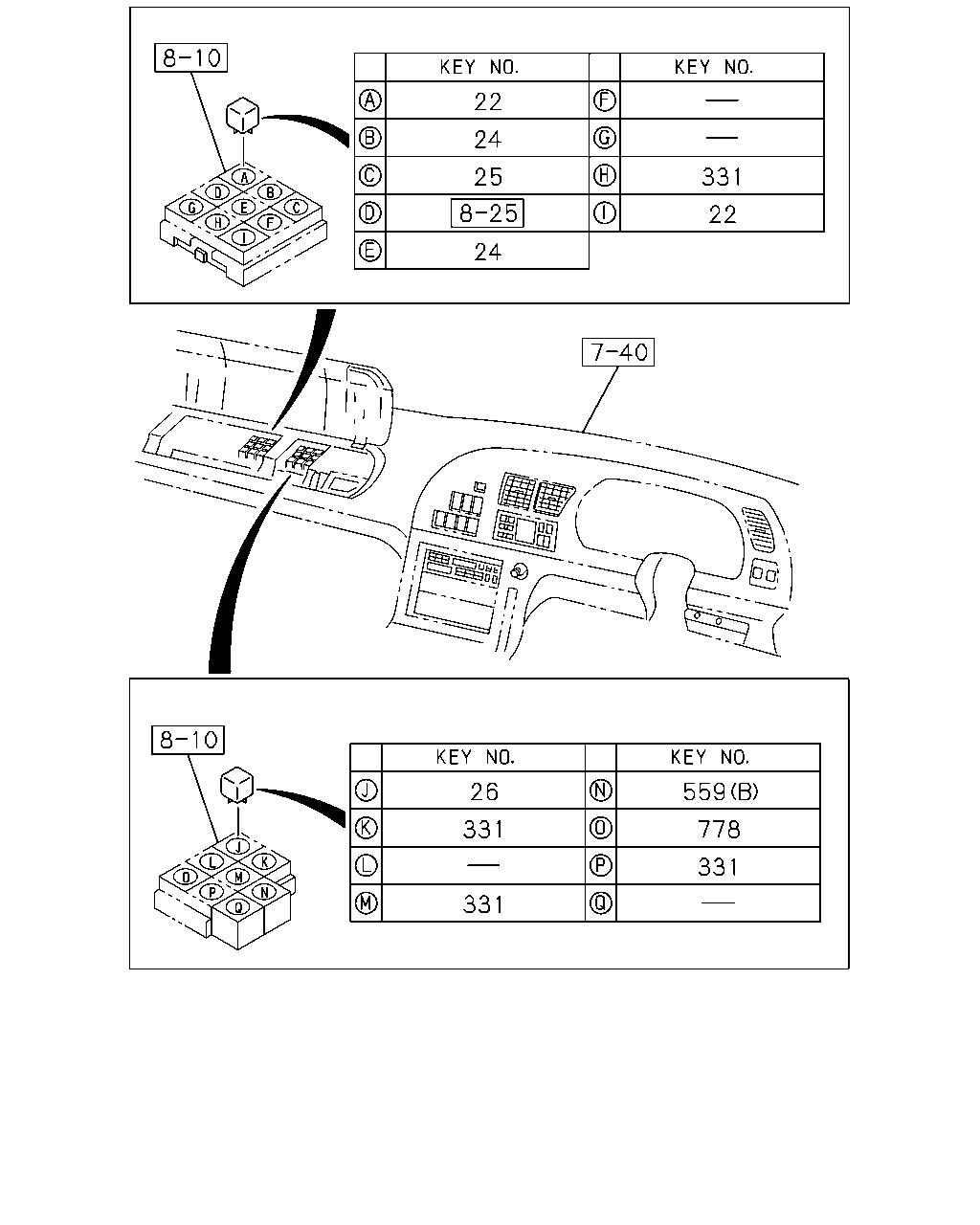

22 25 24 331 559 778 331 331 331 22 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1504-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1504-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1504-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1504-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	04	1	1504-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1507-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1507-
778	RELAY; DEF DCM EXH NOX SENSOR 24V 12.5A PANASONIC	8-97262-933-0	01	1	1504-

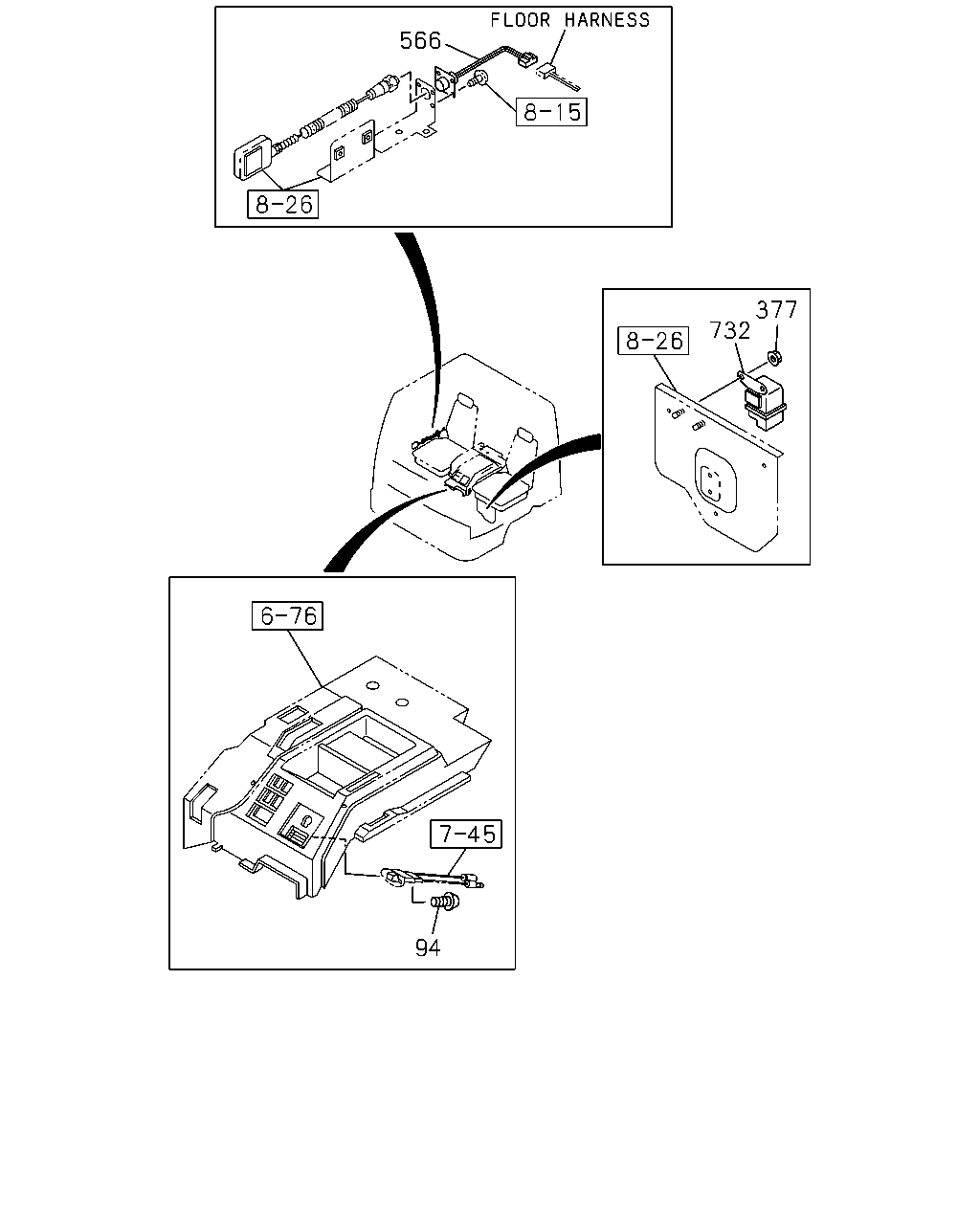

566 732 377 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1504-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1507-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1504-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	1504-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1507-

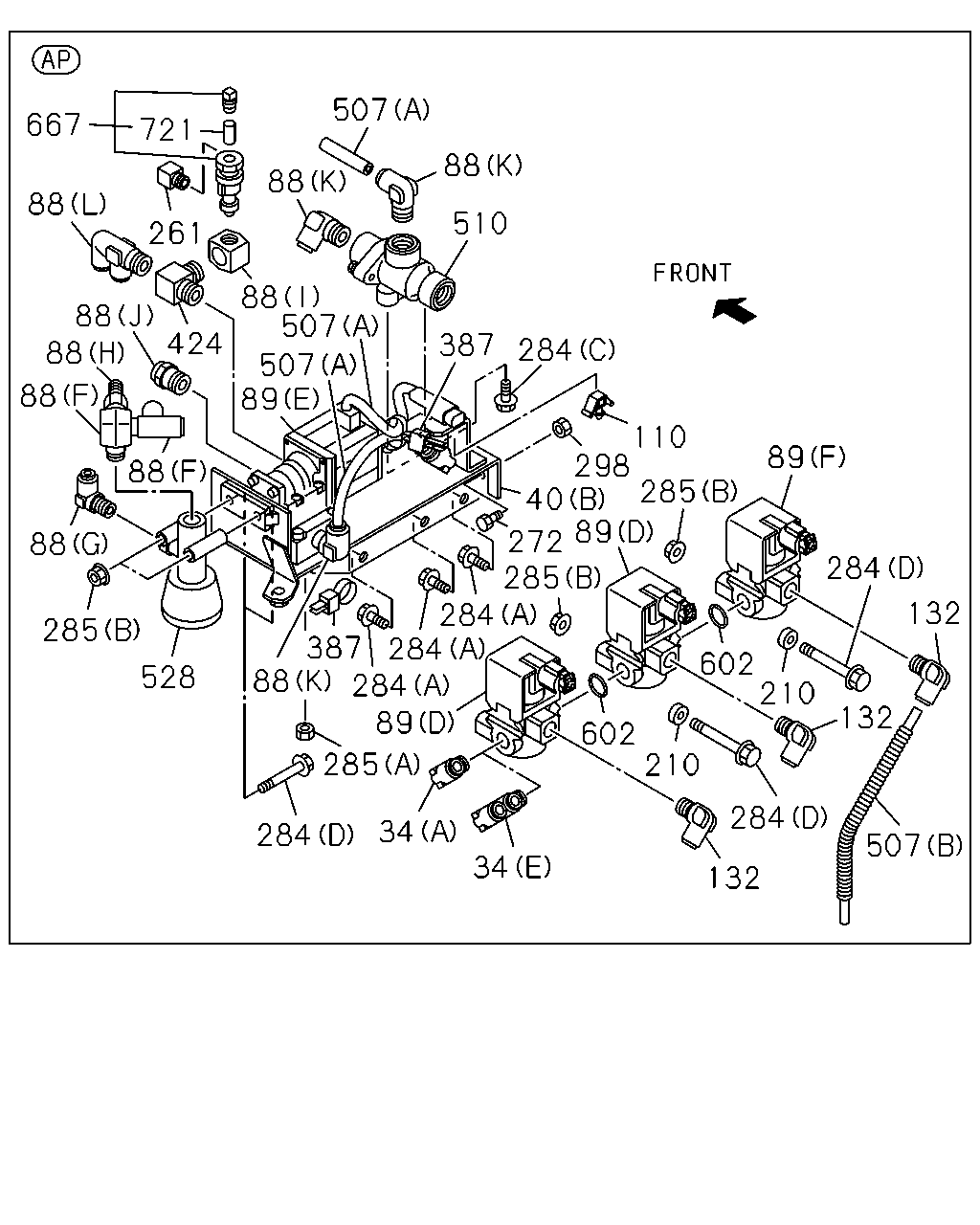

667 507 132 284 132 132 284 210 602 210 602 89 285 89 285 34 34 284 285 110 298 40 272 284 284 284 89 88 387 284 387 528 285 88 88 89 507 507 88 510 88 507 88 261 88 88 88 88 424 721

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1507-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1507-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (C) R1/4 & RC1/4	1-09664-211-0	02	1	1504-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (B)	8-98293-783-0	01	1	1507-
40	BRACKET; MAG VLV (A)	1-53458-380-0	01	1	1504-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	1507-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1507-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1504-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1504-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1504-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1504-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1504-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-095-1	02	1	1507-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-279-1	01	1	1507-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (F)	8-98160-652-1	01	1	1507-
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	01	1	1504-
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1504-
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1504-
110	CLIP; HARNESS,EDS CONT MJX16P M/T(Y3Z) OD=9 H=6	1-09709-178-0	01	1	1507-
132	CONNECTOR; OUTLET,MAG VLV MJX16P M/T(Y3Z) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1507-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	1507-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1504-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1504-1506
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1507-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1504-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) M10X30 FLANGE	0-28651-030-0	02	1	1507-
272	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1504-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (D) M6X50 FLANGE	0-28050-650-0	04	1	1507-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X12 FLANGE	0-28050-812-0	02	1	1507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	1504-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-1506
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-1506
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	05	1	1507-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M5	0-91110-505-0	03	1	1507-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M6 FLANGE	0-91180-106-0	04	1	1507-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	01	1	1504-
298	NUT; MAG VLV MJX16P M/T(Y3Z) M10 FLANGE	0-91180-210-0	02	1	1507-
387	CLIP; BAND MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1507-
424	ADAPTER MJX16P M/T(Y3Z) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1507-
507	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1507-
507	TUBE; NYLON MJX16P M/T(Y3Z) (B)	8-98324-237-0	01	1	1507-
510	VALVE; CHECK MJX16P M/T(Y3Z)	1-48410-531-1	01	1	1507-
528	VALVE; PRESSURE REDUCING MJX16P M/T(Y3Z)	1-48410-744-0	01	1	1507-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	1507-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1504-
667	LUBRICATION MJX16P M/T(Y3Z)	8-98063-001-0	01	1	1507-
721	ELEMENT; LUBRICATION MJX16P M/T(Y3Z)	1-33779-028-0	01	1	1507-

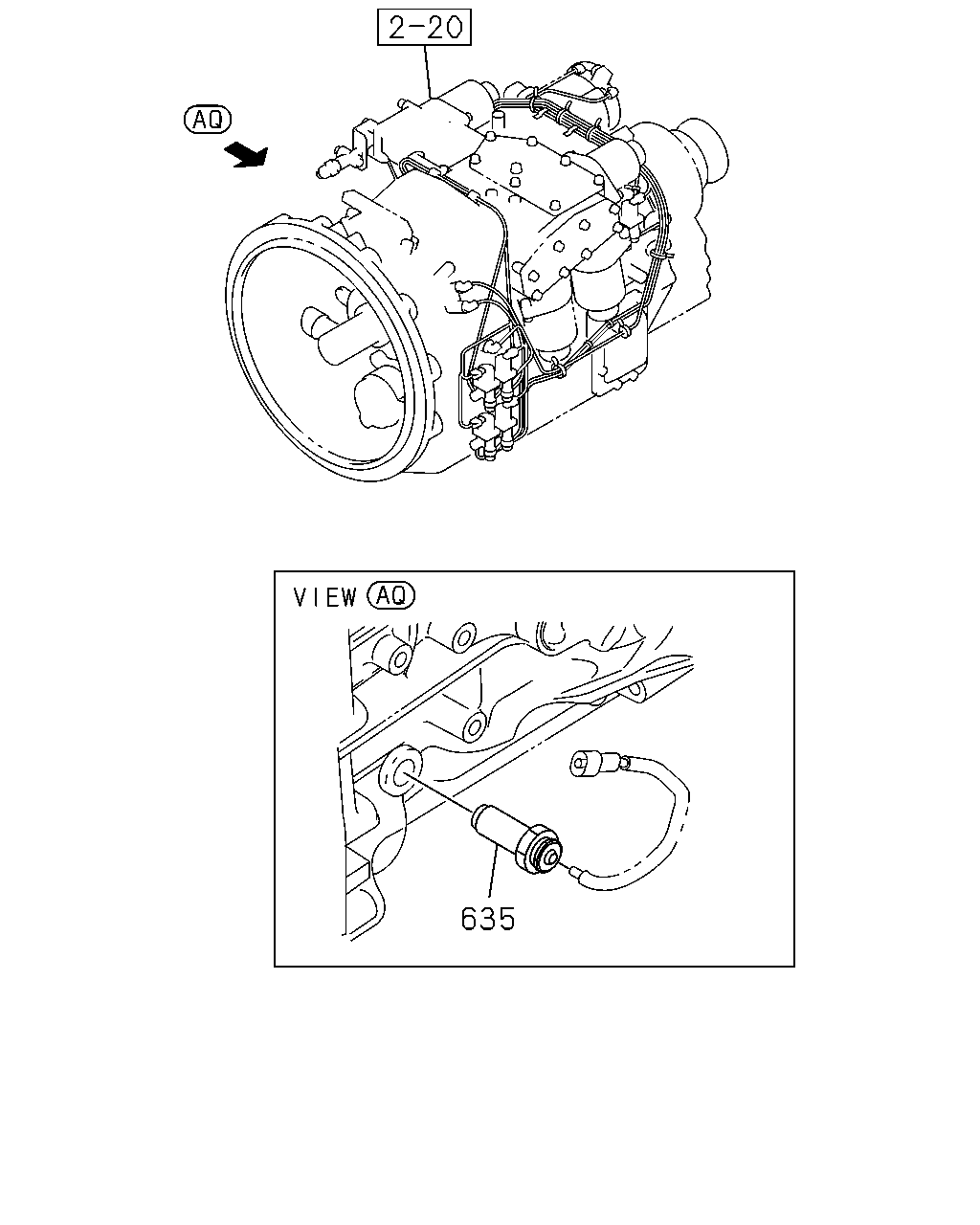

635

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	635	SENSOR; PICK UP,INPUT SHAFT MJX16P M/T(Y3Z)	1-81510-736-1	01	1	1507-

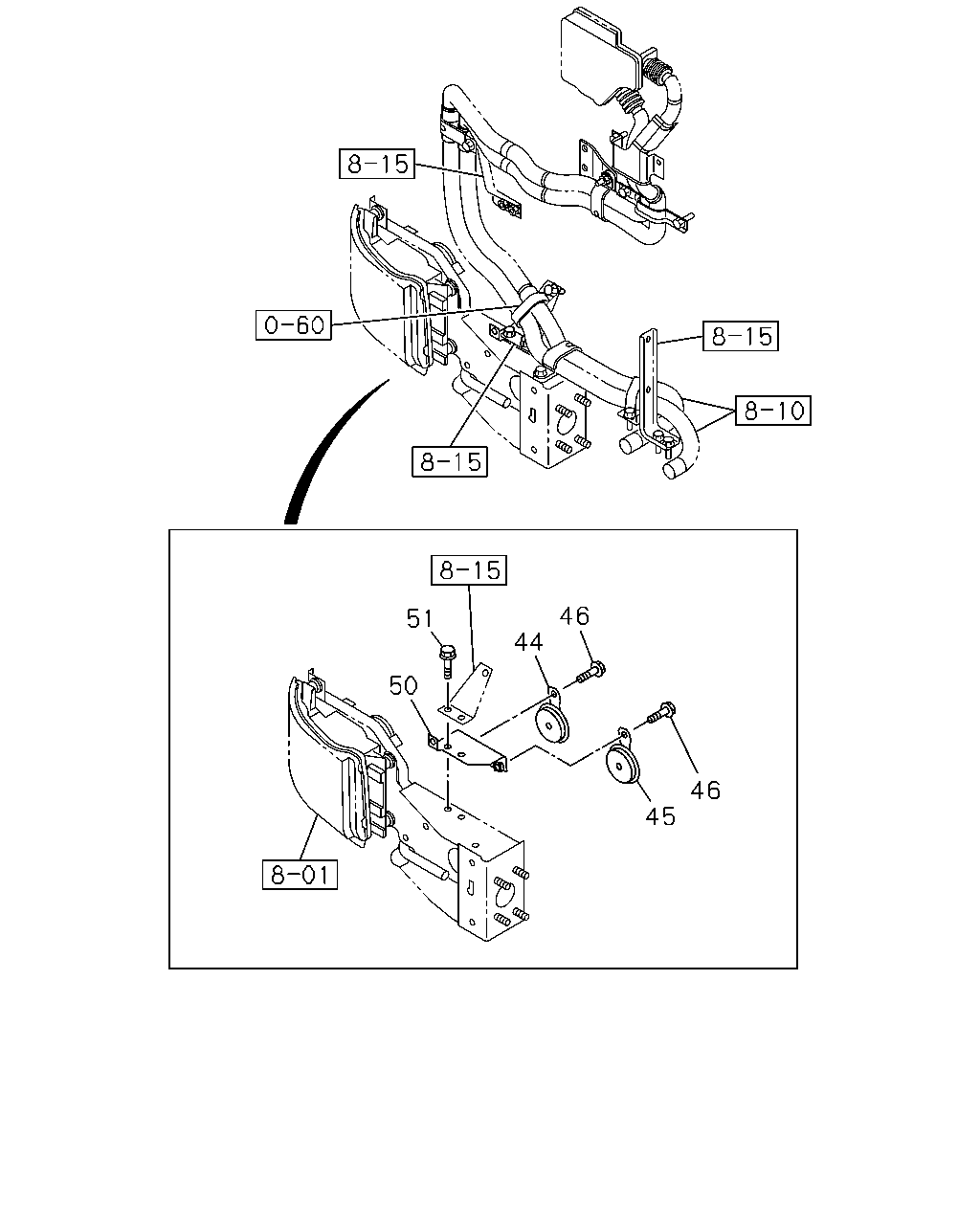

46 44 46 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1504-
45	HORN; LOW NOTE	1-83410-062-1	01	1	1504-
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1504-
50	BRACKET; HORN	8-98210-372-0	01	1	1504-
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1504-

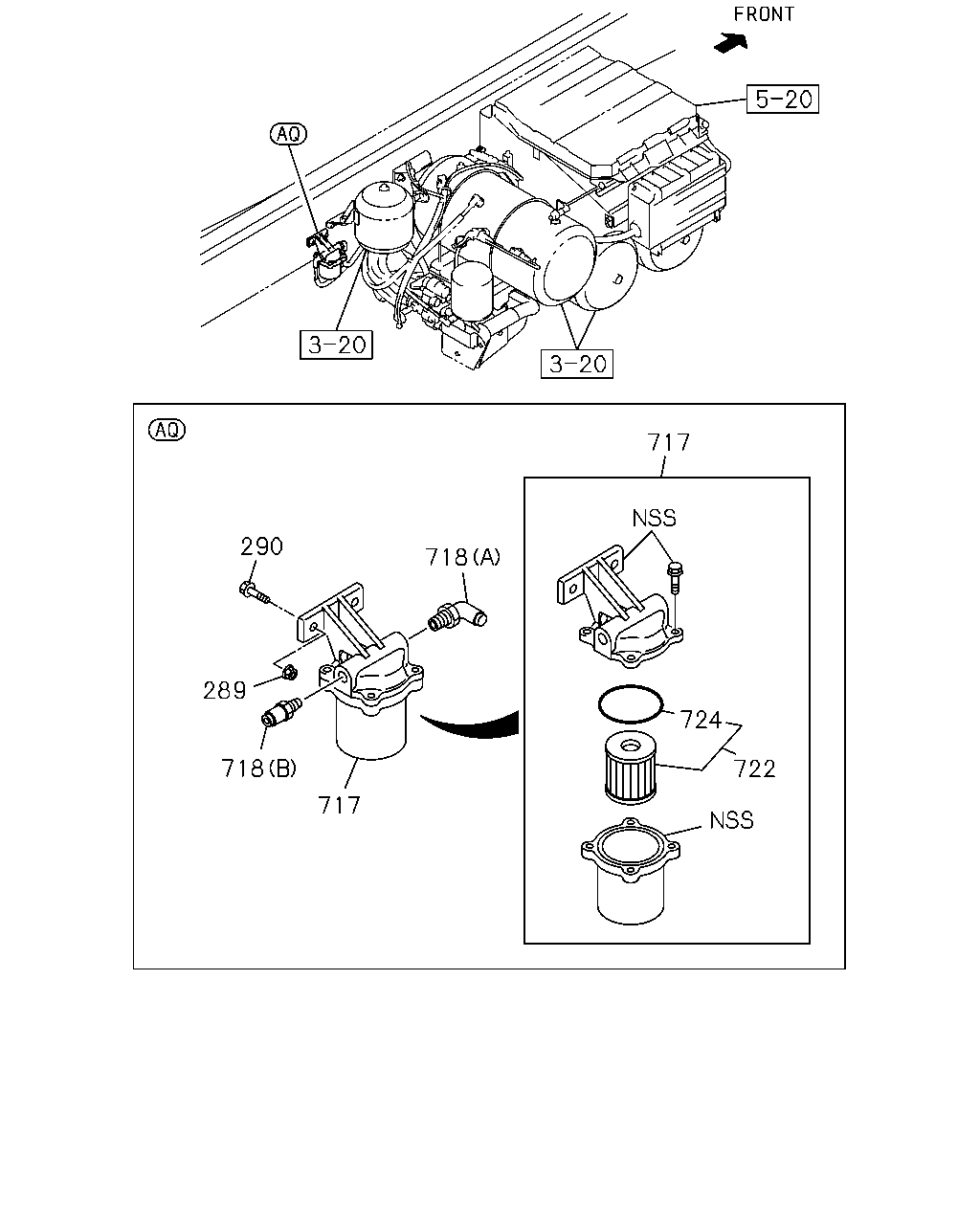

717 718 717 718 289 290 722 724

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	1507-
290	NUT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1507-
717	FILTER; MAG VLV MJX16P M/T(Y3Z)	8-98092-703-0	01	1	1507-
718	CONNECTOR; FILTER MJX16P M/T(Y3Z) (B) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1507-
718	CONNECTOR; FILTER MJX16P M/T(Y3Z) (A) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1507-
722	ELEMENT; AIR FILTER MJX16P M/T(Y3Z)	1-33779-040-0	01	1	1507-
724	GASKET; AIR FILTER MJX16P M/T(Y3Z)	5-09623-075-0	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
