◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#160306) — 417 parça
çizim 471161
1 1 1 1 224 1 178 178 178 178 178 178 178 178 530 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1504-
1 SLEEVE; RUBBER
(E) ID=23 OD=27 L=40 		1-09337-015-0 02 1 1504-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 02 1 1504-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 1504-
1 SLEEVE; RUBBER
(C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1504-
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=77 		8-98248-561-0 01 1 1504-
178 GROMMET; HARNESS
(G) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1504-
178 GROMMET; HARNESS
(A) ID=39 OD=45 T=13 		1-09332-076-0 01 1 1504-
178 GROMMET; HARNESS
(C) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1504-1506
178 GROMMET; HARNESS
MJX16P M/T(Y3Z) (C) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1507-
178 GROMMET; HARNESS
(C) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1507-
178 GROMMET; HARNESS
(H) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1504-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1504-
178 GROMMET; HARNESS
(E) 		1-82698-551-0 01 1 1504-1506
178 GROMMET; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-82698-551-0 01 1 1507-
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1504-
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1504-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1504-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1504-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1504-
224 SLEEVE; RUBBER,HARNESS
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1504-
530 SEAL; HARNESS
SMOOTHER-G(C1W) (A) 180X40 		1-72498-019-1 01 1 1507-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 1504-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 1504-
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 1504-
530 SEAL; HARNESS
LOW ROOF<6XQ> (A) 100X40 		1-72498-022-1 01 1 1504-

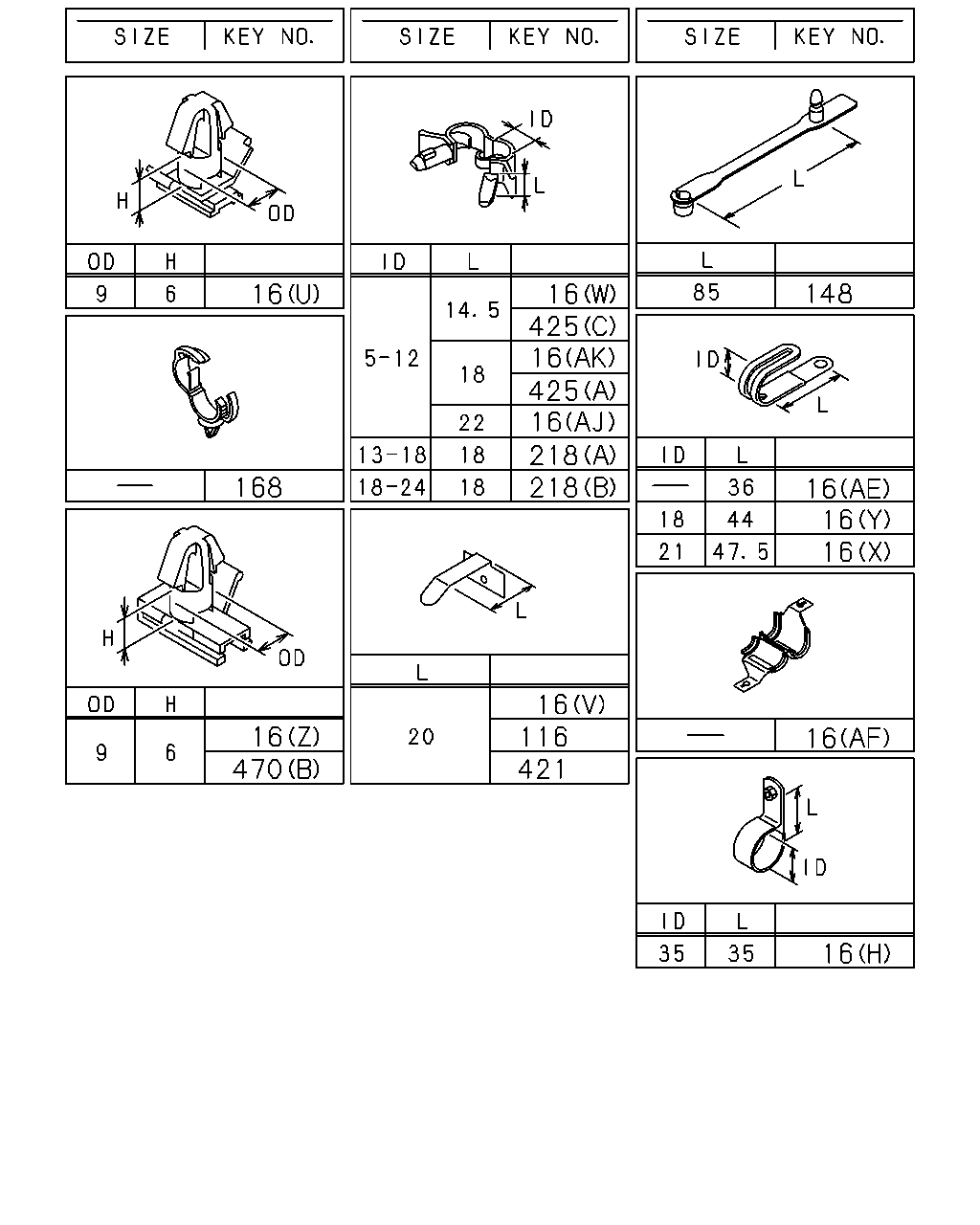

çizim 471162
16 168 16 470 425 16 425 16 16 218 218 16 16 16 16 16 116 421 148 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) OD=9 H=6 		1-09709-178-0 08 1 1507-
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1504-1506
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) ID=16 L=20 		0-95235-535-0 01 1 1507-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (F) ID=16 L=20 		0-95235-536-0 01 1 1507-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40 		0-95235-576-0 01 1 1507-
16 CLIP; HARNESS
(AH) ID=11 H=30 L=17 		1-09700-113-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 07 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(M) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 08 1 1504-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1504-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1504-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 1504-
218 CLIP; BAND,RR COMB
(A) ID=13-18 L=18 		1-09709-291-0 02 1 1504-
218 CLIP; BAND,RR COMB
(B) ID=18-24 L=18 		1-09709-294-0 02 1 1504-
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) L=30 SET=10 PIECE 		1-09987-265-0 05 1 1507-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1504-1506
421 CLIP; FLOOR HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1507-
425 CLIP; MODULATOR
(B) L=350 		1-09707-183-0 02 1 1504-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-
çizim 471164
14 51 102 104 206 14 16 102 121 142 171 208 305 369 380 470 14 194 16 48 194 369 380 425 16 51 142 208 369 16 142
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1504-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 01 1 1504-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 1504-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 1504-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 1504-
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) OD=9 H=6 		1-09709-178-0 08 1 1507-
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1504-1506
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) ID=16 L=20 		0-95235-535-0 01 1 1507-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (F) ID=16 L=20 		0-95235-536-0 01 1 1507-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40 		0-95235-576-0 01 1 1507-
16 CLIP; HARNESS
(AH) ID=11 H=30 L=17 		1-09700-113-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 07 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(M) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 04 1 1504-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1504-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1504-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1504-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1504-
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 1504-
102 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 1504-1506
102 CLIP; BAND
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=140 		5-09707-031-1 01 1 1507-
104 CLIP; HEADLAMP HARNESS
L=140 		5-09707-031-1 04 1 1504-
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 1504-
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 03 1 1504-
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1504-
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 10 1 1504-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1504-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1504-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 1504-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1504-
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 02 1 1504-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1504-
305 CLIP; ENG HARNESS
L=250 		5-09707-030-1 04 1 1504-
369 CLIP; BAND EDS HARNESS
MJX16P M/T(Y3Z) (C) L=350 		1-09707-183-0 02 1 1507-
369 CLIP; BAND EDS HARNESS
(B) L=250 		5-09707-030-1 02 1 1504-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 01 1 1504-
380 CLIP; EARTH HARNESS
(A) L=350 		1-09707-183-0 01 1 1504-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 1504-
425 CLIP; MODULATOR
(B) L=350 		1-09707-183-0 02 1 1504-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-

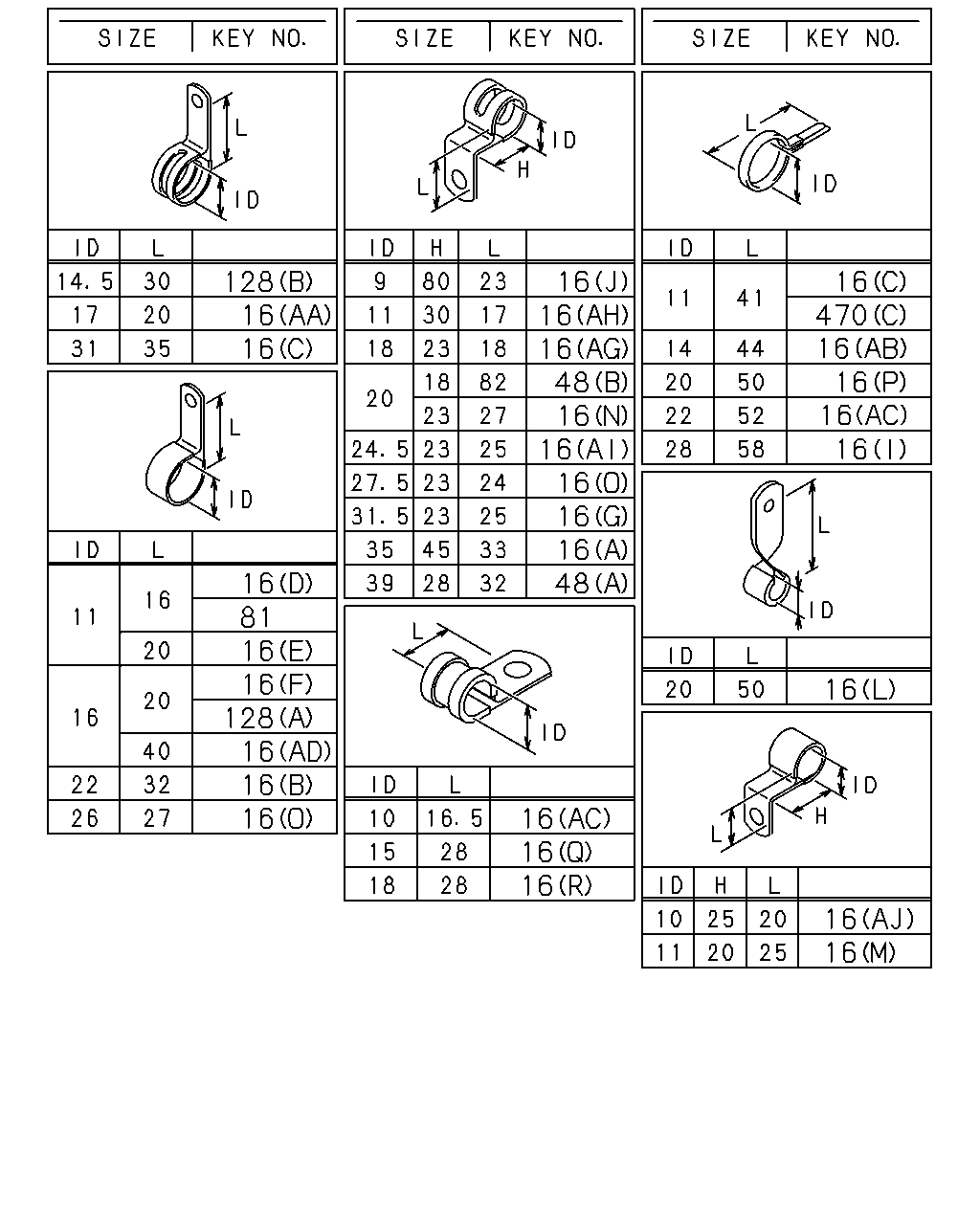

çizim 471167
128 16 16 16 81 16 16 128 16 16 16 16 16 16 48 16 16 16 16 16 48 16 16 16 16 470 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1504-
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 09 1 1504-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (T) L=350 		1-09707-183-0 01 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) OD=9 H=6 		1-09709-178-0 08 1 1507-
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1504-1506
16 CLIP; HARNESS
(H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (H) ID=31 L=35 		1-09700-329-1 01 1 1507-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 1504-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 09 1 1504-
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1504-
16 CLIP; HARNESS
(F) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (F) ID=16 L=20 		0-95235-535-0 01 1 1507-
16 CLIP; HARNESS
(F) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (F) ID=16 L=20 		0-95235-536-0 01 1 1507-
16 CLIP; HARNESS
(AD) ID=16 L=40 		0-95235-576-0 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40 		0-95235-576-0 01 1 1507-
16 CLIP; HARNESS
(AH) ID=11 H=30 L=17 		1-09700-113-0 01 1 1504-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 1504-
16 CLIP; HARNESS
(I) ID=28 L=58 		1-09700-400-0 02 1 1504-
16 CLIP; HARNESS
(L) ID=20 L=50 		1-09700-679-1 01 1 1504-
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 02 1 1504-
16 CLIP; HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 1504-
16 CLIP; HARNESS
(O) ID=26 L=27 		1-09701-006-0 02 1 1504-
16 CLIP; HARNESS
(J) ID=9 H=80 L=23 		1-09701-061-0 02 1 1504-
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1504-
16 CLIP; HARNESS
(AG) ID=18 L=38 H=23 		1-09701-147-0 01 1 1504-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1504-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1504-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1504-
16 CLIP; HARNESS
(AF) W/SPONGE RUBBER 		1-09709-150-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 01 1 1504-
16 CLIP; HARNESS
(U) OD=9 H=6 		1-09709-178-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 01 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 02 1 1504-
16 CLIP; HARNESS
(AK) ID=5-12 L=18 		1-09709-287-0 07 1 1504-
16 CLIP; HARNESS
(AJ) ID=5-12 L=22 		1-09709-288-0 02 1 1504-
16 CLIP; HARNESS
(M) ID=13-18 L=18 		1-09709-291-0 03 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1504-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1504-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1504-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1507-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1504-
16 CLIP; HARNESS
(X) ID=21 L=47.5 		8-94178-108-0 03 1 1504-
16 CLIP; HARNESS
(AE) L=36 		8-94224-891-1 01 1 1504-
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-97367-985-1 03 1 1504-
16 CLIP; HARNESS
(Z) OD=9 H=6 		8-97368-793-0 02 1 1504-
16 CLIP; HARNESS
(AA) ID=17 L=20 		8-97619-251-0 01 1 1504-
16 CLIP; HARNESS
(AC) ID=10 L=16.5 		8-98082-034-0 04 1 1504-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE 		1-09987-246-2 04 1 1504-
48 CLIP; FRAME HARNESS
(A) ID=39 H=28 L=32 		1-09701-263-0 04 1 1504-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1504-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1504-
81 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 02 1 1504-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1504-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1504-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1504-

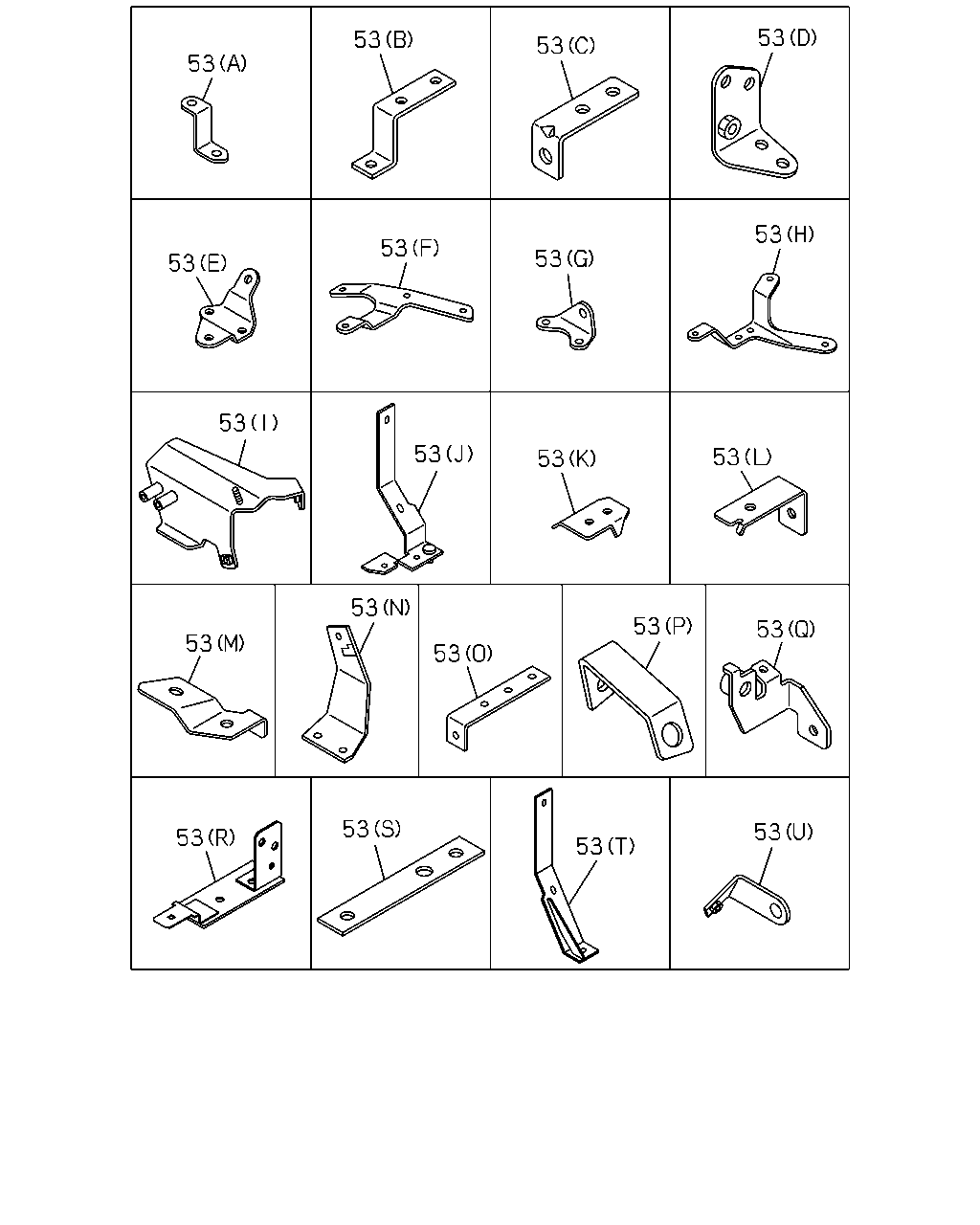

çizim 471286
53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(P) 		1-47479-537-0 05 1 1504-
53 BRACKET; HARNESS
MJX16P M/T(Y3Z) (W) 		8-98182-964-0 01 1 1507-
53 BRACKET; HARNESS
(U) 		1-42129-495-0 01 1 1504-
53 BRACKET; HARNESS
(S) L=130 		1-47478-959-0 02 1 1504-
53 BRACKET; HARNESS
(V) 		1-47479-630-1 01 1 1504-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1504-
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1504-
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1504-
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1504-
53 BRACKET; HARNESS
(R) 		8-97638-190-0 01 1 1504-
53 BRACKET; HARNESS
(A) 		8-97640-913-0 02 1 1504-
53 BRACKET; HARNESS
(C) 		8-98021-694-1 01 1 1504-
53 BRACKET; HARNESS
(E) 		8-98122-986-0 01 1 1504-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1504-
53 BRACKET; HARNESS
(Q) 		8-98194-068-0 01 1 1504-
53 BRACKET; HARNESS
(F) 		8-98209-856-1 01 1 1504-
53 BRACKET; HARNESS
(G) 		8-98209-858-1 01 1 1504-
53 BRACKET; HARNESS
(H) 		8-98218-540-0 01 1 1504-
53 BRACKET; HARNESS
(I) 		8-98247-268-1 01 1 1504-
53 BRACKET; HARNESS
(J) 		8-98285-517-0 01 1 1504-
53 BRACKET; HARNESS
(T) 		8-98285-518-1 01 1 1504-
53 BRACKET; HARNESS
(N) 		8-98285-519-0 01 1 1504-
53 BRACKET; HARNESS
(O) 		8-98290-358-1 01 1 1504-

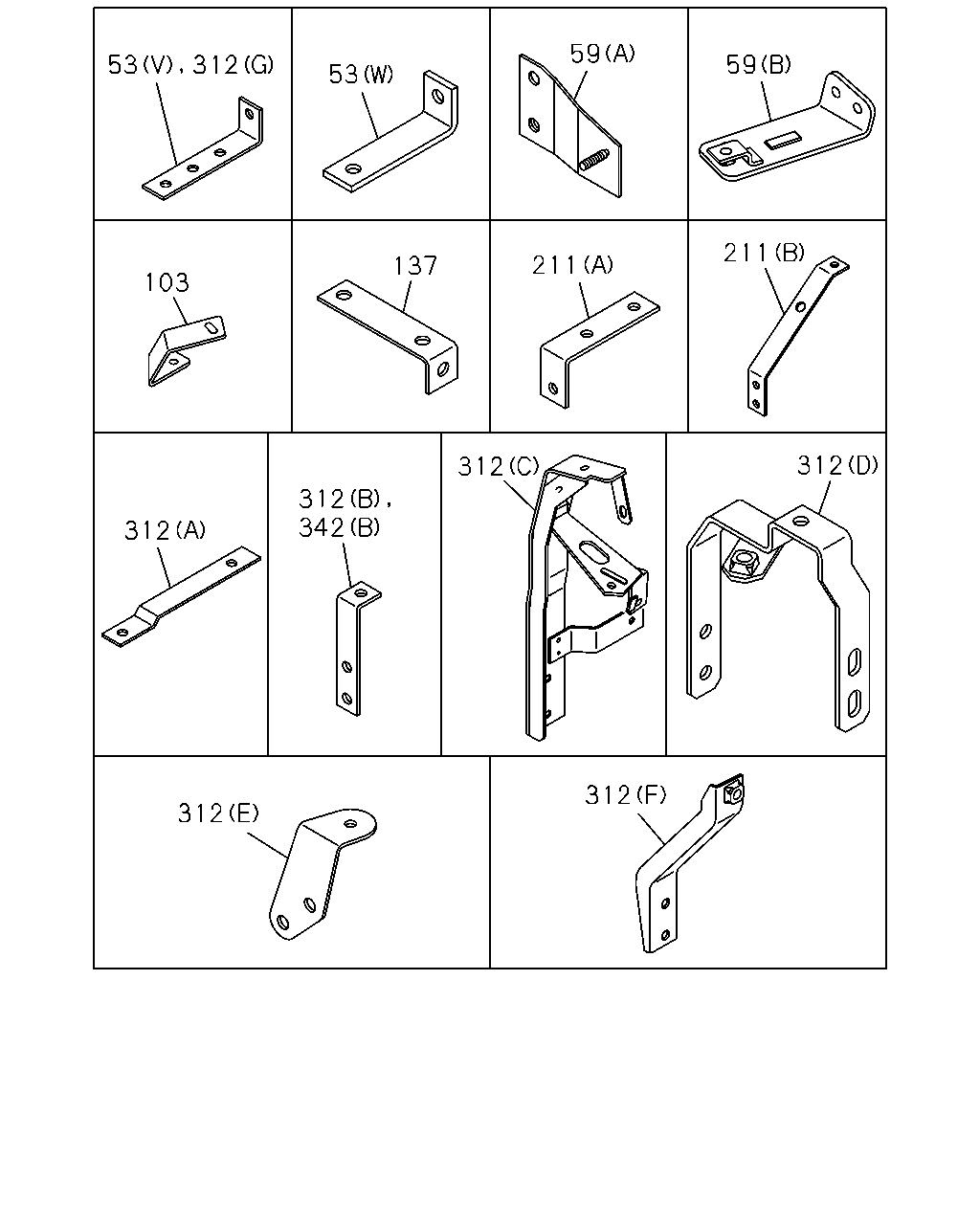

çizim 471323
53 53 59 59 211 211 137 103 312 312 342 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(P) 		1-47479-537-0 05 1 1504-
53 BRACKET; HARNESS
MJX16P M/T(Y3Z) (W) 		8-98182-964-0 01 1 1507-
53 BRACKET; HARNESS
(U) 		1-42129-495-0 01 1 1504-
53 BRACKET; HARNESS
(S) L=130 		1-47478-959-0 02 1 1504-
53 BRACKET; HARNESS
(V) 		1-47479-630-1 01 1 1504-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1504-
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1504-
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1504-
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1504-
53 BRACKET; HARNESS
(R) 		8-97638-190-0 01 1 1504-
53 BRACKET; HARNESS
(A) 		8-97640-913-0 02 1 1504-
53 BRACKET; HARNESS
(C) 		8-98021-694-1 01 1 1504-
53 BRACKET; HARNESS
(E) 		8-98122-986-0 01 1 1504-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1504-
53 BRACKET; HARNESS
(Q) 		8-98194-068-0 01 1 1504-
53 BRACKET; HARNESS
(F) 		8-98209-856-1 01 1 1504-
53 BRACKET; HARNESS
(G) 		8-98209-858-1 01 1 1504-
53 BRACKET; HARNESS
(H) 		8-98218-540-0 01 1 1504-
53 BRACKET; HARNESS
(I) 		8-98247-268-1 01 1 1504-
53 BRACKET; HARNESS
(J) 		8-98285-517-0 01 1 1504-
53 BRACKET; HARNESS
(T) 		8-98285-518-1 01 1 1504-
53 BRACKET; HARNESS
(N) 		8-98285-519-0 01 1 1504-
53 BRACKET; HARNESS
(O) 		8-98290-358-1 01 1 1504-
59 BRACKET; FRAME HARNESS
(B) 		8-97639-069-0 01 1 1504-
59 BRACKET; FRAME HARNESS
(A) 		8-98061-135-1 01 1 1504-
103 BRACKET; HD LAMP HARNESS 8-98211-939-1 01 1 1504-
103 BRACKET; HD LAMP HARNESS 8-98211-940-1 01 1 1504-
137 BRACKET; HARNESS CLAMP
L=175 H=30 		1-47479-386-1 01 1 1504-1506
137 BRACKET; HARNESS CLAMP
L=175 H=30 		1-47479-386-1 01 1 1507-
211 BRACKET; AXLE HARNESS
(B) 		1-47479-430-0 02 1 1504-
211 BRACKET; AXLE HARNESS
(A) 		1-82698-588-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-588-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(C) 		8-98316-678-0 01 1 1504-1510
312 BRACKET; CLIP HARNESS
(C) 		8-98325-978-0 01 1 1511-
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (G) 		8-98290-753-0 01 1 1507-
312 BRACKET; CLIP HARNESS
(G) L=120 H=35 		1-82698-088-0 01 1 1504-1506
312 BRACKET; CLIP HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=120 H=35 		1-82698-088-0 01 1 1507-
312 BRACKET; CLIP HARNESS
(F) 		8-97636-868-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(A) 		8-98035-927-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(D) 		8-98285-566-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(E) 		8-98285-567-0 01 1 1504-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82698-588-0 02 1 1504-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1504-
çizim 471358
423 82 119 294 524 54 219 294 515 525 515 340
BalonParca AdiParca NoAdetTipApplied Date
54 NUT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1507-
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 1504-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1504-
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 1504-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1504-1506
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1507-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1504-1506
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1507-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1507-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 1504-
294 NUT
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1504-1506
294 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8 FLANGE 		0-91180-108-0 01 1 1507-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1504-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1504-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1504-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 1504-1506
423 WASHER; HARNESS,EARTH
MJX16P M/T(Y3Z) ID=8.4 		1-09503-264-0 01 1 1507-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 1507-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1504-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1504-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1504-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1504-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1504-
525 NUT; CLIP
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1507-
çizim 471371
312 334 335 342 375
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(B) 		1-82698-588-0 01 1 1504-
312 BRACKET; CLIP HARNESS
(C) 		8-98316-678-0 01 1 1504-1510
312 BRACKET; CLIP HARNESS
(C) 		8-98325-978-0 01 1 1511-
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (G) 		8-98290-753-0 01 1 1507-
312 BRACKET; CLIP HARNESS
(G) L=120 H=35 		1-82698-088-0 01 1 1504-1506
312 BRACKET; CLIP HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=120 H=35 		1-82698-088-0 01 1 1507-
312 BRACKET; CLIP HARNESS
(F) 		8-97636-868-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(A) 		8-98035-927-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(D) 		8-98285-566-1 01 1 1504-
312 BRACKET; CLIP HARNESS
(E) 		8-98285-567-0 01 1 1504-
334 BRACKET
SMOOTHER-G(C1W) 		8-98290-362-0 01 1 1507-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1504-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82698-588-0 02 1 1504-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1504-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1504-

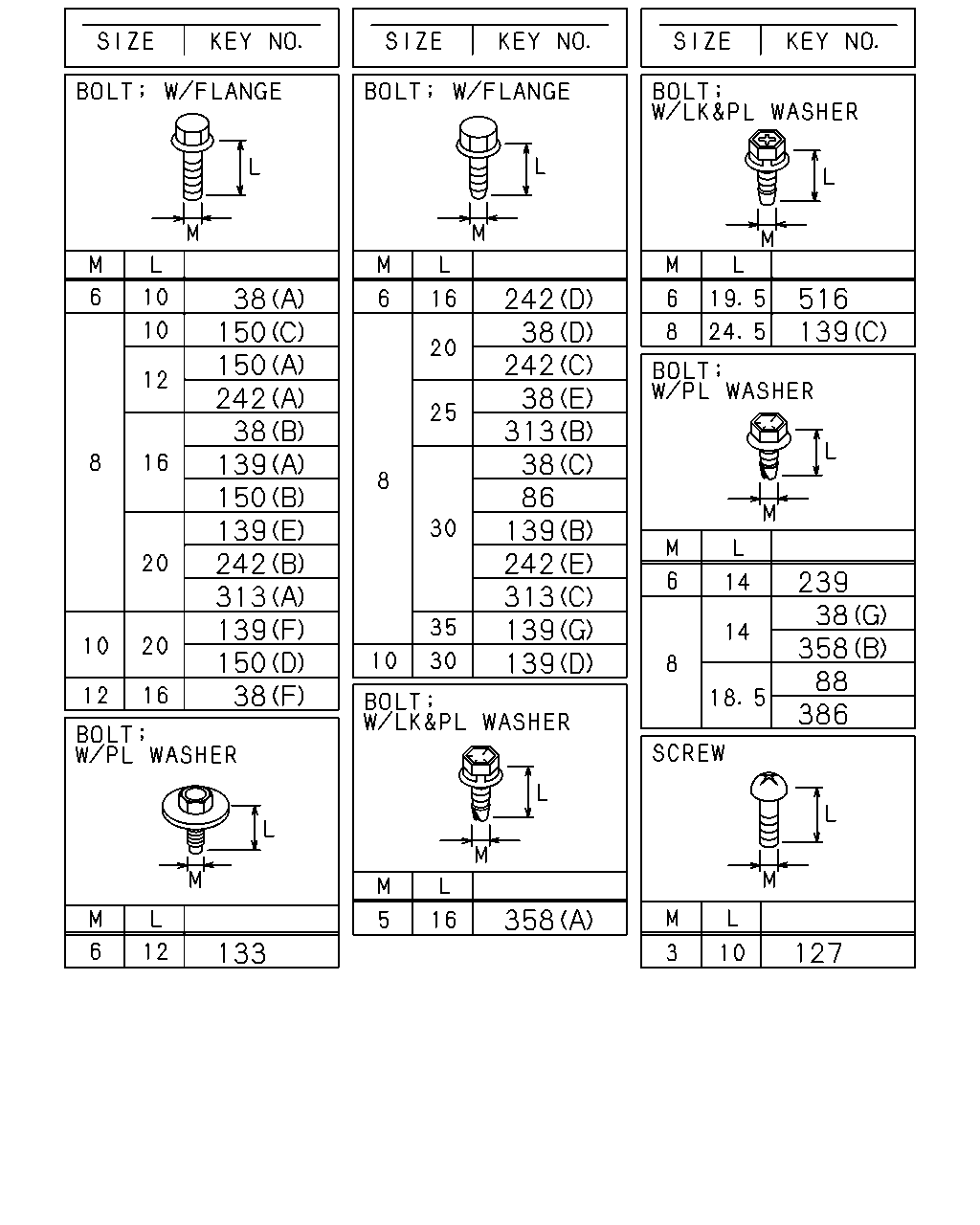

çizim 471760
38 150 150 242 38 139 150 139 242 313 139 150 38 133 358 139 139 313 242 139 86 38 313 38 242 38 242 516 139 239 38 358 88 386 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (G) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1507-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1504-1506
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1504-1506
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTLO189 18(Y4W) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1504-
38 BOLT; CLIP,HARNESS
(G) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1504-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1504-1506
86 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1504-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 1504-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1504-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1504-
139 BOLT; BRKT
(E) M8X20 FLANGE 		0-28050-820-0 02 1 1504-
139 BOLT; BRKT
(F) M10X20 FLANGE 		0-28151-020-0 02 1 1504-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1504-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-1506
139 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1504-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1504-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1504-
150 BOLT; CLIP
(C) M8X10 FLANGE 		0-28050-810-0 02 1 1504-
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1504-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 10 1 1504-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1504-
150 BOLT; CLIP
(D) M10X20 FLANGE 		0-28151-020-0 01 1 1504-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1504-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1504-
242 BOLT; BRKT,HARNESS
(D) M6X16 FLANGE 		0-28650-616-0 02 1 1504-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
242 BOLT; BRKT,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
313 BOLT; BRKT
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1504-
358 BOLT; EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1504-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1504-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
