◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#160304) — 51 parça
çizim 471667
56 33 15 88 15 16 87 113 27 33 33 24 25 35
BalonParca AdiParca NoAdetTipApplied Date
15 LAMP; INSPECTION 1-82140-052-1 01 1 1504-
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 1504-
24 LAMP; STEP 1-82140-052-1 01 1 1504-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1504-
27 LENS; STEP LAMP 1-82145-019-0 01 1 1504-
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 1504-
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 1504-
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 1504-
56 BRACKET; LAMP 8-98121-191-0 01 1 1504-
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 1504-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 1504-

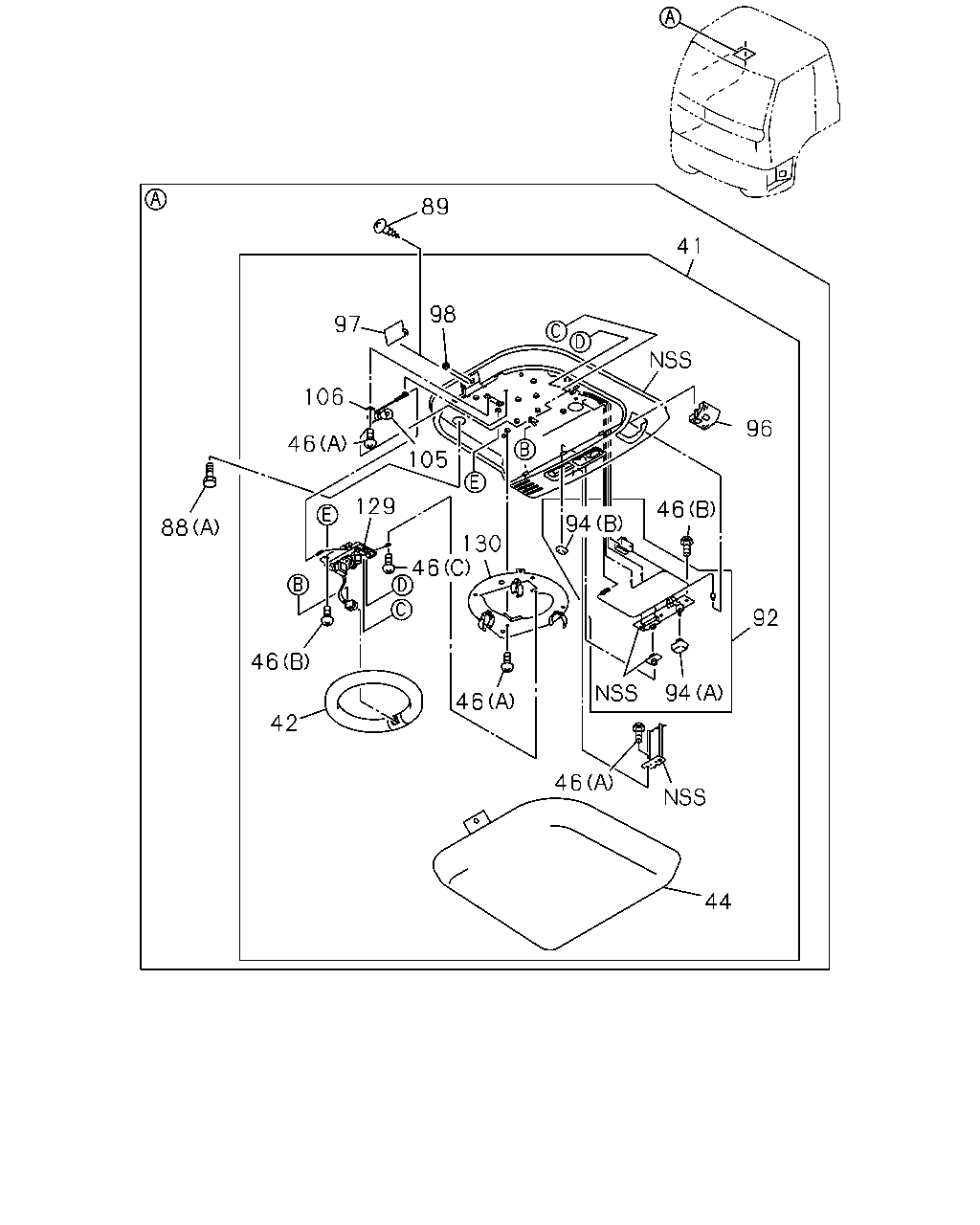

çizim 471704
89 41 96 46 92 94 44 46 46 46 129 46 106 97 98 88 46 42 105 130 94
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-315-2 01 1 1504-
41 LAMP ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> 		1-86830-323-1 01 1 1504-
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-094-1 01 1 1504-
42 LAMP; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-094-1 01 1 1504-
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-092-0 01 1 1504-
44 LENS; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-092-0 01 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (B) M4X12 		1-86830-202-0 07 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (B) M4X12 		1-86830-202-0 07 1 1504-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1504-
46 SCREW; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1504-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
88 BOLT; LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504-
89 SCREW; LENS,FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> M5X10 TAPPING 		0-71240-510-0 01 1 1504-
89 SCREW; LENS,FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93>,LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> ROOM LAMP FLUORESCENT<NGG> LOW ROOF<6XQ> M5X10 TAPPING 		0-71240-510-0 01 1 1504-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-306-0 01 1 1504-
92 SWITCH ASM; FLUORESCENT
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> 		1-86830-341-0 01 1 1504-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (A) 		1-86830-312-0 01 1 1504-
94 KNOB; ROOM LAMP SW
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 		1-86830-312-0 01 1 1504-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> (B) 		1-86830-313-0 01 1 1504-
94 KNOB; ROOM LAMP SW
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> (B) 		1-86830-313-0 01 1 1504-
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-385-0 01 1 1504-
96 CAP; SPOT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-385-0 01 1 1504-
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-311-0 01 1 1504-
97 CAP; LENS FIX
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-311-0 01 1 1504-
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-102-0 01 1 1504-
98 GROMMET; SCREW,LENS FIX
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-102-0 01 1 1504-
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 28V 20W 		1-86830-200-0 01 1 1504-
105 BULB; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 28V 20W 		1-86830-200-0 01 1 1504-
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-201-0 01 1 1504-
106 SOCKET; BULB
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-201-0 01 1 1504-
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-338-0 01 1 1504-
129 INVERTER ASM; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-338-0 01 1 1504-
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> 		1-86830-339-0 01 1 1504-
130 PLATE ASM; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-86830-339-0 01 1 1504-
