Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11678 - CYJ RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#160302) — 91 parça
◀

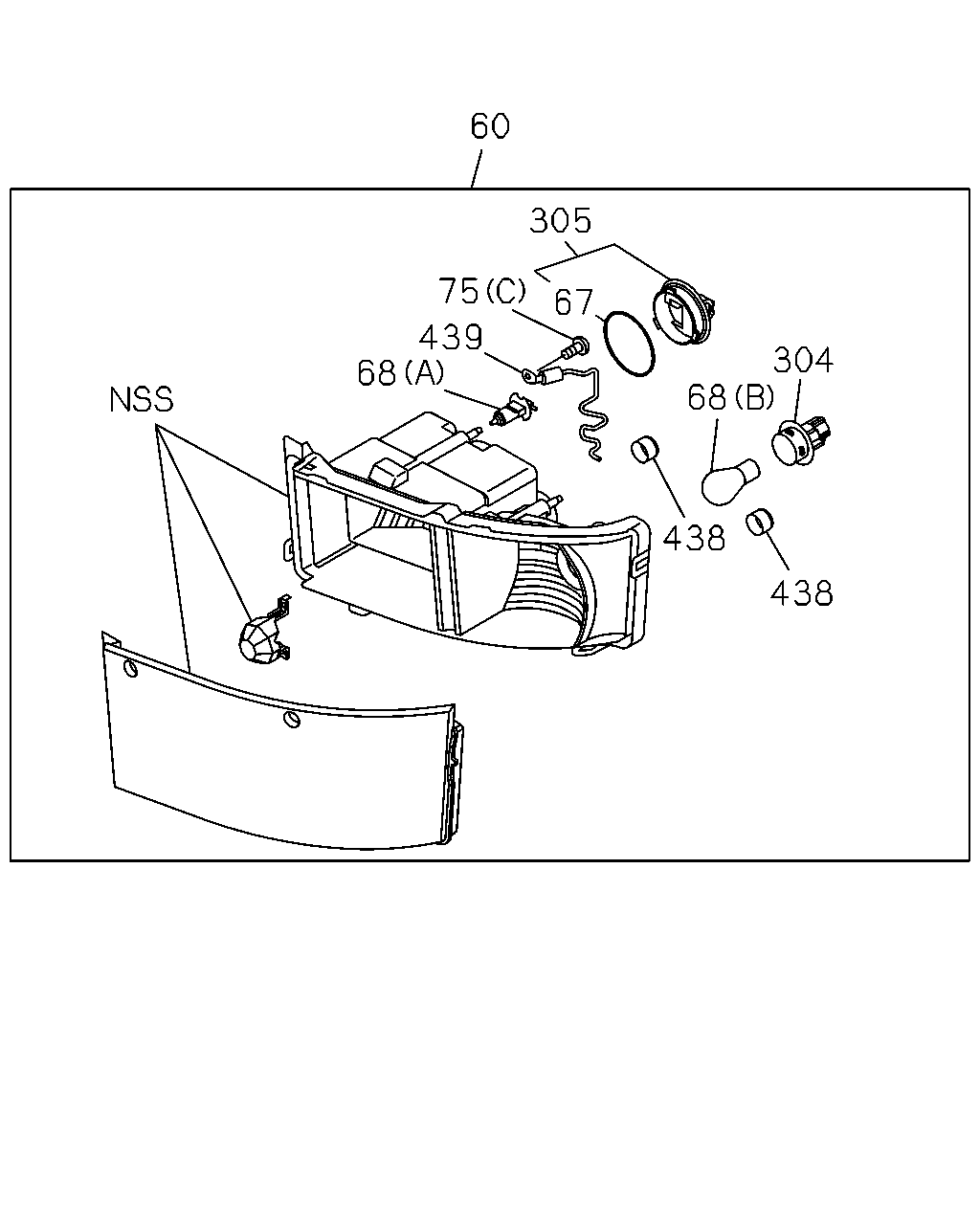

[801A] COMPONENT;FRT COMB LAMP (12 parça)

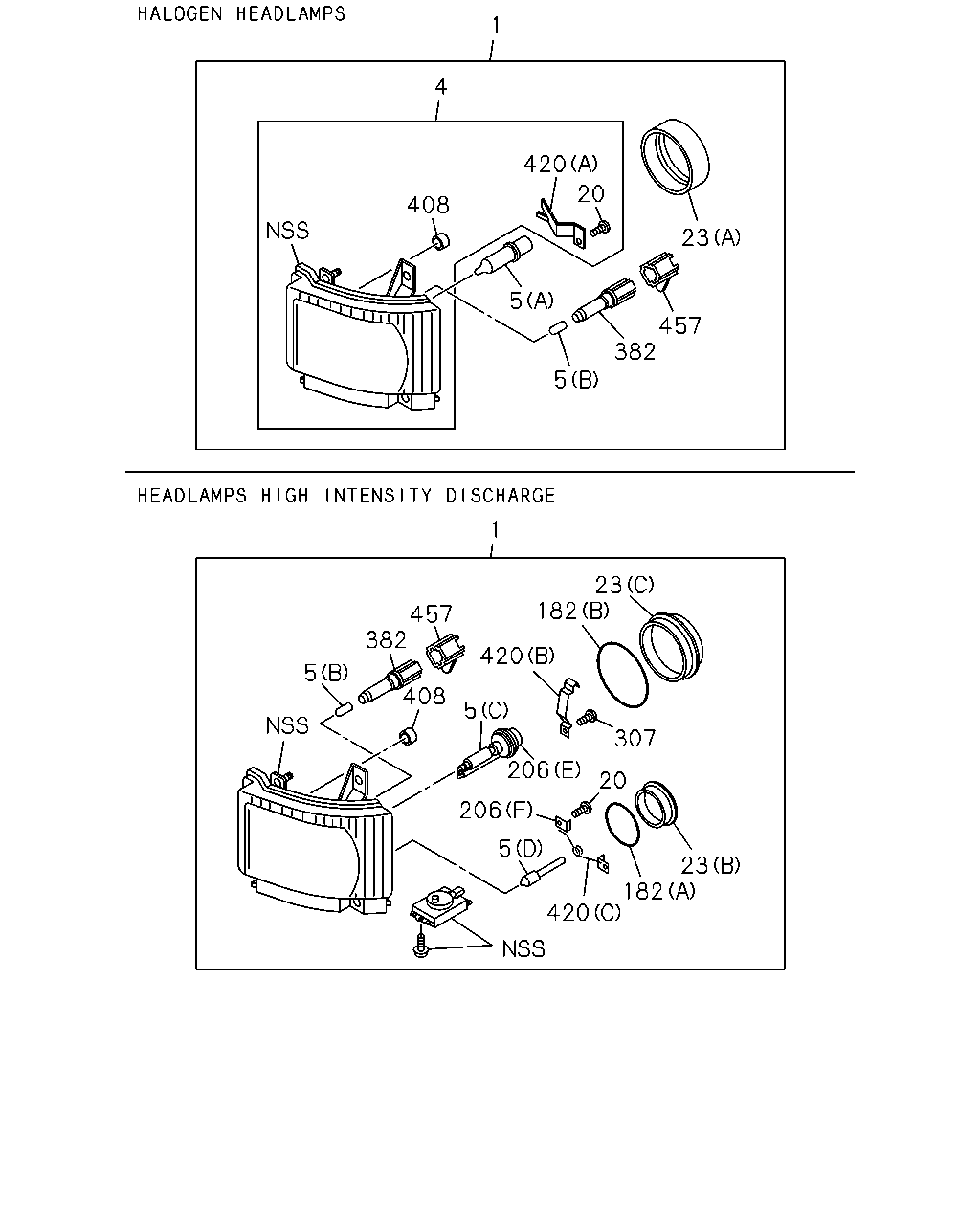

[801A] COMPONENT;HEADLAMP (30 parça)

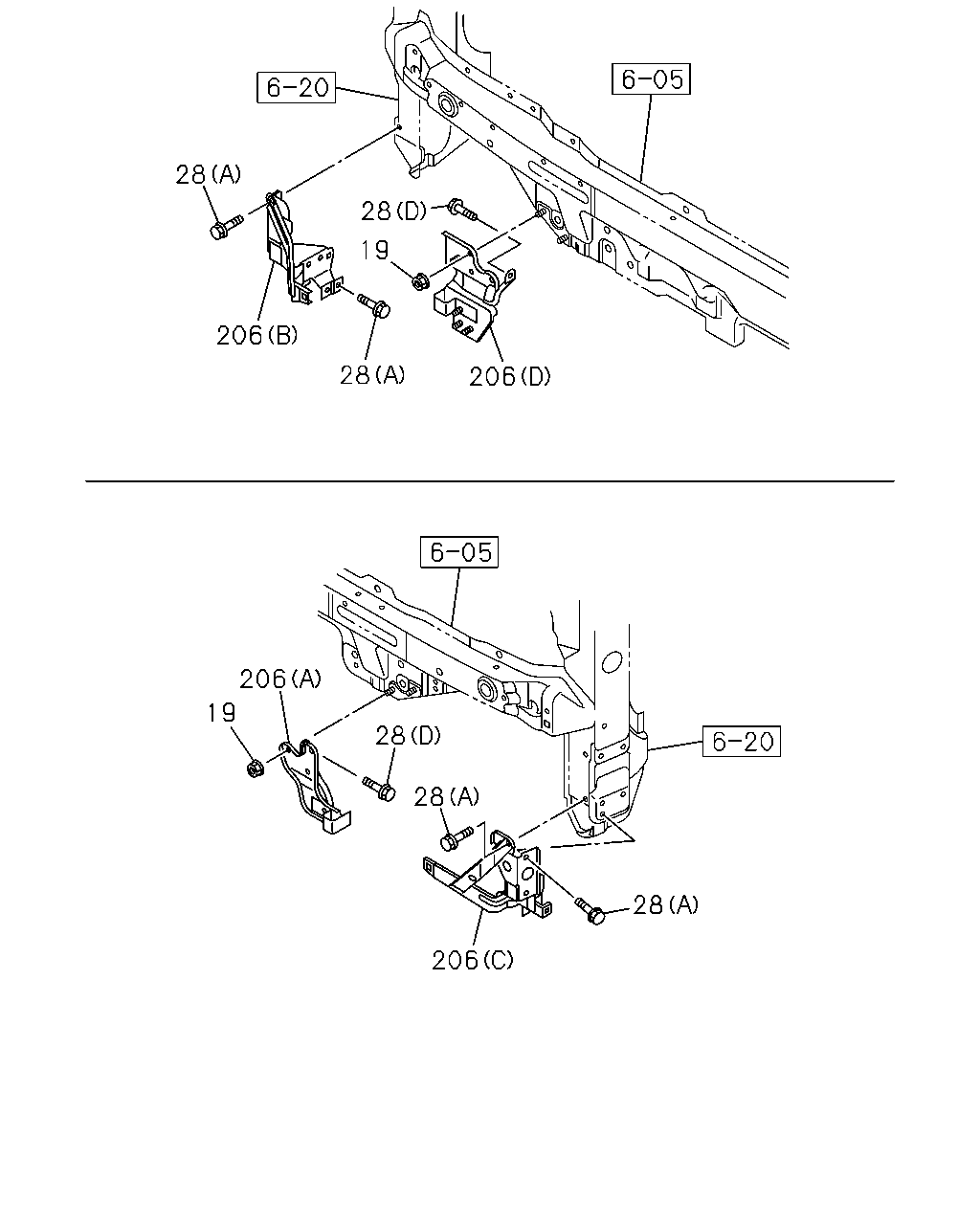

[801A] FIXING;HEAD AND FRT COMB LAMP (23 parça)

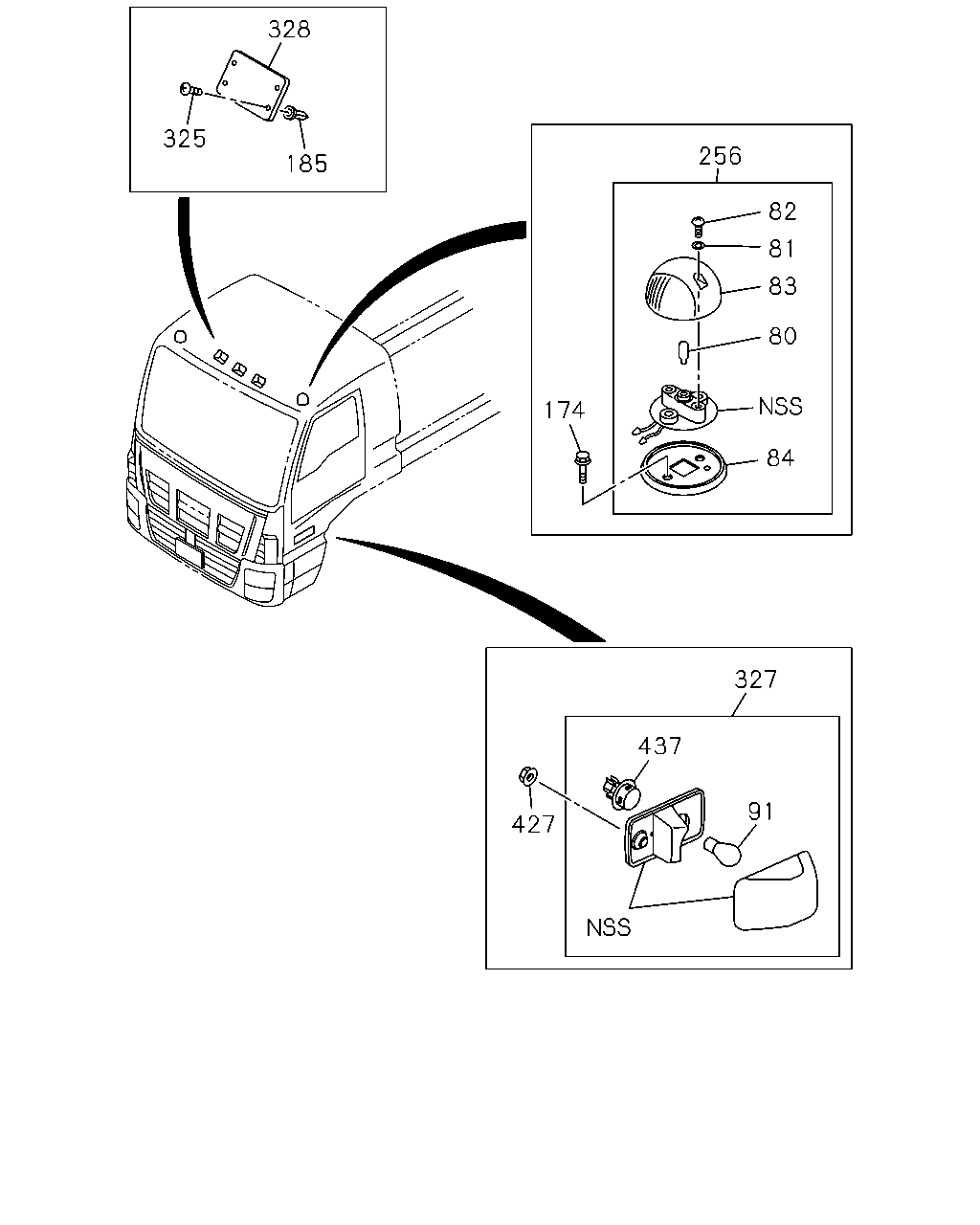

[801A] OTHER LAMP (15 parça)

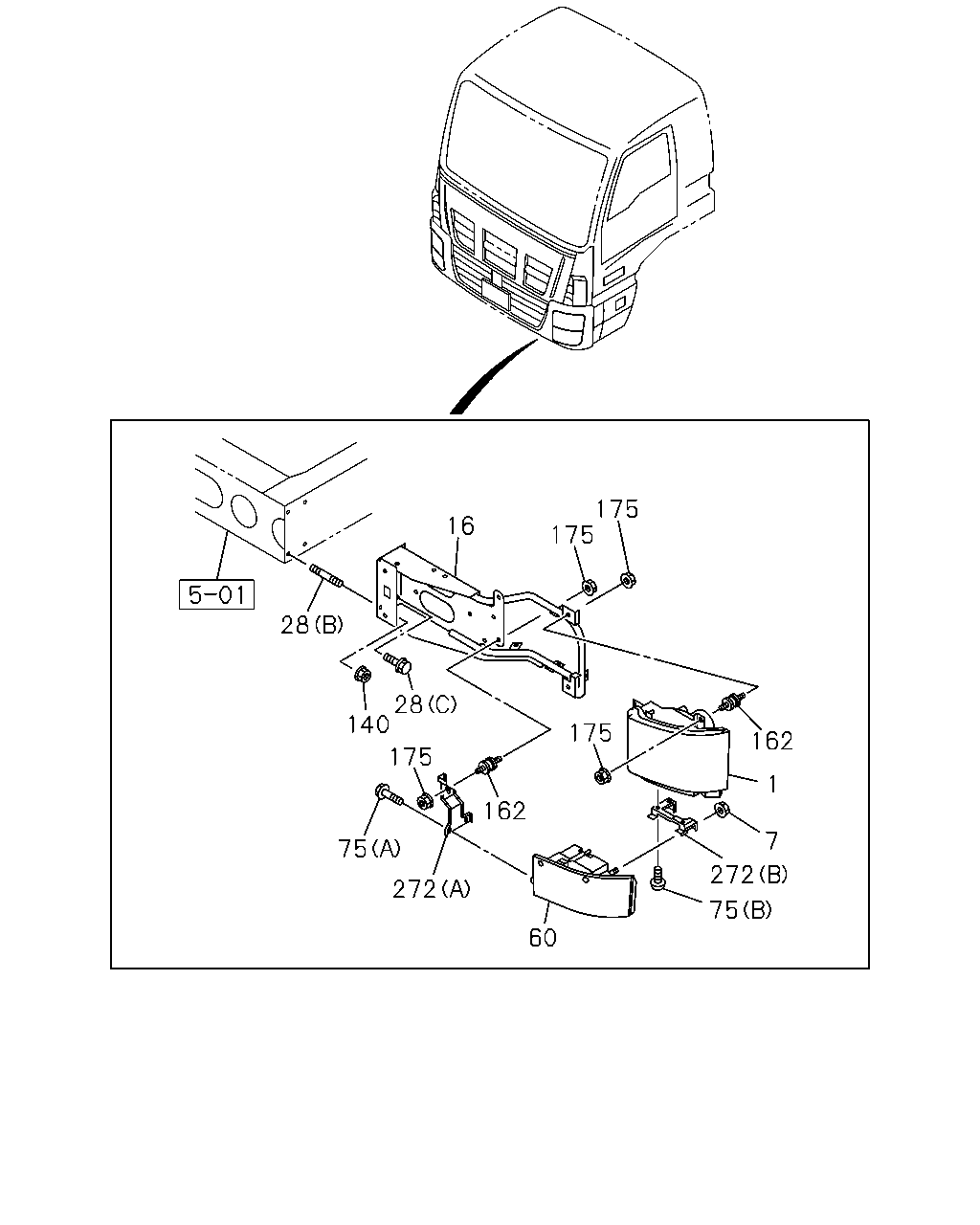

[801A] BRACKET (11 parça)
▶
60
305
67
68
304
438
438
439
75
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
LAMP ASM; FRT COMB
8-98238-626-0
01
1
1504-
60
LAMP ASM; FRT COMB
8-98238-625-0
01
1
1504-
67
GASKET; FRT COMB LAMP
8-98238-656-0
02
1
1504-
68
BULB; FRT COMB LAMP
(A) 24V 70W
1-82194-106-0
02
1
1504-
68
BULB; FRT COMB LAMP
(B) 24V 21W
8-98051-495-0
02
1
1504-
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1504-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1504-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1504-
304
PLUG; SOCKET,FRT COMB LAMP
8-98051-390-0
02
1
1504-
305
COVER; FRT COMB LAMP
8-98240-559-0
02
1
1504-
438
CAP; BREATHER,FRT COMB LAMP
8-97378-874-0
02
1
1504-
439
SPRING SET; COMB LAMP
8-98075-644-0
02
1
1504-
1
4
408
5
5
382
457
23
20
420
1
457
382
5
408
5
206
5
420
182
23
20
307
206
420
182
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5>
8-98241-311-0
01
1
1504-
1
LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5>
8-98241-310-0
01
1
1504-
1
LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-98241-348-0
01
1
1504-
1
LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-98241-347-0
01
1
1504-
4
HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5>
8-98199-565-0
01
1
1504-
4
HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5>
8-98199-564-0
01
1
1504-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1504-
5
BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W
1-82194-063-0
02
1
1504-
5
BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) 85V 35W
1-82194-092-0
02
1
1504-
5
BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) 24V 70W
8-94405-658-0
02
1
1504-
20
SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5>
8-97378-871-0
06
1
1504-
20
SCREW; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-97378-871-0
04
1
1504-
23
COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A)
8-97232-491-0
02
1
1504-
23
COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)
8-98051-392-0
02
1
1504-
23
COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)
8-98051-393-0
02
1
1504-
182
GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)
8-98051-391-0
02
1
1504-
182
GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)
8-98051-394-0
02
1
1504-
206
HOLDER; HEADLAMP
(A)
8-98121-219-1
01
1
1504-
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1504-
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1504-
206
HOLDER; HEADLAMP
(B)
8-98121-330-0
01
1
1504-
206
HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E)
8-97378-878-0
02
1
1504-
206
HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F)
8-97378-879-0
02
1
1504-
307
SCREW; TAPPING,HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-97378-871-0
06
1
1504-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1504-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1504-
420
SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A)
8-98218-601-0
02
1
1504-
420
SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)
8-97378-876-0
02
1
1504-
420
SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)
8-97378-877-0
02
1
1504-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1504-
16
28
28
140
175
75
272
162
60
75
272
7
1
162
175
175
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5>
8-98241-311-0
01
1
1504-
1
LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5>
8-98241-310-0
01
1
1504-
1
LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-98241-348-0
01
1
1504-
1
LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>
8-98241-347-0
01
1
1504-
7
NUT; FRT COMB LAMP
M6 FLANGE
0-91180-106-0
04
1
1504-
16
BRACKET; HEADLAMP
8-98121-415-3
01
1
1504-
16
BRACKET; HEADLAMP
8-98121-414-3
01
1
1504-
28
BOLT; HEADLAMP
(C) M12X35 FLANGE
0-28051-235-0
04
1
1504-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1504-
28
BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1504-
28
BOLT; HEADLAMP
(B) M12X30,M12X16 L=56
8-98144-947-0
04
1
1504-
60
LAMP ASM; FRT COMB
8-98238-626-0
01
1
1504-
60
LAMP ASM; FRT COMB
8-98238-625-0
01
1
1504-
75
SCREW; FRT COMB LAMP
(A) M6X16 FLANGE
0-28650-616-0
04
1
1504-
75
SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1504-
75
SCREW; FRT COMB LAMP
(C)
8-98074-439-0
02
1
1504-
140
NUT
M12 FLANGE
0-91180-212-0
04
1
1504-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1504-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1504-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1504-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1504-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1504-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1504-
328
325
185
256
82
81
83
80
84
174
327
437
427
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
BULB; MARKER LAMP
24V 5W
8-94135-397-0
02
1
1504-
81
SEAT; SCREW
1-82219-012-0
04
1
1504-
82
SCREW; MARKER LAMP
1-82219-011-0
04
1
1504-
83
LENS; MARKER LAMP
1-82215-046-0
02
1
1504-
84
GASKET; MARKER LAMP
1-86830-288-0
02
1
1504-
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1504-
174
BOLT
M6X28 W/LK&PL WASHER
1-09980-543-0
04
1
1504-
185
GROMMET; SCREW
LOW ROOF<6XQ> M5 SCREW GROMMET
1-09983-131-0
12
1
1504-
256
LAMP; MARKER
1-86830-242-3
02
1
1504-
325
SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING
0-71040-514-0
12
1
1504-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1504-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1504-
328
COVER; LAMP
LOW ROOF<6XQ>
1-76217-122-1
03
1
1504-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1504-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1504-
28
206
28
206
28
19
206
19
28
28
206
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1504-
28
BOLT; HEADLAMP
(C) M12X35 FLANGE
0-28051-235-0
04
1
1504-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
1504-
28
BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1504-
28
BOLT; HEADLAMP
(B) M12X30,M12X16 L=56
8-98144-947-0
04
1
1504-
206
HOLDER; HEADLAMP
(A)
8-98121-219-1
01
1
1504-
206
HOLDER; HEADLAMP
(C)
8-98121-335-0
01
1
1504-
206
HOLDER; HEADLAMP
(D)
8-98121-218-2
01
1
1504-
206
HOLDER; HEADLAMP
(B)
8-98121-330-0
01
1
1504-
206
HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (E)
8-97378-878-0
02
1
1504-
206
HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (F)
8-97378-879-0
02
1
1504-
