◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#160301) — 39 parça

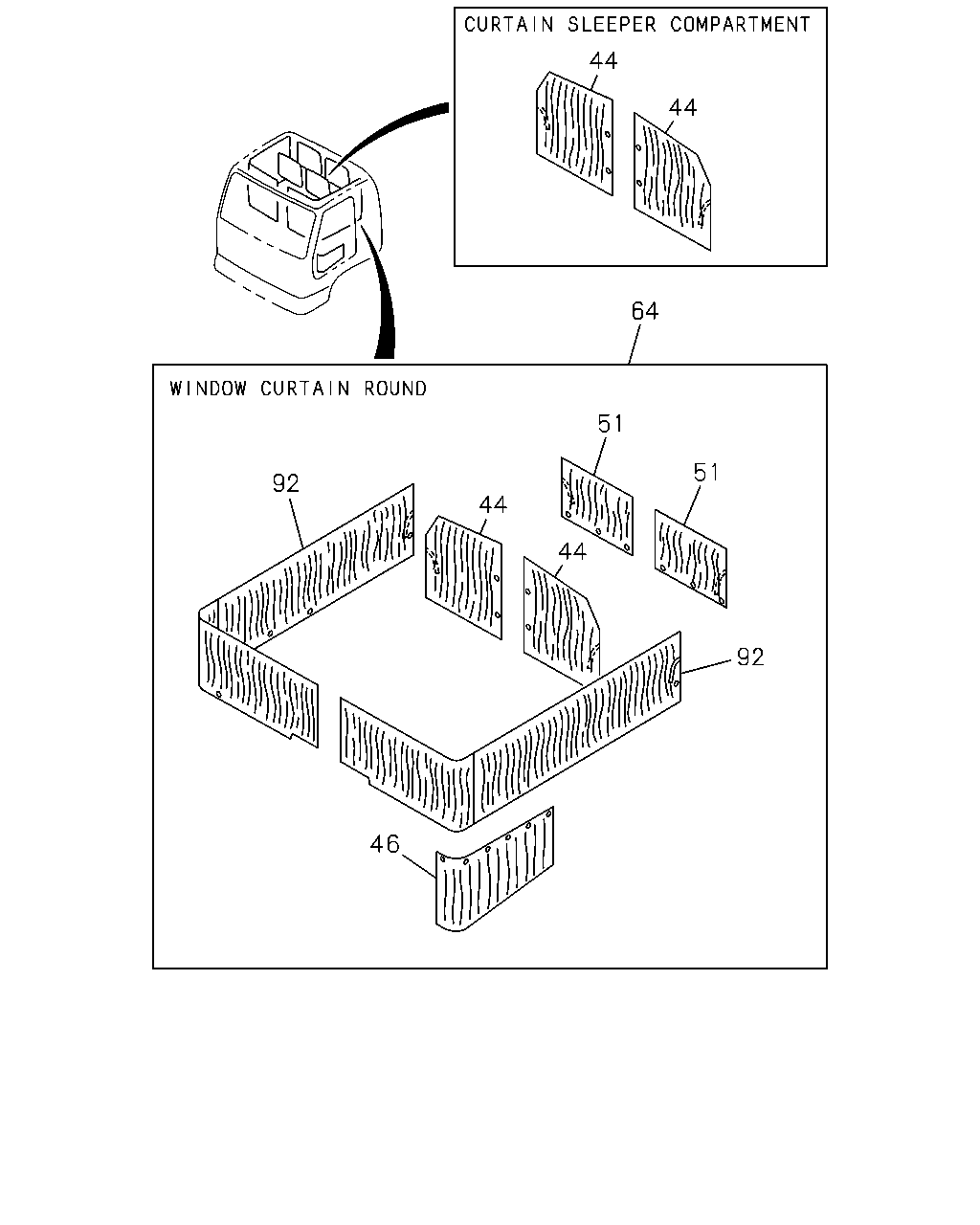

çizim 471257
44 44 64 51 51 92 46 92 44 44
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-480-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
LOW ROOF<6XQ> 		1-73907-481-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-504-1 01 1 1504-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-505-1 01 1 1504-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-426-0 01 1 1504-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-482-1 01 1 1504-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-483-1 01 1 1504-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-578-1 01 1 1504-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> LOW ROOF<6XQ> 		1-73907-479-1 01 1 1504-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-484-1 01 1 1504-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-485-1 01 1 1504-

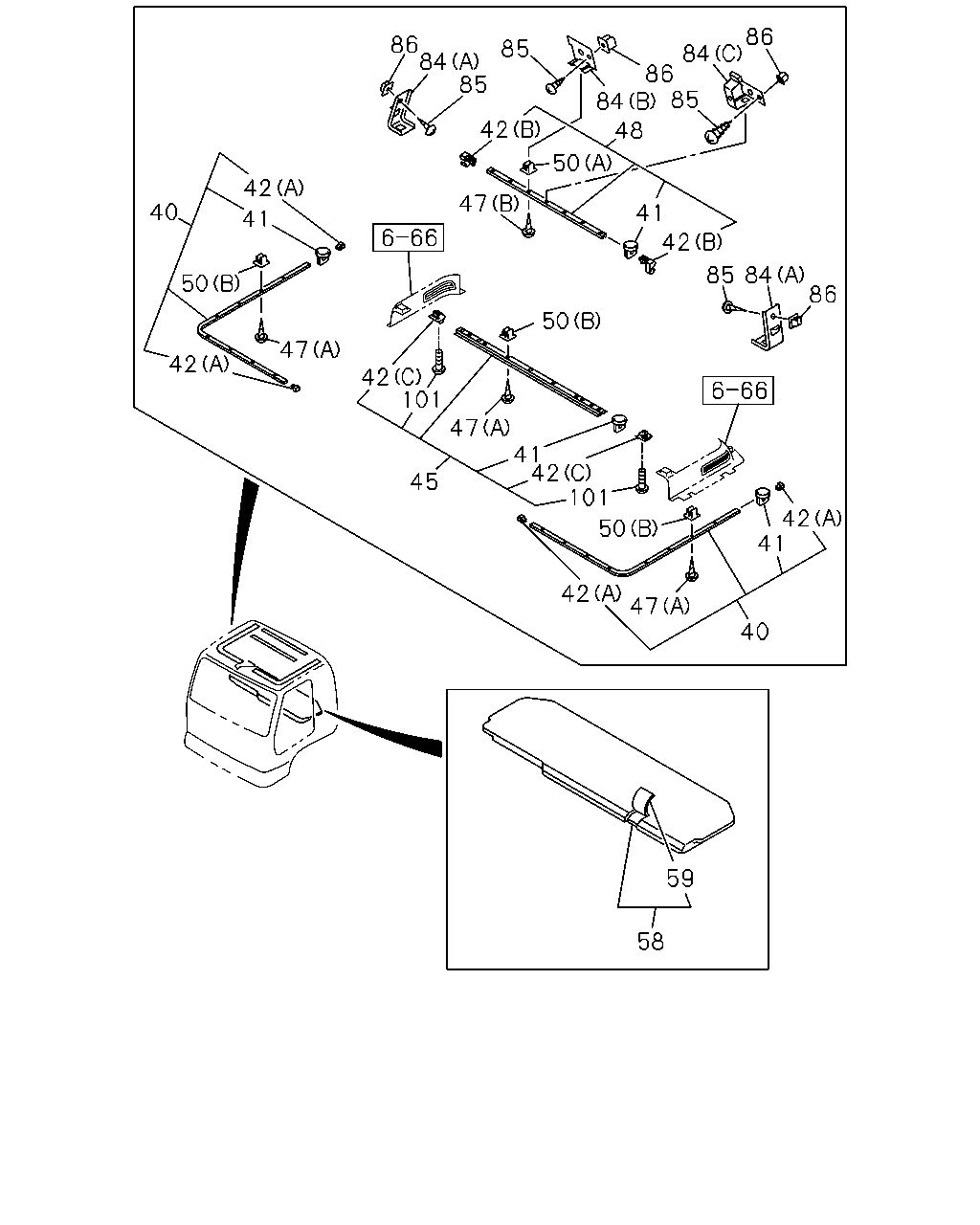

çizim 472058
86 84 86 84 85 48 50 41 42 85 84 86 42 41 40 47 42 50 101 42 41 47 101 42 50 47 42 85 85 84 86 42 41 50 47 40 42 45 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-536-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-535-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1504-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1504-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 1504-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1504-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73996-393-0 02 1 1504-
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73996-399-0 01 1 1504-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-657-0 02 1 1504-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1504-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1504-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> 		1-73907-592-2 01 1 1504-
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> 		1-73907-546-3 01 1 1504-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1504-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1504-
48 RAIL; CURTAIN,BACK
CURTAIN SLEEPER COMPARTMENT<E25> 		1-73996-385-1 01 1 1504-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1504-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1504-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1504-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 1504-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 1504-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1504-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 1504-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 1504-
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 1504-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1504-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1504-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
