◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#160300) — 12 parça

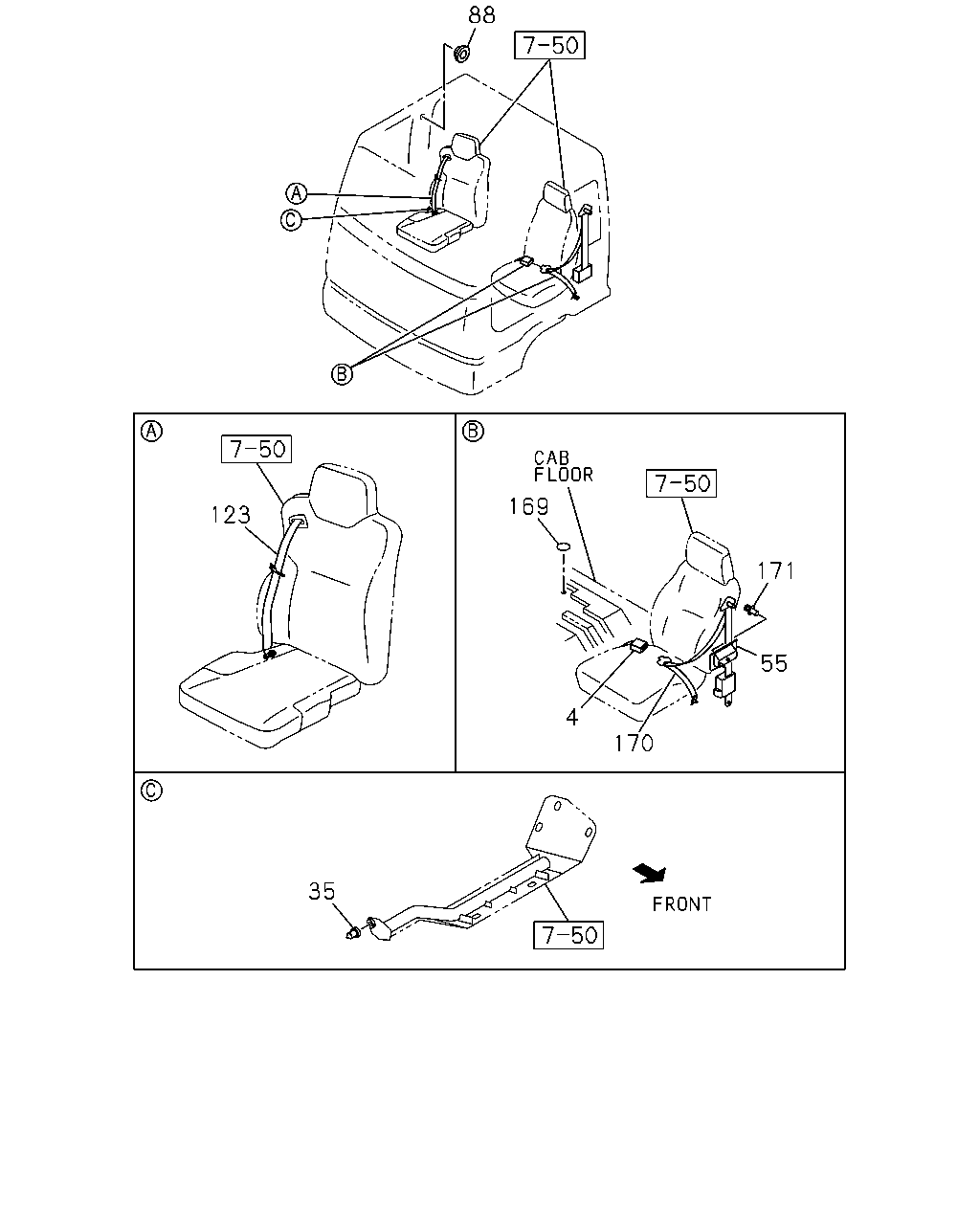

çizim 471256
88 123 169 4 170 55 171 35
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 1504-
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) OD=22 		9-61168-535-0 01 1 1504-1506
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1507-
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 1504-
88 PLUG; HOLE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) OD=31.6 		8-94198-177-0 01 1 1504-1506
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 1507-
123 BELT ASM; SEAT 8-98097-971-0 01 1 1504-1506
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-971-0 01 1 1507-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1504-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1504-
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1504-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1504-
