Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#1603) — 29 parça
Tümü
A - FSS5MF
B - FTS5MC
C - FTS5MF
D - FTS5WF
E - FSS5MC
◀
[322A] NO.2 (13 parça)
[322A] NO.1 (16 parça)
▶
54
50
50
54
60
13
50
54
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING(B3A)
1-48410-052-1
01
1
9207-9307
●
●
●
●
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING(B3A)
1-48410-320-0
01
1
9308-
●
●
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING(B3A) (C) M14
1-09650-085-1
01
1
9207-
●
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING(B3A) (B) M14
1-09650-092-1
01
1
9207-9302
●
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING(B3A) (B) M14
1-09650-437-0
01
1
9303-
●
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING(B3A) (A) M20
1-09656-056-1
01
1
9207-9302
●
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING(B3A) (A) M20 & PT3/8 ELBOW
1-09660-684-0
01
1
9303-
●
●
●
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING(B3A) (B) M14
1-09650-092-1
02
1
9207-9302
●
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING(B3A) (B) M14
1-09650-437-0
02
1
9303-
●
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING(B3A) (A) M20
1-09656-056-1
01
1
9207-9302
●
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING(B3A) (A) M20 M20 & PT3/8 ELBOW
1-09660-684-0
01
1
9303-
●
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING(B3A) M8X20 W/LK WASHER
0-50040-820-0
02
1
9207-
●
●
●
●
60
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING(B3A) M8
9-09110-408-0
02
1
9207-
●
●
●
●

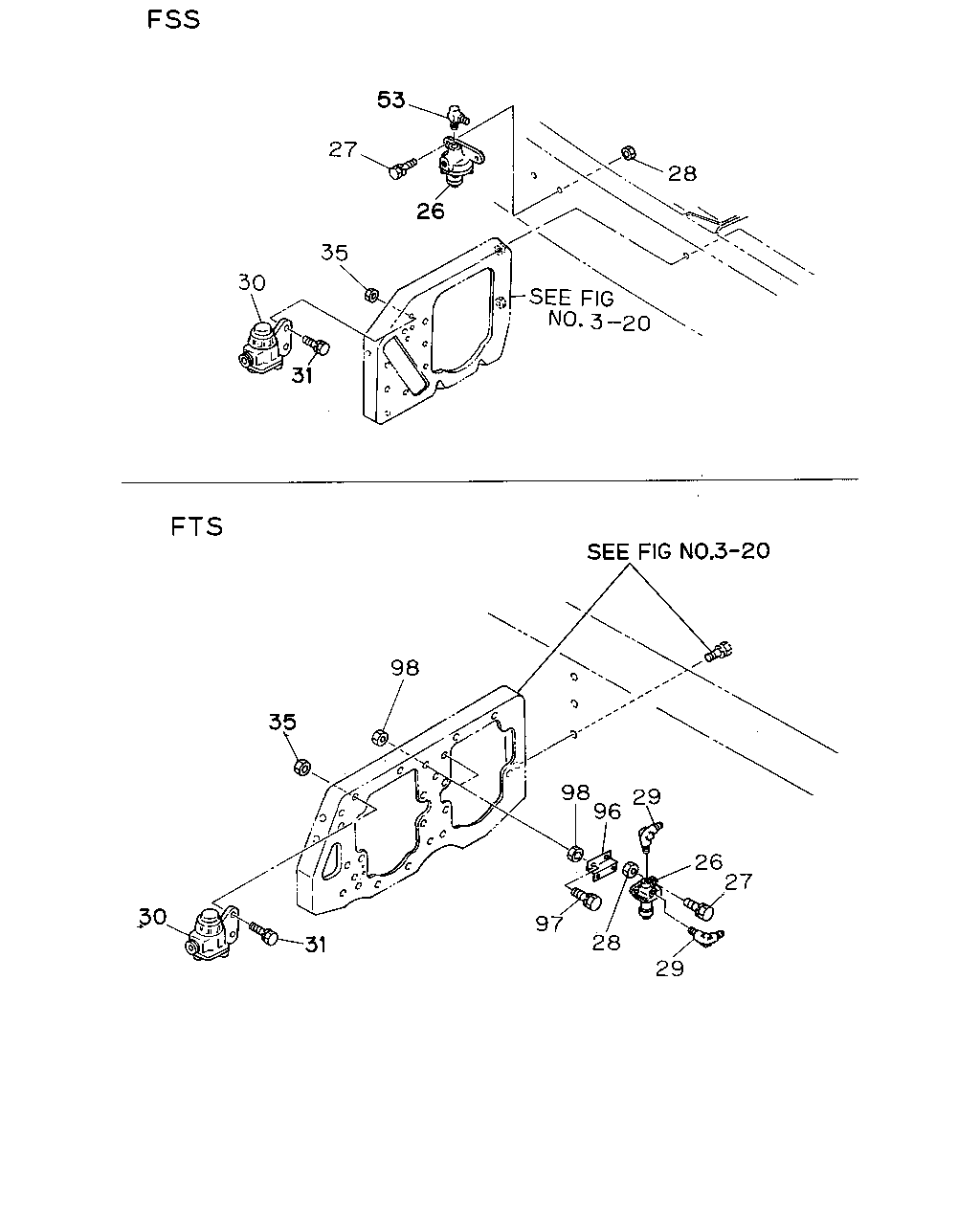

53
27
28
26
35
30
31
98
35
30
31
97
98
29
96
28
26
27
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
26
VALVE; AIR
REAR WHEEL PARKING(B3A)
1-48110-006-0
01
1
9207-
●
●
●
●
27
BOLT; AIR VLV
REAR WHEEL PARKING(B3A) M8X35 FLANGE
0-28080-835-0
02
1
9207-9207
●
●
●
●
27
BOLT; AIR VLV
REAR WHEEL PARKING(B3A) M8X25 FLANGE
0-28080-825-0
02
1
9208-
●
●
●
●
28
NUT; AIR VLV
REAR WHEEL PARKING(B3A) M8
9-09110-408-0
02
1
9207-
●
●
●
●
29
CONNECTOR; AIR VLV
REAR WHEEL PARKING(B3A) M14 & PT1/4 ELBOW
1-09650-034-1
02
1
9207-9302
●
●
●
29
CONNECTOR; AIR VLV
REAR WHEEL PARKING(B3A) M14 & PT1/4 ELBOW
1-09650-432-0
02
1
9303-
●
●
●
30
GOVERNOR; AIR CONT
1-48350-037-0
01
1
9207-9208
●
●
●
●
●
30
GOVERNOR; AIR CONT
1-48350-050-1
01
1
9209-9409
●
●
●
●
●
30
GOVERNOR; AIR CONT
1-48350-059-0
01
1
9410-
●
●
●
●
●
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28080-830-0
02
1
9207-
●
●
●
●
●
35
NUT; GOV TO FRAME
M8
9-09110-408-0
02
1
9207-
●
●
●
●
●
53
CONNECTOR; AIR VLV
REAR WHEEL PARKING(B3A) M16 & PT1/4 ELBOW
9-09234-310-1
02
1
9207-9302
●
53
CONNECTOR; AIR VLV
REAR WHEEL PARKING(B3A) M16 & PT1/4 ELBOW
1-09650-434-0
02
1
9303-
●
96
BRACKET
REAR WHEEL PARKING(B3A)
1-48495-053-1
01
1
9207-
●
●
●
97
BOLT; VLV BRKT
REAR WHEEL PARKING(B3A) M8X20 FLANGE
0-28080-820-0
02
1
9207-
●
●
●
98
NUT; VLV BRKT
REAR WHEEL PARKING(B3A) M8
9-09110-408-0
02
1
9207-
●
●
●
