◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#160299) — 127 parça

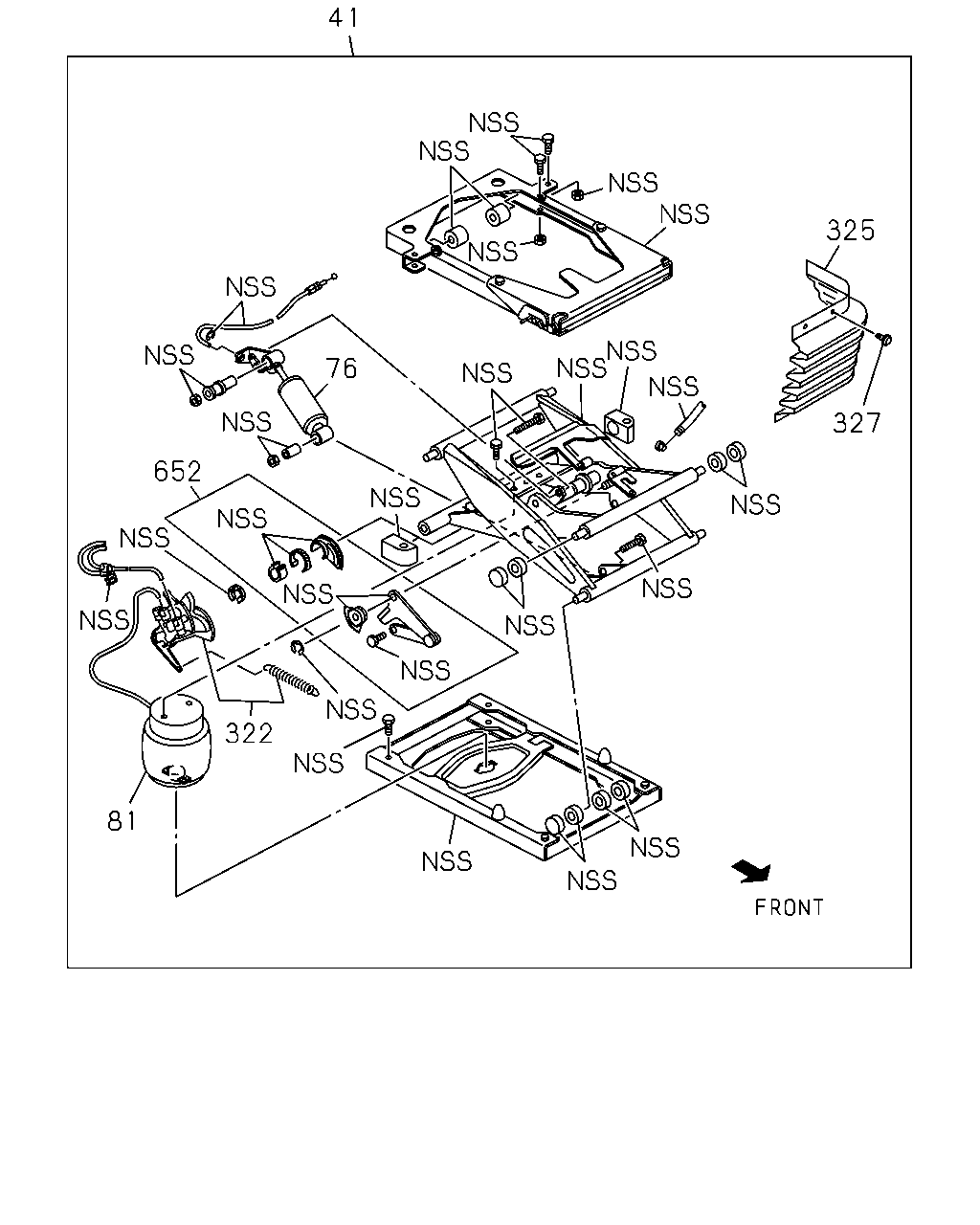

çizim 471209
327 41 76 652 322 81 325
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1504-1506
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98195-067-1 01 1 1507-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1504-1506
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-999-0 01 1 1507-
81 SPRING; AIR 8-98098-000-0 01 1 1504-1506
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-000-0 01 1 1507-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1504-1506
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-001-0 01 1 1507-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1504-1506
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-003-0 01 1 1507-
327 CLIP; COVER 8-98098-004-0 01 1 1504-1506
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-004-0 01 1 1507-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1504-1506
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-002-0 01 1 1507-
çizim 471686
41 12 13 336 602 637 336 634 635 642 642 648 642 17 661 17 532 336 638 509 310 587 651 651 336 651 365 650 411 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 8-98097-964-0 01 1 1504-1506
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-964-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1504-1506
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98232-353-0 01 1 1507-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1504-1506
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-006-0 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1504-1506
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-007-0 01 1 1507-
17 BOLT; RECLINING 8-98097-974-0 02 1 1504-1506
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-974-0 02 1 1507-
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1504-1506
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98195-067-1 01 1 1507-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1504-1506
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-992-0 01 1 1507-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1504-1506
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (D) 		8-98097-978-0 01 1 1507-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1504-1506
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (C) 		8-98097-984-0 01 1 1507-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1504-1506
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (A) 		8-98097-995-0 01 1 1507-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1504-1506
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (B) 		8-98097-996-0 01 1 1507-
365 LOCK ASM; SEAT 8-98097-972-0 01 1 1504-1506
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-972-0 01 1 1507-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1504-1506
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-967-0 01 1 1507-
509 LEVER; DAMPER 8-98097-988-0 01 1 1504-1506
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-988-0 01 1 1507-
532 LEVER ASM; TILT 8-98097-982-0 01 1 1504-1506
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-982-0 01 1 1507-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1504-1506
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-986-0 01 1 1507-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1504-1506
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-008-0 01 1 1507-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1504-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1504-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1504-1506
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-989-0 01 1 1507-
638 VALVE; LOWERING 8-98097-994-0 01 1 1504-1506
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-994-0 01 1 1507-
642 SLIDER; CUSHION 8-98192-932-0 04 1 1504-1506
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98192-932-0 04 1 1507-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1504-1506
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-976-0 01 1 1507-
650 CABLE 8-98232-354-0 01 1 1504-1506
650 CABLE
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98232-354-0 01 1 1507-
651 RIVET 8-98194-075-0 04 1 1504-1506
651 RIVET
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98194-075-0 04 1 1507-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1504-1506
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98097-980-0 01 1 1507-

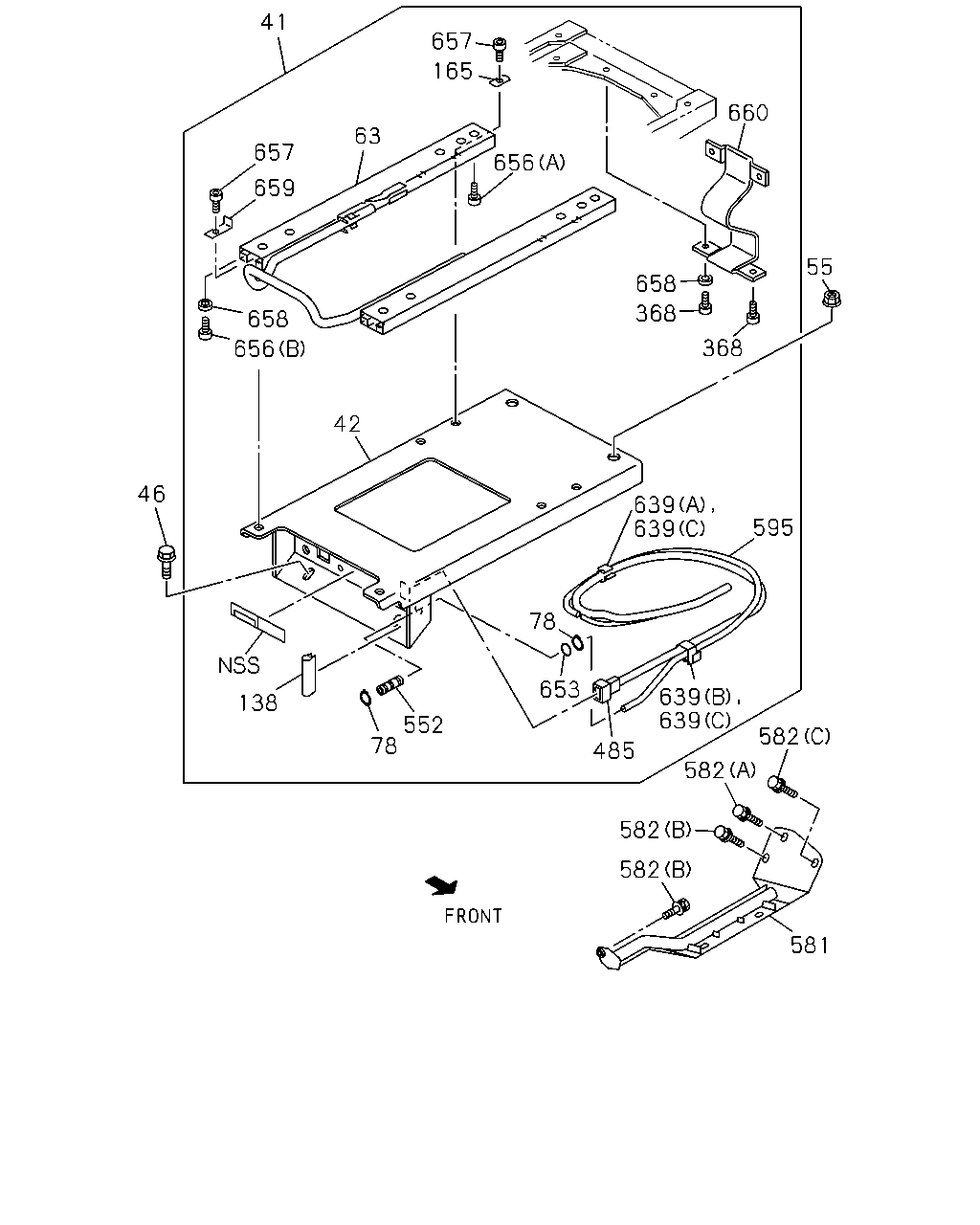

çizim 471696
41 657 63 165 657 659 658 656 42 46 658 368 368 55 660 639 639 595 78 653 639 639 582 582 485 582 582 581 552 78 138 656
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1504-1506
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98195-067-1 01 1 1507-
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 1504-1506
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-347-0 01 1 1507-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1504-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1504-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1504-1506
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98098-005-0 01 1 1507-
78 RING; SNAP 8-98101-900-0 02 1 1504-1506
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98101-900-0 02 1 1507-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1504-1506
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-351-0 01 1 1507-
165 WASHER; PL 1-75590-086-0 04 1 1504-1506
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		1-75590-086-0 04 1 1507-
368 BOLT; SEAT 8-98106-353-0 04 1 1504-1506
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-353-0 04 1 1507-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1504-1506
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-360-0 01 1 1507-
552 CONNECTOR 8-98101-902-0 01 1 1504-1506
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98101-902-0 01 1 1507-1508
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98308-101-0 01 1 1509-
581 PIPE; SEAT 1-73907-605-2 01 1 1504-1506
581 PIPE; SEAT 1-73907-605-2 01 1 1507-
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 1504-
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1504-
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1504-
595 TUBE; NYLON 8-98106-348-0 01 1 1504-1506
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-348-0 01 1 1507-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1504-1506
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (A) 		8-98106-349-0 01 1 1507-1508
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1504-1506
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (B) 		8-98106-350-0 01 1 1507-1508
653 GASKET 8-98101-901-0 01 1 1504-1506
653 GASKET
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98101-901-0 01 1 1507-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1504-1506
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (A) 		1-75590-085-0 04 1 1507-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1504-1506
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) (B) 		8-98106-354-0 02 1 1507-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1504-1506
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		1-75590-085-0 06 1 1507-
658 SPACER; BOLT 8-98106-355-0 02 1 1504-1506
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-355-0 02 1 1507-
659 STOPPER 8-98106-356-0 02 1 1504-1506
659 STOPPER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-356-0 02 1 1507-
660 BELT; TETHER 8-98106-357-0 01 1 1504-1506
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT WO/ARM REST(SJA) 		8-98106-357-0 01 1 1507-

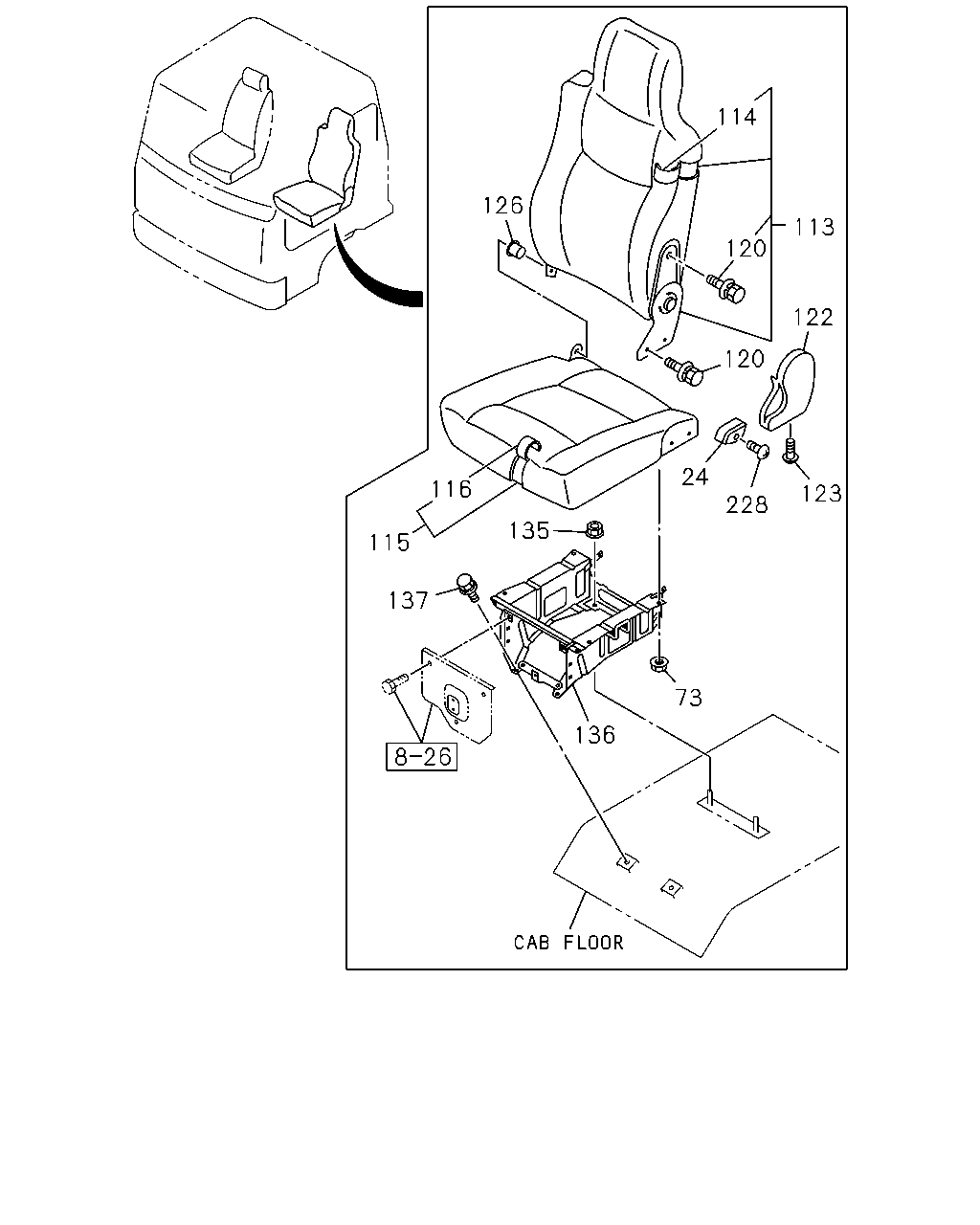

çizim 472070
126 114 113 120 122 120 123 228 24 73 136 137 115 116 135
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 1504-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 1504-
113 BACK ASM; SEAT 8-98054-773-0 01 1 1504-
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 1504-
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 1504-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 1504-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 1504-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 1504-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 1504-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 1504-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1504-
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1504-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1504-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1504-
