7-43 — SUN VISOR AND ASSIST GRIP (#160297) — 90 parça

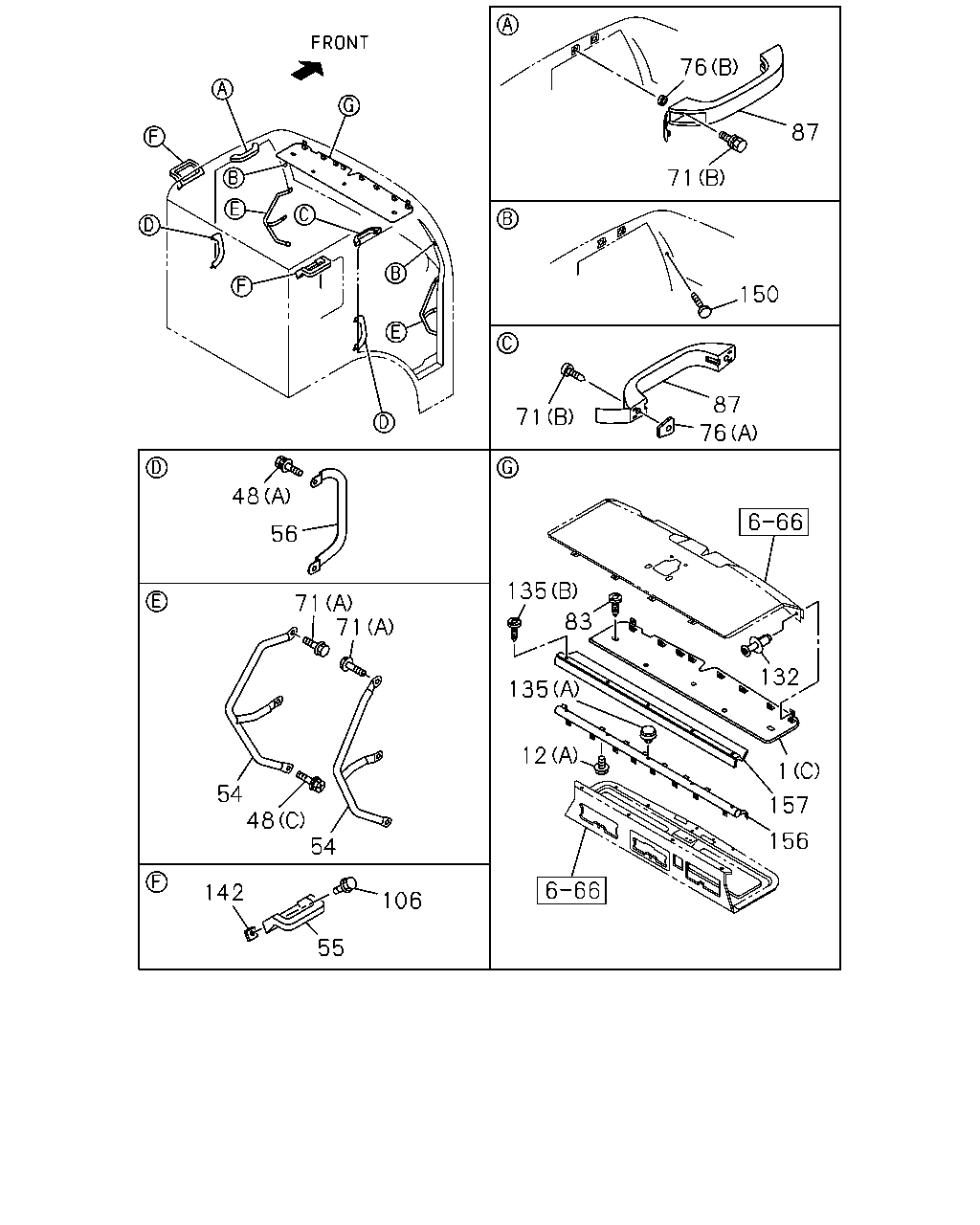

156 1 157 132 12 135 83 135 76 87 71 150 71 87 76 56 48 71 71 54 48 54 106 55 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1504-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1504-
1	BOARD; HEADER SHELF (D)	1-72447-876-4	01	1	1504-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	1504-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1504-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	1504-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	1504-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1504-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1504-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1504-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1504-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1504-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1504-
54	GRIP; ASSIST,QUARTER SIDE	8-98153-870-1	01	1	1504-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1504-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1504-
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1504-
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1504-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1504-
71	SCREW ASSIST GRIP A POST<NBK> (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1504-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	1504-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	1504-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	1504-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	1504-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1504-
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1504-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	1504-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	1504-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	1504-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> 25X25	8-94272-533-0	02	1	1504-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> 25X25	8-94272-533-0	04	1	1504-
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1504-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	1504-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	1504-

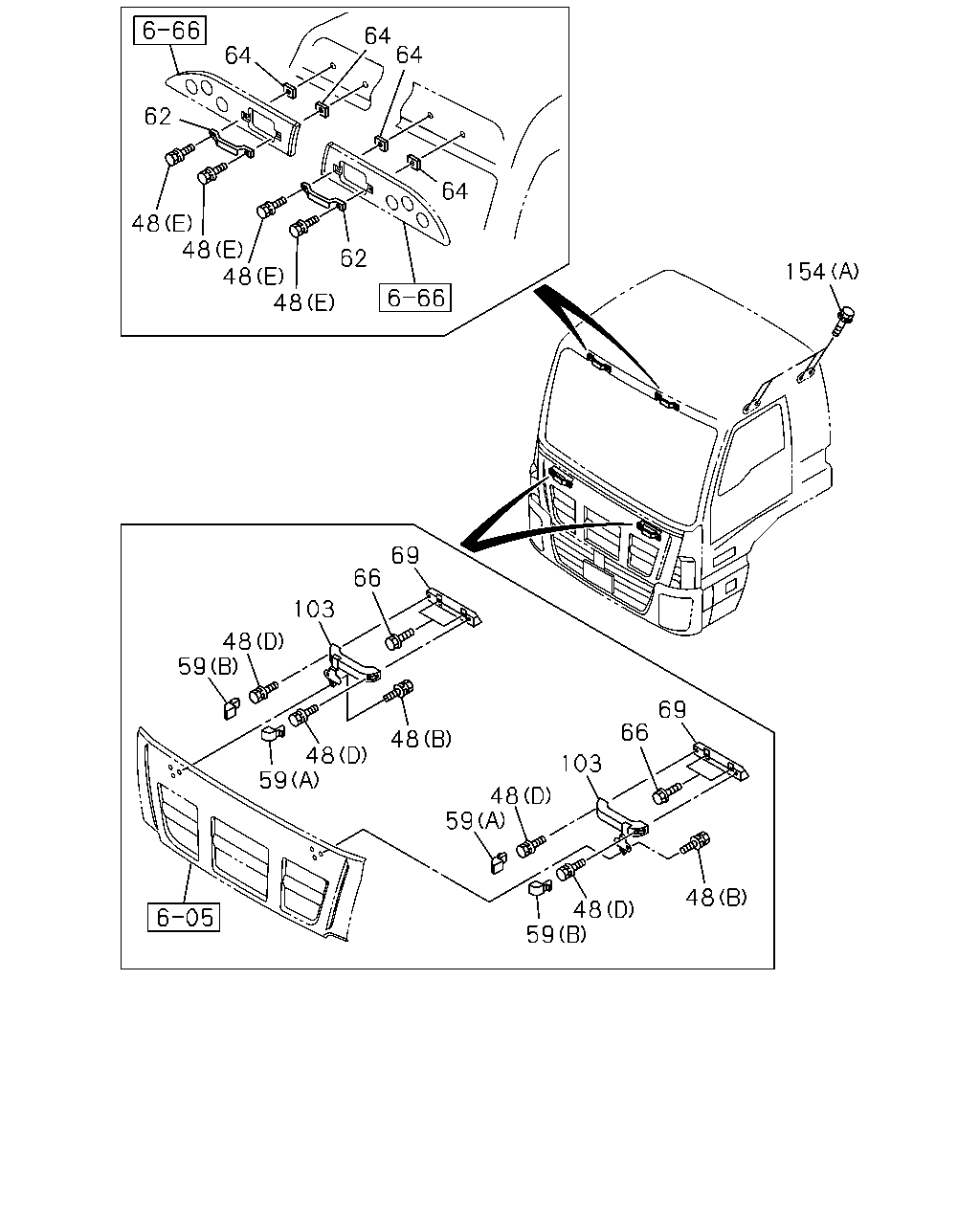

64 64 64 62 48 48 48 48 62 64 154 69 66 103 48 59 59 48 48 59 48 103 66 69 59 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1504-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1504-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1504-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1504-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1504-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1504-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1504-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1504-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1504-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1504-
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1504-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1504-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1504-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1504-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1504-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1504-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1504-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1504-

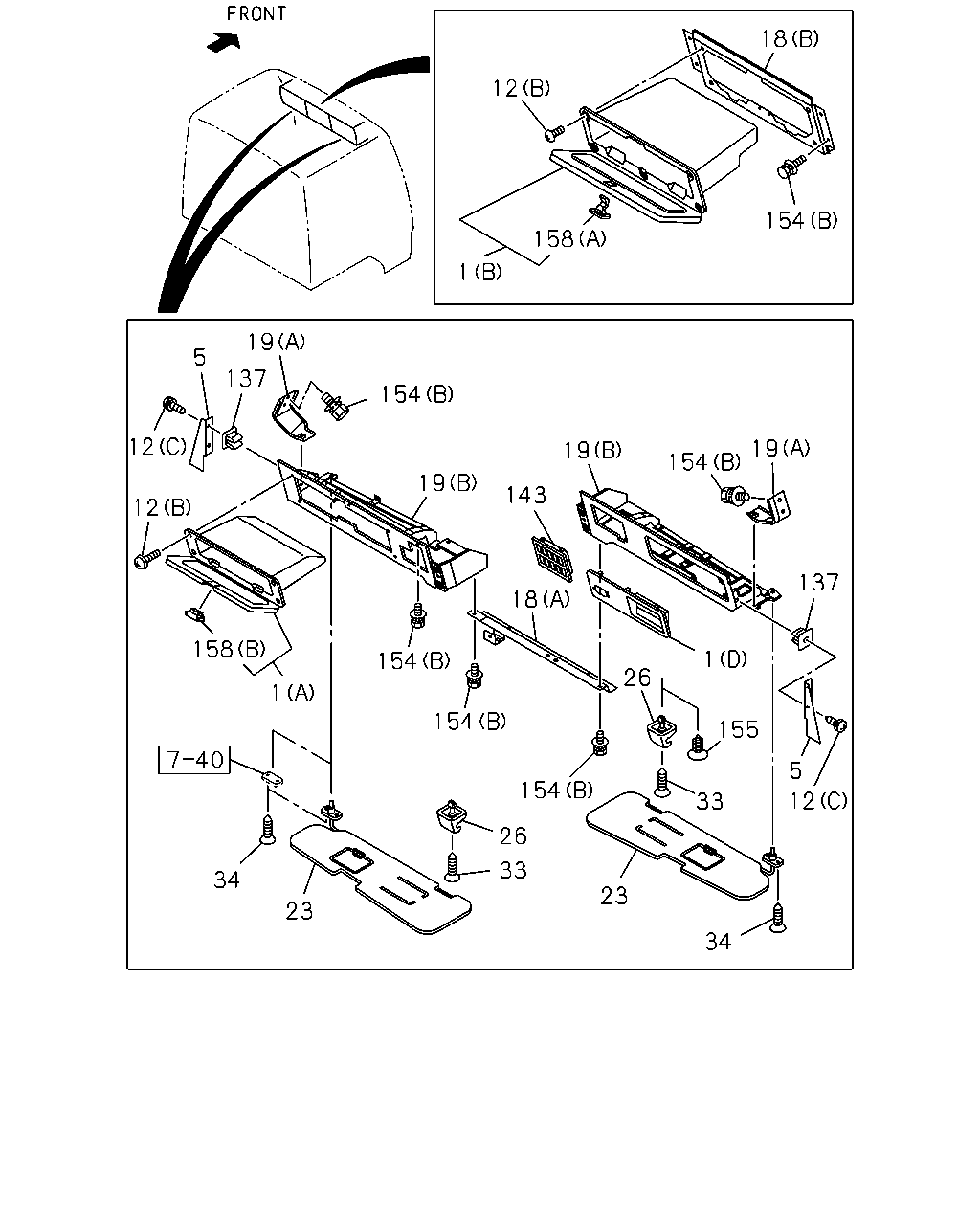

34 12 155 5 33 23 26 33 23 34 1 154 154 154 158 18 26 137 19 154 19 143 19 154 137 19 5 12 12 158 154 18 12 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1504-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1504-
1	BOARD; HEADER SHELF (D)	1-72447-876-4	01	1	1504-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	1504-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	1504-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	1504-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	1504-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	1504-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	1504-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1504-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1504-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1504-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1504-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1504-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1504-
23	SUN VISOR SUN VISOR DRIVER,W/MIRROR<TBT>	1-73138-162-0	01	1	1504-
23	SUN VISOR EXC. SUN VISOR DRIVER,W/MIRROR<TBT>	1-73138-156-1	01	1	1504-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1504-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1504-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1504-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1504-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1504-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1504-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1504-
143	BEZEL	1-72447-768-2	01	1	1504-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1504-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1504-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	1504-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1504-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1504-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1504-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1504-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1504-
