◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#160296) — 110 parça

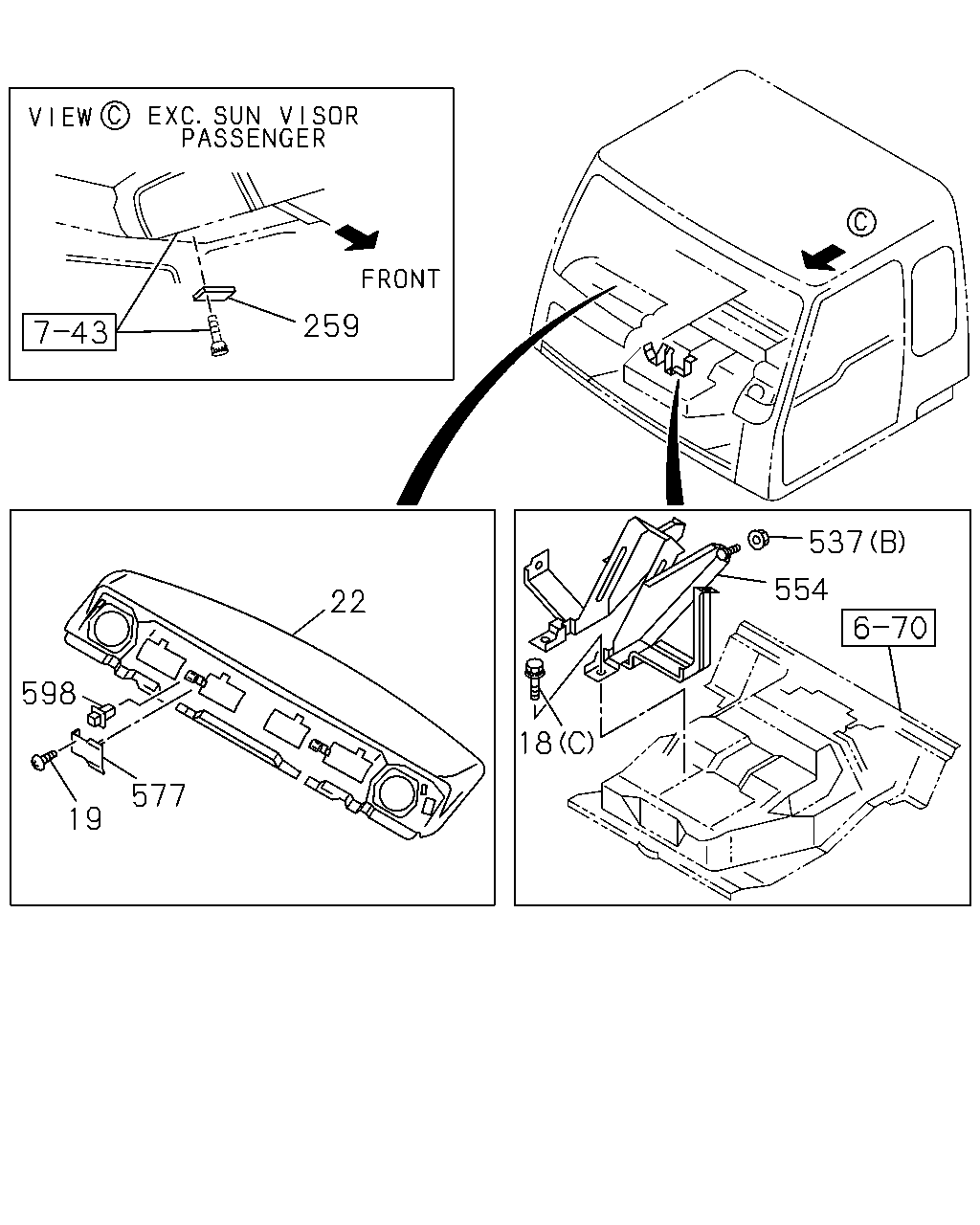

çizim 471235
554 18 537 22 577 19 598 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1504-
22 PAD; INST 1-72317-372-1 01 1 1504-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1504-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1507-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1504-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1504-
577 BRACKET; SENSOR 1-72318-413-0 01 1 1504-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1504-

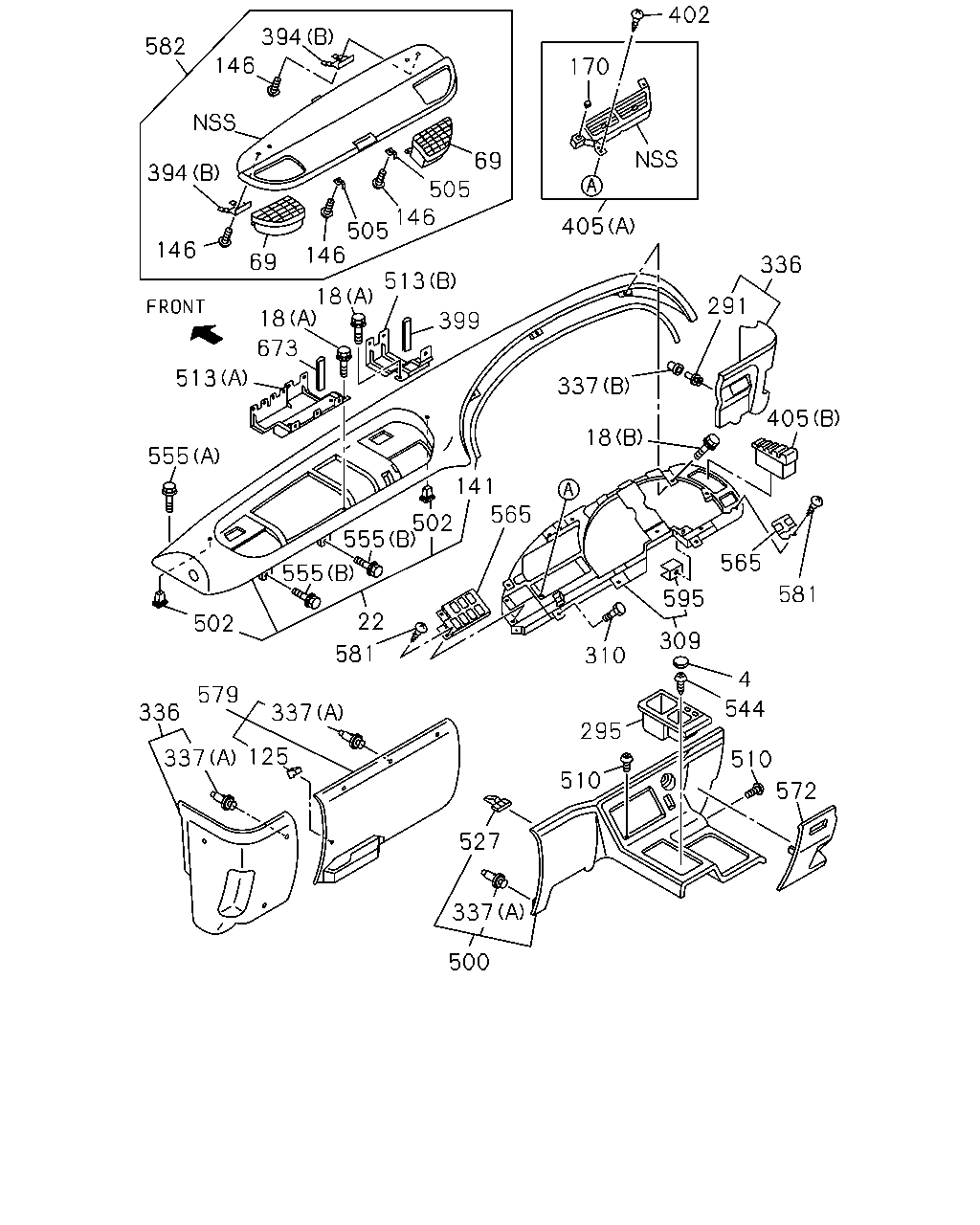

çizim 471740
402 170 405 394 582 146 394 146 69 146 505 146 505 69 18 673 18 513 399 513 337 291 336 405 18 565 581 595 309 310 565 141 502 555 555 22 581 502 579 336 337 337 125 295 510 4 544 510 572 527 337 500 555
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1504-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
22 PAD; INST 1-72317-372-1 01 1 1504-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1504-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1504-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1504-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1504-
170 COVER; HOLE 1-76367-068-0 01 1 1504-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1504-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1504-
309 PANEL; SW,INST 1-72418-009-6 01 1 1504-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1504-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1504-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1504-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1504-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1504-
337 FASTENER; COVER
INST PANEL CARBON<EGW> (A) 		1-72438-124-2 02 1 1504-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1504-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1504-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1504-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1504-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1504-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1504-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1507-
500 CLUSTER; INST CENTER
INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1504-1506
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1507-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1504-
505 LOCK; LID 1-72558-024-2 02 1 1504-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1504-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1504-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1504-
527 CLIP; INST CLUSTER
INST PANEL CARBON<EGW> 		8-97217-066-0 04 1 1504-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1504-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1504-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1504-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1504-
572 COVER; INSPECTION 1-72437-634-0 01 1 1504-
579 COVER; INST PNL 1-72437-626-0 01 1 1504-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1504-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1504-
595 NUT; HOOK 1-72418-013-0 11 1 1504-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1504-

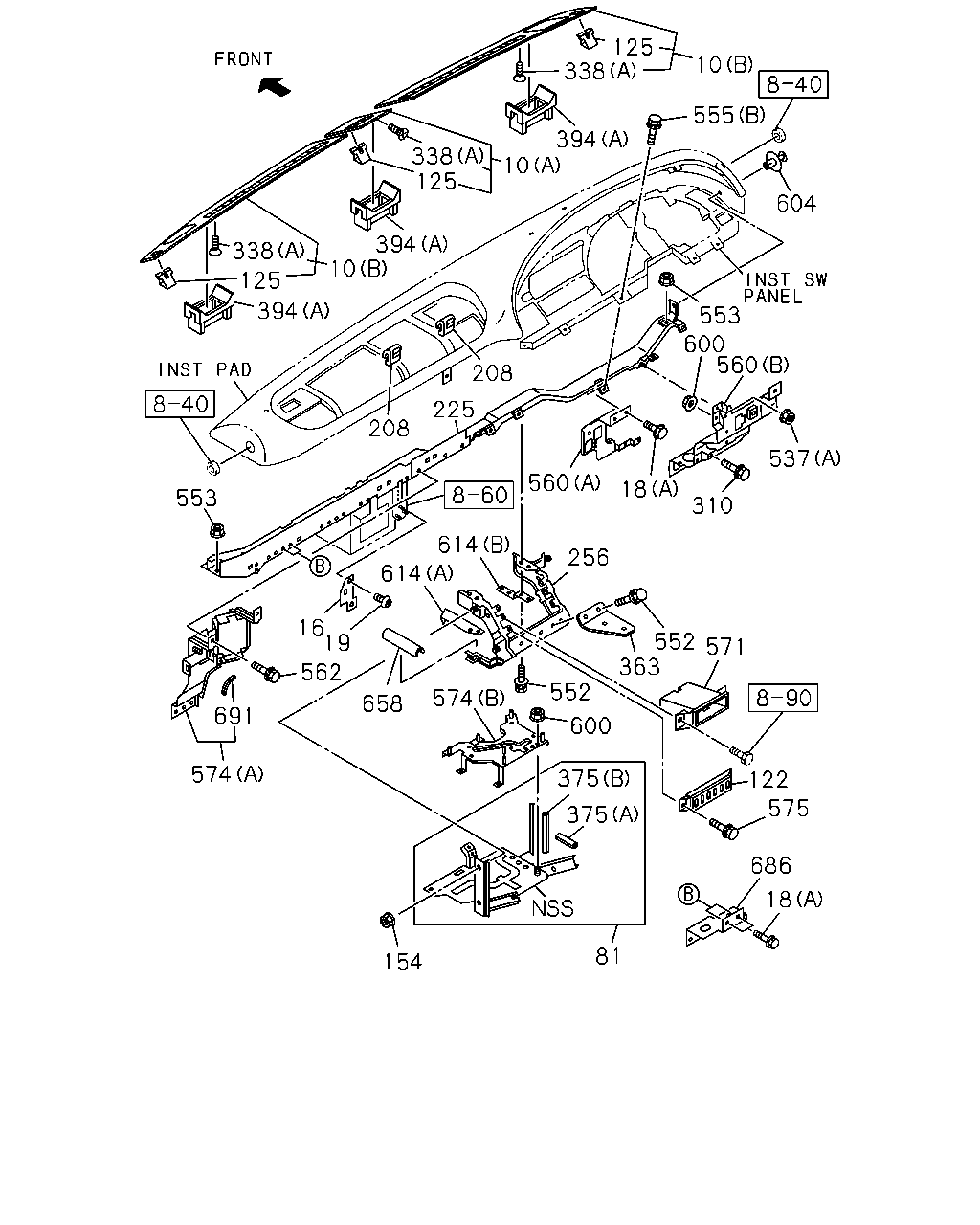

çizim 471978
125 10 338 555 394 10 338 125 394 10 338 125 394 604 553 600 560 537 310 18 560 208 225 208 553 614 614 256 552 571 363 16 19 562 691 658 574 574 552 600 375 375 122 575 686 18 81 154
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1504-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1504-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 1504-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1504-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1504-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1504-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1504-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1504-
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1504-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1504-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1504-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1504-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1504-
225 FRAME; FACIA 1-65671-725-8 01 1 1504-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1504-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1504-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1507-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1504-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1504-
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1507-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1504-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1504-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1504-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1504-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1507-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1504-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1504-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1504-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1504-
560 BRACKET
(A) 		1-65681-197-2 01 1 1504-
560 BRACKET
(B) 		1-65681-223-2 01 1 1504-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1504-
571 BEZEL; POCKET 1-72438-151-3 02 1 1504-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1504-
574 PANEL; RELAY BOX
FULL FLOATING CAB(W16) (B) 		1-73907-690-2 01 1 1504-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
600 NUT; PANEL
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 03 1 1504-
604 CLIP; INST PAD 1-09983-123-0 01 1 1504-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1504-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1504-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1504-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1504-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1504-

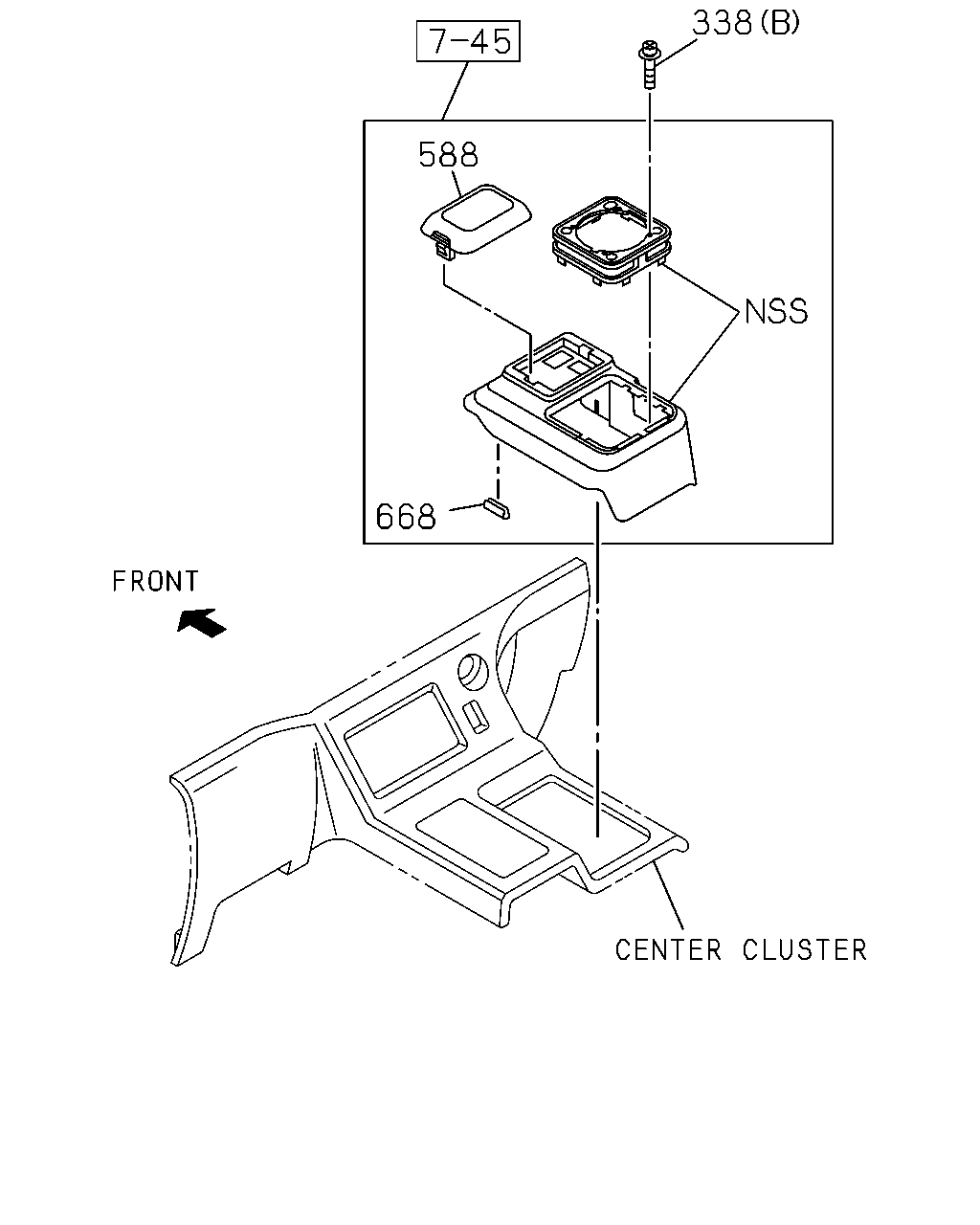

çizim 484547
668 588 338
BalonParca AdiParca NoAdetTipApplied Date
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1507-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1504-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1504-
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1507-
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1507-
