6-75 — MAT AND CARPET (#160284) — 32 parça

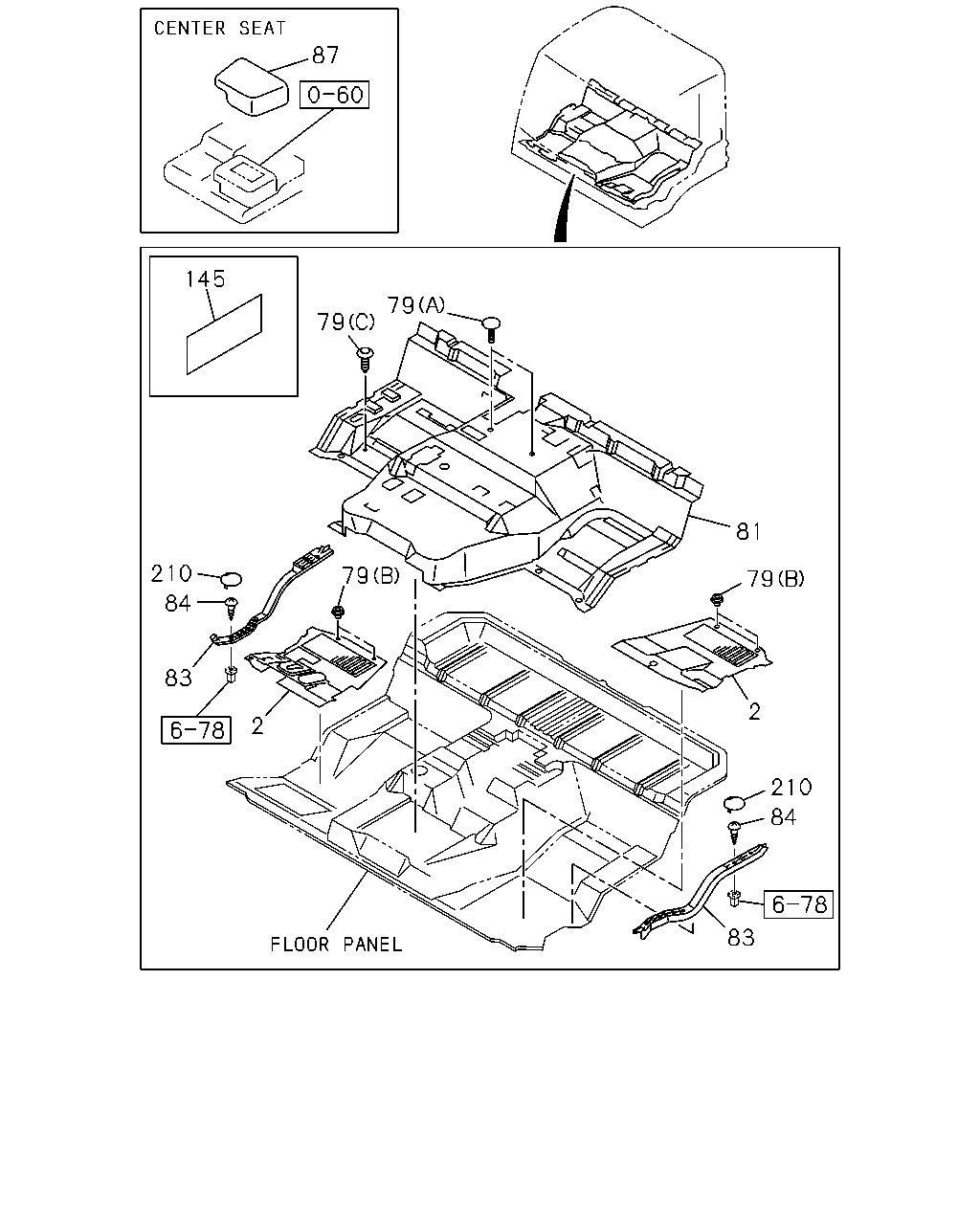

çizim 471580
87 145 79 79 210 84 83 2 79 81 79 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-784-1 01 1 1504-
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-786-1 01 1 1504-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1504-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1504-
79 HOOK; MALE
VINYL CARPET<B30> (C) OD=16 L=11 		1-76378-155-0 01 1 1504-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> SMOOTHER-G(C1W) 		8-98299-386-0 01 1 1507-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		8-98299-387-0 01 1 1504-1506
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98299-387-0 01 1 1507-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1504-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1504-
87 MAT; FLOOR
VINYL CARPET<B30> SMOOTHER-G(C1W) 		8-98282-107-1 01 1 1507-
87 MAT; FLOOR
VINYL CARPET<B30> 		1-73237-779-1 01 1 1504-1506
87 MAT; FLOOR
VINYL CARPET<B30> TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-73237-779-1 01 1 1507-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1504-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1504-

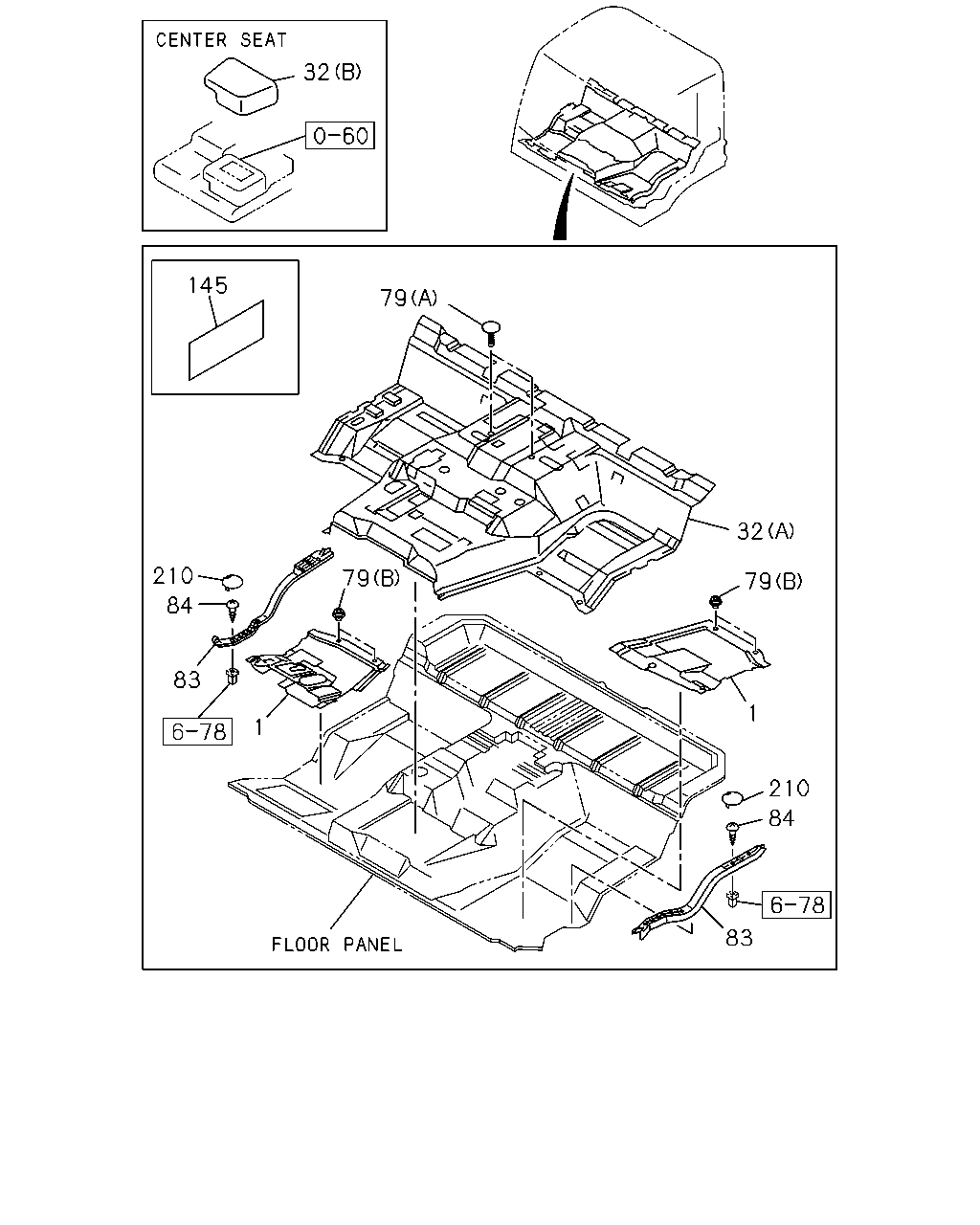

çizim 471596
32 145 79 79 1 83 84 210 32 79 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 1504-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 1504-
32 CARPET; FLOOR
DELUXE CARPET<BF2> SMOOTHER-G(C1W) (B) 		8-98282-108-0 01 1 1507-
32 CARPET; FLOOR
DELUXE CARPET<BF2> SMOOTHER-G(C1W) (A) 		8-98299-388-0 01 1 1507-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (B) 		1-73237-835-1 01 1 1504-1506
32 CARPET; FLOOR
DELUXE CARPET<BF2> TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-73237-835-1 01 1 1507-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		8-98299-389-0 01 1 1504-1506
32 CARPET; FLOOR
DELUXE CARPET<BF2> TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98299-389-0 01 1 1507-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1504-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1504-
79 HOOK; MALE
VINYL CARPET<B30> (C) OD=16 L=11 		1-76378-155-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1504-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1504-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1504-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1504-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1504-
