◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#160283) — 24 parça

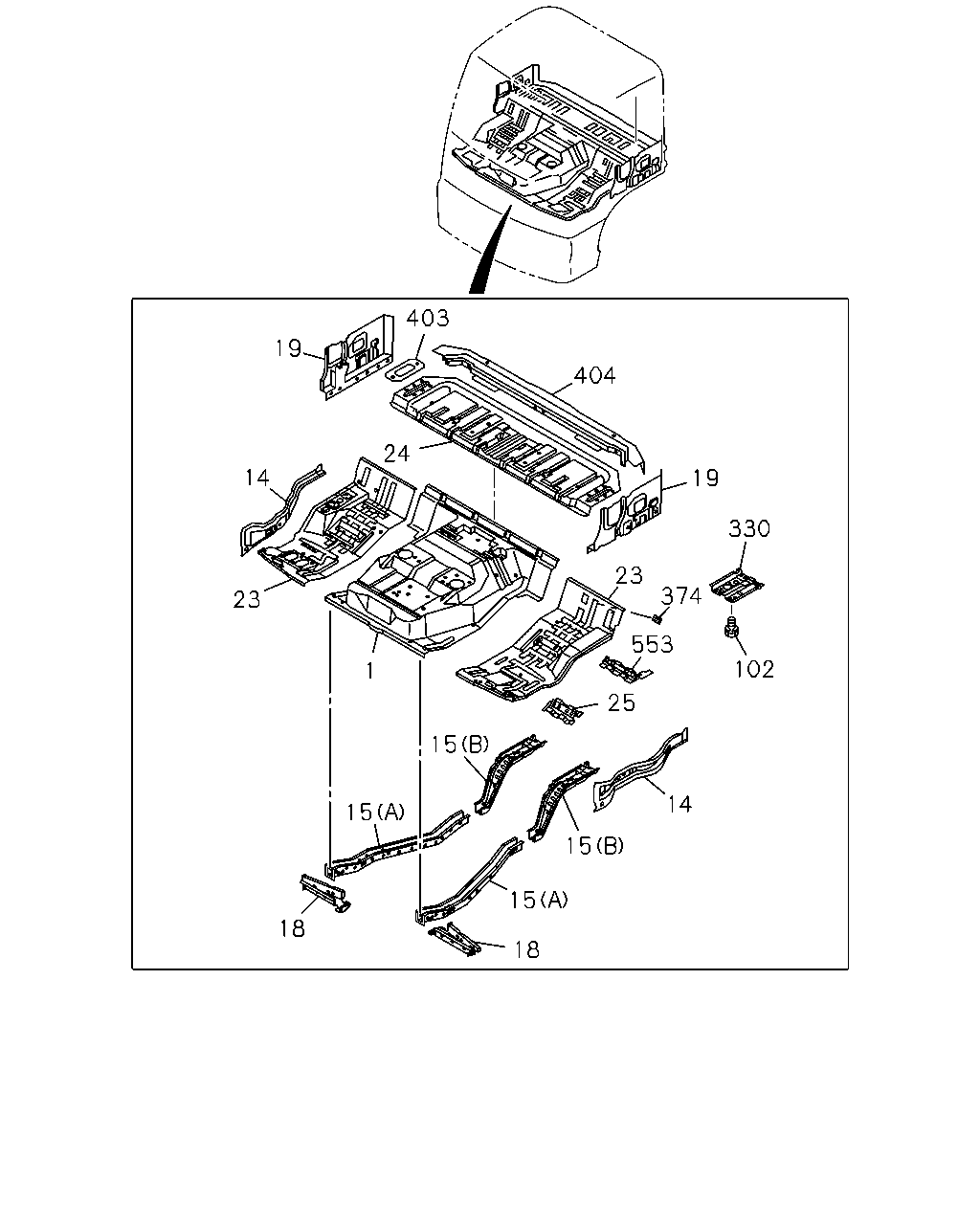

çizim 471552
403 24 19 14 23 1 15 15 18 18 15 15 14 25 553 102 330 374 23 19 404
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98211-082-0 01 1 1507-
1 PANEL; FLOOR 8-98211-325-0 01 1 1504-1506
1 PANEL; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98211-325-0 01 1 1507-
1 PANEL; FLOOR
TRANSMISSION-FULLER RTLO189 18(Y4W) SMOOTHER-G(C1W) 		8-98211-325-0 01 1 1507-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 1504-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 1504-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 1504-
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 1504-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 1504-
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 1504-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 1504-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 1504-
19 PANEL; FLOOR SIDE,REAR 1-62472-615-4 01 1 1504-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 1504-
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 1504-
23 PANEL; FLOOR,SIDE 1-62172-866-0 01 1 1504-
24 PANEL; BED PAN 1-62172-540-9 01 1 1504-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 1504-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1504-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 1504-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 1504-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 1504-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 1504-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 1504-
