6-01 — FRONT BUMPER (#160269) — 146 parça

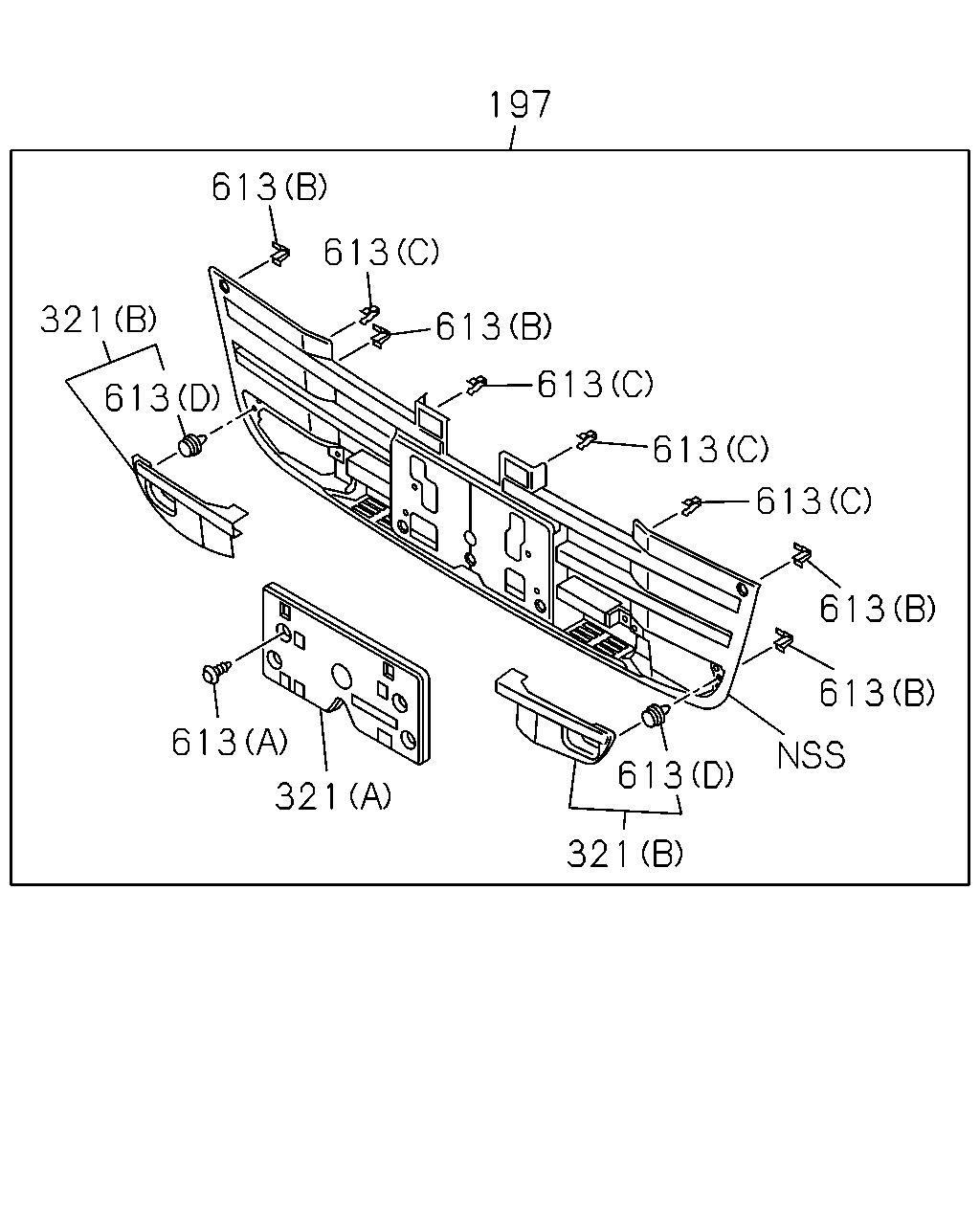

çizim 471649
321 613 613 613 613 613 613 613 197 613 613 321 613 613 321
BalonParca AdiParca NoAdetTipApplied Date
197 GRILLE; BUMPER 8-98144-188-4 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
613 CLIP
(D) 		8-97581-651-2 04 1 1504-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1504-
613 CLIP
(B) 		8-98025-698-0 08 1 1504-
613 CLIP
(C) 		8-98144-173-1 06 1 1504-

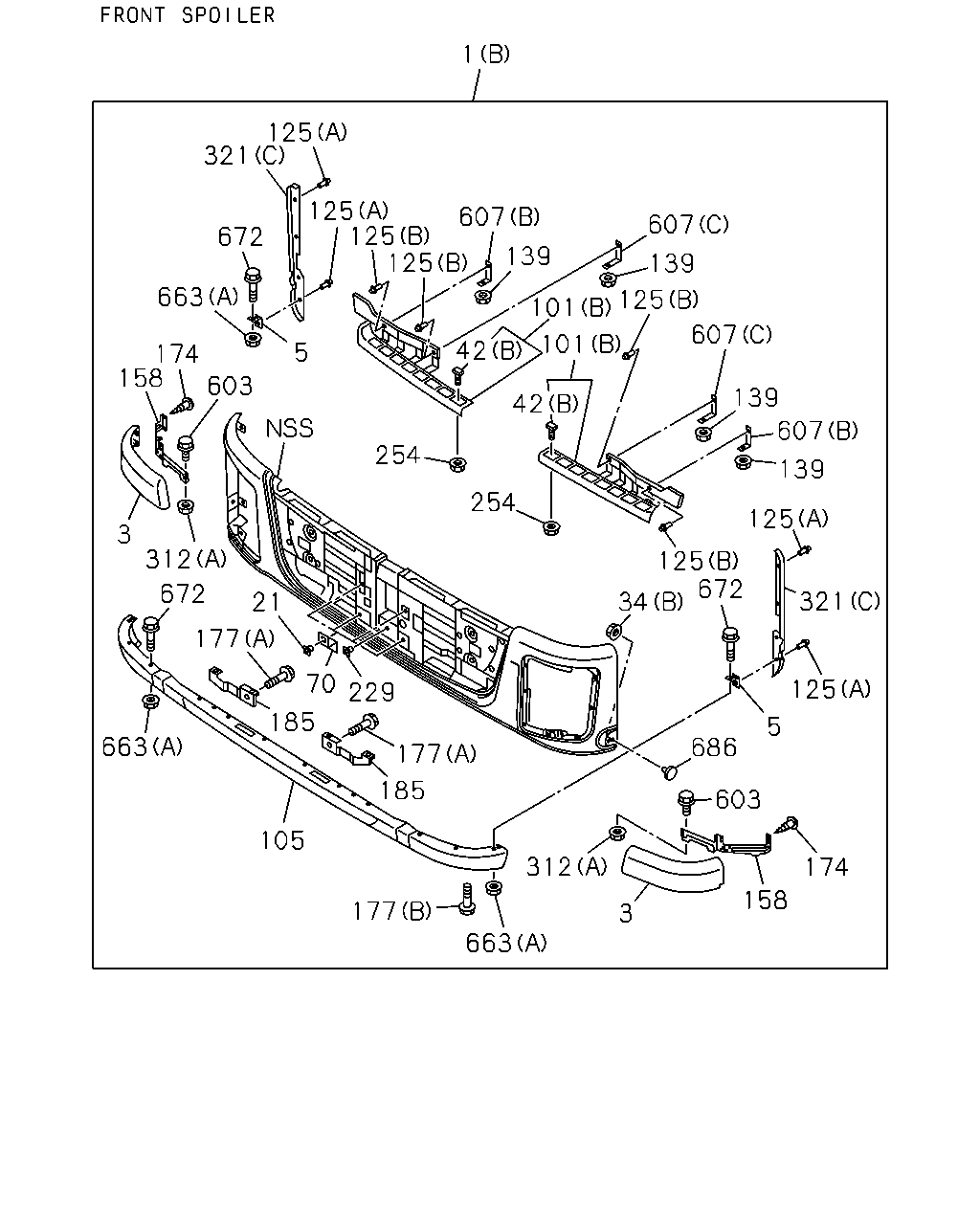

çizim 471725
1 158 3 312 663 177 105 663 185 185 174 603 686 177 229 70 177 672 21 254 125 34 321 125 5 672 125 139 607 139 607 125 139 607 101 42 101 607 125 139 42 254 125 321 672 125 5 663 174 158 125 603 3 312
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-941-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-942-0 01 1 1504-
5 BRACKET; AIR DAM
FRONT SPOILER<VP1> 		8-98154-762-0 02 1 1504-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
105 AIR DAM
FRONT SPOILER<VP1> WHITE 		8-97417-859-4 01 1 1504-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1504-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1504-
125 CLIP; STEP
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98157-186-0 06 1 1504-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-935-1 01 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-936-1 01 1 1504-
174 SCREW; EXT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 10 1 1504-
177 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (B) M10X20 FLANGE 		0-28051-020-0 02 1 1504-
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> 		8-98302-730-0 01 1 1504-
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> 		8-98302-731-0 01 1 1504-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1504-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
603 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1504-
663 NUT
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-106-0 13 1 1504-
672 STUD; STEP
FRONT SPOILER<VP1> BOLT M6X16 FLANGE 		0-28050-616-0 13 1 1504-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1504-

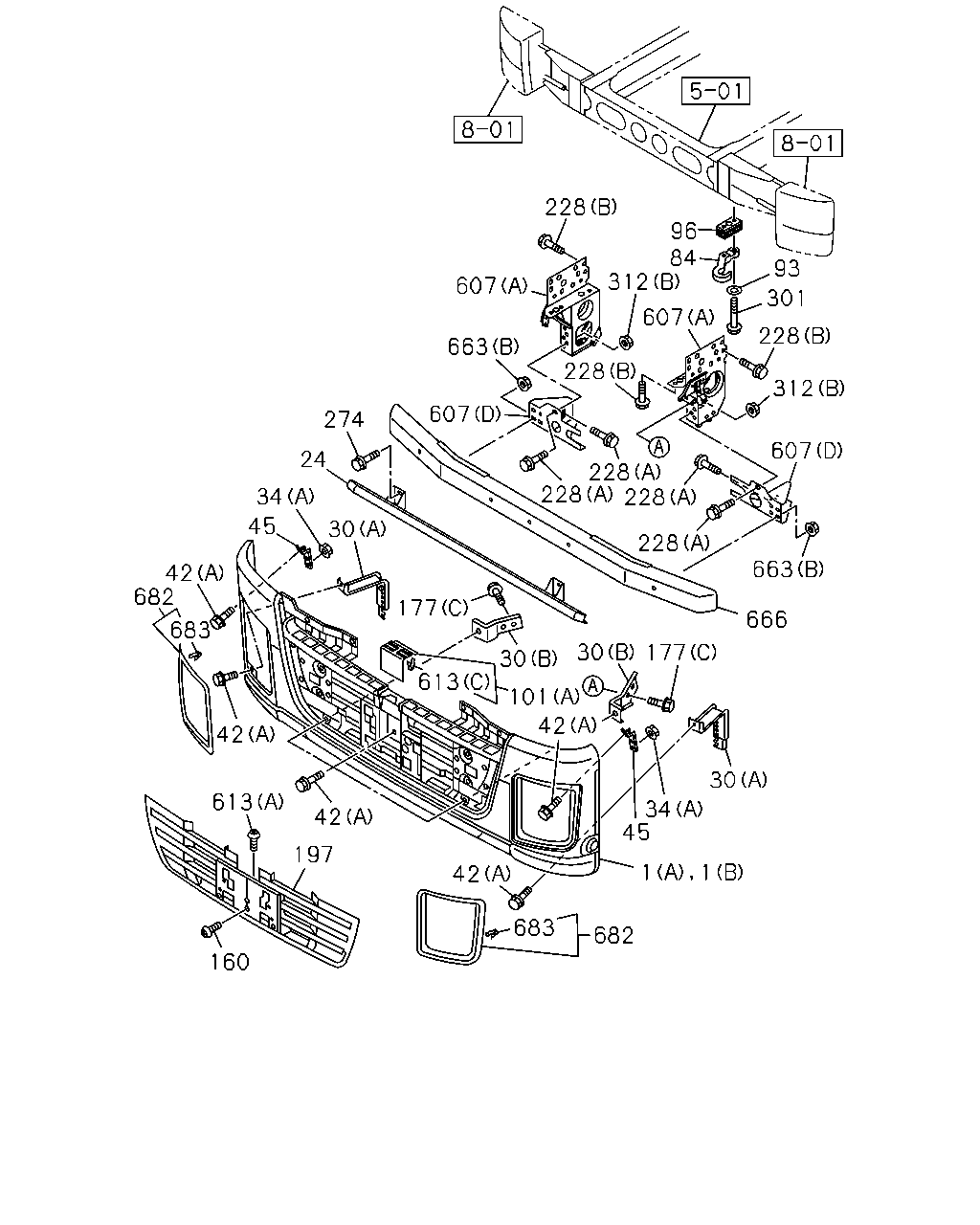

çizim 472016
228 96 84 312 607 93 228 301 312 607 663 666 177 228 228 228 228 228 663 607 607 274 24 34 45 42 682 683 42 613 42 197 160 42 683 682 1 1 45 30 34 42 101 613 177 30 30 30
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
24 BAR; FRT BUMPER 8-98285-568-0 01 1 1504-
30 BRACKET; FRT BUMPER
(A) 		8-98302-073-0 01 1 1504-
30 BRACKET; FRT BUMPER
(A) 		8-98302-074-0 01 1 1504-
30 BRACKET; FRT BUMPER
(B) 		8-98236-332-0 01 1 1504-
30 BRACKET; FRT BUMPER
(B) 		8-98236-334-0 01 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
45 BRACKET; BRKT TO BUMPER 8-98126-935-2 02 1 1504-
84 HOOK 8-98126-930-0 01 1 1504-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1504-
96 PLATE; DIST,HOOK 8-98218-989-0 01 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
160 SCREW
M5X16 		8-94380-268-0 01 1 1504-
177 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1504-
177 BOLT
FRONT SPOILER<VP1> (B) M10X20 FLANGE 		0-28051-020-0 02 1 1504-
197 GRILLE; BUMPER 8-98144-188-4 01 1 1504-
228 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 06 1 1504-
228 BOLT; BRKT
(B) M16X40 FLANGE 		0-28851-640-0 10 1 1504-
274 BOLT; EXT TO FRAME
M10X30 FLANGE 		8-98055-942-0 02 1 1504-
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
613 CLIP
(D) 		8-97581-651-2 04 1 1504-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1504-
613 CLIP
(B) 		8-98025-698-0 08 1 1504-
613 CLIP
(C) 		8-98144-173-1 06 1 1504-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1504-
663 NUT
FRONT SPOILER<VP1> (A) M6 FLANGE 		0-91180-106-0 13 1 1504-
666 PROTECTOR; UNDER
FRONT SPOILER<VP1> 		8-98172-164-0 01 1 1504-
666 PROTECTOR; UNDER
FRONT UNDER SPOILER DELETE<SGA> 		8-98220-526-0 01 1 1504-
682 BEZEL; BUMPER 8-98123-444-2 01 1 1504-
682 BEZEL; BUMPER 8-98123-445-2 01 1 1504-
683 CLIP; BEZEL,BUMPER 8-98144-173-1 16 1 1504-

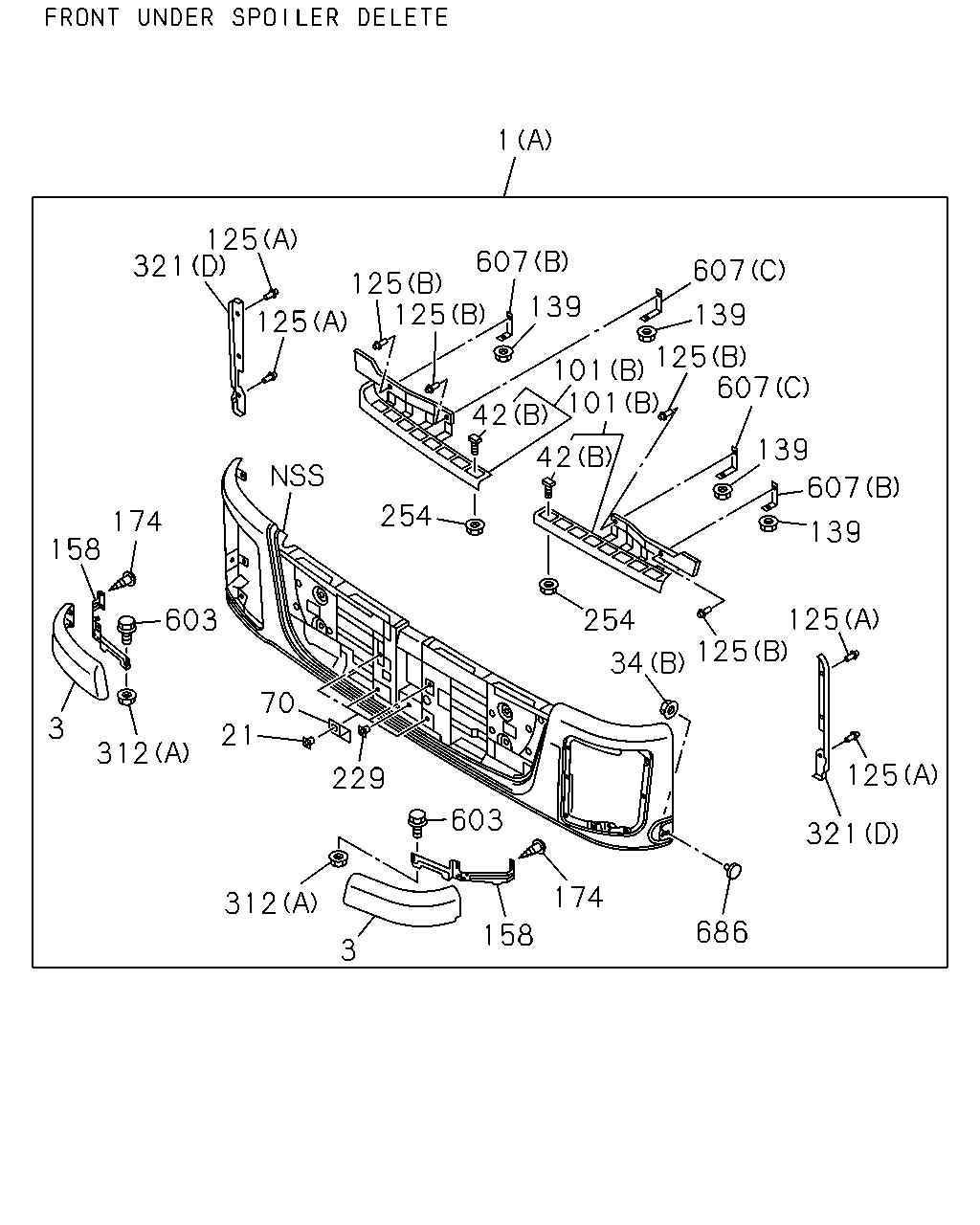

çizim 472071
158 3 686 321 125 125 139 607 137 607 125 139 607 101 125 34 254 174 603 229 312 21 312 3 70 603 174 158 42 101 1 607 125 139 125 125 125 321 42 254
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		8-97466-242-1 01 1 1504-
1 BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-97465-409-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-941-0 01 1 1504-
3 BUMPER; FRT,SIDE 8-98200-942-0 01 1 1504-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1504-
34 NUT; BRKT,BUMPER
(B) M6 FLANGE 		0-91180-106-0 02 1 1504-
34 NUT; BRKT,BUMPER
(A) M10 FLANGE 		0-91180-110-0 04 1 1504-
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1504-
42 BOLT; BUMPER
(A) M10X30 FLANGE 		8-98055-942-0 12 1 1504-
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1504-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1504-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1504-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1504-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1504-
125 CLIP; STEP
FRONT UNDER SPOILER DELETE<SGA> (A) 		8-98157-186-0 06 1 1504-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-935-1 01 1 1504-
158 EXTENSION; FRT BUMPER 8-98200-936-1 01 1 1504-
174 SCREW; EXT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 10 1 1504-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1504-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1504-
312 NUT; BRKT
(B) M16 		0-91110-516-0 02 1 1504-
312 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 06 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
(A) 		8-98132-737-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-455-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (C) 		8-98123-456-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-457-1 01 1 1504-
321 COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (D) 		8-98123-458-1 01 1 1504-
603 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 06 1 1504-
607 BRACKET
(A) 		8-98300-238-0 01 1 1504-
607 BRACKET
(A) 		8-98300-239-0 01 1 1504-
607 BRACKET
(D) 		8-98304-441-0 01 1 1504-
607 BRACKET
(D) 		8-98304-442-0 01 1 1504-
607 BRACKET
(C) 		8-98147-053-0 02 1 1504-
607 BRACKET
(B) 		8-98147-054-0 02 1 1504-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1504-
