5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#160265) — 42 parça
◀

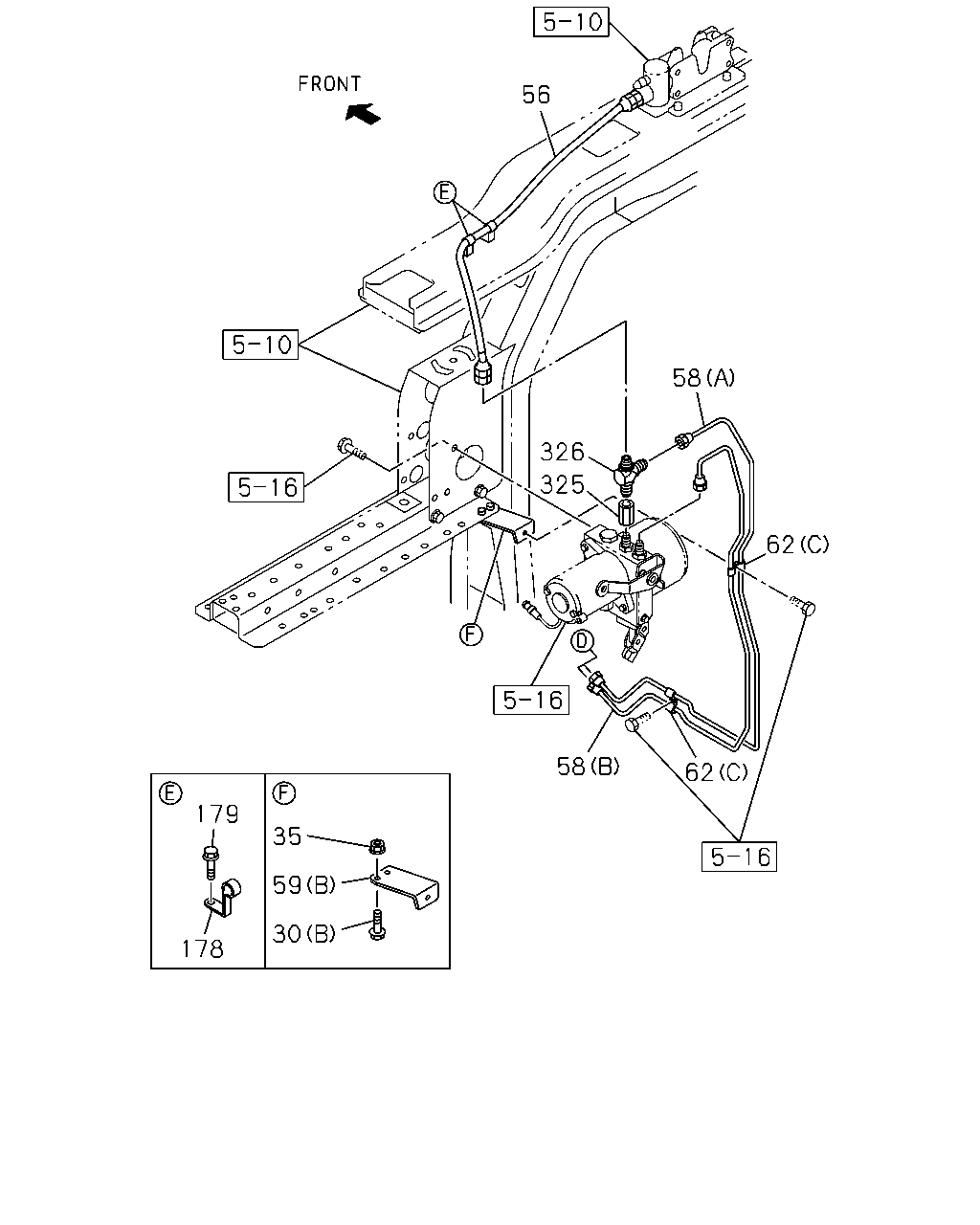

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (15 parça)

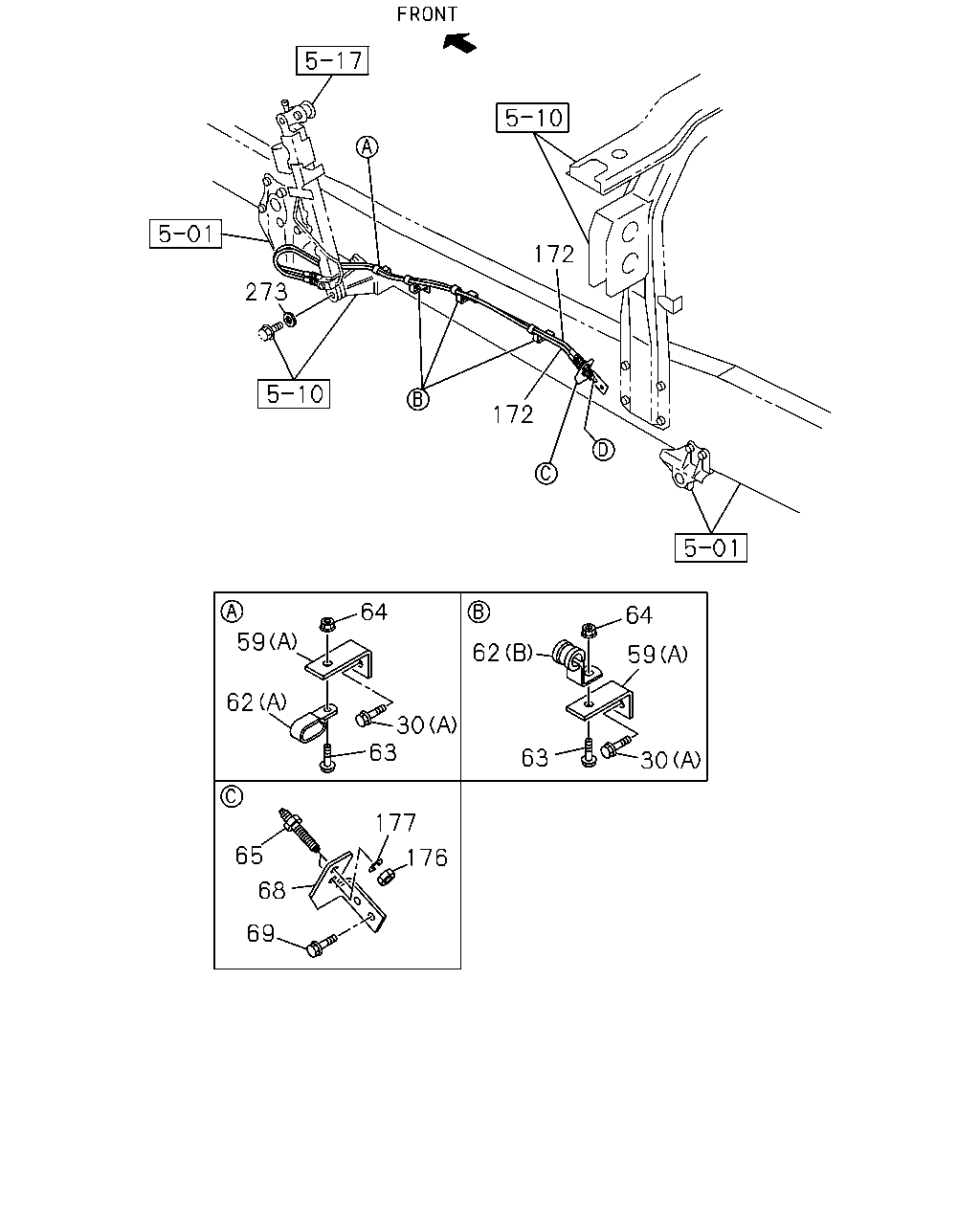

[515A] CAB TILT PIPING;FRAME SIDE (16 parça)

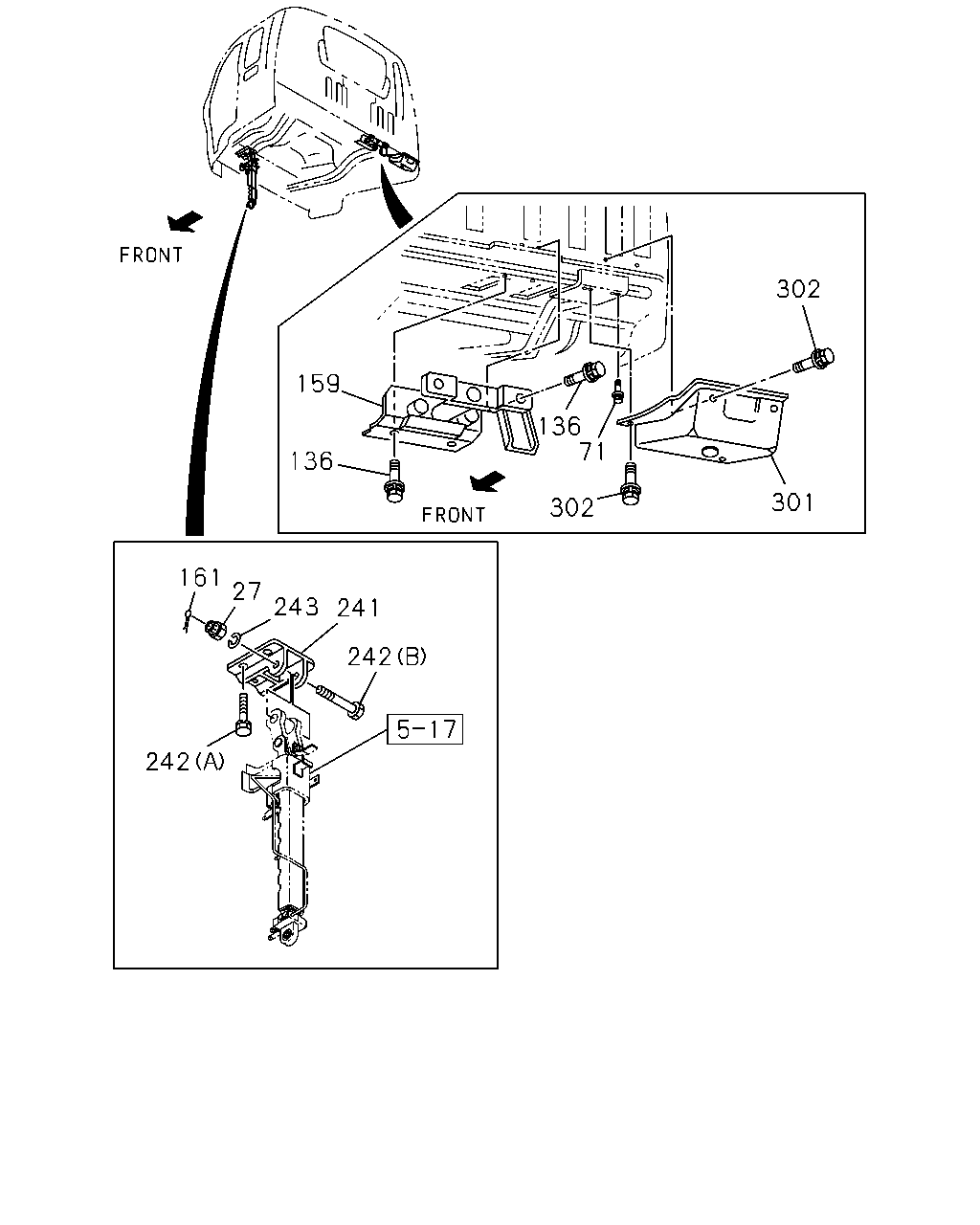

[515A] BRACKET,PIN AND OTHER PARTS (11 parça)
▶
56
58
326
325
62
62
58
35
59
30
179
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
02
1
1504-
30
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
04
1
1504-
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1504-
56
HOSE; FLEX,OIL PIPE
FULL FLOATING CAB(W16) L=750
1-09365-058-0
01
1
1504-
58
PIPE; OIL,POWER UNIT
(A) L=1087 SERVICED BY L=1100
1-47428-731-0
01
1
1504-
58
PIPE; OIL,POWER UNIT
(B) L=1132 SERVICED BY L=1200
1-47428-732-0
01
1
1504-
59
BRACKET; CLIP
(A) L=55
1-47475-304-0
04
1
1504-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
1504-
62
CLIP; OIL PIPE
(A) ID=9X2 L=20
0-95324-835-0
01
1
1504-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
1504-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
1504-
178
CLIP; FLEX HOSE
FULL FLOATING CAB(W16) ID=8 H=20 L=20
1-09700-604-0
02
1
1504-
179
BOLT; CLIP,FLEX HOSE
FULL FLOATING CAB(W16) M8X20 FLANGE
0-28650-820-0
02
1
1504-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1504-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1504-
64
59
30
63
62
30
63
64
59
62
177
176
65
68
69
172
172
273
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
02
1
1504-
30
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
04
1
1504-
59
BRACKET; CLIP
(A) L=55
1-47475-304-0
04
1
1504-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
1504-
62
CLIP; OIL PIPE
(A) ID=9X2 L=20
0-95324-835-0
01
1
1504-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
1504-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
1504-
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
1504-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
1504-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1504-
68
BRACKET; UNION
8-98226-698-0
01
1
1504-
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1504-
172
HOSE; FLEX,OIL TILT
8-98293-281-0
02
1
1504-
176
NUT; UNION
M12
9-09840-280-0
02
1
1504-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1504-
273
WASHER; PL,OIL CYL
FULL FLOATING CAB(W16) ID=10.5 OD=32
0-91614-810-0
01
1
1504-
301
302
302
71
136
136
159
241
242
242
243
27
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
1504-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
1504-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
1504-
159
PIN
1-79717-627-1
01
1
1504-
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1504-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-338-1
01
1
1504-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
1504-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
1504-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
1504-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
1504-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
1504-
