◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#160255) — 73 parça

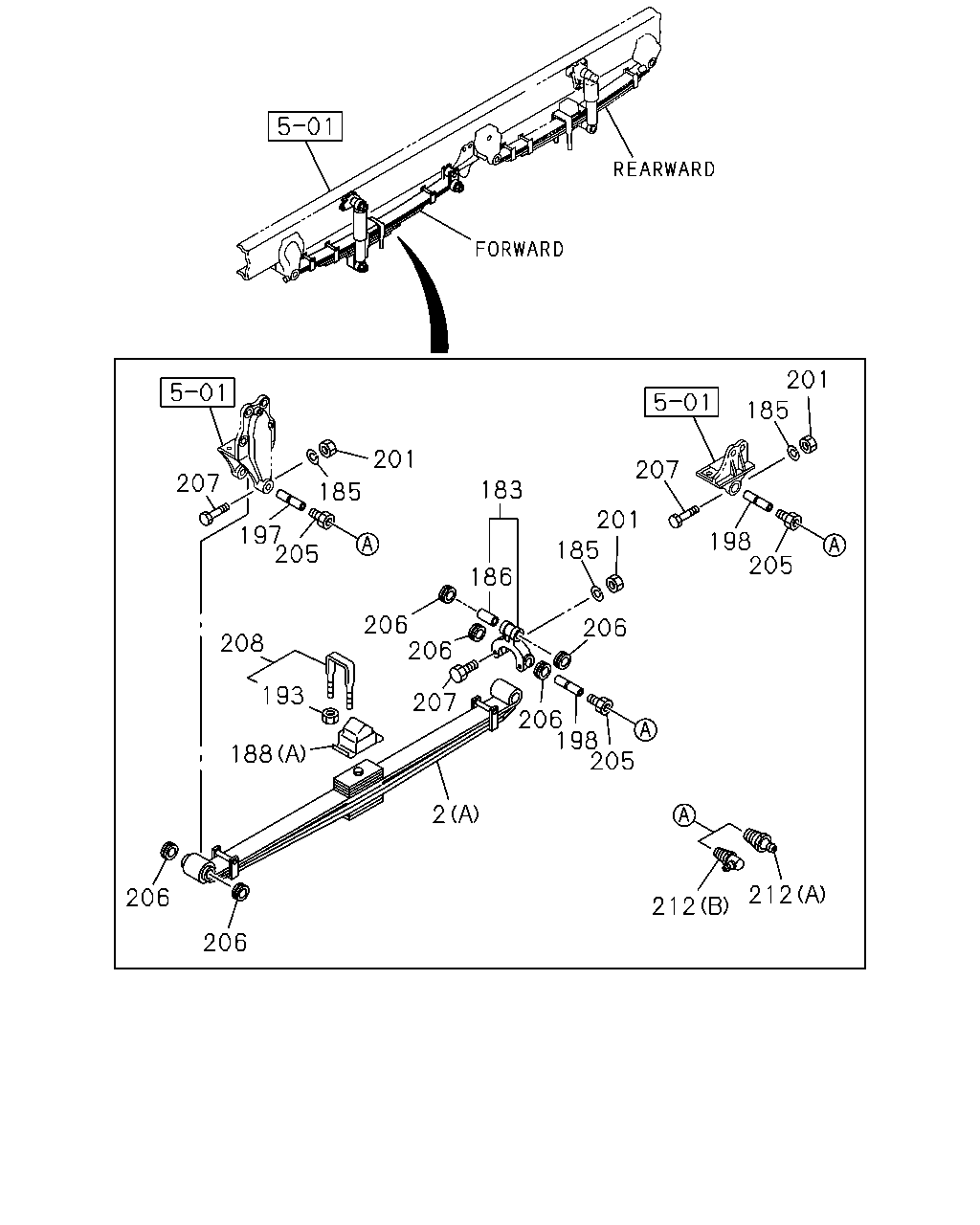

çizim 471644
185 201 207 198 205 212 212 2 205 198 206 206 185 186 183 201 206 206 207 188 193 208 206 206 197 205 207 185 201
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 		8-98118-964-0 02 1 1504-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 		8-98202-920-0 02 1 1504-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1504-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1504-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1504-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 1504-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 1504-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1504-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1504-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1504-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 1504-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1504-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1504-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1504-
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-493-0 04 1 1504-
208 U-BOLT SET; FRT SPRING
FORWARD L=210 		1-87870-498-0 04 1 1504-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 1504-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 1504-

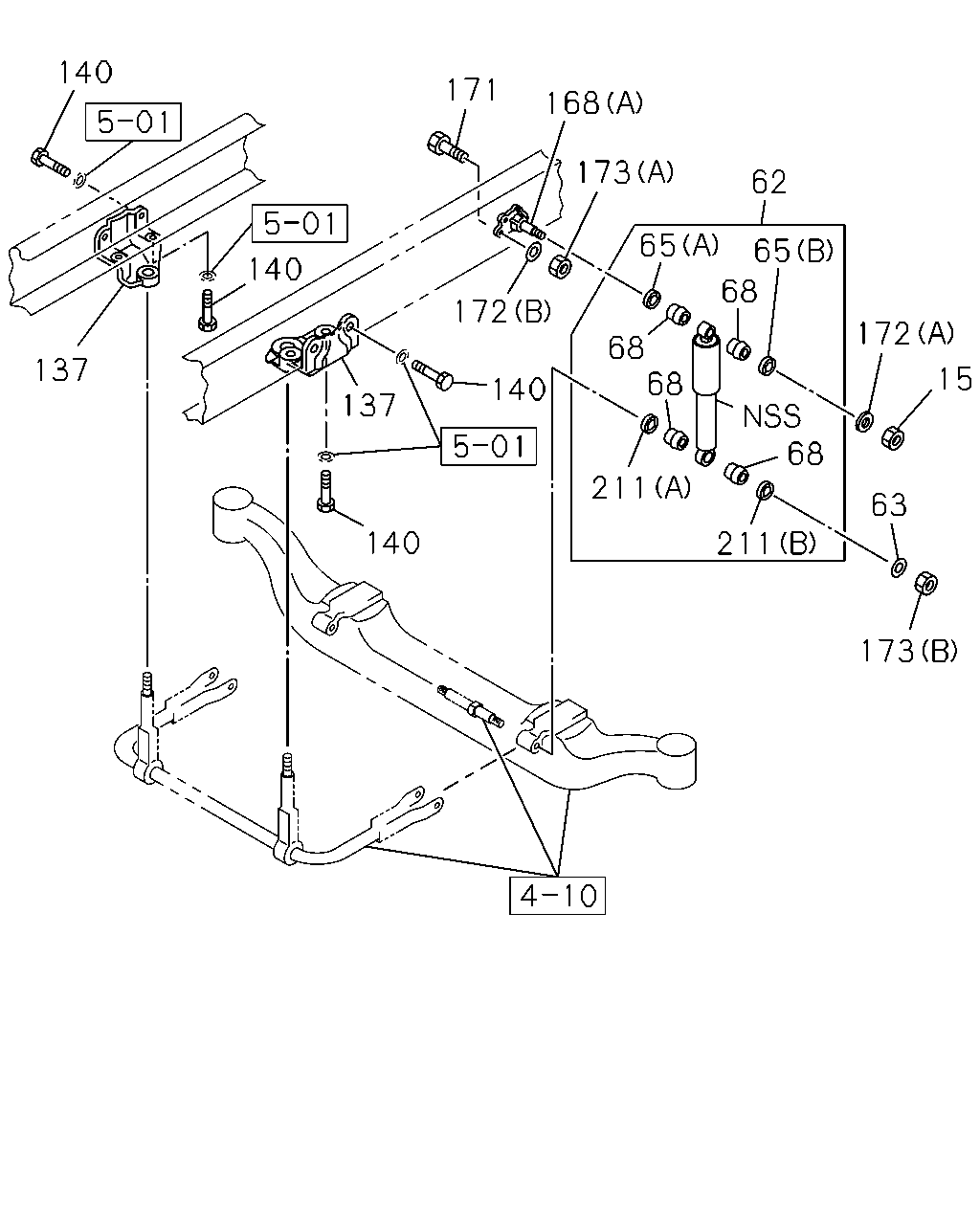

çizim 471660
171 168 173 65 65 62 172 15 63 173 211 211 68 68 68 68 172 137 140 140 140 137 140
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1504-
62 ABSORBER ASM; SHOCK,FRT 8-98140-084-0 02 1 1504-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1504-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1504-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1504-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1504-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1504-
137 BRACKET; STAB BAR TO FRAME 1-51781-112-0 01 1 1504-
140 BOLT; BRKT
M14X50 		0-20951-450-0 08 1 1504-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1504-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1504-
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 1504-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 1504-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 1504-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 1504-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 1504-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1504-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1504-

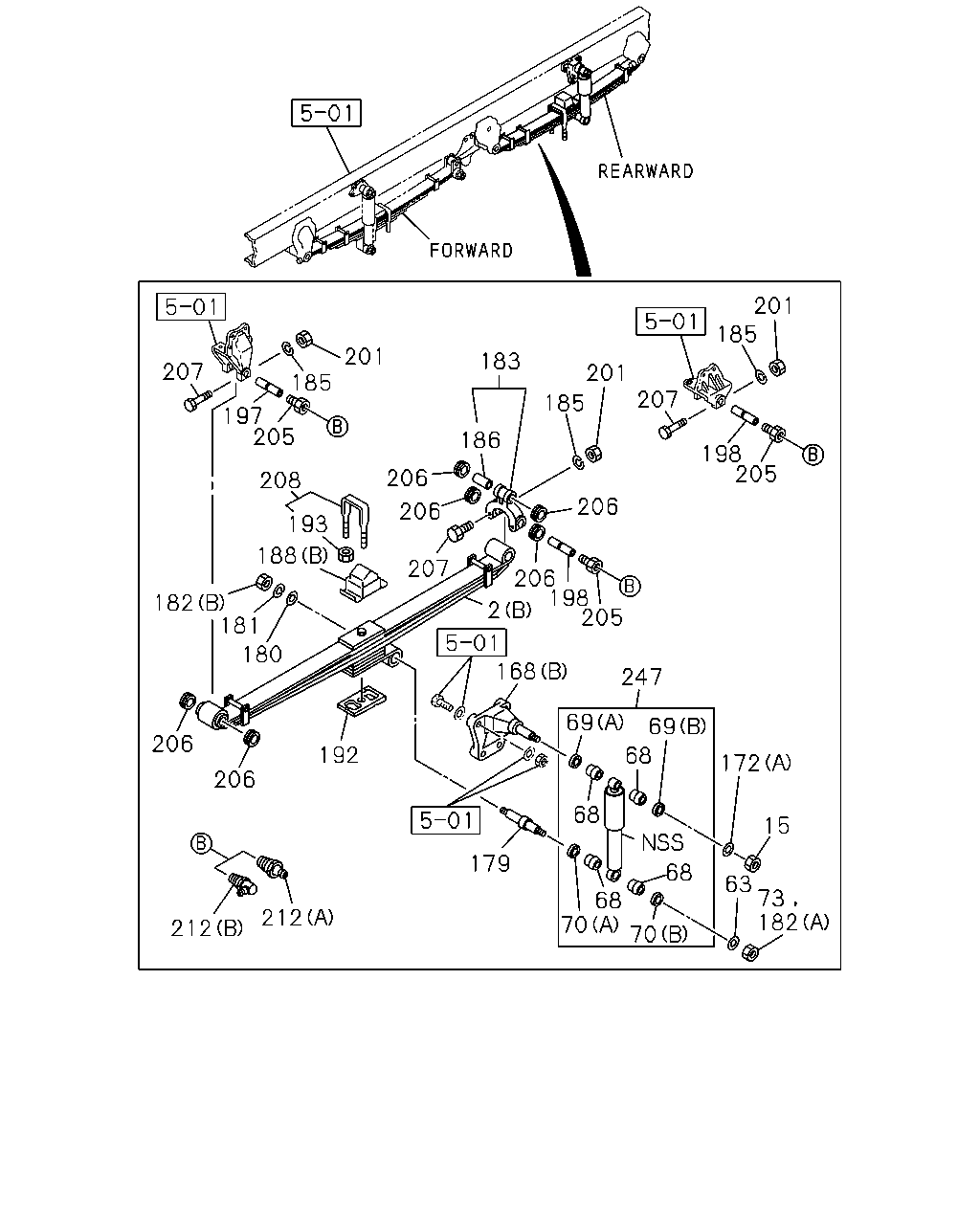

çizim 471920
182 73 63 15 172 70 70 68 69 68 68 179 192 206 212 212 206 182 180 181 168 247 205 198 206 2 207 206 206 206 205 198 207 185 201 185 201 186 183 188 193 208 205 197 207 185 201 68
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 		8-98118-964-0 02 1 1504-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 		8-98202-920-0 02 1 1504-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1504-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1504-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1504-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1504-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1504-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1504-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1504-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 1504-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1504-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1504-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 1504-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 1504-
179 PIN 1-51682-094-1 02 1 1504-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1504-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1504-
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 1504-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 1504-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1504-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1504-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1504-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 1504-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 1504-
192 PIECE; DIST 8-98200-748-0 02 1 1504-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1504-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1504-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1504-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 1504-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1504-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1504-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1504-
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-493-0 04 1 1504-
208 U-BOLT SET; FRT SPRING
FORWARD L=210 		1-87870-498-0 04 1 1504-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 1504-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 1504-
247 ABSORBER ASM; SHOCK,RWD FRT 8-98162-769-0 02 1 1504-
