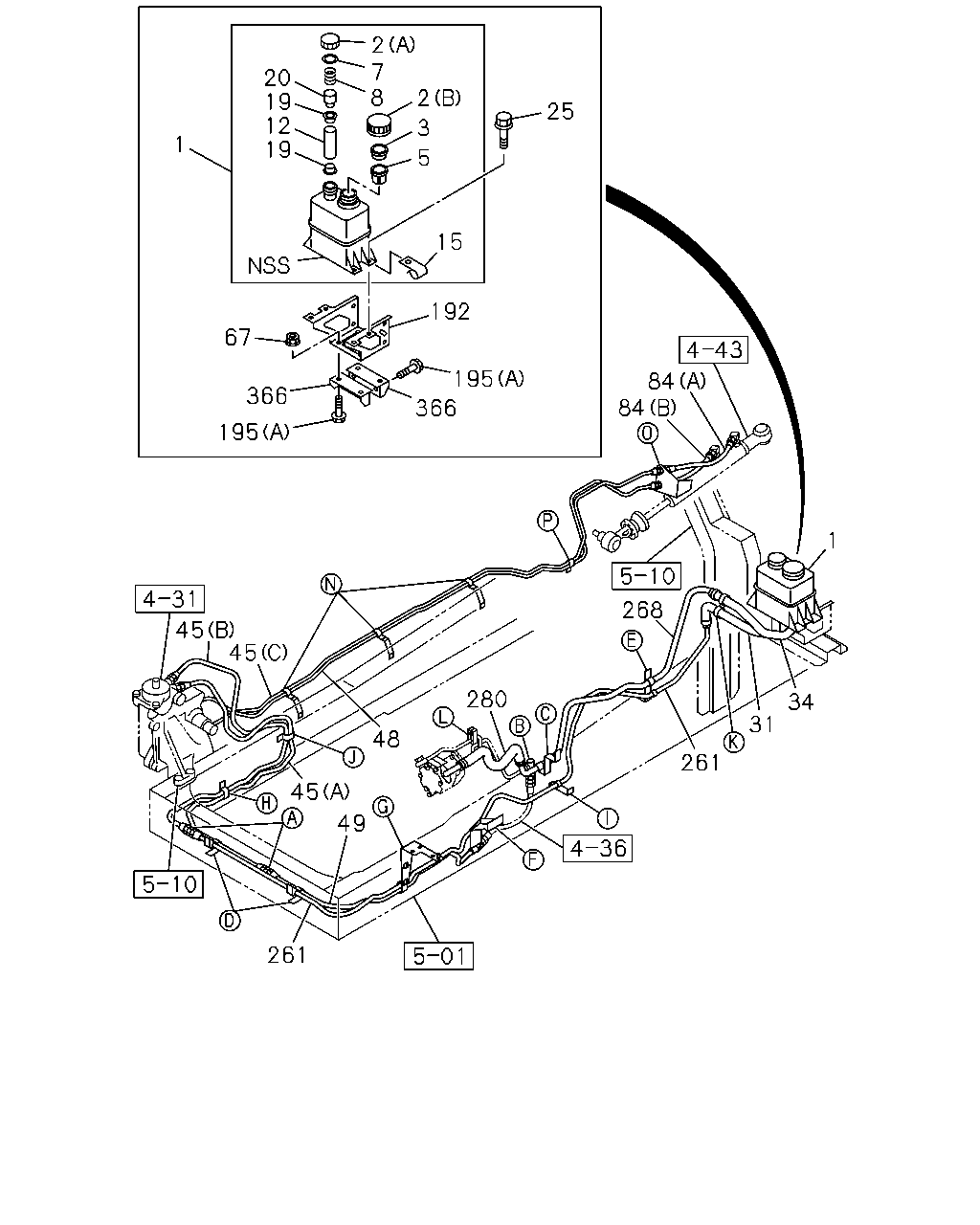

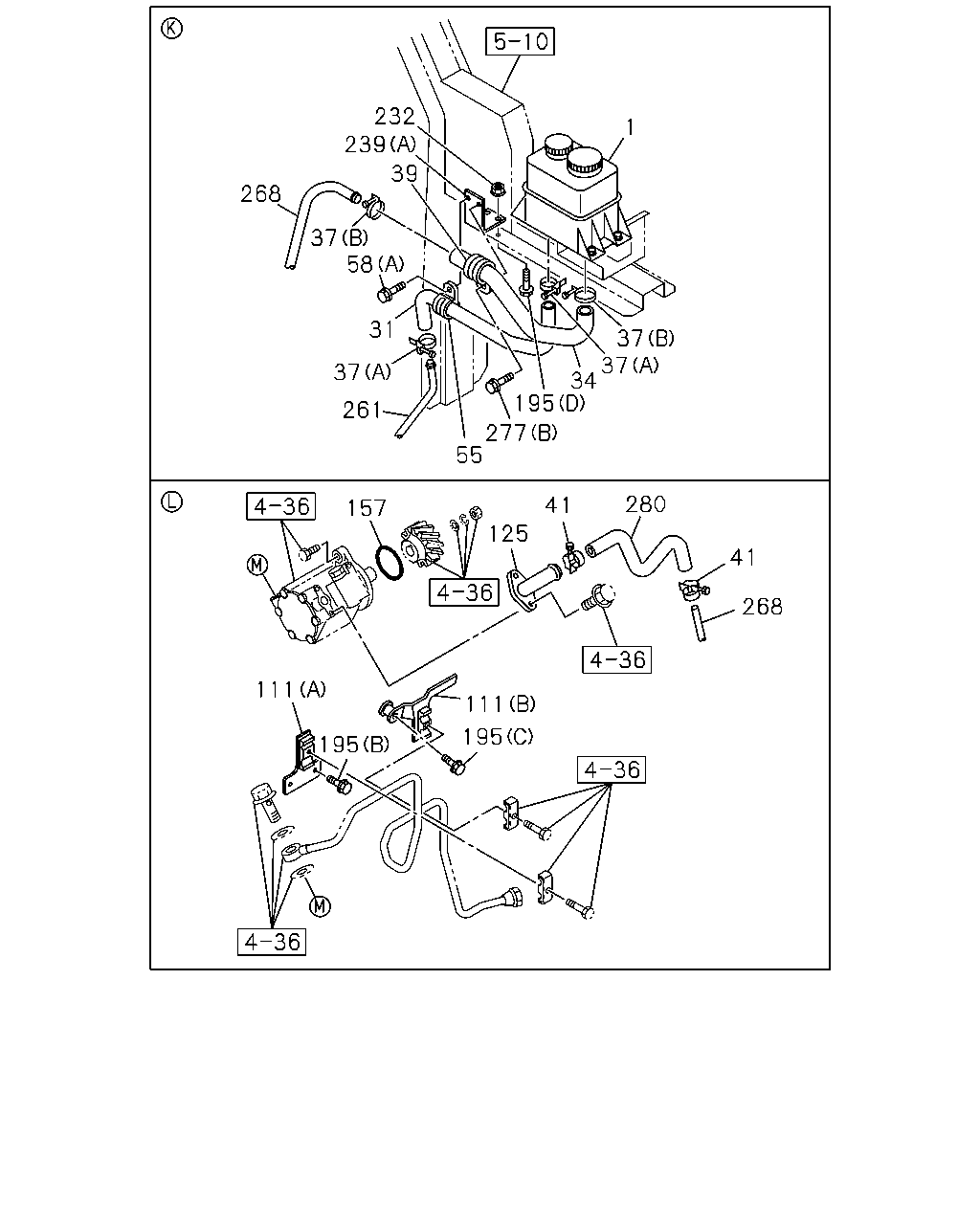

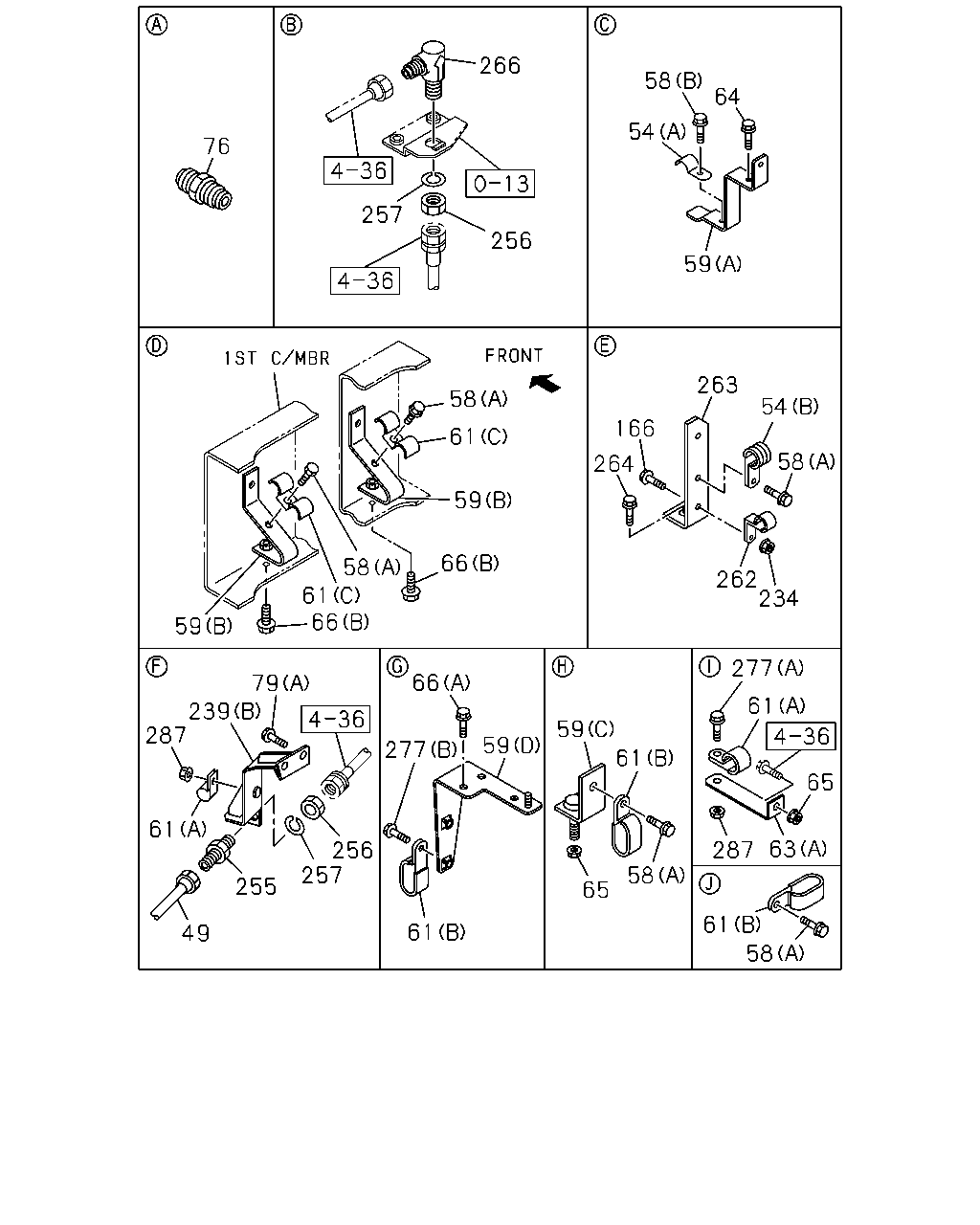

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#160250) — 127 parça

268 239 39 232 37 58 31 37 261 55 277 195 34 37 37 1 41 280 41 268 125 157 111 195 195 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1504-
31	HOSE; P/S OIL TANK,INL	8-98307-820-0	01	1	1504-
34	HOSE; P/S OIL TANK,OUTLET	8-98307-821-0	01	1	1504-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1504-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1504-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1504-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1504-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1504-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1504-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1504-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1504-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1504-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1504-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1504-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1504-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1504-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1504-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1504-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1504-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1504-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1504-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1504-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1504-
261	PIPE; OIL,UNION TO HOSE	8-98293-775-0	01	1	1504-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1504-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1504-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1504-

54 58 63 62 79 54 58 258 238 48 81 238 84 84 239 64 238 81 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21117-744-0	01	1	1504-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1504-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1504-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-186-0	01	1	1504-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	04	1	1504-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1504-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1504-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1504-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1504-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1504-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1504-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1504-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1504-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1504-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	1504-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1504-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1504-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1504-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1504-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1504-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1504-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1504-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1504-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1504-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1504-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	1504-

1 20 19 12 19 2 7 8 2 3 5 25 15 192 195 366 67 366 195 84 84 1 34 31 261 280 48 49 45 45 45 261 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1504-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1504-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1504-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1504-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1504-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1504-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1504-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1504-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1504-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1504-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1504-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1504-
31	HOSE; P/S OIL TANK,INL	8-98307-820-0	01	1	1504-
34	HOSE; P/S OIL TANK,OUTLET	8-98307-821-0	01	1	1504-
45	PIPE; OIL,P/S UNIT TO UNION (C)	1-21117-744-0	01	1	1504-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1504-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1504-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-186-0	01	1	1504-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98293-774-0	01	1	1504-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1504-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1504-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1504-
192	BRACKET; P/S OIL TANK	8-98302-382-0	01	1	1504-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1504-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1504-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1504-
261	PIPE; OIL,UNION TO HOSE	8-98293-775-0	01	1	1504-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1504-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1504-
366	SPACER; BRKT TO MEMBER	8-98302-380-0	02	1	1504-

266 256 257 76 58 61 59 66 58 61 66 59 79 239 287 61 255 257 256 277 59 61 49 166 264 263 54 58 262 234 277 61 65 63 287 61 58 65 61 59 58 59 54 58 64 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98293-774-0	01	1	1504-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	04	1	1504-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1504-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1504-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1504-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1504-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1504-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1504-
59	BRACKET; CLIP,OIL PIPE (B)	8-98310-282-0	02	1	1504-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1504-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1504-
59	BRACKET; CLIP,OIL PIPE (D)	8-98299-378-2	01	1	1504-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1504-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	1504-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1504-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1504-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1504-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	1504-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-
66	BOLT; BRKT,OIL PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
66	BOLT; BRKT,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1504-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1504-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1504-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1504-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1504-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1504-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1504-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1504-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1504-
256	NUT; UNION M22	0-91111-522-0	01	1	1504-
256	NUT; UNION M22	0-91111-522-0	01	1	1504-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1504-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1504-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1504-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1504-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1504-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1504-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1504-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1504-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1504-
