Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#160246) — 783 parça

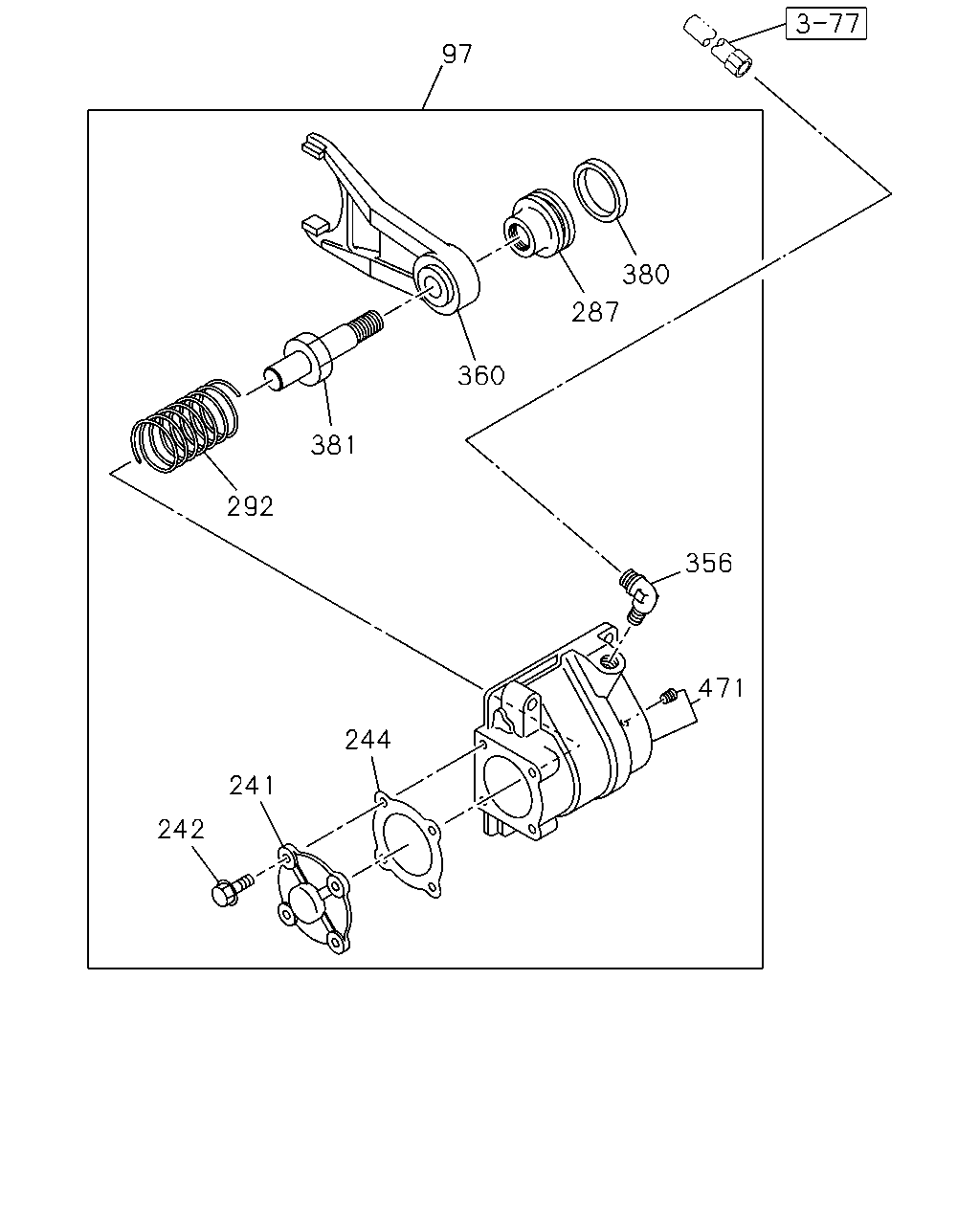

97 380 287 360 381 292 356 471 244 241 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	1504-	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	1504-	●	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	1504-	●	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	1504-	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1504-	●	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	1504-	●	●	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1504-	●	●	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	1504-	●	●	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	1504-	●	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	1504-	●	●	●	●	●
471	CYLINDER ASM; SHIFT UNIT	1-48269-224-0	01	1	1504-	●	●	●	●	●

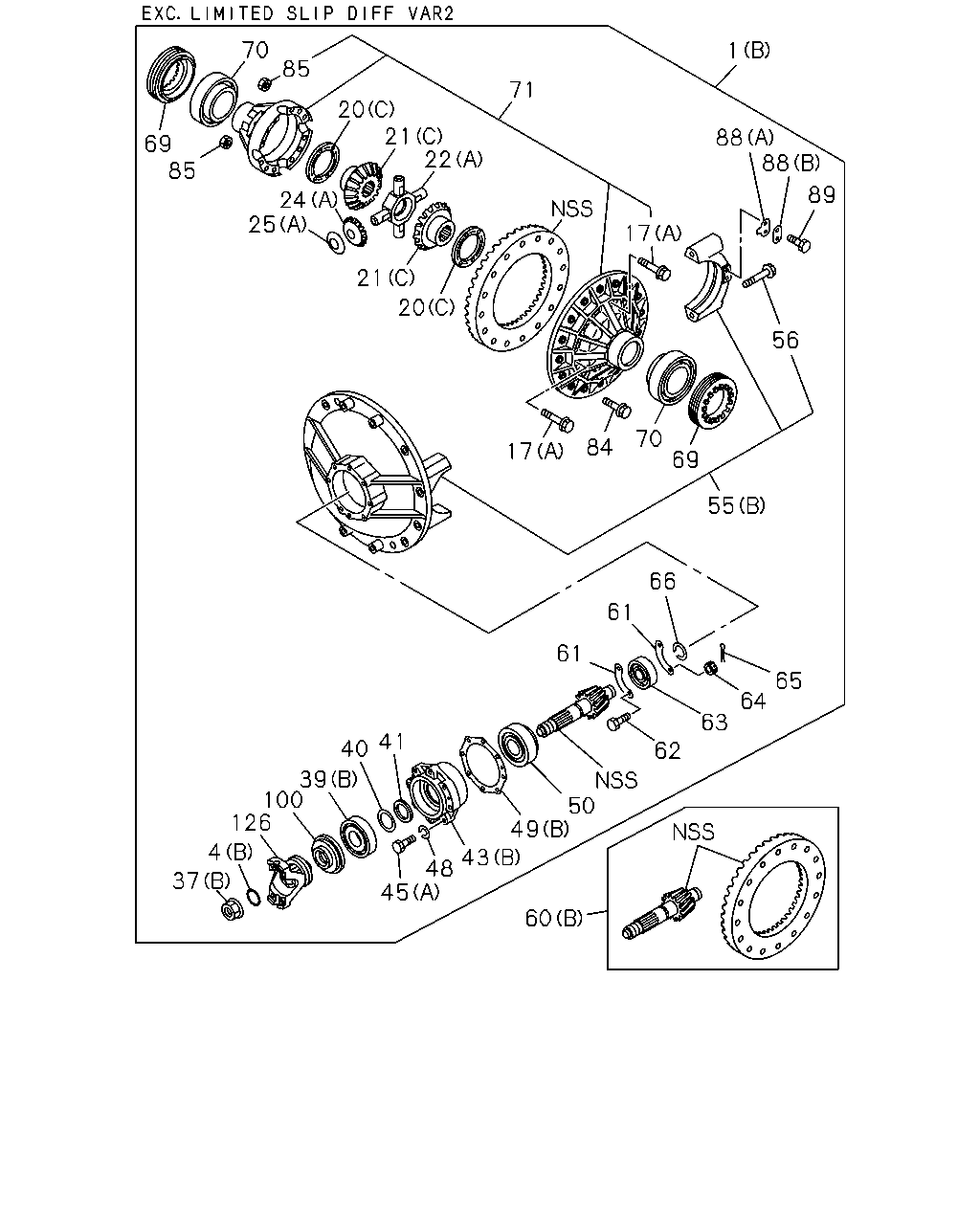

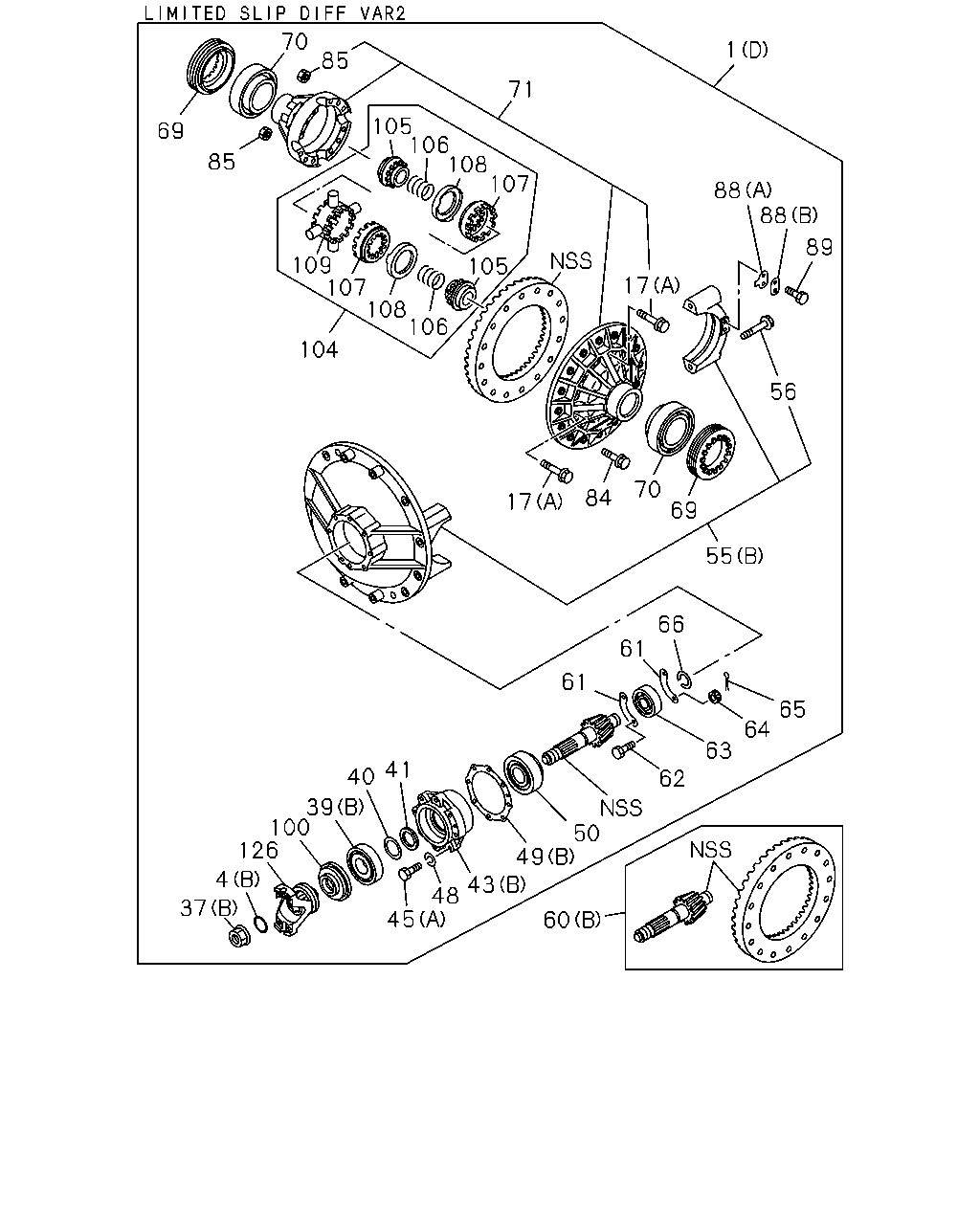

1 88 70 89 88 56 17 55 69 70 84 17 20 21 25 24 85 69 85 22 21 20 71 65 64 63 62 50 49 43 48 45 66 61 61 41 40 39 100 126 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 37/10	1-41003-609-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 37/10	1-41003-614-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/9	1-41003-606-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 39/9	1-41003-611-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/9	1-41003-605-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/9	1-41003-610-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/10	1-41003-607-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/10	1-41003-612-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/11	1-41003-608-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 43/11	1-41003-613-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 37/10	1-41002-233-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 37/10	1-41002-721-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/9	1-41001-800-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/9	1-41002-719-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/9	1-41001-751-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/9	1-41002-722-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/10	1-41002-258-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/10	1-41002-720-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/11	1-41002-429-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 43/11	1-41002-907-0	01	1	1504-					●
4	GASKET; FLANGE,FINAL PINION (A) ID=57	1-09623-386-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (B) ID=42	9-09921-116-0	01	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X75 FLANGE	1-09070-008-0	08	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-156-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-157-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-049-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1504-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/10	1-41210-189-3	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/10	1-41210-374-2	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-380-2	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-497-0	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-542-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-568-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-566-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-567-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-623-0	01	1	1504-					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-624-0	01	1	1504-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1504-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	1504-	●	●	●	●	●

90 90 92 94 95 96 93 91 32 52 54 53 30 31 29 28 27 2 30 24 20 25 21 16 21 20 22 17 11 10 9 8 14 66 65 64 63 62 61 61 50 40 49 45 37 43 39 41 12 31 60 4 37 55 88 89 88 69 56 85 85 20 70 97 98 36 33 34 451 68 67 25 24 22 21 21 20 71 1 17 0 69 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 37/10	1-41003-609-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 37/10	1-41003-614-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/9	1-41003-606-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 39/9	1-41003-611-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/9	1-41003-605-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/9	1-41003-610-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/10	1-41003-607-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/10	1-41003-612-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/11	1-41003-608-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 43/11	1-41003-613-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 37/10	1-41002-233-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 37/10	1-41002-721-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/9	1-41001-800-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/9	1-41002-719-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/9	1-41001-751-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/9	1-41002-722-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/10	1-41002-258-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/10	1-41002-720-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/11	1-41002-429-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 43/11	1-41002-907-0	01	1	1504-					●
2	DIFF ASM; INTER,FINAL	1-41320-029-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=57	1-09623-386-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (B) ID=42	9-09921-116-0	01	1	1504-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	1504-	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	1504-	●	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	1504-	●	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41323-032-0	01	1	1504-	●	●	●	●	●
12	BOLT; COVER TO CASE M12X35 FLANGE	0-28751-235-0	07	1	1504-	●	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	1504-	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X75 FLANGE	1-09070-008-0	08	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-156-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-157-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-049-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	1504-	●	●	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28751-025-0	08	1	1504-	●	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-015-0	01	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41355-039-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41355-040-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-041-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-042-0	AR	1	1504-	●	●	●	●	●
30	BEARING; TAPER ROLLER JTEKT	1-09812-215-0	02	1	1504-	●	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	1504-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-034-0	01	1	1504-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-034-0	01	1	1504-	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	1504-	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-026-1	01	1	1504-	●	●	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28751-235-0	11	1	1504-	●	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-023-0	01	1	1504-	●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	02	1	1504-	●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/10	1-41210-189-3	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/10	1-41210-374-2	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-380-2	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-497-0	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-542-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-568-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-566-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-567-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-623-0	01	1	1504-					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-624-0	01	1	1504-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-010-0	01	1	1504-	●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1504-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1504-	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1504-	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1504-	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1504-	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1504-	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1504-	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	1504-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1504-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1504-	●	●	●	●	●
451	STUD; COVER TO CASE M12X20,M12X35 L=66.5	1-09049-031-0	01	1	1504-	●	●	●	●	●

94 92 95 96 93 91 90 90 32 52 54 53 30 30 31 29 28 27 2 66 65 64 63 62 61 61 50 40 49 45 60 37 43 39 41 31 4 37 8 11 12 10 9 20 25 24 21 21 20 17 14 22 16 55 88 89 88 85 56 69 70 98 97 36 34 451 33 68 67 104 109 106 85 108 107 107 105 108 106 105 71 1 17 70 69 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 37/10	1-41003-609-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 37/10	1-41003-614-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/9	1-41003-606-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 39/9	1-41003-611-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/9	1-41003-605-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/9	1-41003-610-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/10	1-41003-607-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/10	1-41003-612-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/11	1-41003-608-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 43/11	1-41003-613-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 37/10	1-41002-233-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 37/10	1-41002-721-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/9	1-41001-800-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/9	1-41002-719-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/9	1-41001-751-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/9	1-41002-722-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/10	1-41002-258-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/10	1-41002-720-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/11	1-41002-429-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 43/11	1-41002-907-0	01	1	1504-					●
2	DIFF ASM; INTER,FINAL	1-41320-029-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=57	1-09623-386-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (B) ID=42	9-09921-116-0	01	1	1504-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	1504-	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	1504-	●	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	1504-	●	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41323-032-0	01	1	1504-	●	●	●	●	●
12	BOLT; COVER TO CASE M12X35 FLANGE	0-28751-235-0	07	1	1504-	●	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	1504-	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X75 FLANGE	1-09070-008-0	08	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.7	1-41562-127-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.80	1-41562-169-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=2.90	1-41562-170-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.00	1-41562-171-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.10	1-41562-172-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.20	1-41562-173-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.30	1-41562-174-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (C) T=3.40	1-41562-175-0	AR	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-156-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-157-0	01	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (C) Z=16	1-41561-162-0	02	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=32	1-41521-002-1	01	1	1504-	●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-049-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-052-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6	1-41552-001-0	04	1	1504-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	1504-	●	●	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28751-025-0	08	1	1504-	●	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-015-0	01	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41355-039-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41355-040-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-041-0	AR	1	1504-	●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-042-0	AR	1	1504-	●	●	●	●	●
30	BEARING; TAPER ROLLER JTEKT	1-09812-215-0	02	1	1504-	●	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	1504-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-034-0	01	1	1504-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-034-0	01	1	1504-	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	1504-	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-026-1	01	1	1504-	●	●	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28751-235-0	11	1	1504-	●	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-023-0	01	1	1504-	●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	02	1	1504-	●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/10	1-41210-189-3	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/10	1-41210-374-2	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-380-2	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-497-0	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-542-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-568-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-566-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-567-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-623-0	01	1	1504-					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-624-0	01	1	1504-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-010-0	01	1	1504-	●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1504-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1504-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1504-	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1504-	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1504-	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1504-	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1504-	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1504-	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	1504-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1504-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1504-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41500-001-0	01	1	1504-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41500-001-0	01	1	1504-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-005-0	02	1	1504-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-005-0	02	1	1504-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-001-0	02	1	1504-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-001-0	02	1	1504-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-001-0	02	1	1504-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-001-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
451	STUD; COVER TO CASE M12X20,M12X35 L=66.5	1-09049-031-0	01	1	1504-	●	●	●	●	●

1 71 107 108 106 105 85 70 69 85 109 107 108 106 104 105 17 88 88 89 56 55 69 70 84 17 66 61 61 41 40 39 100 126 4 37 45 48 43 49 50 62 63 64 65 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 37/10	1-41003-609-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 37/10	1-41003-614-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/9	1-41003-606-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 39/9	1-41003-611-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/9	1-41003-605-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/9	1-41003-610-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 41/10	1-41003-607-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 41/10	1-41003-612-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/11	1-41003-608-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (D) 43/11	1-41003-613-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 37/10	1-41002-233-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 37/10	1-41002-721-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/9	1-41001-800-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/9	1-41002-719-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/9	1-41001-751-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/9	1-41002-722-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/10	1-41002-258-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 41/10	1-41002-720-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/11	1-41002-429-0	01	1	1504-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 43/11	1-41002-907-0	01	1	1504-					●
4	GASKET; FLANGE,FINAL PINION (A) ID=57	1-09623-386-0	01	1	1504-	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION (B) ID=42	9-09921-116-0	01	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X95 FLANGE	1-09044-007-0	04	1	1504-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X75 FLANGE	1-09070-008-0	08	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1504-	●	●	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	1504-	●	●	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	1504-	●	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1504-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	1504-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	1504-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	1504-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1504-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/10	1-41210-189-3	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/10	1-41210-374-2	01	1	1504-	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/9	1-41210-380-2	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/9	1-41210-497-0	01	1	1504-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/9	1-41210-542-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/9	1-41210-568-0	01	1	1504-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-566-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-567-0	01	1	1504-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-623-0	01	1	1504-					●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-624-0	01	1	1504-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1504-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1504-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41500-001-0	01	1	1504-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41500-001-0	01	1	1504-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-005-0	02	1	1504-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-005-0	02	1	1504-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-001-0	02	1	1504-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-001-0	02	1	1504-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-001-0	02	1	1504-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-001-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	8-98319-954-0	02	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	8-98319-953-0	01	1	1504-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	1504-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
