3-80 — BRAKE PIPING; TRAILER
(#160240) — 22 parça
◀

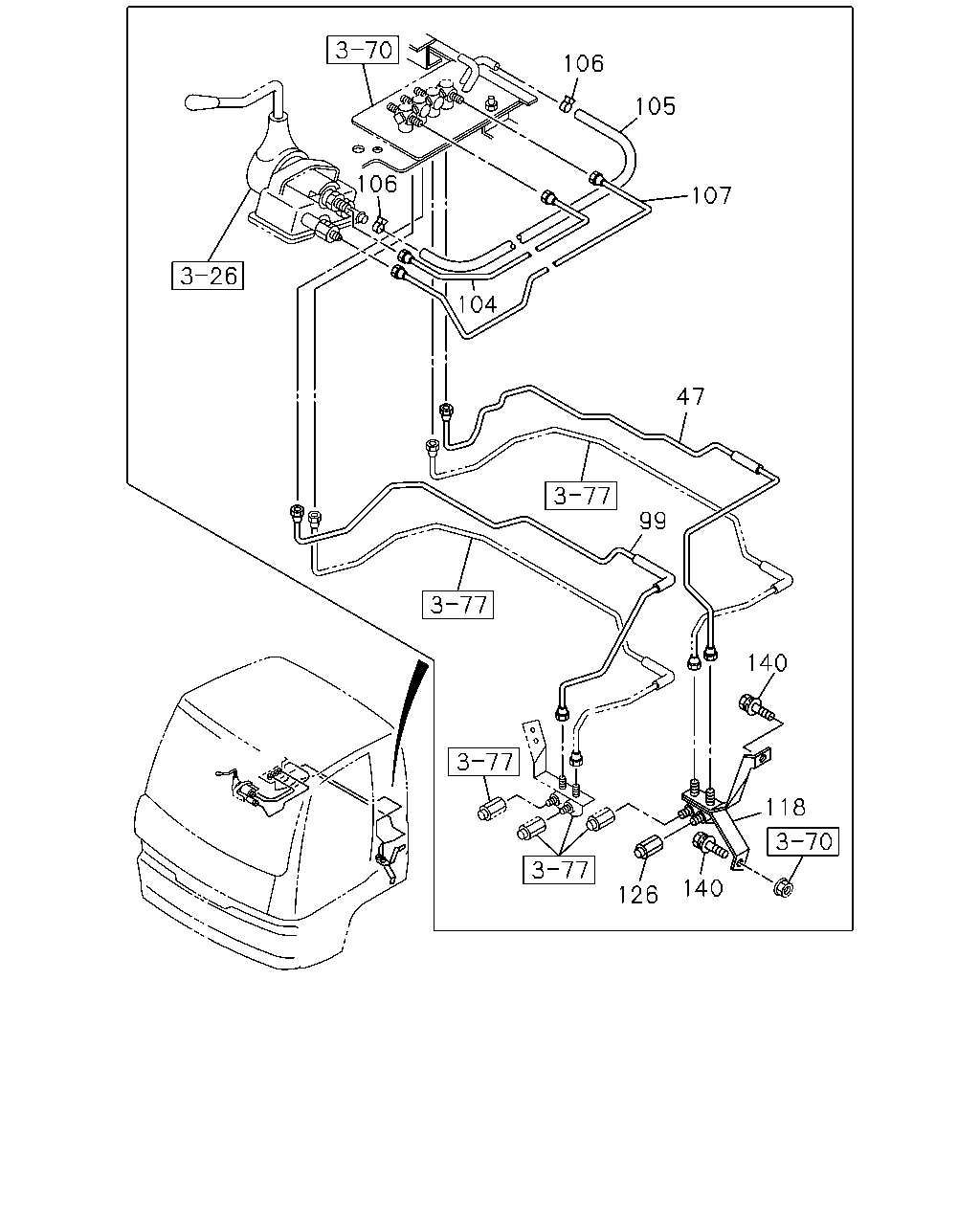

[380A] CAB SIDE (9 parça)
[380A] FRAME SIDE (13 parça)
▶
140
126
99
47
140
118
107
105
106
104
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
1504-
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
1504-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
1504-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
1504-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
1504-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
1504-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
1504-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1504-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1504-
125
82
82
84
83
79
80
29
79
80
29
29
91
91
29
83
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(A)
1-09650-222-1
02
1
1504-
29
CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1504-
79
COUPLING; AIR,TRAILER
(A) RED
1-47478-466-1
01
1
1504-
79
COUPLING; AIR,TRAILER
(B) YELLOW
1-47478-467-1
01
1
1504-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
1504-
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
1504-
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
1504-
84
BRACKET; COUPLER
1-47465-883-1
01
1
1504-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1504-
91
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1504-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1504-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1504-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1504-
