Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11199 - CYZ NEW ZEALAND EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

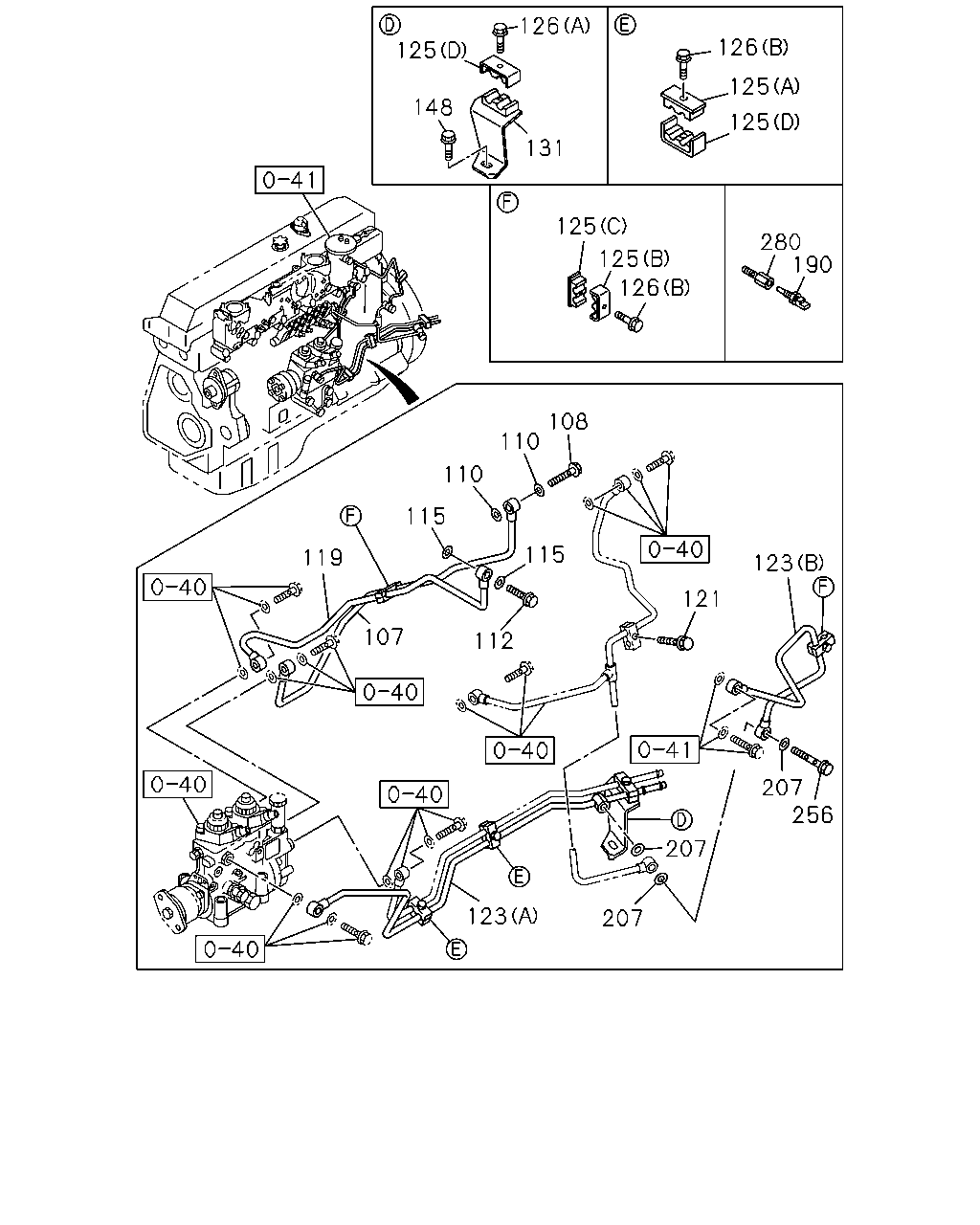

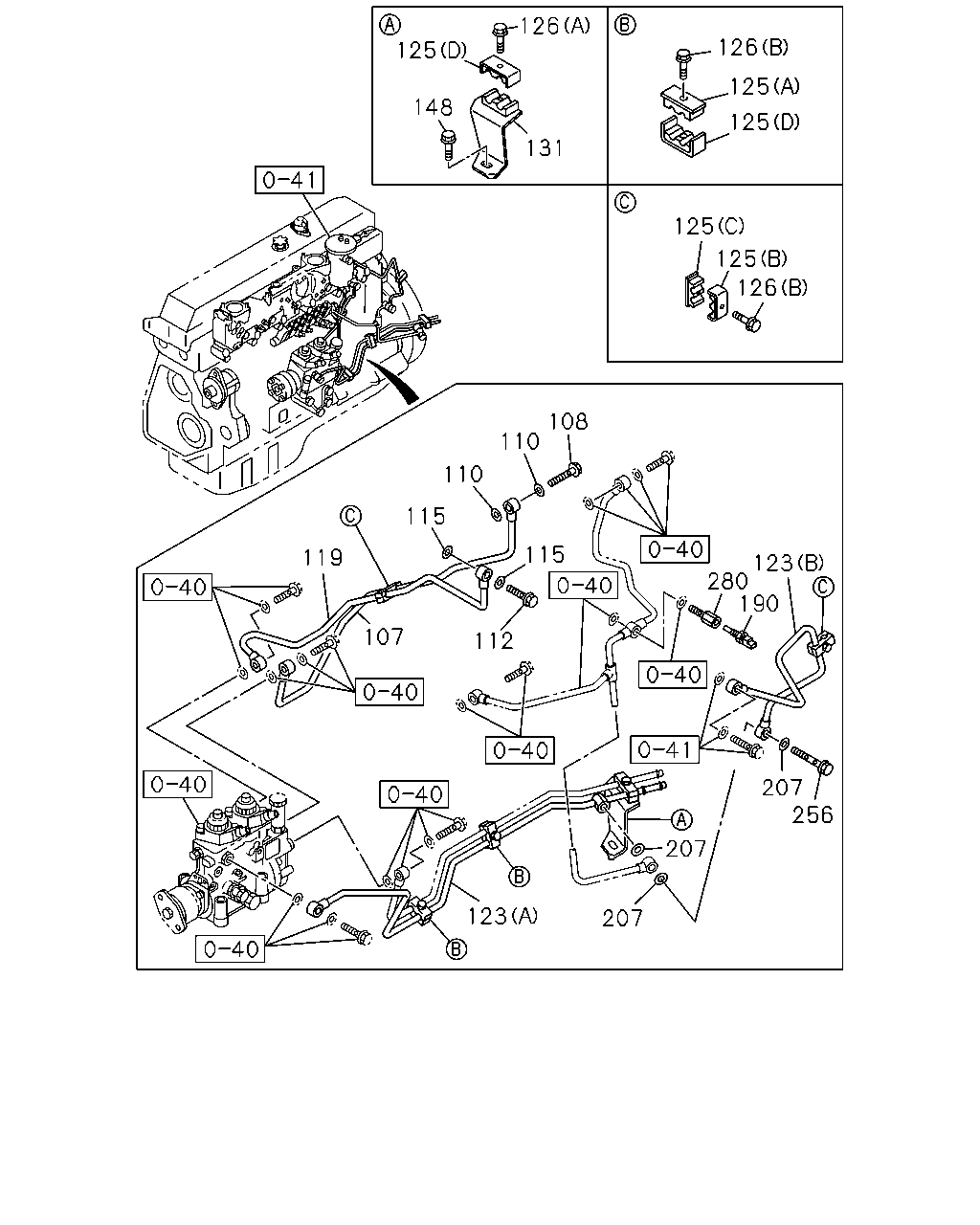

0-42 — FUEL PUMP AND PIPE
(#16024) — 41 parça
◀
[042A] NO.1 (20 parça)
[042A] NO.2 (21 parça)
▶
126
125
126
125
148
125
131
125
125
126
108
110
110
115
115
119
123
280
190
107
112
207
256
207
123
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97608-899-1
01
1
0904-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0904-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0904-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0904-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0904-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97608-900-1
01
1
0904-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97607-213-0
01
1
0904-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97608-901-1
01
1
0904-
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
02
1
0904-
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-193-1
03
1
0904-
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-194-1
02
1
0904-
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
02
1
0904-
126
BOLT; CLIP,FUEL PIPE
(A) M6X30 FLANGE
0-28050-630-0
01
1
0904-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28050-640-0
04
1
0904-
131
BRACKET; FUEL PIPE CLIP
8-97606-142-0
01
1
0904-
148
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
0904-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
0904-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
0904-
256
BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT
8-98037-829-0
01
1
0904-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
0904-
256
207
207
207
123
112
115
121
123
108
110
110
115
107
119
126
125
125
131
148
125
126
126
125
125
280
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97608-899-1
01
1
0904-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0904-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0904-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0904-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0904-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97608-900-1
01
1
0904-
121
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
01
1
1206-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97607-213-0
01
1
0904-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97608-901-1
01
1
0904-
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
02
1
0904-
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-193-1
03
1
0904-
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-194-1
02
1
0904-
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
02
1
0904-
126
BOLT; CLIP,FUEL PIPE
(A) M6X30 FLANGE
0-28050-630-0
01
1
0904-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28050-640-0
04
1
0904-
131
BRACKET; FUEL PIPE CLIP
8-97606-142-0
01
1
0904-
148
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
0904-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
0904-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
0904-
256
BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT
8-98037-829-0
01
1
0904-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
0904-
