◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#160239) — 298 parça

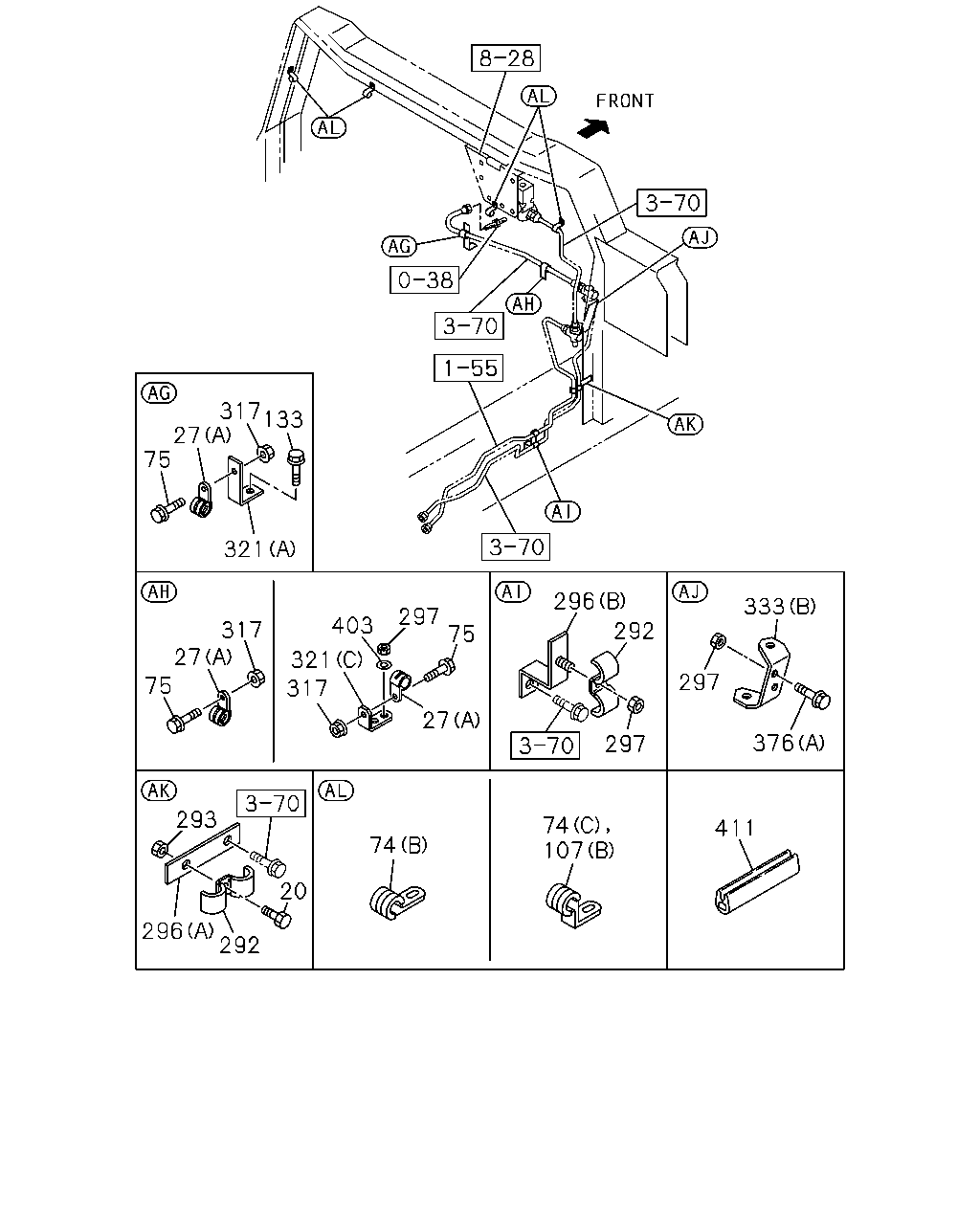

çizim 471458
411 74 107 74 293 296 292 20 376 333 297 292 296 297 297 75 27 321 317 403 317 27 75 133 317 27 75 321
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
27 CLIP; FLEX HOSE
(B) ID=19 L=20 		0-95235-836-0 03 1 1504-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1504-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 1504-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1504-
297 NUT; BRKT
MJX16P M/T(Y3Z) M12 FLANGE 		0-91180-212-0 01 1 1507-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 16 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-1510
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
321 BRACKET; CLIP
MJX16P M/T(Y3Z) (C) 		1-47477-337-1 01 1 1507-
321 BRACKET; CLIP
(A) L=75 		1-47478-328-0 01 1 1504-
321 BRACKET; CLIP
(B) L=59 B=20 		1-47479-048-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1504-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
403 WASHER; PL
MJX16P M/T(Y3Z) D=12 		0-91614-612-0 01 1 1507-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 1504-

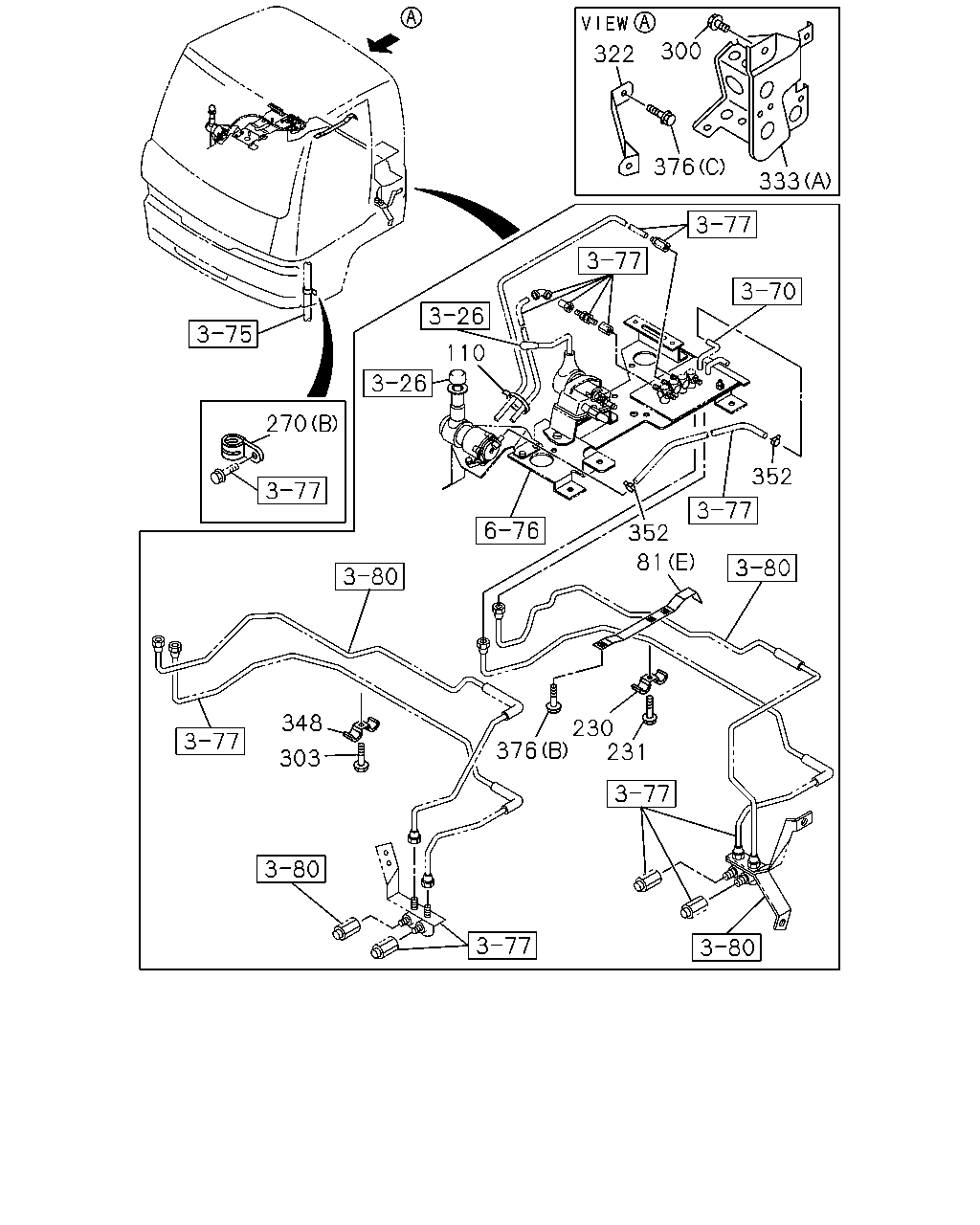

çizim 471611
231 230 376 303 81 348 352 352 376 322 300 333 270 110
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(E) 		1-47477-483-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 1504-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 02 1 1504-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1504-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-
322 BRACKET; CLIP 8-98227-231-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1504-
333 BRACKET; BRK AIR PIPE
(A) 		8-98169-062-0 01 1 1504-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 1504-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1504-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1504-
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1504-

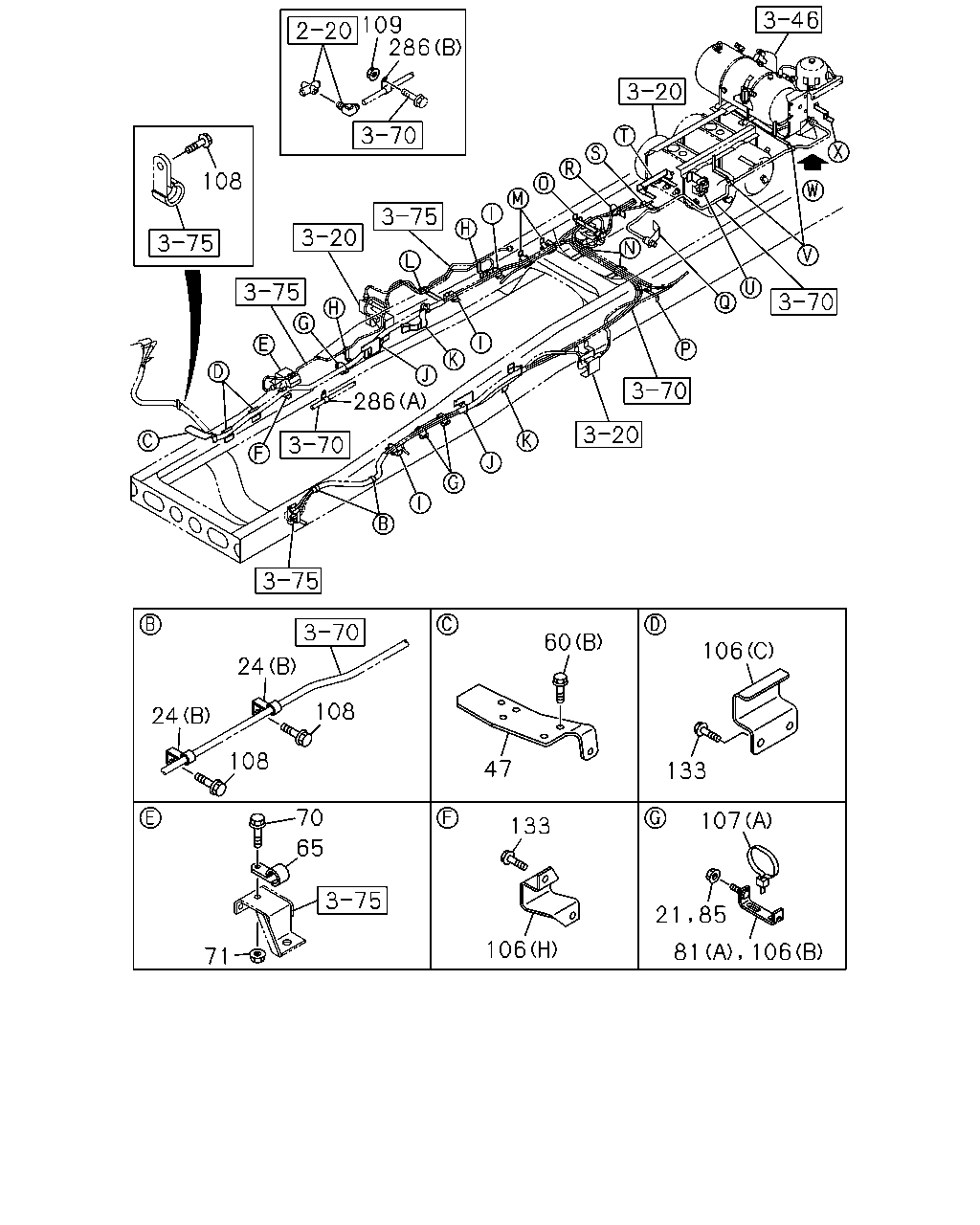

çizim 471627
106 85 21 81 107 106 133 60 47 133 106 71 65 108 70 108 24 24 108 109 286 286
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1504-
24 CLIP; PIPE
MJX16P M/T(Y3Z) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1507-
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 1504-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1504-1506
24 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1507-
47 BRACKET; PIPE CLIP 8-98226-739-0 01 1 1504-
60 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-1506
60 BOLT; CLIP FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
60 BOLT; CLIP FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 1504-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(E) 		1-47477-483-0 01 1 1504-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1504-
106 BRACKET; TUBE CLIP
(H) 		8-97610-303-0 01 1 1504-
106 BRACKET; TUBE CLIP
(I) 		8-97637-446-0 02 1 1504-
106 BRACKET; TUBE CLIP
(D) 		8-98052-409-0 01 1 1504-
106 BRACKET; TUBE CLIP
(F) 		8-98052-410-0 01 1 1504-
106 BRACKET; TUBE CLIP
(E) 		8-98052-411-0 01 1 1504-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1504-
106 BRACKET; TUBE CLIP
(C) 		8-98199-563-0 02 1 1504-
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-1506
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1507-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
286 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1504-1506
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1507-
286 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 1504-1506
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=250 		1-09707-126-0 02 1 1507-

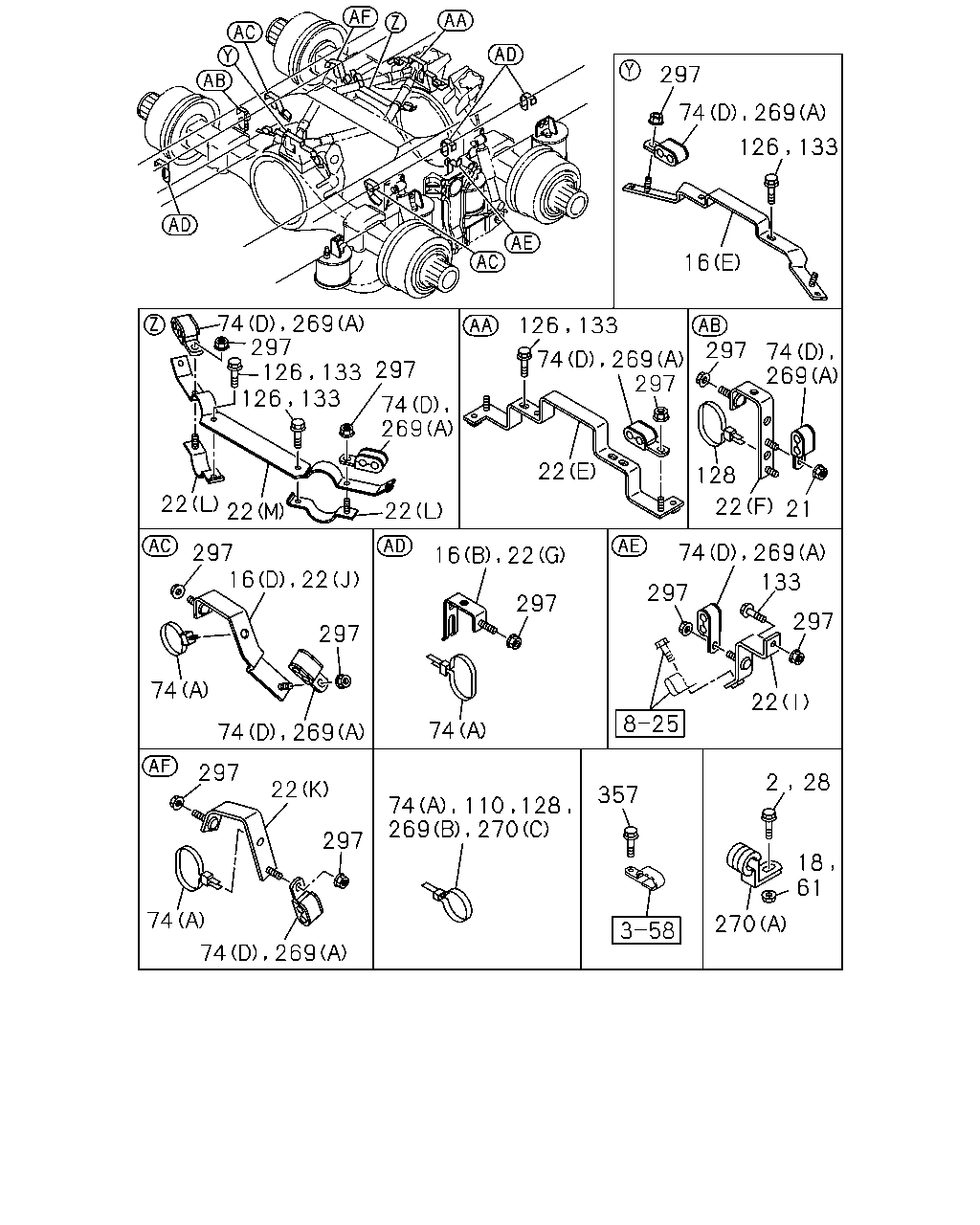

çizim 471852
270 28 61 2 18 357 128 270 110 74 269 269 74 74 297 22 297 22 297 133 74 269 297 22 297 16 74 297 22 269 74 74 297 16 21 22 128 269 74 297 297 269 74 133 126 22 269 74 22 22 22 74 126 133 133 297 126 297 16 133 269 126 74 297 269
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 1504-
16 BRACKET; PIPE CLIP
(B) 		1-47479-381-2 02 1 1504-
16 BRACKET; PIPE CLIP
(C) 		1-47479-693-0 03 1 1504-
16 BRACKET; PIPE CLIP
(D) 		1-47479-837-0 01 1 1504-
16 BRACKET; PIPE CLIP
(E) 		1-47479-896-0 01 1 1504-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1504-
22 BRACKET; CLIP
(C) L=110 		1-82699-589-0 01 1 1504-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 1504-
22 BRACKET; CLIP
(G) 		1-47479-381-2 03 1 1504-
22 BRACKET; CLIP
(B) 		1-47479-693-0 03 1 1504-
22 BRACKET; CLIP
(I) 		1-47479-746-1 01 1 1504-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 1504-
22 BRACKET; CLIP
(J) 		1-47479-836-0 01 1 1504-
22 BRACKET; CLIP
(K) 		1-47479-838-0 01 1 1504-
22 BRACKET; CLIP
(L) 		1-47479-845-0 02 1 1504-
22 BRACKET; CLIP
(M) 		1-47479-846-0 01 1 1504-
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 1504-
22 BRACKET; CLIP
(D) 		8-98287-477-0 01 1 1504-
22 BRACKET; CLIP
(H) 		8-98293-452-0 01 1 1504-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 03 1 1504-
61 NUT; CLIP FIX
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1507-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1504-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 19 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 04 1 1504-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 02 1 1504-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
297 NUT; BRKT
MJX16P M/T(Y3Z) M12 FLANGE 		0-91180-212-0 01 1 1507-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 16 1 1504-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-1510
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1504-

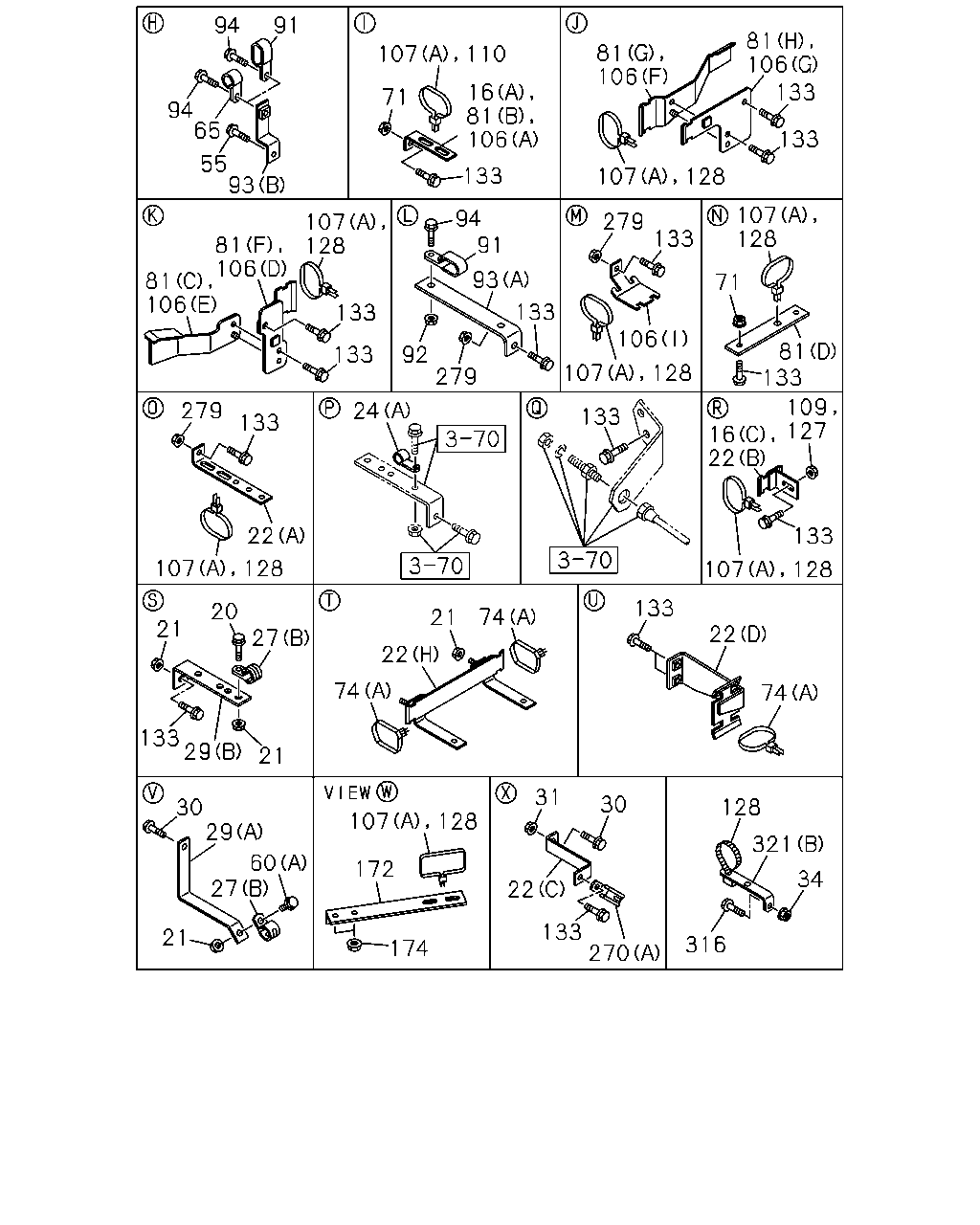

çizim 471915
316 34 321 128 30 31 22 133 270 174 128 107 172 60 29 30 27 21 74 22 133 74 21 22 74 27 20 21 133 29 21 128 107 133 22 279 128 109 16 127 22 107 133 133 24 133 81 71 128 107 133 279 106 107 128 279 133 93 91 94 107 133 133 128 106 81 81 106 107 128 133 133 106 81 106 81 133 106 81 16 110 107 71 93 55 65 94 94 91 92
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 1504-
16 BRACKET; PIPE CLIP
(B) 		1-47479-381-2 02 1 1504-
16 BRACKET; PIPE CLIP
(C) 		1-47479-693-0 03 1 1504-
16 BRACKET; PIPE CLIP
(D) 		1-47479-837-0 01 1 1504-
16 BRACKET; PIPE CLIP
(E) 		1-47479-896-0 01 1 1504-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-1510
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1511-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1504-
22 BRACKET; CLIP
(C) L=110 		1-82699-589-0 01 1 1504-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 1504-
22 BRACKET; CLIP
(G) 		1-47479-381-2 03 1 1504-
22 BRACKET; CLIP
(B) 		1-47479-693-0 03 1 1504-
22 BRACKET; CLIP
(I) 		1-47479-746-1 01 1 1504-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 1504-
22 BRACKET; CLIP
(J) 		1-47479-836-0 01 1 1504-
22 BRACKET; CLIP
(K) 		1-47479-838-0 01 1 1504-
22 BRACKET; CLIP
(L) 		1-47479-845-0 02 1 1504-
22 BRACKET; CLIP
(M) 		1-47479-846-0 01 1 1504-
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 1504-
22 BRACKET; CLIP
(D) 		8-98287-477-0 01 1 1504-
22 BRACKET; CLIP
(H) 		8-98293-452-0 01 1 1504-
24 CLIP; PIPE
MJX16P M/T(Y3Z) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1507-
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 1504-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1504-1506
24 CLIP; PIPE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1507-
27 CLIP; FLEX HOSE
(B) ID=19 L=20 		0-95235-836-0 03 1 1504-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 1504-
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98257-070-0 02 1 1504-
29 BRACKET; CLIP,AIR PIPE
(B) 		1-82698-358-0 01 1 1504-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1504-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1504-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1504-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
60 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1504-1506
60 BOLT; CLIP FIX
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
60 BOLT; CLIP FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 1504-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 1504-
74 CLIP; NYLON TUBE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
74 CLIP; NYLON TUBE
(C) ID=39 H=40 L=32 		1-09701-267-0 01 1 1504-
74 CLIP; NYLON TUBE
(D) ID=11X2 L=42 		1-09701-306-0 03 1 1504-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1504-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1504-
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1504-
81 BRACKET; CLIP
(F) 		8-98052-413-0 01 1 1504-
81 BRACKET; CLIP
(G) 		8-98052-414-0 01 1 1504-
81 BRACKET; CLIP
(C) 		8-98052-415-0 01 1 1504-
81 BRACKET; CLIP
(A) 		8-98061-758-0 02 1 1504-
81 BRACKET; CLIP
(E) 		1-47477-483-0 01 1 1504-
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 1504-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1504-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 1504-
93 BRACKET; PIPE CLIP
(B) L=80 H=20 		1-82699-304-0 01 1 1504-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1504-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1504-
106 BRACKET; TUBE CLIP
(H) 		8-97610-303-0 01 1 1504-
106 BRACKET; TUBE CLIP
(I) 		8-97637-446-0 02 1 1504-
106 BRACKET; TUBE CLIP
(D) 		8-98052-409-0 01 1 1504-
106 BRACKET; TUBE CLIP
(F) 		8-98052-410-0 01 1 1504-
106 BRACKET; TUBE CLIP
(E) 		8-98052-411-0 01 1 1504-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1504-
106 BRACKET; TUBE CLIP
(C) 		8-98199-563-0 02 1 1504-
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1504-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 1504-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1504-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-1506
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 1507-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1504-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1504-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1504-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 10 1 1504-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 19 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1504-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1504-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1504-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1504-1510
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1511-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1504-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1504-
172 BRACKET; TUBE CLIP 8-97636-284-1 01 1 1504-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-
270 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 02 1 1504-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 1504-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1504-
270 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 1504-
279 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1507-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1504-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1504-
321 BRACKET; CLIP
MJX16P M/T(Y3Z) (C) 		1-47477-337-1 01 1 1507-
321 BRACKET; CLIP
(A) L=75 		1-47478-328-0 01 1 1504-
321 BRACKET; CLIP
(B) L=59 B=20 		1-47479-048-0 01 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
