◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#160236) — 92 parça

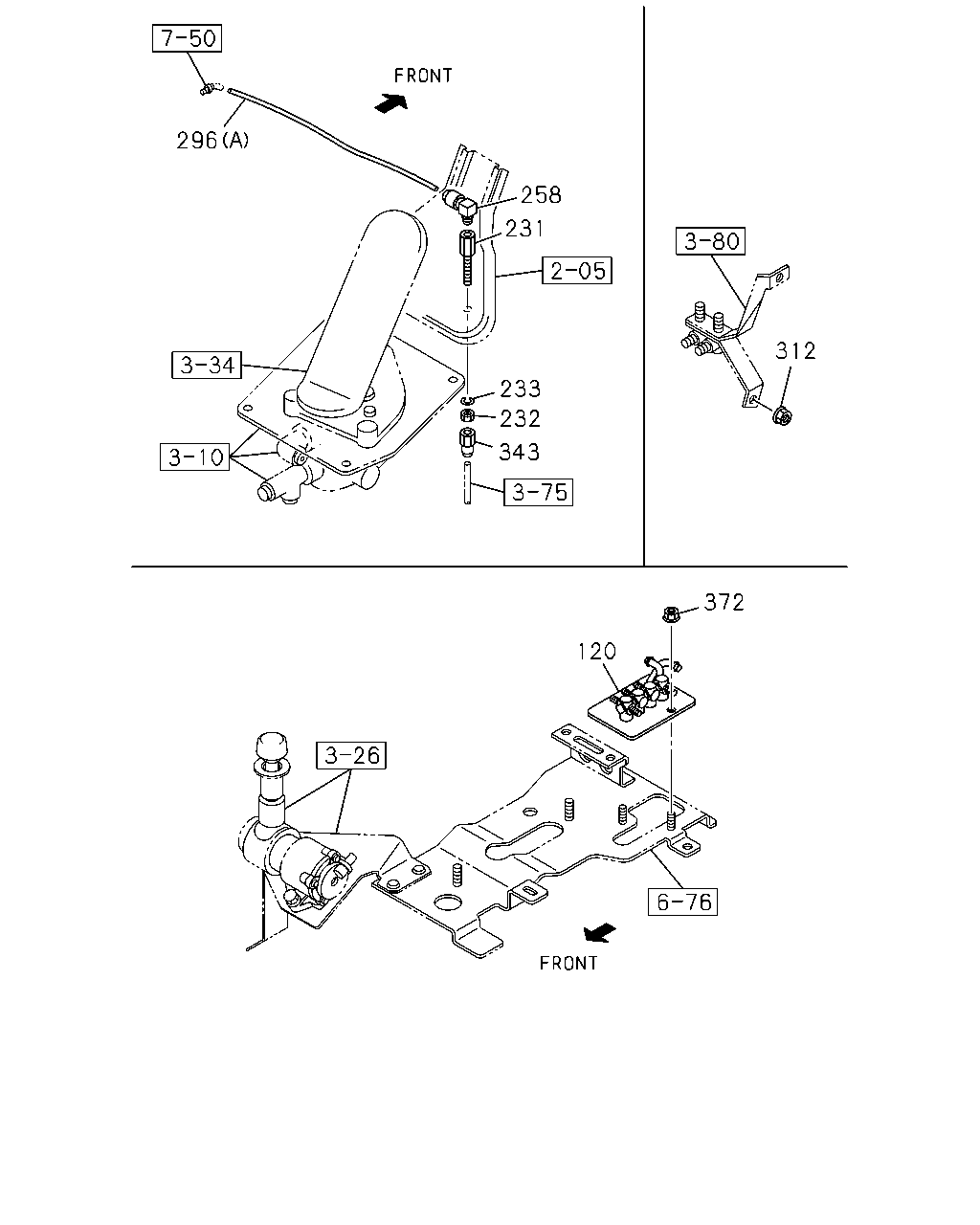

çizim 471260
233 312 232 343 120 372 258 231 296
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 1504-
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1504-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1504-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1504-
258 CONNECTOR; NYLON TUBE
TRI LC6X4-R1/8 		1-09660-760-1 01 1 1504-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1504-
312 NUT; UNION
M8 		0-91110-508-0 01 1 1504-
343 UNION; NYLON TUBE
DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1504-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1504-

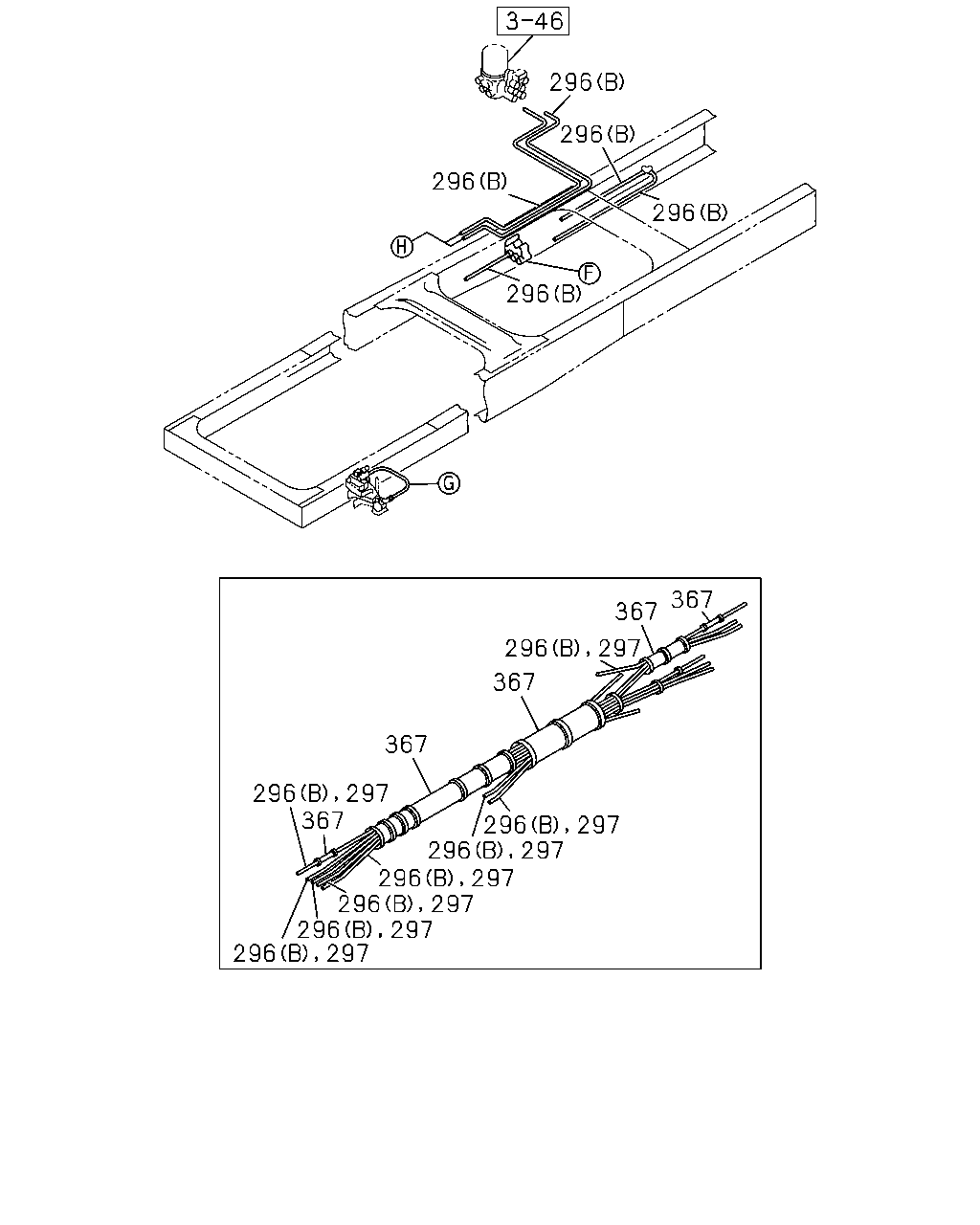

çizim 471455
296 296 296 296 296 367 367 297 296 367 367 297 296 367 296 297 296 297 296 297 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1504-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1504-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1504-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1504-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1504-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1504-

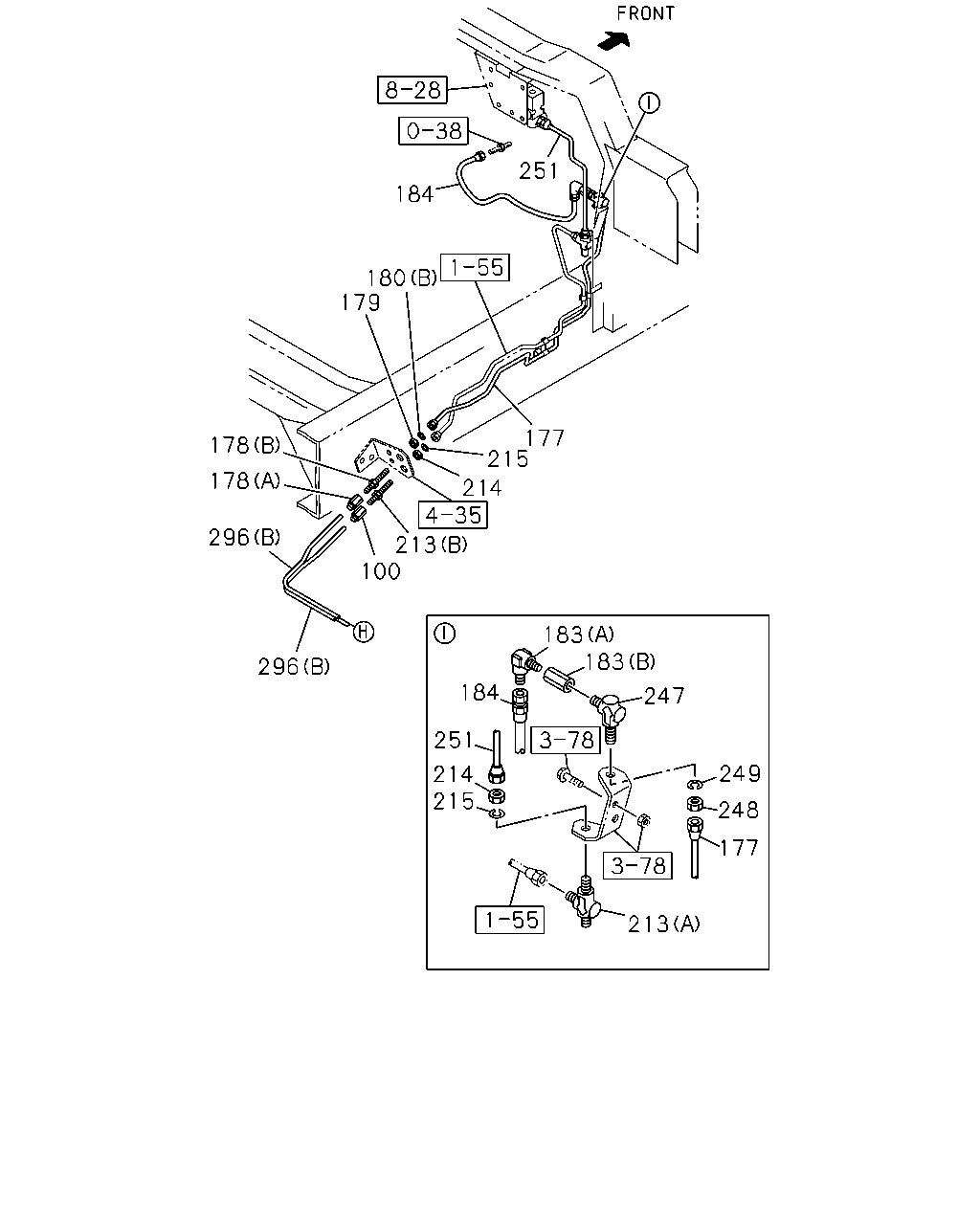

çizim 471473
251 184 180 179 178 178 296 296 100 213 214 215 177 183 184 251 214 215 213 177 248 249 247 183
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1504-
177 PIPE; AIR,UNION TO UNION
L=1036 SERVICED BY L=1100 		1-47428-815-0 01 1 1504-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1504-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1504-
179 NUT; UNION
M12 		9-09840-280-0 01 1 1504-
180 WASHER; LK,UNION
(A) ID=30.5 		9-09150-530-0 01 1 1504-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1504-
180 WASHER; LK,UNION
(C) ID=22.5 		0-91510-522-0 01 1 1504-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1504-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1504-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1504-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1504-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1504-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1504-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1504-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1504-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1504-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1504-
251 PIPE; AIR,UNION TO MAG VLV
L=489 		8-98198-912-0 01 1 1504-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1504-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1504-

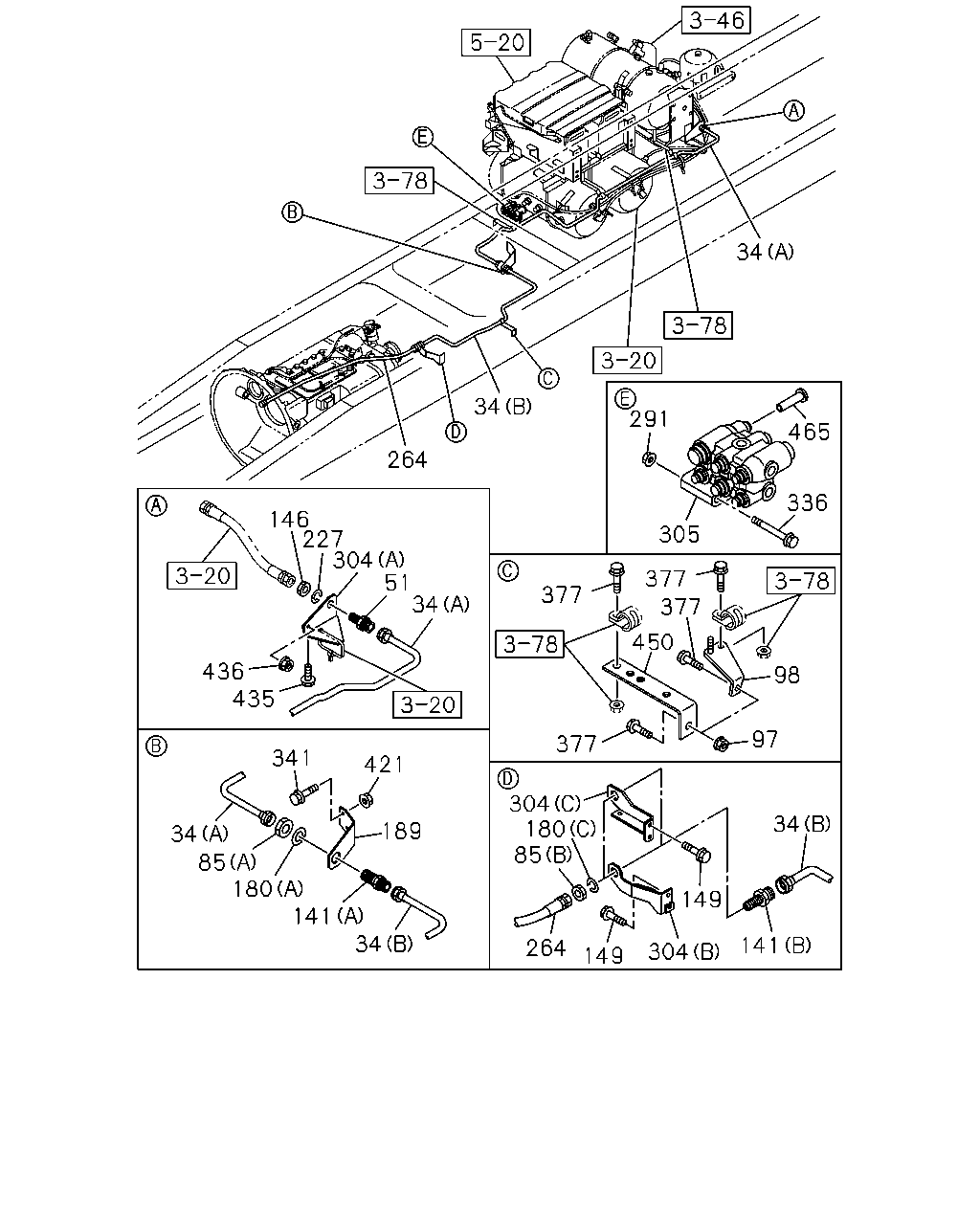

çizim 471640
264 34 34 146 227 304 51 34 435 436 341 34 85 180 141 34 189 421 291 305 336 465 377 377 97 98 377 450 377 304 180 85 264 149 304 141 34 149
BalonParca AdiParca NoAdetTipApplied Date
34 PIPE; AIR
MJX16P M/T(Y3Z) (B) L=1406 		8-98311-549-0 01 1 1507-
34 PIPE; AIR
(A) L=2235 		8-98306-088-1 01 1 1504-
34 PIPE; AIR
(B) L=1178 		8-98235-049-0 01 1 1504-1506
34 PIPE; AIR
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1178 		8-98235-049-0 01 1 1507-
51 UNION
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1504-
85 NUT; UNION
(A) M30 		9-09840-252-1 01 1 1504-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1504-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1504-
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) 		1-47479-639-0 01 1 1507-
141 UNION; FLEX HOSE
(A) M30 & M30 STRAIGHT 		1-09664-191-0 01 1 1504-
141 UNION; FLEX HOSE
(B) M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1504-
146 NUT; UNION
M22 		0-91111-522-0 01 1 1504-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1504-1506
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
180 WASHER; LK,UNION
(A) ID=30.5 		9-09150-530-0 01 1 1504-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1504-
180 WASHER; LK,UNION
(C) ID=22.5 		0-91510-522-0 01 1 1504-
189 BRACKET; FLEX HOSE 8-98306-089-0 01 1 1504-
227 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1504-
264 HOSE; FLEX
MJX16P M/T(Y3Z) 		8-98235-594-0 01 1 1507-
264 HOSE; FLEX
L=1050 		1-09363-789-0 01 1 1504-1506
264 HOSE; FLEX
TRANSMISSION-FULLER RTLO189 18(Y4W) L=1050 		1-09363-789-0 01 1 1507-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1504-
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		8-98207-960-0 01 1 1507-
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 1504-1506
304 BRACKET; UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		1-47471-276-0 01 1 1507-
304 BRACKET; UNION
(A) 		8-98306-090-0 01 1 1504-1510
304 BRACKET; UNION
(A) 		8-98327-439-0 01 1 1511-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1504-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1504-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1504-1506
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1507-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1504-1506
421 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 02 1 1507-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
450 BRACKET; CLIP 1-82698-358-0 01 1 1504-
465 PLUG
MJX16P M/T(Y3Z) OD=8 PLASTIC 		1-09661-616-0 01 1 1507-
465 PLUG
OD=6 L=27 		1-09661-615-0 01 1 1504-1506
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) OD=6 L=27 		1-09661-615-0 01 1 1507-
