Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11678 - CYJ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#160233) — 36 parça
◀
[346A] FIXING (19 parça)
[346A] COMPONENT (13 parça)
[346A] REPAIR KIT AND SEAL KIT (4 parça)
▶

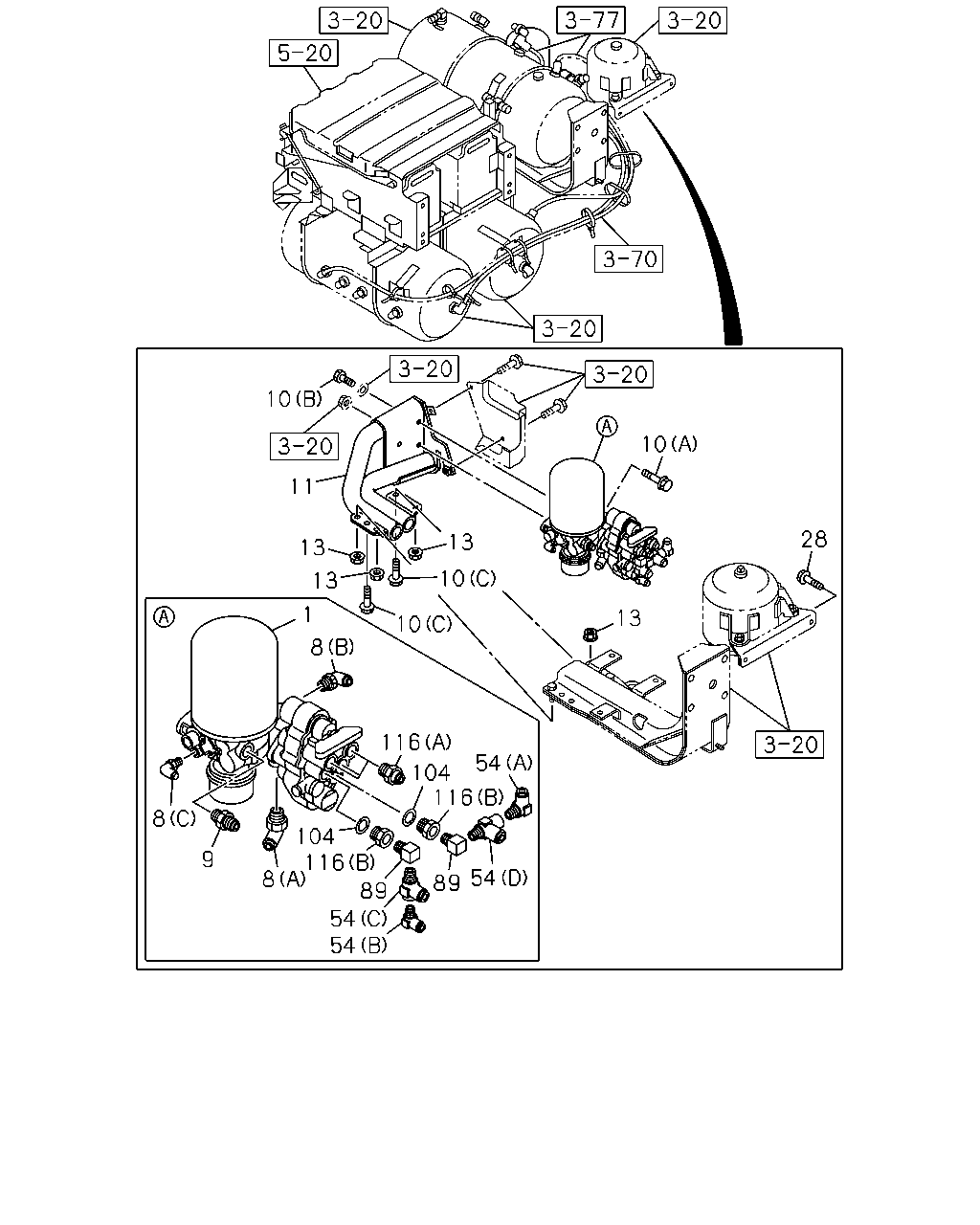

10
10
28
13
13
10
10
13
11
13
1
8
116
104
54
116
89
54
116
104
8
9
8
89
54
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98219-852-1
01
1
1504-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 ELBOW
1-09661-521-0
01
1
1504-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
1504-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN6 & M10 ELBOW
1-09661-574-0
01
1
1504-
9
CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT
8-98107-103-0
01
1
1504-
10
BOLT; AIR DRYER
(C) M12X35 FLANGE
0-28651-235-0
02
1
1504-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
1504-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
1504-
11
BRACKET; AIR DRYER
8-97640-133-0
01
1
1504-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
05
1
1504-
28
BOLT; PURGE TANK
M10X30 FLANGE
0-28651-030-0
02
1
1504-
54
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1504-
54
CONNECTOR
(B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1504-
54
CONNECTOR
(C) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
1504-
54
CONNECTOR
(D) DIN12 & R3/8 & RC3/8 3WAY
1-09661-181-0
01
1
1504-
89
ADAPTER
PT3/8 ELBOW
1-09660-696-0
02
1
1504-
104
GASKET
ID=22.5
9-09571-422-0
02
1
1504-
116
CONNECTOR; STRAIGHT
(B) INNER PT3/8,OUTER M22
1-09650-494-1
02
1
1504-
116
CONNECTOR; STRAIGHT
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
03
1
1504-

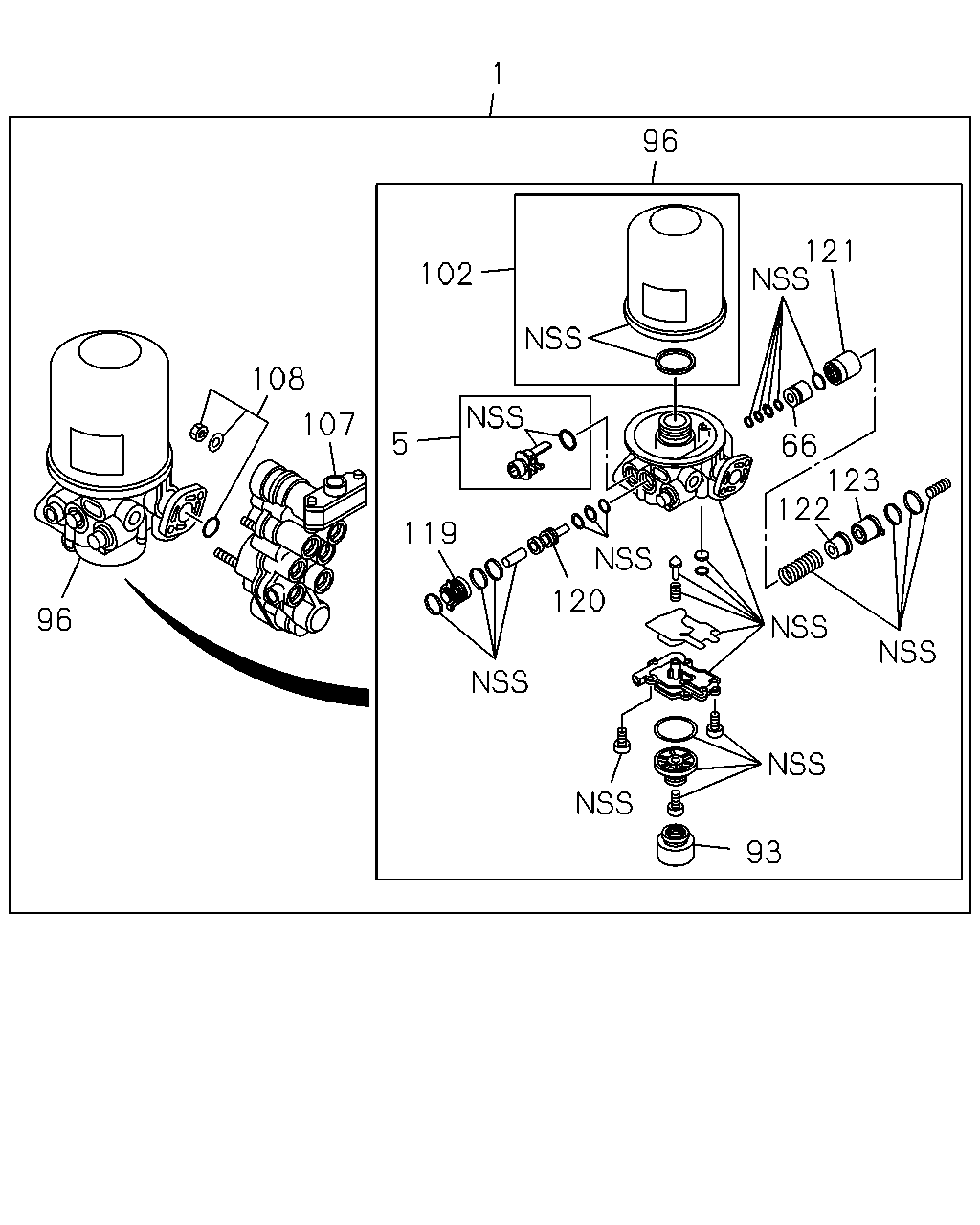

1
96
121
66
123
122
120
5
119
107
108
102
93
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98219-852-1
01
1
1504-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
1504-
66
PISTON; AIR DRYER
1-85576-475-0
01
1
1504-
93
SILENCER; AIR DRYER
8-98219-823-0
01
1
1504-
96
DRYER KIT; AIR
8-98219-822-1
01
1
1504-
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
1504-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
1504-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
1504-
119
COVER; PURGE VALVE
1-85576-473-0
01
1
1504-
120
TAPPET
8-98185-666-0
01
1
1504-
121
HOLDER; SPRING
1-85576-476-0
01
1
1504-
122
SEAT; SPRING
1-85576-477-0
01
1
1504-
123
COVER; GOVERNER
1-85576-478-0
01
1
1504-

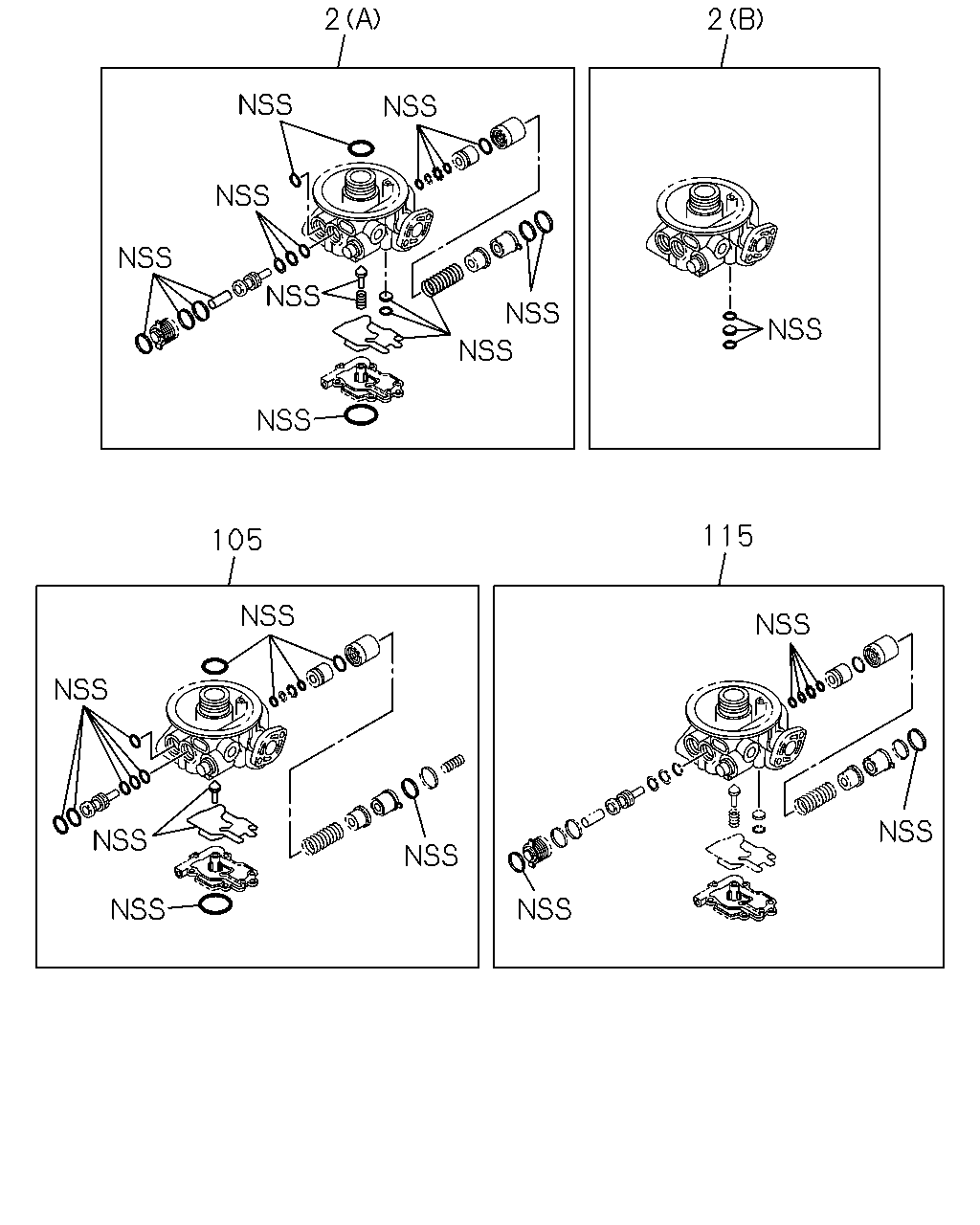

2
2
105
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
(A)
8-98185-664-0
01
1
1504-
2
REPAIR KIT; AIR DRYER
(B)
8-98302-391-0
01
1
1504-
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1504-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
1504-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
