Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11678 - CYJ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#160232) — 34 parça
◀

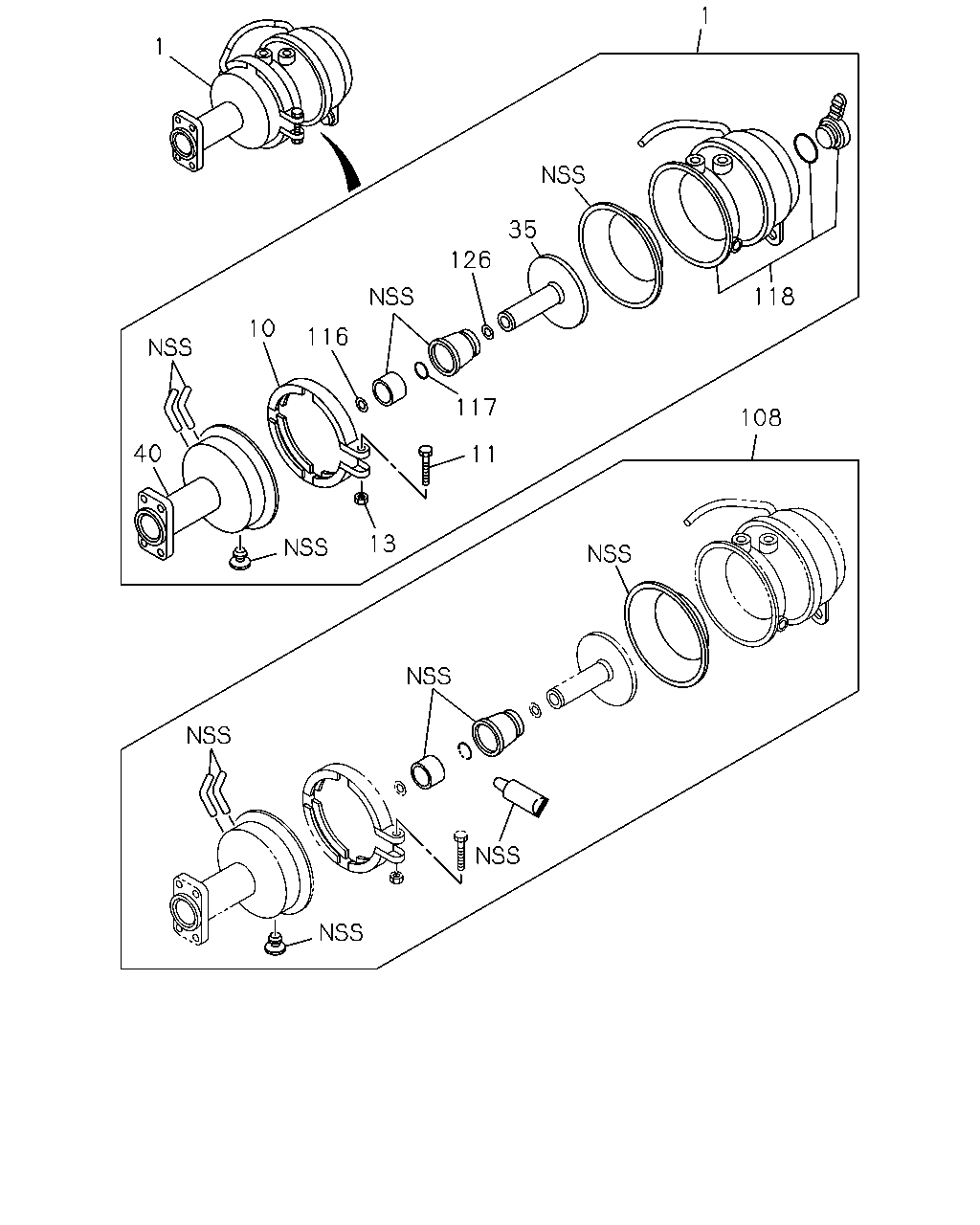

[341A] COMPONENT AND REPAIR KIT (28 parça)
[341A] CONNECTOR;NYLON TUBE (6 parça)
▶
1
118
108
35
126
10
1
116
117
11
13
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-089-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-089-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-090-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-090-0
01
1
1504-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1504-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1504-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1504-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1504-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1504-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1504-
35
PLATE; ROD END,SPR CHAMBER
8-98146-972-0
02
1
1504-
35
PLATE; ROD END,SPR CHAMBER
8-98146-972-0
02
1
1504-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH
1-48251-134-1
01
1
1504-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH
1-48251-134-1
01
1
1504-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH
1-48251-135-1
01
1
1504-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH
1-48251-135-1
01
1
1504-
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1504-
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1504-
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1504-
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1504-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1504-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1504-
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH
1-87412-111-0
01
1
1504-
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH
1-87412-111-0
01
1
1504-
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH
1-87412-112-0
01
1
1504-
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH
1-87412-112-0
01
1
1504-
126
SHIM
8-98146-965-0
AR
1
1504-
126
SHIM
8-98146-965-0
AR
1
1504-
1
1
32
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-089-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-089-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-090-0
01
1
1504-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-090-0
01
1
1504-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1504-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1504-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
