Sayfa 3-26 - Isuzu EPC

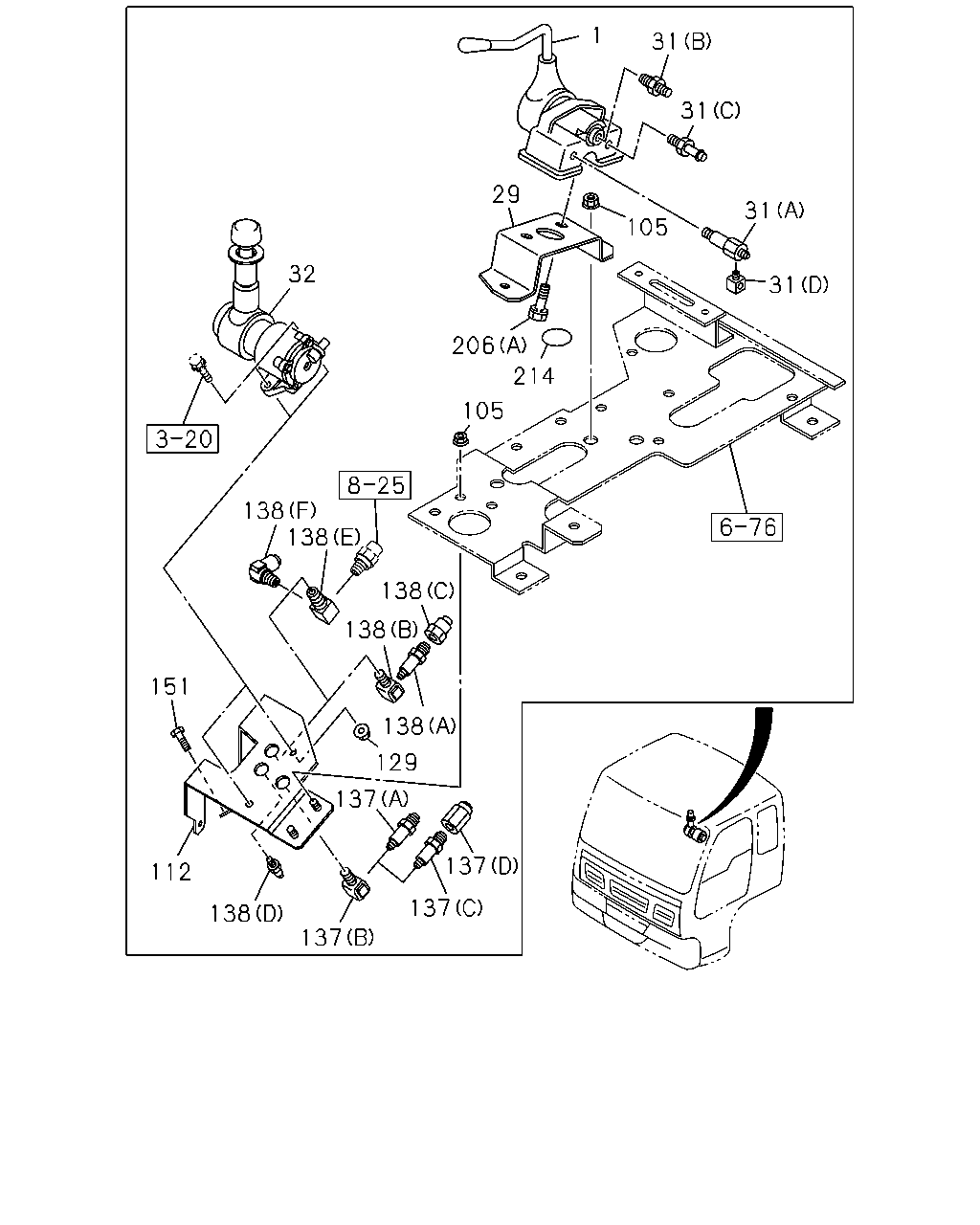

3 3

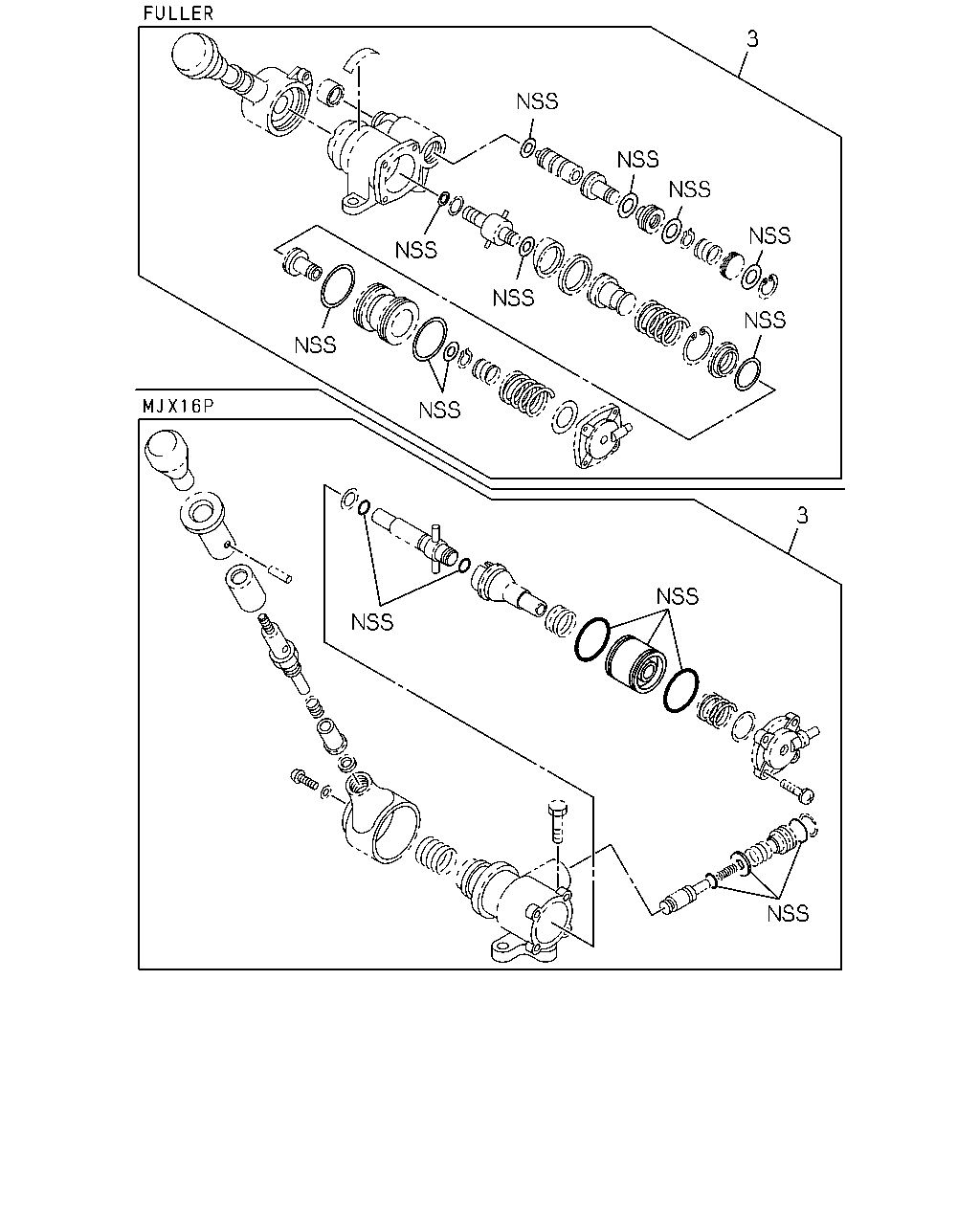

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV MJX16P M/T(Y3Z)	1-85576-376-0	01	1	1507-
3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	1504-1506
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-083-0	01	1	1507-

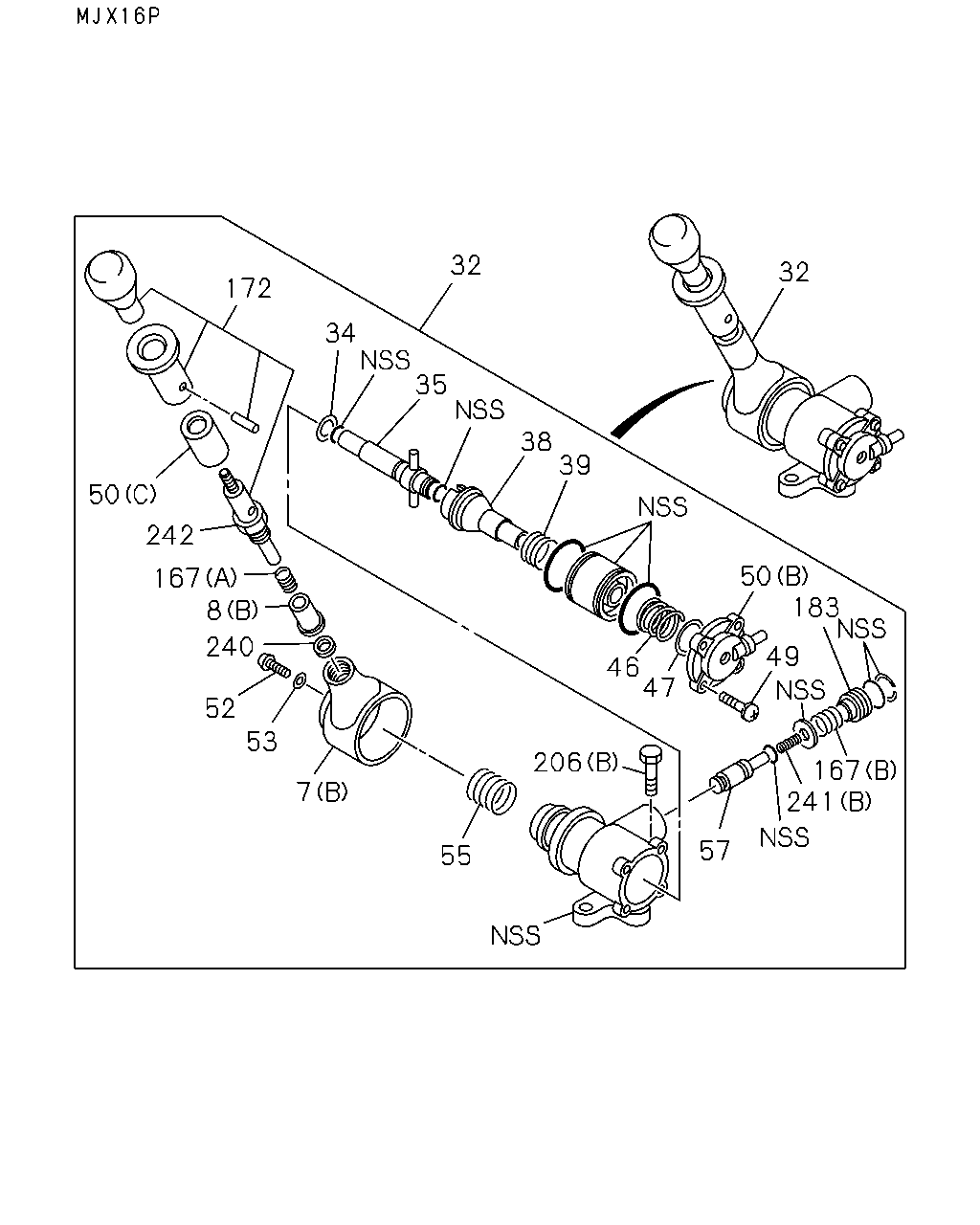

32 32 172 34 35 38 39 50 183 49 167 241 57 47 46 206 55 7 53 52 240 8 167 242 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	HEAD; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-201-0	01	1	1507-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1504-
8	STOPPER; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	1507-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1504-
32	VALVE; BRK,HAND CONT MJX16P M/T(Y3Z)	1-48460-339-1	01	1	1507-
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	1504-1506
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48460-316-0	01	1	1507-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1504-
35	HOLDER; CAM MJX16P M/T(Y3Z)	1-48469-171-0	01	1	1507-
35	HOLDER; CAM	1-48469-054-0	01	1	1504-1506
35	HOLDER; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-054-0	01	1	1507-
38	SEAT; EXH VLV MJX16P M/T(Y3Z)	1-48469-172-0	01	1	1507-
38	SEAT; EXH VLV	1-48469-057-0	01	1	1504-1506
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-057-0	01	1	1507-
39	SPRING; RETURN,CAM RING MJX16P M/T(Y3Z)	1-48469-150-0	01	1	1507-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1504-1506
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-063-0	01	1	1507-
46	SPRING; MAIN,PISTON MJX16P M/T(Y3Z)	1-48469-173-0	01	1	1507-
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	1504-1506
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-119-0	01	1	1507-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1504-
49	SCREW; COVER MJX16P M/T(Y3Z)	1-48469-169-0	04	1	1507-
49	SCREW; COVER	1-48469-120-0	04	1	1504-1506
49	SCREW; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-120-0	04	1	1507-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-153-0	01	1	1507-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (C)	1-48469-196-0	01	1	1507-
50	COVER; HAND BRK VLV (A)	1-48469-073-0	01	1	1504-1506
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-48469-073-0	01	1	1507-
52	SCREW; HANDLE	1-48469-062-0	01	1	1504-
53	WASHER; HANDLE	1-48469-061-0	01	1	1504-
55	SPRING; RETURN,HANDLE MJX16P M/T(Y3Z)	1-48469-155-0	01	1	1507-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1504-1506
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-059-0	01	1	1507-
57	PLUNGER; HAND BRK VLV MJX16P M/T(Y3Z)	1-48469-180-0	01	1	1507-
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	1504-1506
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-076-0	01	1	1507-
167	SPRING; VALVE MJX16P M/T(Y3Z) (A)	1-48469-177-0	01	1	1507-
167	SPRING; VALVE MJX16P M/T(Y3Z) (B)	1-48469-184-0	01	1	1507-
172	KNOB; VALVE MJX16P M/T(Y3Z)	1-48469-203-0	01	1	1507-
183	RETAINER; VALVE MJX16P M/T(Y3Z)	1-48469-185-0	01	1	1507-
206	BOLT; HAND BRK VALVE MJX16P M/T(Y3Z) (B)	1-48469-160-0	01	1	1507-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1504-
240	RING; STOPPER MJX16P M/T(Y3Z)	1-48469-199-0	01	1	1507-
241	SPRING; RETURN MJX16P M/T(Y3Z) (B)	1-48469-182-0	01	1	1507-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1504-
242	NUT; LK MJX16P M/T(Y3Z)	1-48469-179-0	01	1	1507-

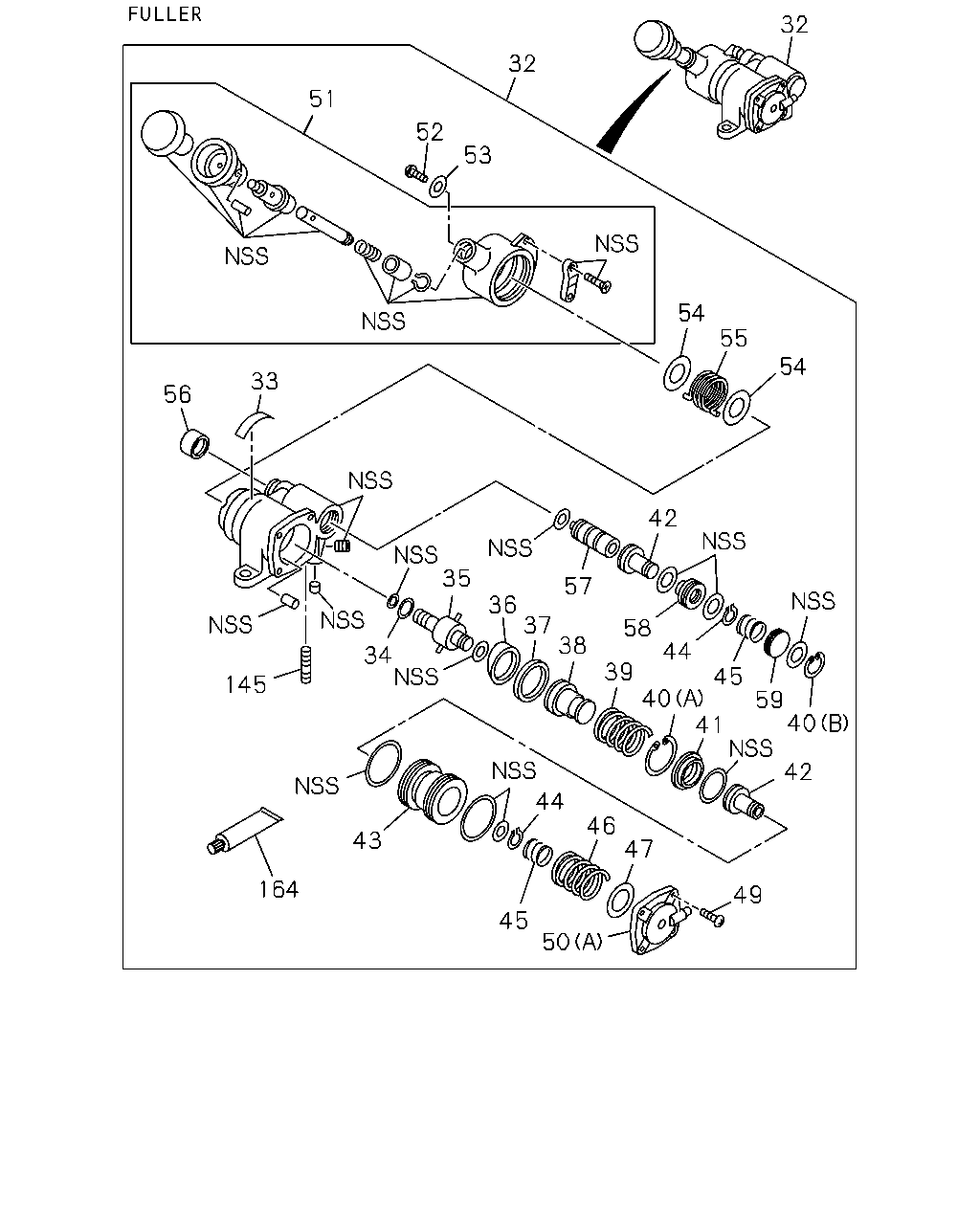

32 32 51 52 53 54 55 54 42 40 59 45 44 58 57 42 41 40 39 38 37 36 35 33 56 145 34 44 46 47 49 50 45 43 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJX16P M/T(Y3Z)	1-48460-339-1	01	1	1507-
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	1504-1506
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48460-316-0	01	1	1507-
33	PLATE; CAUTION	1-48469-121-0	01	1	1504-1506
33	PLATE; CAUTION TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-121-0	01	1	1507-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1504-
35	HOLDER; CAM MJX16P M/T(Y3Z)	1-48469-171-0	01	1	1507-
35	HOLDER; CAM	1-48469-054-0	01	1	1504-1506
35	HOLDER; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-054-0	01	1	1507-
36	RING; CAM	1-48469-056-0	01	1	1504-1506
36	RING; CAM TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-056-0	01	1	1507-
37	GUIDE; CAM RING	1-48469-058-0	01	1	1504-1506
37	GUIDE; CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-058-0	01	1	1507-
38	SEAT; EXH VLV MJX16P M/T(Y3Z)	1-48469-172-0	01	1	1507-
38	SEAT; EXH VLV	1-48469-057-0	01	1	1504-1506
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-057-0	01	1	1507-
39	SPRING; RETURN,CAM RING MJX16P M/T(Y3Z)	1-48469-150-0	01	1	1507-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1504-1506
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-063-0	01	1	1507-
40	RING; SNAP (A)	1-48469-067-0	01	1	1504-1506
40	RING; SNAP TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-48469-067-0	01	1	1507-
40	RING; SNAP (B)	1-48469-079-0	01	1	1504-1506
40	RING; SNAP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-48469-079-0	01	1	1507-
41	SEAT; FEED VLV	1-48469-066-0	01	1	1504-1506
41	SEAT; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-066-0	01	1	1507-
42	VALVE; FEED	1-48469-065-0	02	1	1504-1506
42	VALVE; FEED TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-065-0	02	1	1507-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1504-1506
43	PISTON; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-064-0	01	1	1507-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1504-1506
44	RING; SNAP,FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-068-0	02	1	1507-
45	SPRING; FEED VLV	1-48469-070-0	02	1	1504-1506
45	SPRING; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-070-0	02	1	1507-
46	SPRING; MAIN,PISTON MJX16P M/T(Y3Z)	1-48469-173-0	01	1	1507-
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	1504-1506
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-119-0	01	1	1507-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1504-
49	SCREW; COVER MJX16P M/T(Y3Z)	1-48469-169-0	04	1	1507-
49	SCREW; COVER	1-48469-120-0	04	1	1504-1506
49	SCREW; COVER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-120-0	04	1	1507-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-153-0	01	1	1507-
50	COVER; HAND BRK VLV MJX16P M/T(Y3Z) (C)	1-48469-196-0	01	1	1507-
50	COVER; HAND BRK VLV (A)	1-48469-073-0	01	1	1504-1506
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-48469-073-0	01	1	1507-
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	1504-1506
51	HANDLE ASM; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-060-0	01	1	1507-
52	SCREW; HANDLE	1-48469-062-0	01	1	1504-
53	WASHER; HANDLE	1-48469-061-0	01	1	1504-
54	SEAT; SPRING	1-48469-082-0	02	1	1504-1506
54	SEAT; SPRING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-082-0	02	1	1507-
55	SPRING; RETURN,HANDLE MJX16P M/T(Y3Z)	1-48469-155-0	01	1	1507-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1504-1506
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-059-0	01	1	1507-
56	BOOT; PLUNGER	1-48469-080-0	01	1	1504-1506
56	BOOT; PLUNGER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-080-0	01	1	1507-
57	PLUNGER; HAND BRK VLV MJX16P M/T(Y3Z)	1-48469-180-0	01	1	1507-
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	1504-1506
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-076-0	01	1	1507-
58	HOLDER; FEED VLV	1-48469-077-0	01	1	1504-1506
58	HOLDER; FEED VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-077-0	01	1	1507-
59	HOLDER; SPRING	1-48469-078-0	01	1	1504-1506
59	HOLDER; SPRING TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-078-0	01	1	1507-
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	1504-1506
145	STUD; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-069-0	01	1	1507-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1504-1506
164	GREASE; HAND BRK VLV TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48469-084-0	01	1	1507-

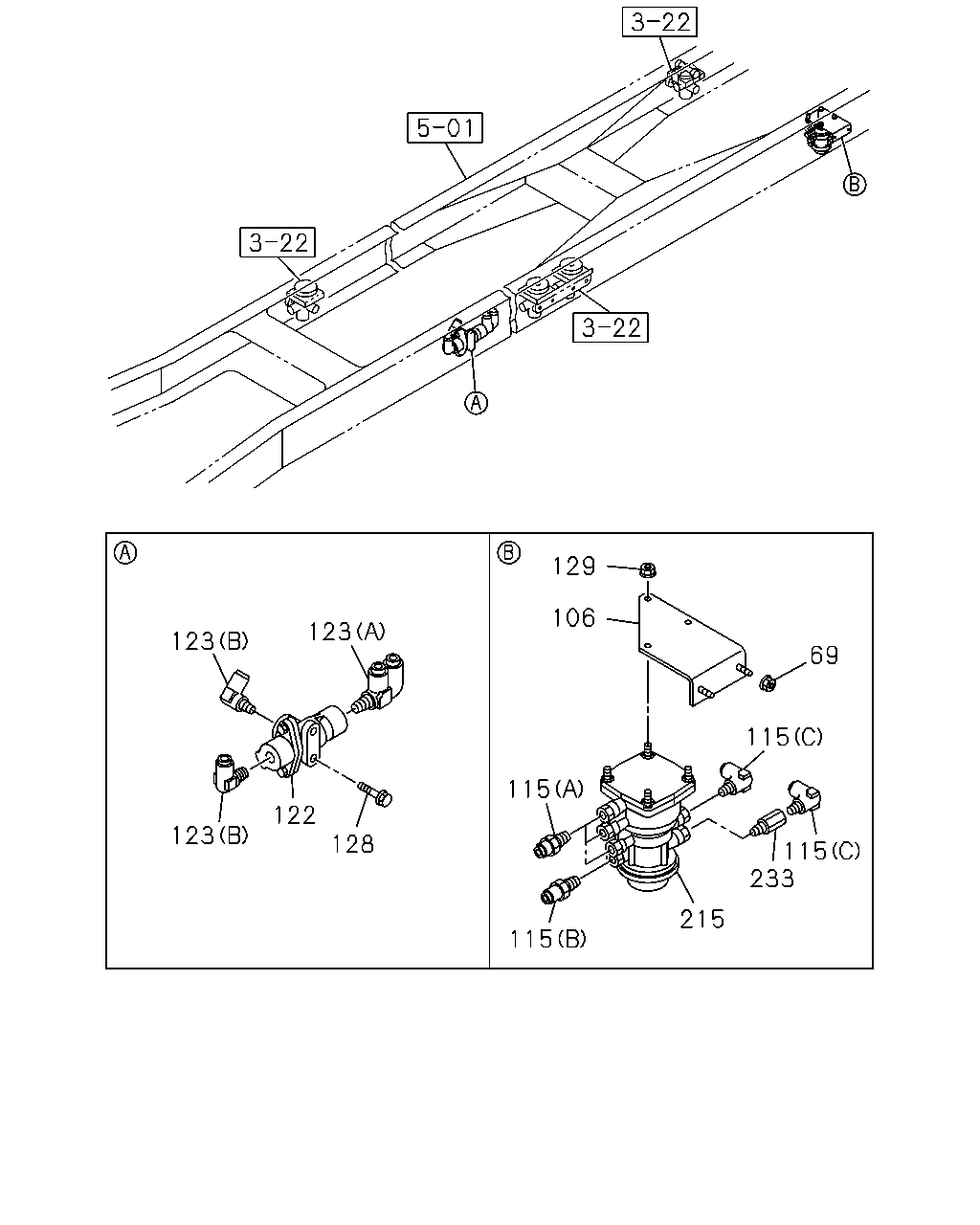

123 123 128 122 123 129 106 69 115 115 233 215 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	1504-
106	BRACKET; VLV	8-98110-679-1	01	1	1504-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1504-
115	CONNECTOR; DUAL RELAY VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1504-
115	CONNECTOR; DUAL RELAY VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1504-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	1504-
123	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1504-
123	CONNECTOR; DBL CHECK VLV (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1504-
128	BOLT; VLV M8X16 FLANGE	0-28050-816-0	02	1	1504-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1504-
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1504-
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1504-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	1504-

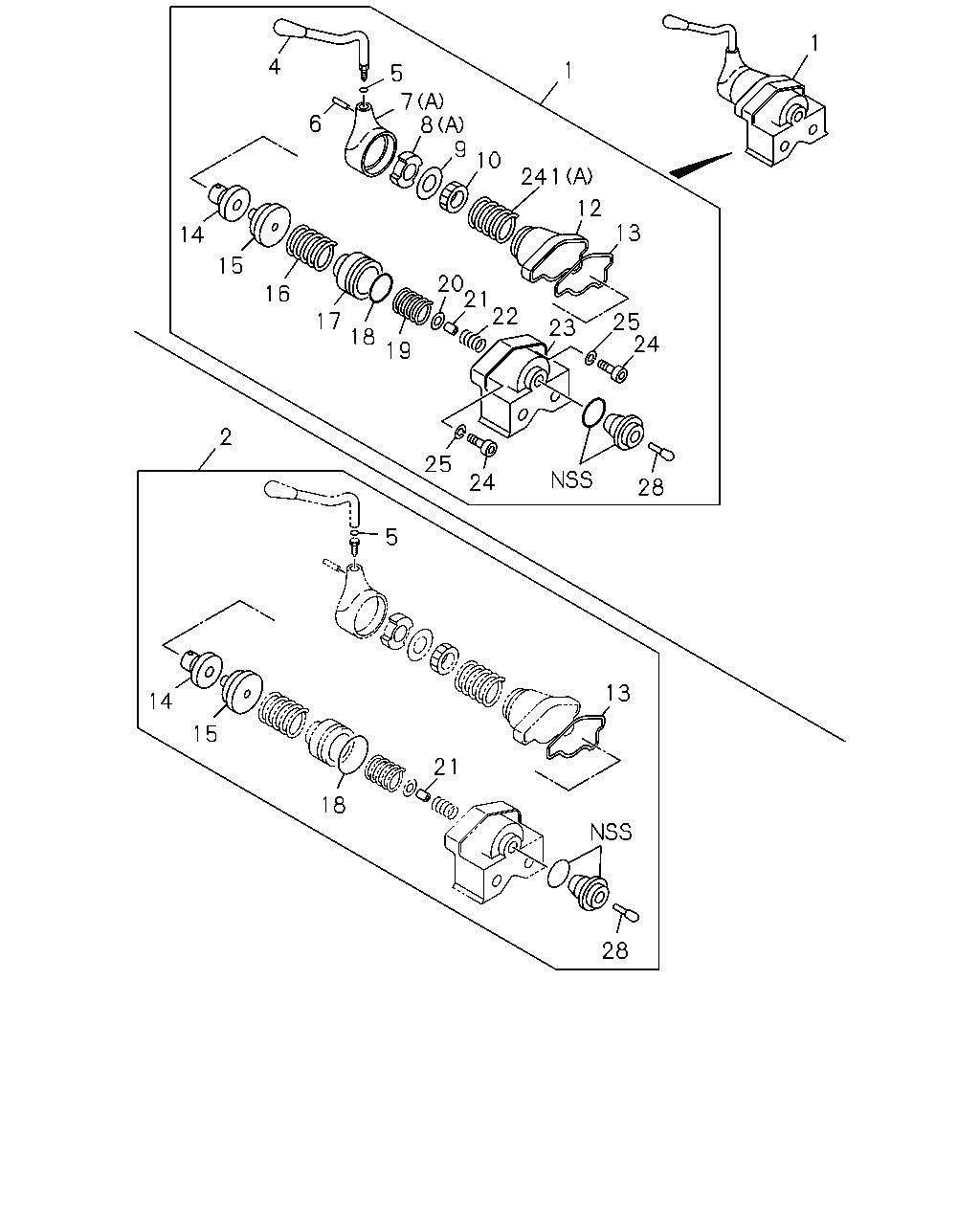

1 1 13 12 241 10 9 8 7 5 4 6 20 21 22 23 25 24 28 24 25 19 18 17 16 15 14 2 5 13 28 21 18 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1504-
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	1504-
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	1504-
5	GASKET; HANDLE	1-48119-128-0	01	1	1504-
6	PIN; SPR	1-48119-143-0	01	1	1504-
7	HEAD; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-201-0	01	1	1507-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1504-
8	STOPPER; BRK VLV MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	1507-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1504-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1504-
10	RING; ADJ	1-48119-122-0	01	1	1504-
12	COVER; BRK VLV	1-48129-319-1	01	1	1504-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1504-
14	FOLLOWER; CAM	1-48129-135-0	01	1	1504-
15	CAM; FOLLOWER	1-48129-134-0	01	1	1504-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1504-
17	PISTON; SPR	1-48129-095-0	01	1	1504-
18	GASKET; BODY	1-48129-096-0	01	1	1504-
19	SPRING; PISTON	1-48129-094-0	01	1	1504-
20	GUIDE; VLV	1-48129-090-0	01	1	1504-
21	VALVE; IN & EXH	1-48121-017-0	01	1	1504-
22	SPRING; VLV	1-48123-024-0	01	1	1504-
23	BODY; BRK VLV	1-48111-060-1	01	1	1504-
24	BOLT; EXH VLV	1-48129-092-0	02	1	1504-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1504-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1504-
241	SPRING; RETURN MJX16P M/T(Y3Z) (B)	1-48469-182-0	01	1	1507-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1504-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	1504-
