3-20 — AIR TANK (#160227) — 177 parça

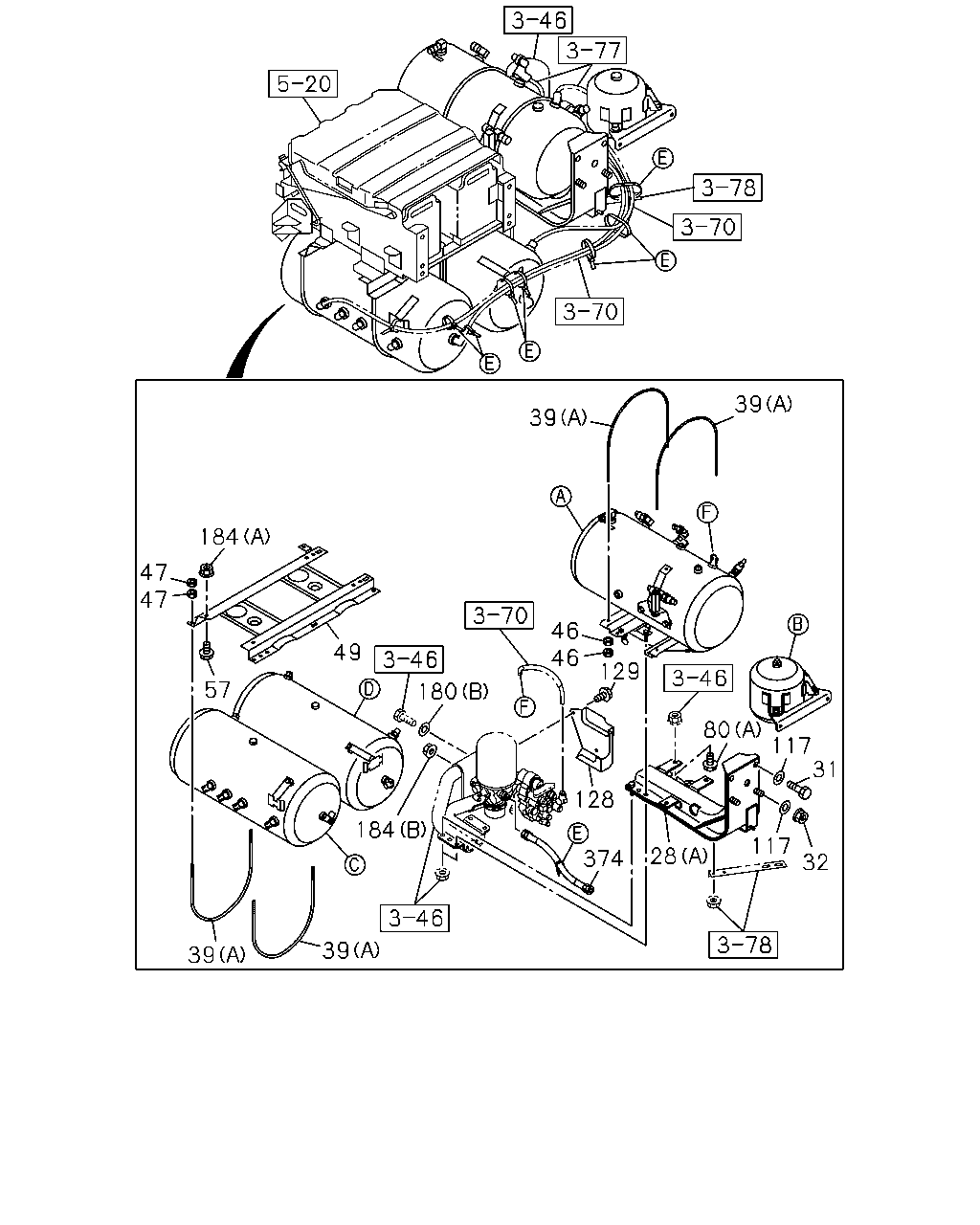

çizim 471638
28 117 32 31 117 80 129 39 46 46 39 180 184 128 39 39 47 57 47 184 49 374
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
31 BOLT; BRKT TO FRAME
M14X45 		1-09000-764-0 02 1 1504-
32 NUT; BRKT TO FRAME
M14 		1-09440-072-0 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1504-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1504-
49 BRACKET; AIR TANK 8-98293-598-0 01 1 1504-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1504-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1504-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1504-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1504-
128 PROTECTOR 8-97634-977-2 01 1 1504-
129 BOLT; PROTECTOR FIX
M8X20 FLANGE 		0-28050-820-0 02 1 1504-
180 WASHER; LK
(A) ID=18.2 		0-91510-518-0 01 1 1504-
180 WASHER; LK
(B) ID=12.5 OD=22 		0-91610-512-0 02 1 1504-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1504-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1504-
374 HOSE; RUBBER 1-09363-911-0 01 1 1504-
çizim 471821
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1504-

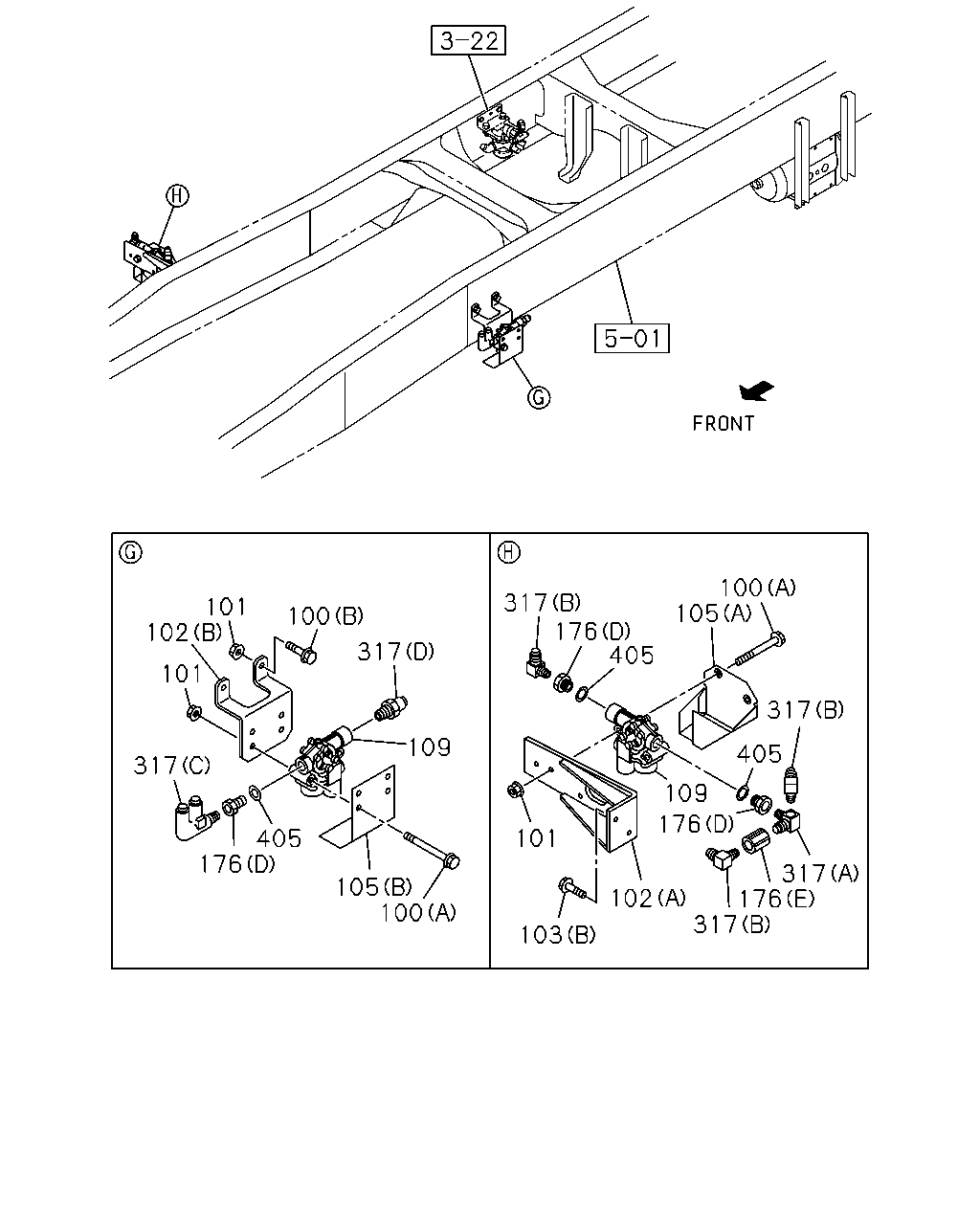

çizim 471890
100 105 405 176 317 109 176 102 101 103 317 317 405 317 176 100 105 405 176 317 101 102 100 101 317 109
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1504-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(D) M8X140 FLANGE 		0-28055-814-0 02 1 1504-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1504-
102 BRACKET; MODULATOR
(A) 		1-22131-995-1 01 1 1504-1504
102 BRACKET; MODULATOR
(B) 		8-98302-581-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-97609-108-1 01 1 1504-1504
102 BRACKET; MODULATOR
(A) 		8-98302-583-0 01 1 1505-
102 BRACKET; MODULATOR
(C) 		8-98296-995-0 01 1 1504-1504
102 BRACKET; MODULATOR
(C) 		8-98302-986-0 01 1 1505-
103 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1504-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
103 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1504-
105 COVER; MODULATOR
(B) 		1-47479-434-1 01 1 1504-1504
105 COVER; MODULATOR
(B) 		8-97648-209-0 01 1 1505-
105 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1504-1504
105 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1504-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1504-
176 ADAPTER
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1504-
176 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1504-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1504-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1504-
176 ADAPTER
(F) PT3/8 ELBOW 		1-09660-696-0 02 1 1504-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1504-
176 ADAPTER
(G) PT3/8 3WAY 		1-09661-300-0 02 1 1504-
176 ADAPTER
(H) PT3/8 		1-48319-058-0 01 1 1504-
317 CONNECTOR; MODULATOR
(B) M20 & PT3/8 ELBOW 		0-92134-312-0 03 1 1504-
317 CONNECTOR; MODULATOR
(A) PT3/8X3 3WAY 		1-09656-722-0 01 1 1504-
317 CONNECTOR; MODULATOR
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1504-
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1504-
405 GASKET
ID=22.5 		9-09571-422-0 07 1 1504-

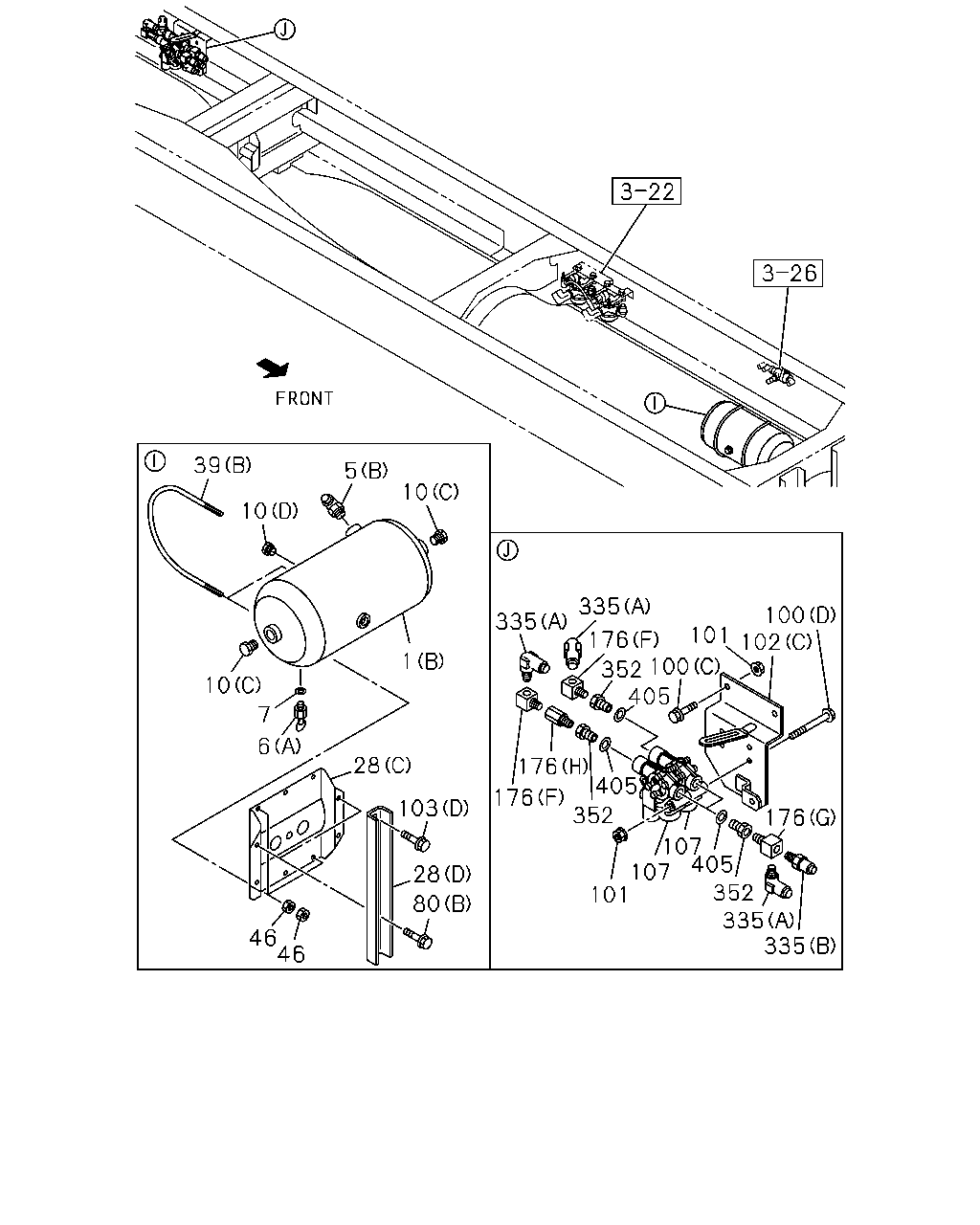

çizim 471946
39 10 5 10 10 7 6 1 28 103 28 80 46 46 101 352 176 176 335 176 335 352 405 405 107 107 352 405 335 335 176 100 100 102 101
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97633-046-0 01 1 1504-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1504-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1504-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1504-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1504-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1504-
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1504-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1504-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1504-
80 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 03 1 1504-
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1504-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1504-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(D) M8X140 FLANGE 		0-28055-814-0 02 1 1504-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
100 BOLT; MODULATOR
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1504-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1504-
102 BRACKET; MODULATOR
(A) 		1-22131-995-1 01 1 1504-1504
102 BRACKET; MODULATOR
(B) 		8-98302-581-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-97609-108-1 01 1 1504-1504
102 BRACKET; MODULATOR
(A) 		8-98302-583-0 01 1 1505-
102 BRACKET; MODULATOR
(C) 		8-98296-995-0 01 1 1504-1504
102 BRACKET; MODULATOR
(C) 		8-98302-986-0 01 1 1505-
103 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1504-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
103 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1504-
107 MODULATOR; RR 1-48240-115-0 02 1 1504-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1504-
176 ADAPTER
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1504-
176 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1504-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1504-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1504-
176 ADAPTER
(F) PT3/8 ELBOW 		1-09660-696-0 02 1 1504-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1504-
176 ADAPTER
(G) PT3/8 3WAY 		1-09661-300-0 02 1 1504-
176 ADAPTER
(H) PT3/8 		1-48319-058-0 01 1 1504-
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1504-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1504-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1504-
405 GASKET
ID=22.5 		9-09571-422-0 07 1 1504-

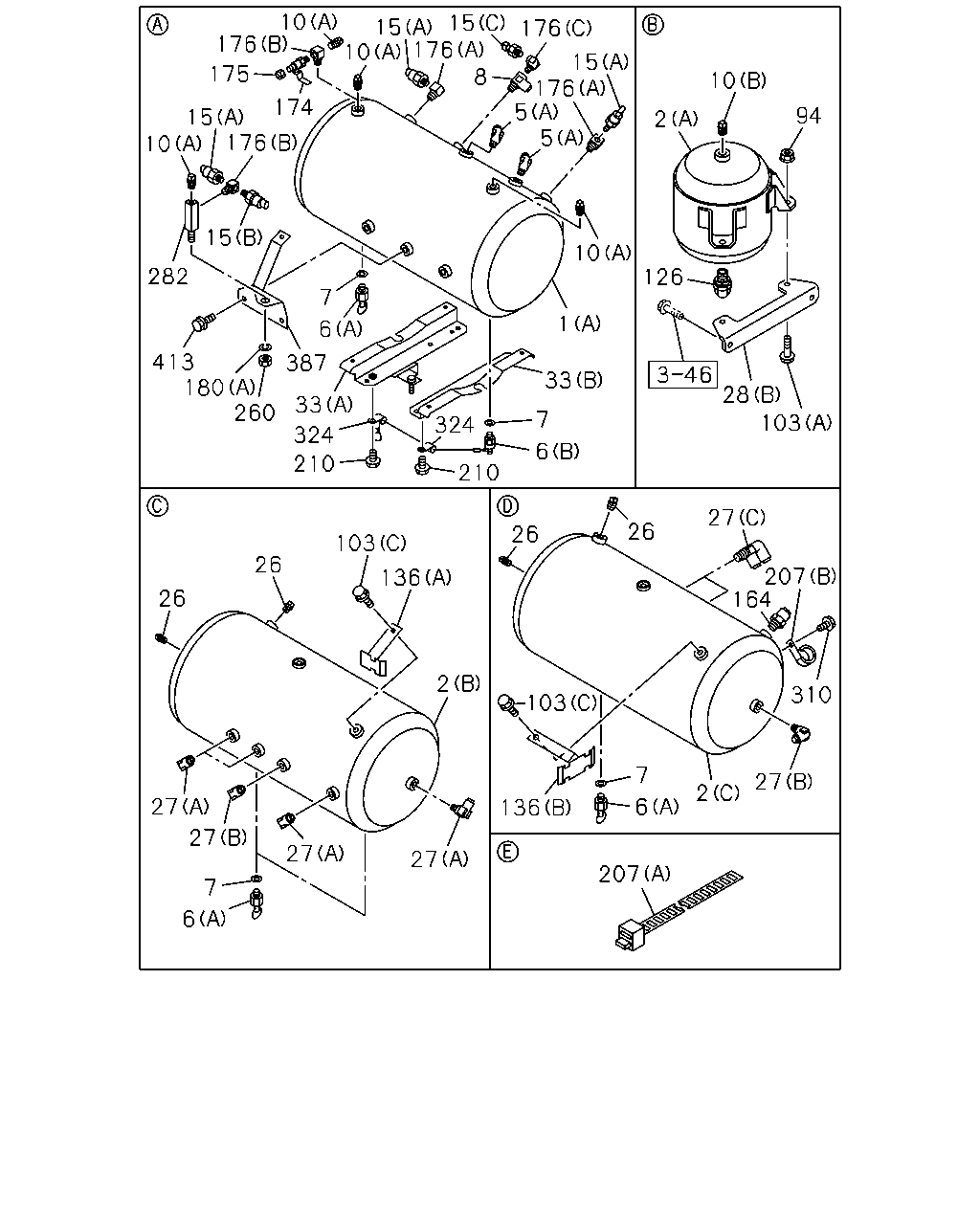

çizim 472022
273 6 27 7 27 272 26 26 2 136 26 103 136 207 6 7 2 27 310 207 164 27 26 103 28 126 2 10 94 103 210 6 7 33 1 10 324 210 324 33 387 260 180 413 6 7 282 15 10 15 176 174 175 176 10 10 15 176 15 176 15 176 5 5 8
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97633-046-0 01 1 1504-
1 TANK ASM; AIR
(B) 		8-97626-720-0 01 1 1504-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1504-
2 TANK; AIR
(B) 		8-98294-884-0 01 1 1504-
2 TANK; AIR
(C) 		8-98294-885-1 01 1 1504-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1504-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 01 1 1504-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1504-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1504-
8 CONNECTOR; AIR TANK
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1504-
10 PLUG; AIR TANK
(C) M22 		1-09661-502-0 02 1 1504-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1504-
10 PLUG; AIR TANK
(D) M14 		1-09661-569-0 01 1 1504-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(C) THREAD R1/4 		1-80220-023-1 01 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(A) STAMP 5.5 		8-97609-249-0 03 1 1504-
15 SWITCH; LOW PRESS,AIR TANK
(B) STAMP 6.5 		8-97609-252-0 01 1 1504-
26 PLUG; SUB AIR TANK
PT1/4 		9-99204-513-0 04 1 1504-
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1504-
27 UNION; ELBOW,AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1504-
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1504-
28 BRACKET; AIR TANK
(A) 		8-98306-092-1 01 1 1504-
28 BRACKET; AIR TANK
(B) 		8-98306-117-0 01 1 1504-
28 BRACKET; AIR TANK
(C) 		1-48317-473-2 01 1 1504-
28 BRACKET; AIR TANK
(D) 		8-98300-162-0 02 1 1504-
33 BRACKET; BRKT,AIR TANK
(A) 		8-97628-606-3 01 1 1504-
33 BRACKET; BRKT,AIR TANK
(B) 		8-97632-329-1 01 1 1504-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1504-
103 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1504-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1504-
103 BOLT; BRKT
(D) M12X30 FLANGE 		0-28651-230-0 04 1 1504-
126 CONNECTOR; ELBOW
DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1504-
136 BRACKET; CLIP
(A) 		8-98293-617-0 01 1 1504-
136 BRACKET; CLIP
(B) 		8-98293-630-0 01 1 1504-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1504-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1504-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1504-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 02 1 1504-
176 ADAPTER
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1504-
176 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1504-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1504-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1504-
176 ADAPTER
(F) PT3/8 ELBOW 		1-09660-696-0 02 1 1504-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1504-
176 ADAPTER
(G) PT3/8 3WAY 		1-09661-300-0 02 1 1504-
176 ADAPTER
(H) PT3/8 		1-48319-058-0 01 1 1504-
180 WASHER; LK
(A) ID=18.2 		0-91510-518-0 01 1 1504-
180 WASHER; LK
(B) ID=12.5 OD=22 		0-91610-512-0 02 1 1504-
207 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 12 1 1504-
207 CLIP; AIR PIPE
(B) ID=33 L=30 		8-97619-250-0 01 1 1504-
210 BOLT; STRING GUIDE
M8X16 FLANGE 		0-28050-816-0 02 1 1504-
260 NUT; UNION
M18 		0-91110-518-0 01 1 1504-
282 UNION; 2 WAY 1-09661-593-0 01 1 1504-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
324 GUIDE; STRING
ID=11 L=36.5 		9-09915-274-1 02 1 1504-
387 BRACKET; UNION 8-98306-091-1 01 1 1504-
413 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
