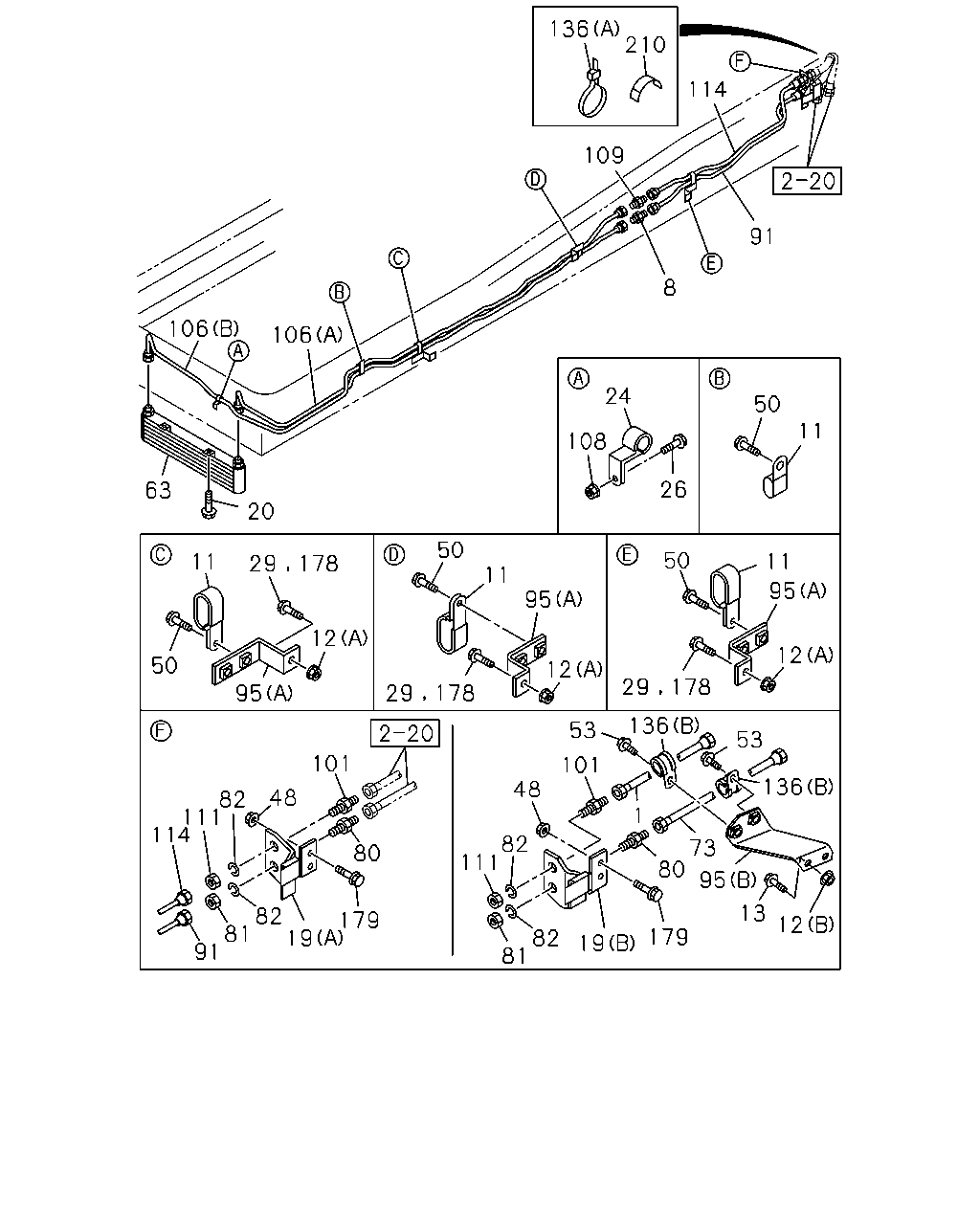

2-53 — TRANSMISSION OIL COOLER SYSTEM (#160220) — 44 parça

136 109 114 210 91 8 106 106 63 20 178 29 11 50 95 12 11 50 95 108 24 26 50 11 11 95 12 178 29 50 12 178 29 101 80 179 19 48 82 111 114 81 91 82 111 48 53 101 1 73 95 136 53 136 80 13 12 179 19 82 81 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z)	8-98293-732-0	01	1	1507-
8	UNION M22 L=51	0-92123-015-0	01	1	1504-
11	CLIP; PIPE ID=16X2 L=20	0-95325-535-0	04	1	1504-
12	NUT; BRKT MJX16P M/T(Y3Z) (B) M8 FLANGE	0-91180-108-0	02	1	1507-
12	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1504-
13	BOLT; BRKT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	1507-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z) (B)	1-47479-561-1	01	1	1507-
19	BRACKET; FLEX HOSE (A)	8-98293-744-0	01	1	1504-1506
19	BRACKET; FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	8-98293-744-0	01	1	1507-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1504-
24	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1504-
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	02	1	1504-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1504-
53	BOLT; CLIP,FLEX HOSE,A/T MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	1507-
63	COOLER; OIL	8-98240-507-0	01	1	1504-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z)	8-98293-741-0	01	1	1507-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1507-
80	UNION; FLEX HOSE	1-09654-261-1	01	1	1504-1506
80	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09654-261-1	01	1	1507-
81	NUT; UNION M22	0-91111-522-0	01	1	1504-
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1504-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1507-
91	PIPE; OIL,FLEX HOSE TO UNION L=936	8-98293-735-0	01	1	1504-1506
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO189 18(Y4W) L=936	8-98293-735-0	01	1	1507-
95	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	8-98287-700-0	01	1	1507-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1504-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1507-
101	UNION; FLEX HOSE	1-09654-261-1	01	1	1504-1506
101	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09654-261-1	01	1	1507-
106	PIPE ASM; OIL,COOLER TO UNION (A)	8-98310-087-0	01	1	1504-
106	PIPE ASM; OIL,COOLER TO UNION (B)	8-98310-088-0	01	1	1504-
108	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1504-
109	UNION M22 L=51	0-92123-015-0	01	1	1504-
111	NUT; UNION M22	0-91111-522-0	01	1	1504-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1507-
114	PIPE; OIL,UNION TO FLEX HOSE L=856	8-98293-739-0	01	1	1504-1506
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) L=856	8-98293-739-0	01	1	1507-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) (B) ID=21 L=24	8-98019-191-0	02	1	1507-
136	CLIP; FLEX HOSE (A) L=350	1-09707-183-0	01	1	1504-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1504-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1504-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1504-
