2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#160217) — 175 parça

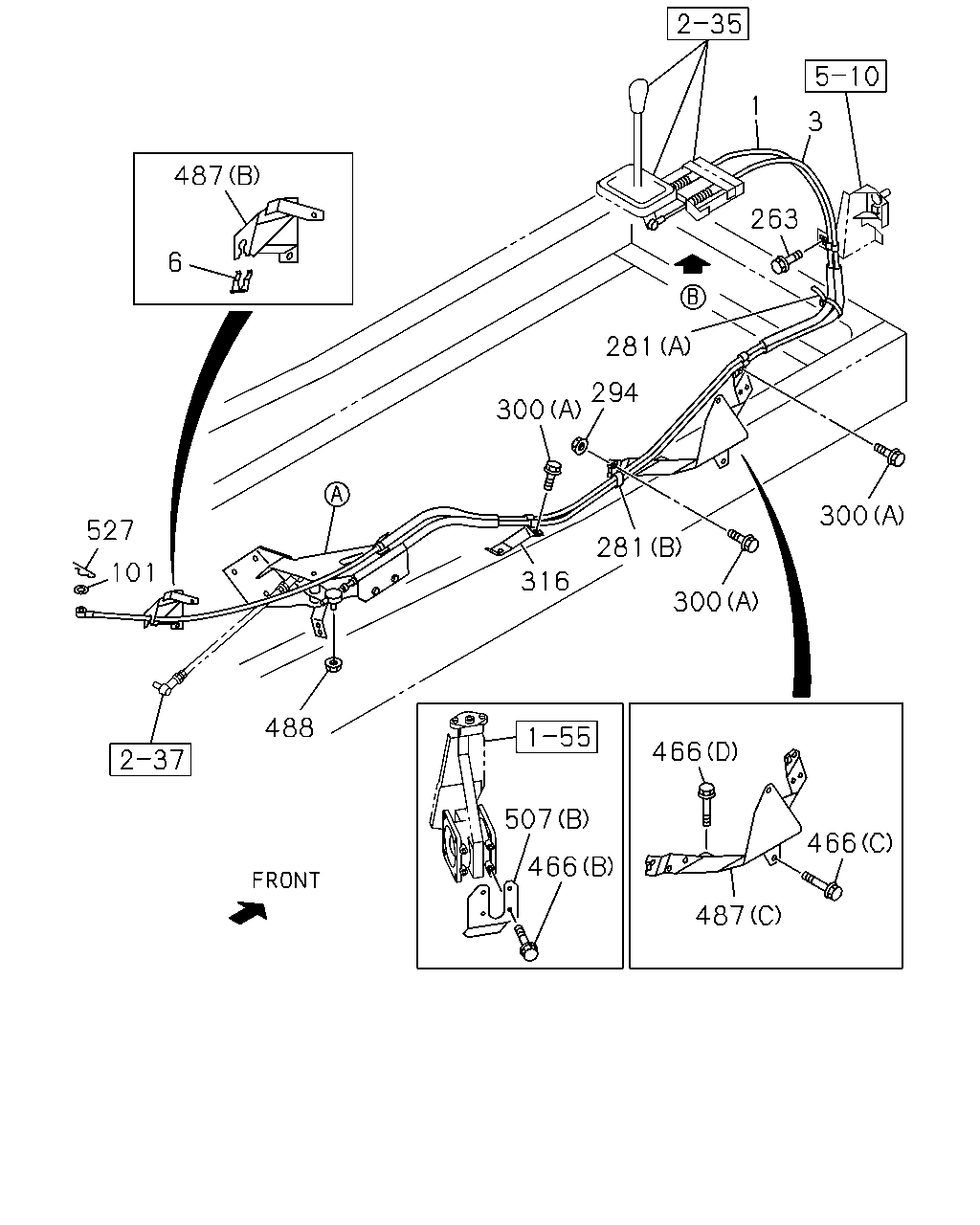

1 3 263 281 294 300 281 316 300 300 466 466 487 466 507 488 101 527 6 487

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT L=2801	8-98222-461-1	01	1	1504-1506
1	CABLE; SHIFT,TRANS CONT TRANSMISSION-FULLER RTLO189 18(Y4W) L=2801	8-98222-461-1	01	1	1507-
3	CABLE; SELECT,TRANS CONT L=3420	8-98222-470-1	01	1	1504-1506
3	CABLE; SELECT,TRANS CONT TRANSMISSION-FULLER RTLO189 18(Y4W) L=3420	8-98222-470-1	01	1	1507-
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	1504-1506
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2	1-09701-209-1	02	1	1507-
101	WASHER; PL ID=8.4 OD=16	0-91610-508-0	01	1	1504-1506
101	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16	0-91610-508-0	01	1	1507-
263	BOLT; CLIP,TRANS CONT WIRE M8X16 FLANGE	0-28050-816-0	02	1	1504-1506
263	BOLT; CLIP,TRANS CONT WIRE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X16 FLANGE	0-28050-816-0	02	1	1507-
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1504-1506
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1507-
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1504-1506
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1507-
294	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1504-1506
294	NUT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1507-
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1504-1506
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1507-
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1504-1506
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1507-
316	BRACKET; CLIP	8-98150-331-0	01	1	1504-1506
316	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98150-331-0	01	1	1507-
466	BOLT; FIX (B) M6X16 FLANGE	0-28050-616-0	04	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE	0-28050-616-0	04	1	1507-
466	BOLT; FIX (A) M10X20 FLANGE	0-28651-020-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE	0-28651-020-0	01	1	1507-
466	BOLT; FIX (C) M10X35 FLANGE	0-28651-035-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X35 FLANGE	0-28651-035-0	01	1	1507-
466	BOLT; FIX (D) M14X45 FLANGE	0-28851-445-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M14X45 FLANGE	0-28851-445-0	01	1	1507-
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1507-
487	BRACKET; CONT CABLE (B)	8-98216-294-1	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98216-294-1	01	1	1507-
487	BRACKET; CONT CABLE (C)	8-98256-853-0	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98256-853-0	01	1	1507-
488	NUT; CABLE M10 FLANGE	1-09440-056-0	01	1	1504-1506
488	NUT; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1507-
507	PROTECTOR; HEAT (B)	8-98151-604-0	01	1	1504-1506
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98151-604-0	01	1	1507-
507	PROTECTOR; HEAT (A)	8-98171-722-0	01	1	1504-1506
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1507-
527	PIN; SNAP L=23	8-94170-378-0	01	1	1504-1506
527	PIN; SNAP TRANSMISSION CONTROL CABLE TYPE(C1A) L=23	8-94170-378-0	01	1	1507-

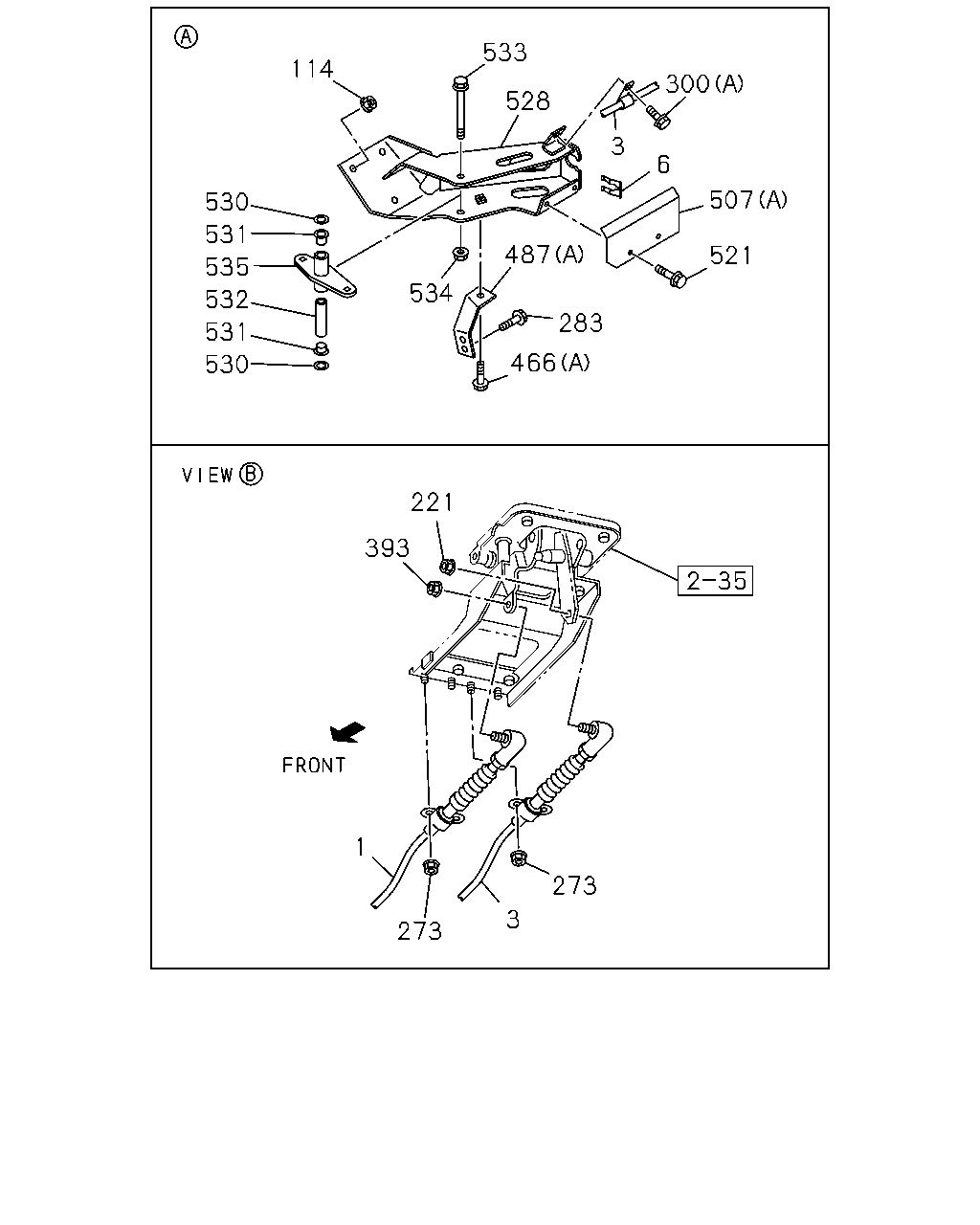

114 530 531 535 532 531 530 533 528 300 3 6 507 521 487 534 283 466 221 393 1 273 273 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT L=2801	8-98222-461-1	01	1	1504-1506
1	CABLE; SHIFT,TRANS CONT TRANSMISSION-FULLER RTLO189 18(Y4W) L=2801	8-98222-461-1	01	1	1507-
3	CABLE; SELECT,TRANS CONT L=3420	8-98222-470-1	01	1	1504-1506
3	CABLE; SELECT,TRANS CONT TRANSMISSION-FULLER RTLO189 18(Y4W) L=3420	8-98222-470-1	01	1	1507-
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	1504-1506
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2	1-09701-209-1	02	1	1507-
114	NUT; RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1504-1506
114	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-212-0	03	1	1507-
221	NUT; SHIFT WIRE TO LEVER M10 FLANGE	1-09440-061-0	01	1	1504-1506
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE	1-09440-061-0	01	1	1507-
273	NUT; CONT CABLE M10 FLANGE	0-91180-110-0	04	1	1504-1506
273	NUT; CONT CABLE TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE	0-91180-110-0	04	1	1507-
283	BOLT; RELAY LEVER M10X20 FLANGE	0-28151-020-0	02	1	1504-1506
283	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28151-020-0	02	1	1507-
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1504-1506
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1507-
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1504-1506
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1507-
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1504-1506
393	NUT; SELECT CABLE,CAB TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	1-09440-062-1	01	1	1507-
466	BOLT; FIX (B) M6X16 FLANGE	0-28050-616-0	04	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE	0-28050-616-0	04	1	1507-
466	BOLT; FIX (A) M10X20 FLANGE	0-28651-020-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE	0-28651-020-0	01	1	1507-
466	BOLT; FIX (C) M10X35 FLANGE	0-28651-035-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X35 FLANGE	0-28651-035-0	01	1	1507-
466	BOLT; FIX (D) M14X45 FLANGE	0-28851-445-0	01	1	1504-1506
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M14X45 FLANGE	0-28851-445-0	01	1	1507-
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1507-
487	BRACKET; CONT CABLE (B)	8-98216-294-1	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98216-294-1	01	1	1507-
487	BRACKET; CONT CABLE (C)	8-98256-853-0	01	1	1504-1506
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98256-853-0	01	1	1507-
507	PROTECTOR; HEAT (B)	8-98151-604-0	01	1	1504-1506
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98151-604-0	01	1	1507-
507	PROTECTOR; HEAT (A)	8-98171-722-0	01	1	1504-1506
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1507-
521	BOLT; PROTECTOR M8X20 FLANGE	0-28050-820-0	02	1	1504-1506
521	BOLT; PROTECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	02	1	1507-
528	BRACKET; LOWER,RELAY LEVER	8-98049-809-1	01	1	1504-1506
528	BRACKET; LOWER,RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-809-1	01	1	1507-
530	RING; RELAY LEVER	1-09623-636-0	02	1	1504-1506
530	RING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09623-636-0	02	1	1507-
531	BUSHING; RELAY LEVER	1-09330-119-0	02	1	1504-1506
531	BUSHING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09330-119-0	02	1	1507-
532	COLLAR; RELAY LEVER	8-98049-429-0	01	1	1504-1506
532	COLLAR; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-429-0	01	1	1507-
533	BOLT; RELAY LEVER M10X100 FLANGE	0-28051-000-0	01	1	1504-1506
533	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE	0-28051-000-0	01	1	1507-
534	NUT; RELAY LEVER M10 FLANGE	1-09440-056-0	01	1	1504-1506
534	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1507-
535	LEVER; RELAY,SHIFT	8-98049-430-0	01	1	1504-1506
535	LEVER; RELAY,SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-430-0	01	1	1507-

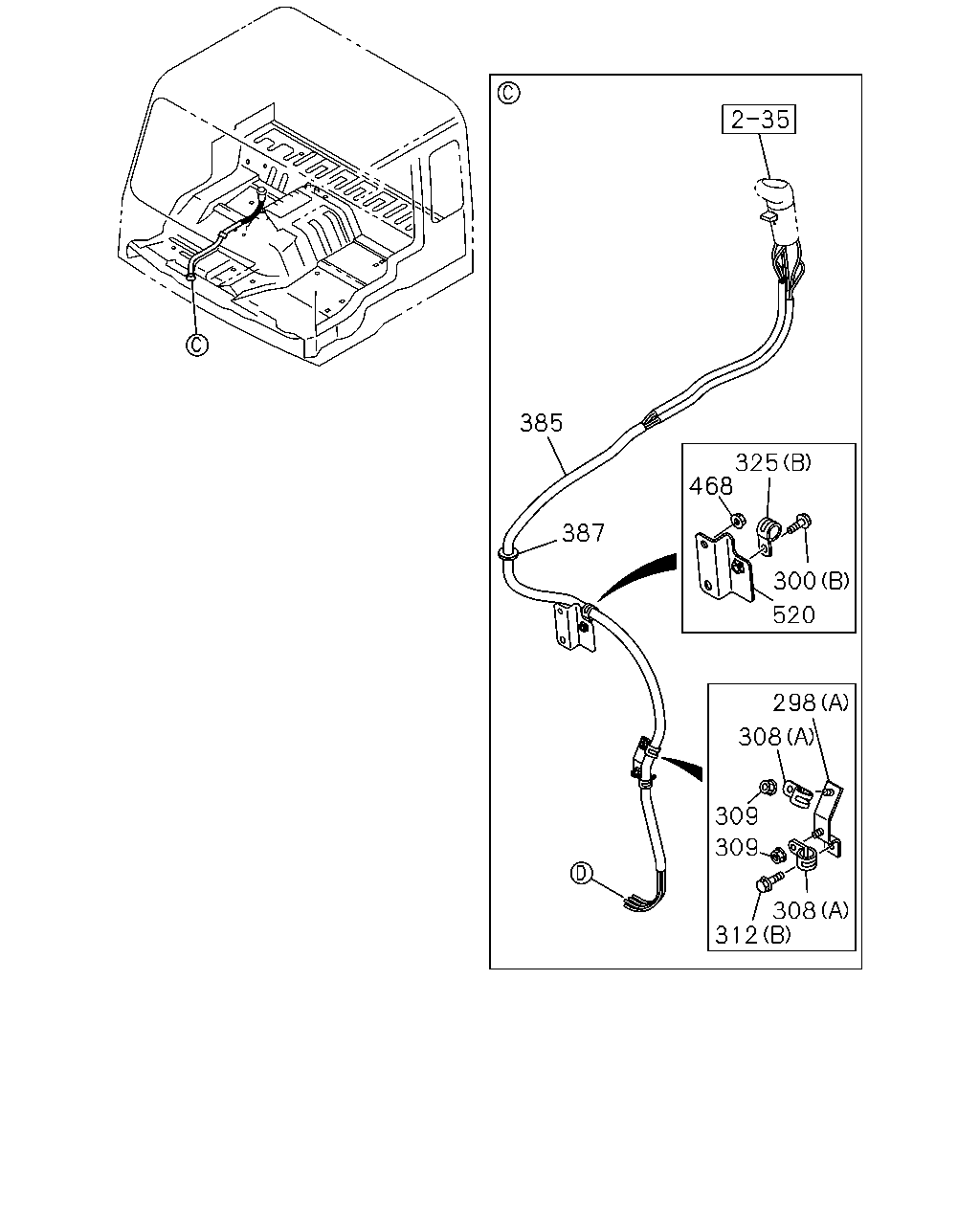

385 387 468 325 300 520 298 308 309 309 312 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
298	BRACKET (C)	1-47477-514-3	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47477-514-3	01	1	1507-
298	BRACKET (B) L=75	1-47478-323-0	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=75	1-47478-323-0	01	1	1507-
298	BRACKET (A)	8-98293-675-1	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	8-98293-675-1	01	1	1507-
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1504-1506
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1507-
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1504-1506
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1507-
308	CLIP; PIPE (A) ID=19 L=28	0-95235-856-0	02	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28	0-95235-856-0	02	1	1507-
308	CLIP; PIPE (C) ID=13-18 L=18	1-09709-291-0	01	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1507-
308	CLIP; PIPE (B) ID=21 L=24	8-98019-191-0	01	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=21 L=24	8-98019-191-0	01	1	1507-
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1504-1506
309	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1507-
312	BOLT; CLIP BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-1506
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1507-
312	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1504-1506
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1507-
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1504-1506
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	1507-
325	CLIP; NYLON TUBE (A) L=170.3	1-09987-182-0	01	1	1504-1506
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	1507-
385	TUBE; NYLON	8-98299-412-0	01	1	1504-
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	1504-1506
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09332-135-0	01	1	1507-
468	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1504-1506
468	NUT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M10 FLANGE	0-91180-110-0	02	1	1507-
520	BRACKET; NYLON TUBE	8-98235-633-0	01	1	1504-1506
520	BRACKET; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98235-633-0	01	1	1507-

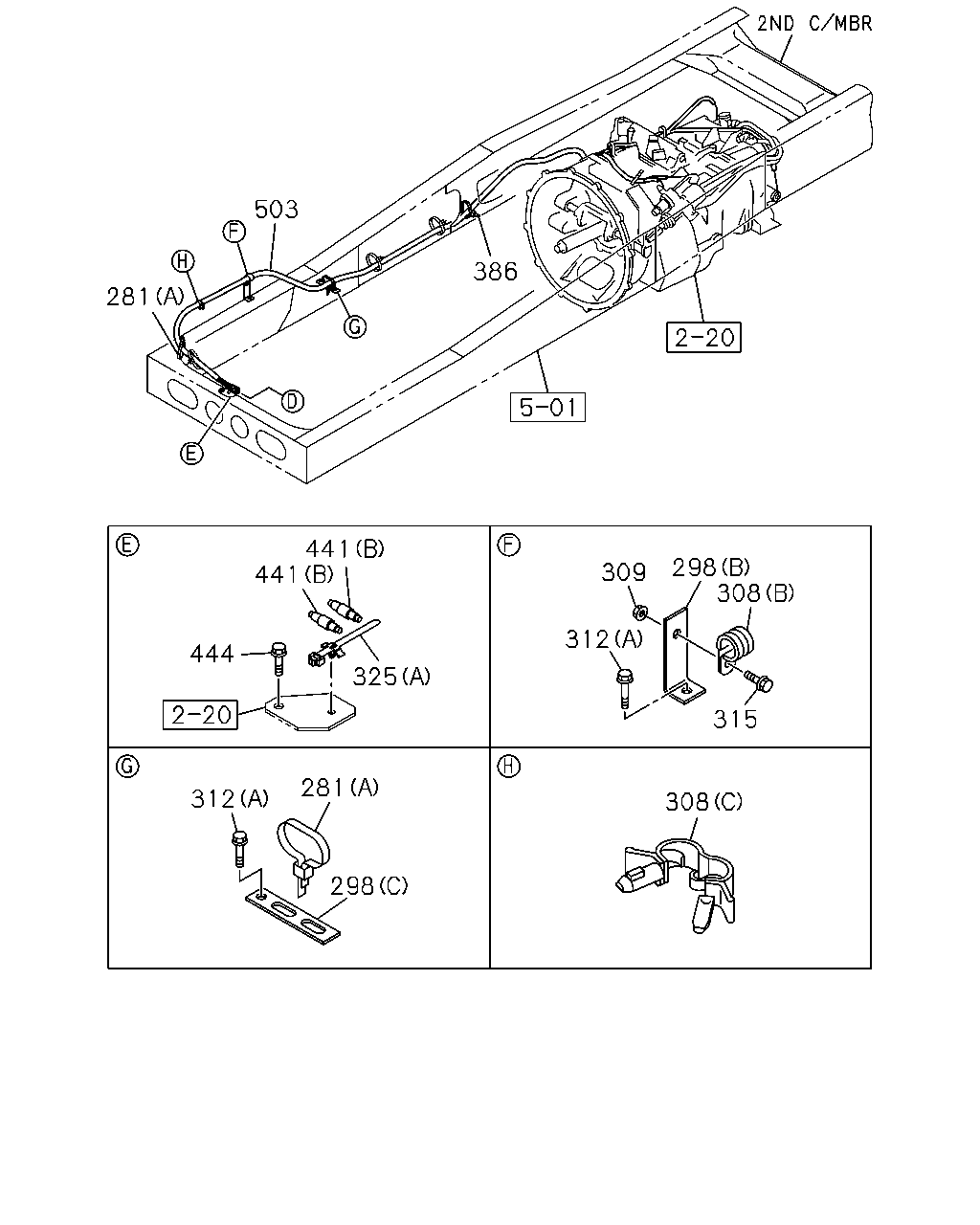

503 281 441 441 444 325 312 281 298 308 315 308 298 309 312 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1504-1506
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1507-
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1504-1506
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1507-
298	BRACKET (C)	1-47477-514-3	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47477-514-3	01	1	1507-
298	BRACKET (B) L=75	1-47478-323-0	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=75	1-47478-323-0	01	1	1507-
298	BRACKET (A)	8-98293-675-1	01	1	1504-1506
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	8-98293-675-1	01	1	1507-
308	CLIP; PIPE (A) ID=19 L=28	0-95235-856-0	02	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28	0-95235-856-0	02	1	1507-
308	CLIP; PIPE (C) ID=13-18 L=18	1-09709-291-0	01	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1507-
308	CLIP; PIPE (B) ID=21 L=24	8-98019-191-0	01	1	1504-1506
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=21 L=24	8-98019-191-0	01	1	1507-
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1504-1506
309	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1507-
312	BOLT; CLIP BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-1506
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1507-
312	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1504-1506
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1507-
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1504-1506
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	03	1	1507-
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1504-1506
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	1507-
325	CLIP; NYLON TUBE (A) L=170.3	1-09987-182-0	01	1	1504-1506
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	1507-
386	CLIP; CONT CABLE & TUBE L=350	1-09707-183-0	03	1	1504-1506
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) L=350	1-09707-183-0	03	1	1507-
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1504-1506
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1507-
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1504-1506
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	1507-
444	BOLT; BRKT,NIPPLE M8X20 FLANGE	0-28050-820-0	01	1	1504-1506
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	01	1	1507-
503	TUBE; NYLON	8-98293-667-1	01	1	1504-1506
503	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W)	8-98293-667-1	01	1	1507-

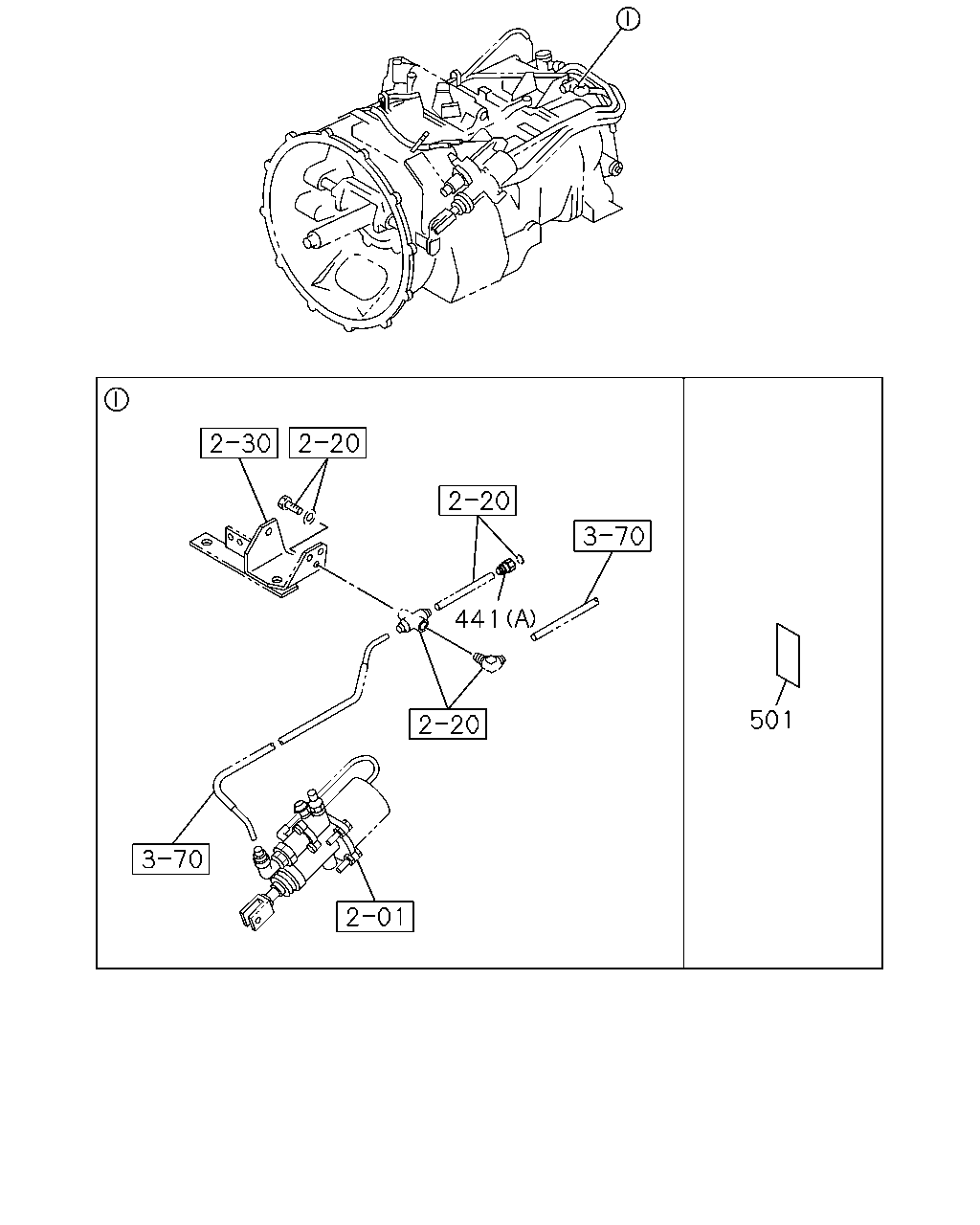

441 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1504-1506
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1507-
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1504-1506
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	1507-
501	SEAL; HARNESS PROTECTOR 180X40	1-72498-019-1	04	1	1504-1506
501	SEAL; HARNESS PROTECTOR TRANSMISSION-FULLER RTLO189 18(Y4W) 180X40	1-72498-019-1	04	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
