◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#160216) — 88 parça

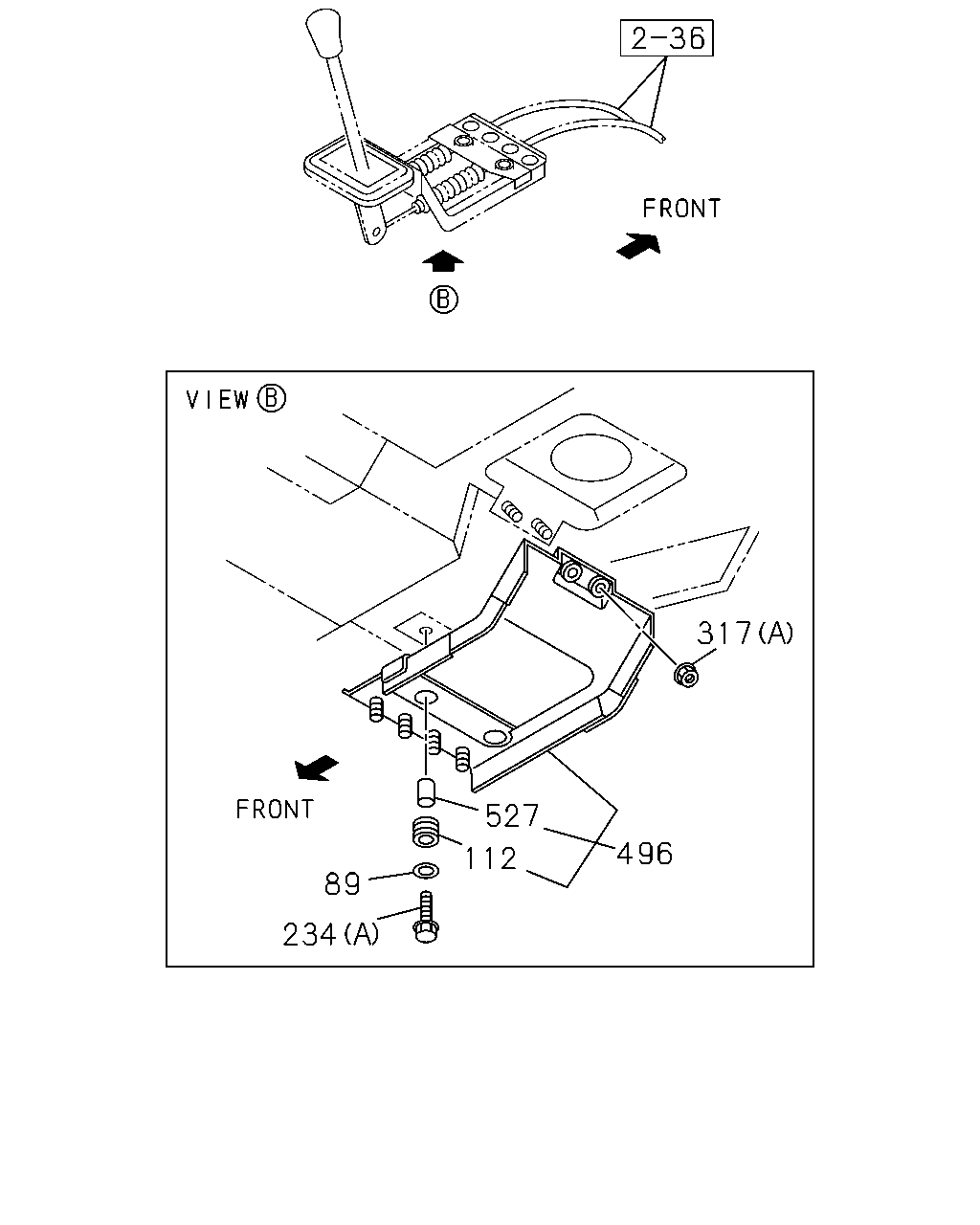

çizim 471152
317 496 112 527 89 234
BalonParca AdiParca NoAdetTipApplied Date
89 WASHER; PL,LWR SUPPORT BRKT
ID=8.4 OD=22 		0-91610-708-0 02 1 1504-1506
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4 OD=22 		0-91610-708-0 02 1 1507-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1504-1506
112 RUBBER; CUSHION
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33619-442-0 04 1 1507-
234 BOLT; BRKT
SMOOTHER-G(C1W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1507-
234 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1504-1506
234 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
317 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 1507-
317 NUT; BRKT
(A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1504-1506
317 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-
496 BRACKET ASM; T/M CABLE 1-33657-852-2 01 1 1504-1506
496 BRACKET ASM; T/M CABLE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33657-852-2 01 1 1507-
527 COLLAR; DIST,T/M CABLE BRACKET 1-33619-443-0 04 1 1504-1506
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33619-443-0 04 1 1507-

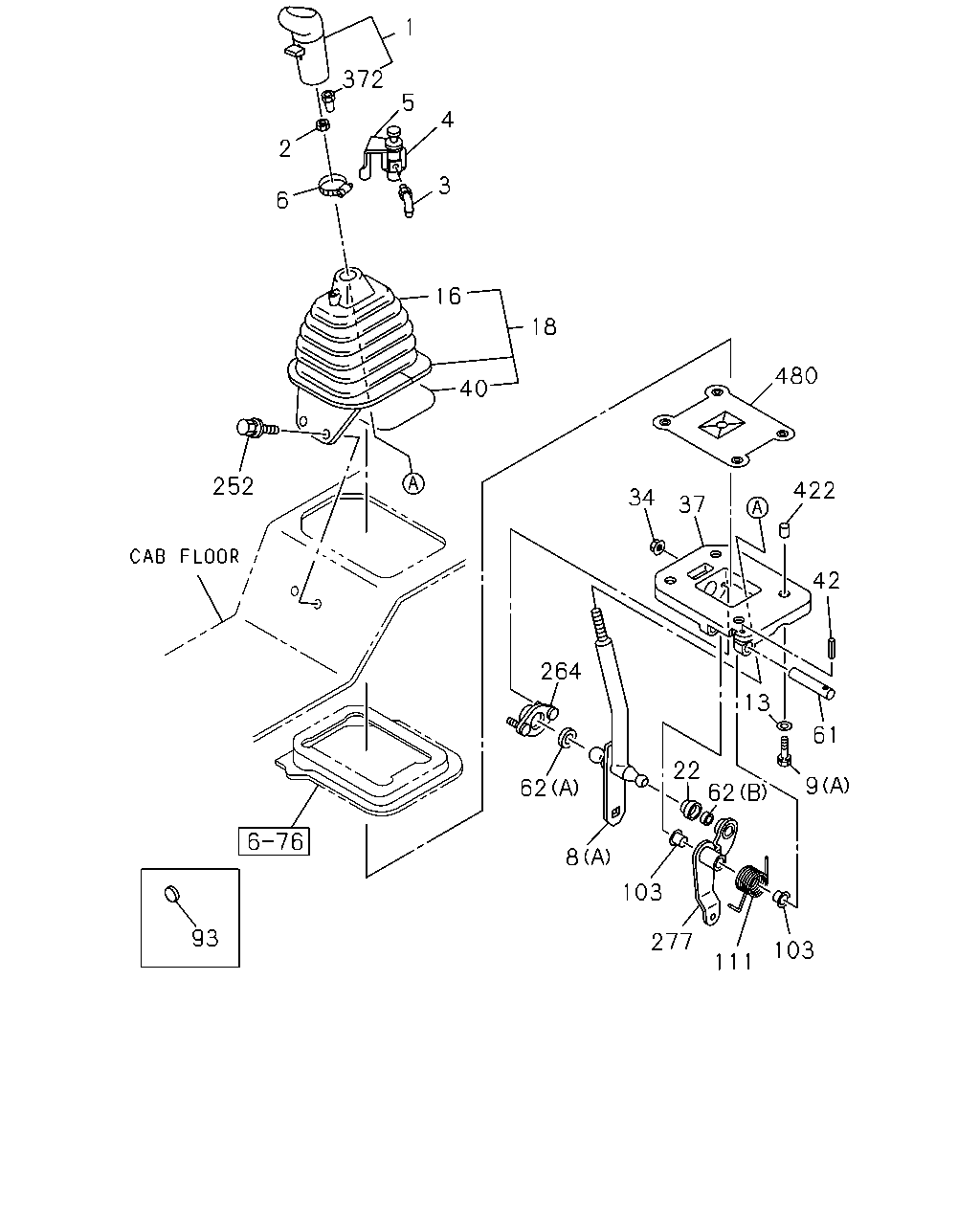

çizim 471361
1 372 5 4 3 2 6 16 18 40 252 93 264 62 8 103 277 111 103 9 62 22 61 13 42 422 480 37 34
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 8-98224-285-0 01 1 1504-1506
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98224-285-0 01 1 1507-
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 1504-1506
2 NUT; KNOB
TRANSMISSION-FULLER RTLO189 18(Y4W) 1/2-13UNC 		1-33619-033-0 01 1 1507-
3 CONNECTOR; CONT TUBE 8-98114-398-0 02 1 1504-1506
3 CONNECTOR; CONT TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98114-398-0 02 1 1507-
4 VALVE; ACTUATOR 1-33712-003-0 01 1 1504-1506
4 VALVE; ACTUATOR
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33712-003-0 01 1 1507-
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 1504-1506
5 BRACKET; ACTUATOR VLV
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33719-078-0 01 1 1507-
6 CLAMP; BRKT 1-33719-079-0 01 1 1504-1506
6 CLAMP; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33719-079-0 01 1 1507-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (B) 		8-98149-127-1 01 1 1507-
8 LEVER; CHANGE
(A) 		1-33613-349-0 01 1 1504-1506
8 LEVER; CHANGE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		1-33613-349-0 01 1 1507-
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1507-
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1504-1506
9 BOLT; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1507-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1504-1506
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4 OD=22 		0-91610-708-0 04 1 1507-
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 1504-1506
16 BOOT; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-79996-367-1 01 1 1507-
18 BOOT; CHANGE LEVER 8-98239-342-0 01 1 1504-1506
18 BOOT; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98239-342-0 01 1 1507-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1504-1506
22 COVER; DUST,CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33619-573-0 01 1 1507-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1504-1506
34 NUT
TRANSMISSION-FULLER RTLO189 18(Y4W) M6 FLANGE 		0-91180-106-0 02 1 1507-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1504-1506
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98100-876-1 01 1 1507-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1504-1506
40 SEAL; BOOT HOLDER CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-79996-345-0 01 1 1507-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1504-1506
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION-FULLER RTLO189 18(Y4W) D=5 L=28 		8-94252-581-0 01 1 1507-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1504-1506
61 PIN; SELECT LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33619-470-0 01 1 1507-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1504-1506
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		1-33619-427-0 01 1 1507-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1504-1506
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-97011-900-0 01 1 1507-
93 SEAL; HOLE COVER,GEAR CONT
MJX16P M/T(Y3Z) OD=25 BLACK 		1-76798-019-0 01 1 1507-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1504-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1504-1506
103 BUSHING; RELAY LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14 OD=16 		8-94252-671-0 02 1 1507-
111 SPRING 1-09585-142-1 01 1 1504-1506
111 SPRING
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09585-142-1 01 1 1507-
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1504-1506
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1507-
264 PLATE; COVER 1-33619-469-0 01 1 1504-1506
264 PLATE; COVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33619-469-0 01 1 1507-
277 LEVER; RELAY 1-33651-636-1 01 1 1504-1506
277 LEVER; RELAY
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-33651-636-1 01 1 1507-
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 1504-1506
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98114-396-0 04 1 1507-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1504-1506
422 BUSHING; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-97091-427-0 04 1 1507-
480 RUBBER; COVER 8-98119-365-0 01 1 1504-1506
480 RUBBER; COVER
TRANSMISSION-FULLER RTLO189 18(Y4W) 		8-98119-365-0 01 1 1507-

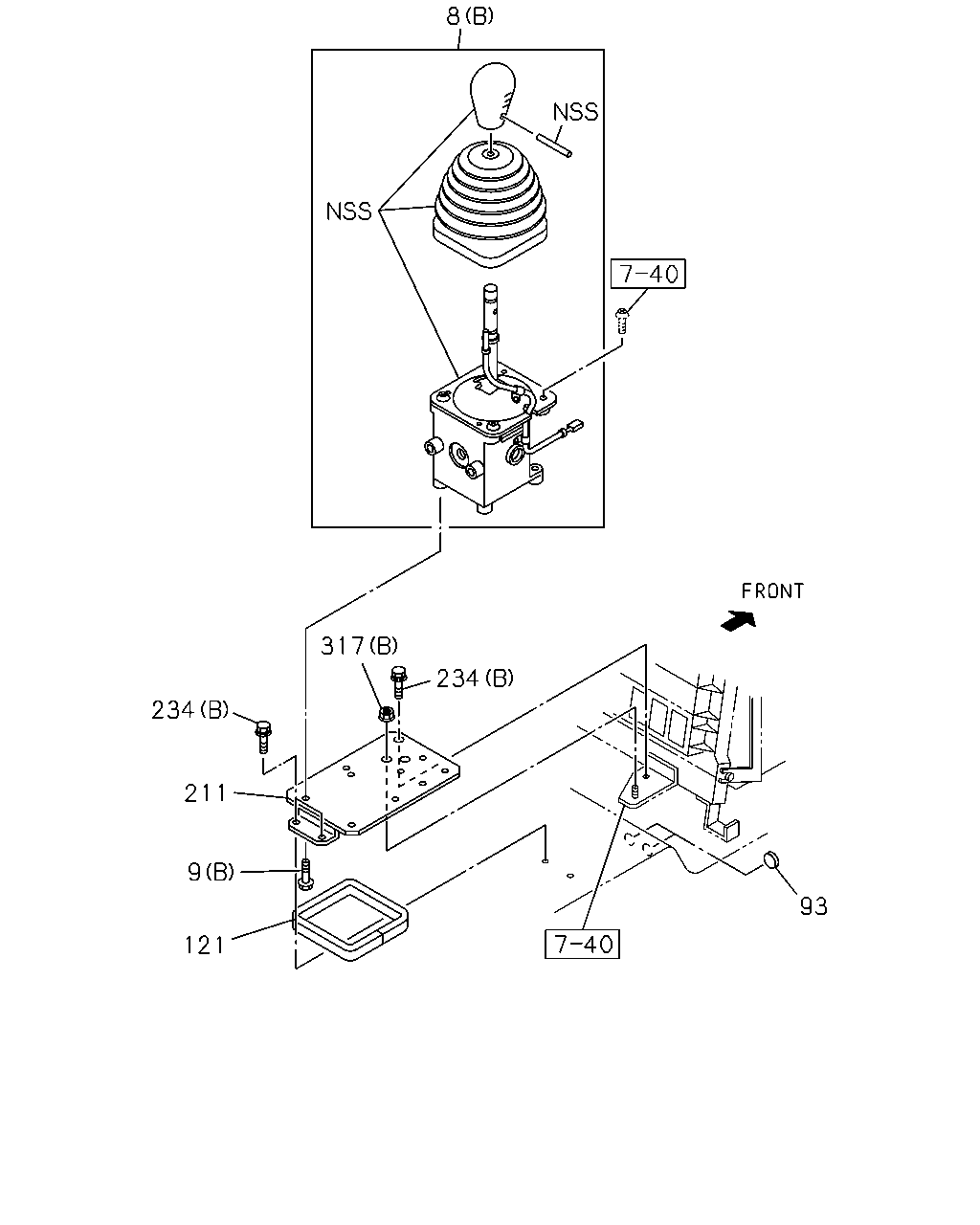

çizim 485346
8 234 317 234 211 9 121 93
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (B) 		8-98149-127-1 01 1 1507-
8 LEVER; CHANGE
(A) 		1-33613-349-0 01 1 1504-1506
8 LEVER; CHANGE
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		1-33613-349-0 01 1 1507-
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1507-
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1504-1506
9 BOLT; CHANGE LEVER
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1507-
93 SEAL; HOLE COVER,GEAR CONT
MJX16P M/T(Y3Z) OD=25 BLACK 		1-76798-019-0 01 1 1507-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1504-
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 1507-
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 1507-
234 BOLT; BRKT
SMOOTHER-G(C1W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1507-
234 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1504-1506
234 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
317 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 1507-
317 NUT; BRKT
(A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1504-1506
317 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-
