2-05 — CLUTCH PIPING (#160209) — 196 parça

27 58 57 58 36 24 186 185 147 67 67 66 50 22 24 167 192 187 153 50 133 184 1 27 1 56 175 10 17 153 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1504-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1504-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	1504-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1504-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1504-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1504-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1504-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	1507-
36	BRACKET; CLIP (B)	1-47475-774-0	01	1	1504-1506
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47475-774-0	01	1	1507-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1504-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	1504-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1504-
56	BRACKET; FLEX HOSE	8-98287-691-1	01	1	1504-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1504-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1504-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1504-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1504-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1504-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1504-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1504-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1504-1506
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2108 SERVICED BY L=2150	1-47428-770-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98149-220-0	01	1	1504-
167	BRACKET; UNION	1-71117-183-3	01	1	1504-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1504-
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	1504-
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1504-
186	HOLDER; CLIP	8-94107-710-0	02	1	1504-
187	SEAL; BRKT	1-71117-222-0	01	1	1504-
192	PLATE	1-71117-221-0	01	1	1504-

24 153 167 1 56 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1504-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1504-
56	BRACKET; FLEX HOSE	8-98287-691-1	01	1	1504-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1504-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1504-1506
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2108 SERVICED BY L=2150	1-47428-770-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98149-220-0	01	1	1504-
167	BRACKET; UNION	1-71117-183-3	01	1	1504-

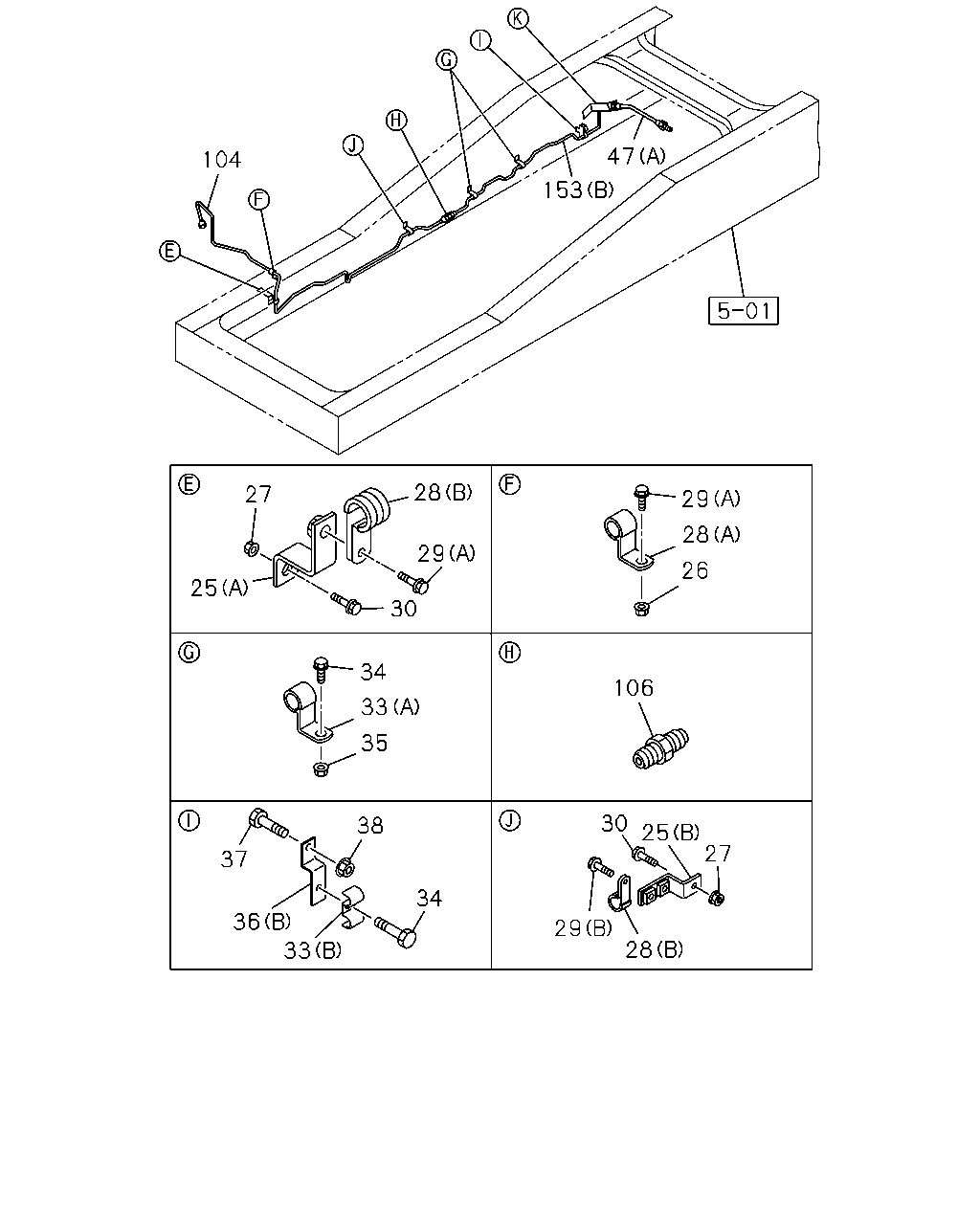

104 153 27 25 28 29 29 28 26 106 30 25 27 29 28 34 33 36 38 37 35 34 33 30 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1504-
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1504-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1504-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1504-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1504-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1504-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1504-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1504-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (C) ID=9 L=20	0-95234-835-0	01	1	1507-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1507-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1504-1506
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1507-
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1504-1506
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1507-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1507-
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	03	1	1507-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	1504-1506
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	02	1	1507-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	1507-
36	BRACKET; CLIP (B)	1-47475-774-0	01	1	1504-1506
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47475-774-0	01	1	1507-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1504-
37	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1504-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1504-1506
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	1507-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=600	1-09364-705-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (A) L=445	1-09364-478-0	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1507-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1504-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1504-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1504-1506
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2108 SERVICED BY L=2150	1-47428-770-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98149-220-0	01	1	1504-

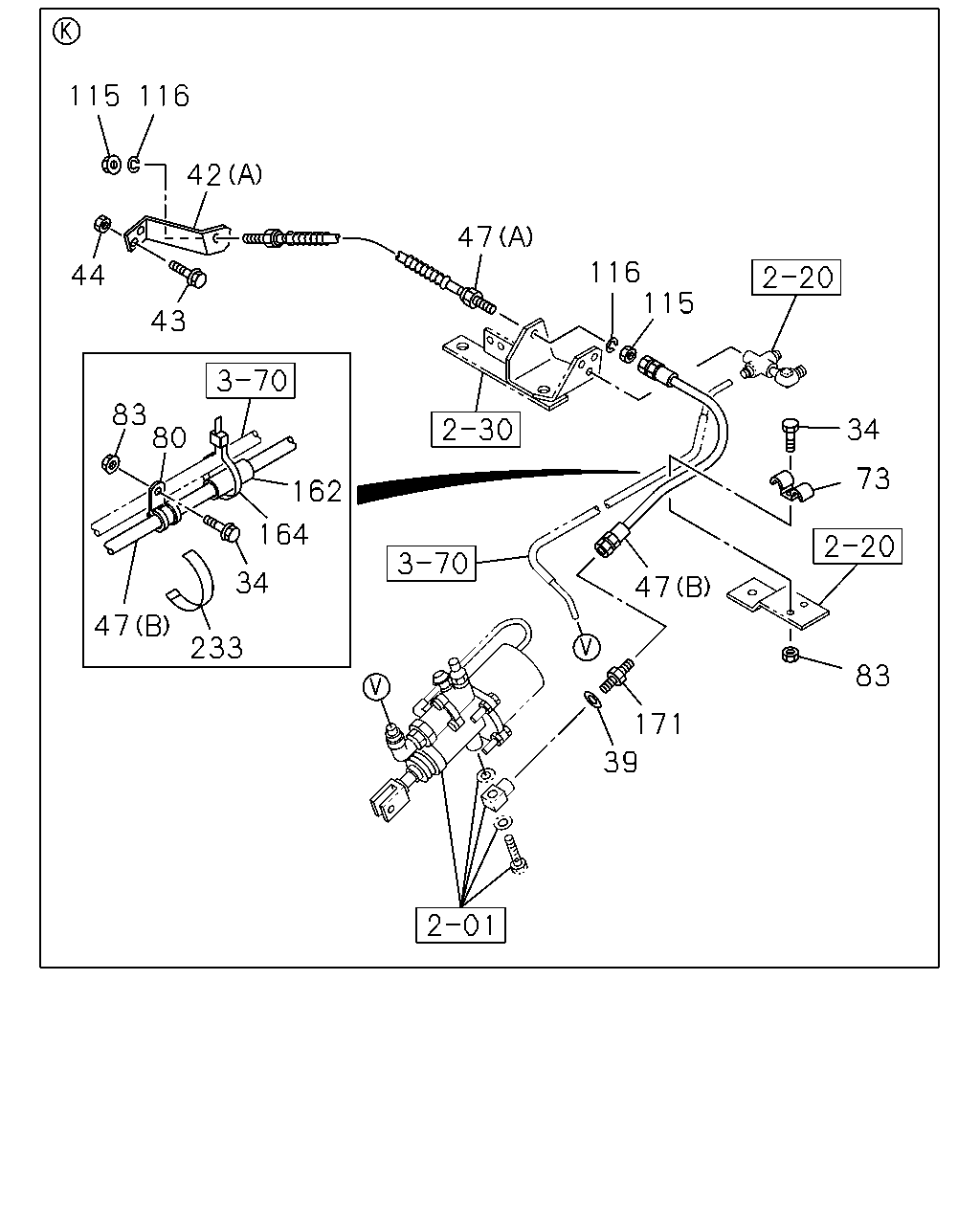

115 116 42 44 43 83 80 162 164 34 233 47 47 116 115 34 73 83 47 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1507-
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	1504-1506
39	GASKET; CONNECTOR TRANSMISSION-FULLER RTLO189 18(Y4W) ID=10.2 OD=16.0	9-09571-410-0	01	1	1507-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98293-729-0	01	1	1507-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47478-511-0	01	1	1504-1506
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47478-511-0	01	1	1507-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1504-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1504-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=600	1-09364-705-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (A) L=445	1-09364-478-0	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1507-
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1504-1506
73	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1507-
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	1504-1506
80	CLIP; HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=16 L=50	1-09701-158-0	01	1	1507-
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	1504-1506
83	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8	0-91110-508-0	02	1	1507-
115	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	1507-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	1504-1506
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1507-
116	WASHER; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	1507-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	1504-1506
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1507-
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	1504-1506
162	COVER; RUBBER,FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14 OD=18 L=60	1-09337-030-0	01	1	1507-
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	1504-1506
164	CLIP; BAND,FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) L=250	5-09707-030-1	01	1	1507-
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	1504-1506
171	CONNECTOR; CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09650-256-2	01	1	1507-
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1504-1506
233	BAND; FLEX HOSE TRANSMISSION-FULLER RTLO189 18(Y4W) L=175	1-09707-178-0	01	1	1507-

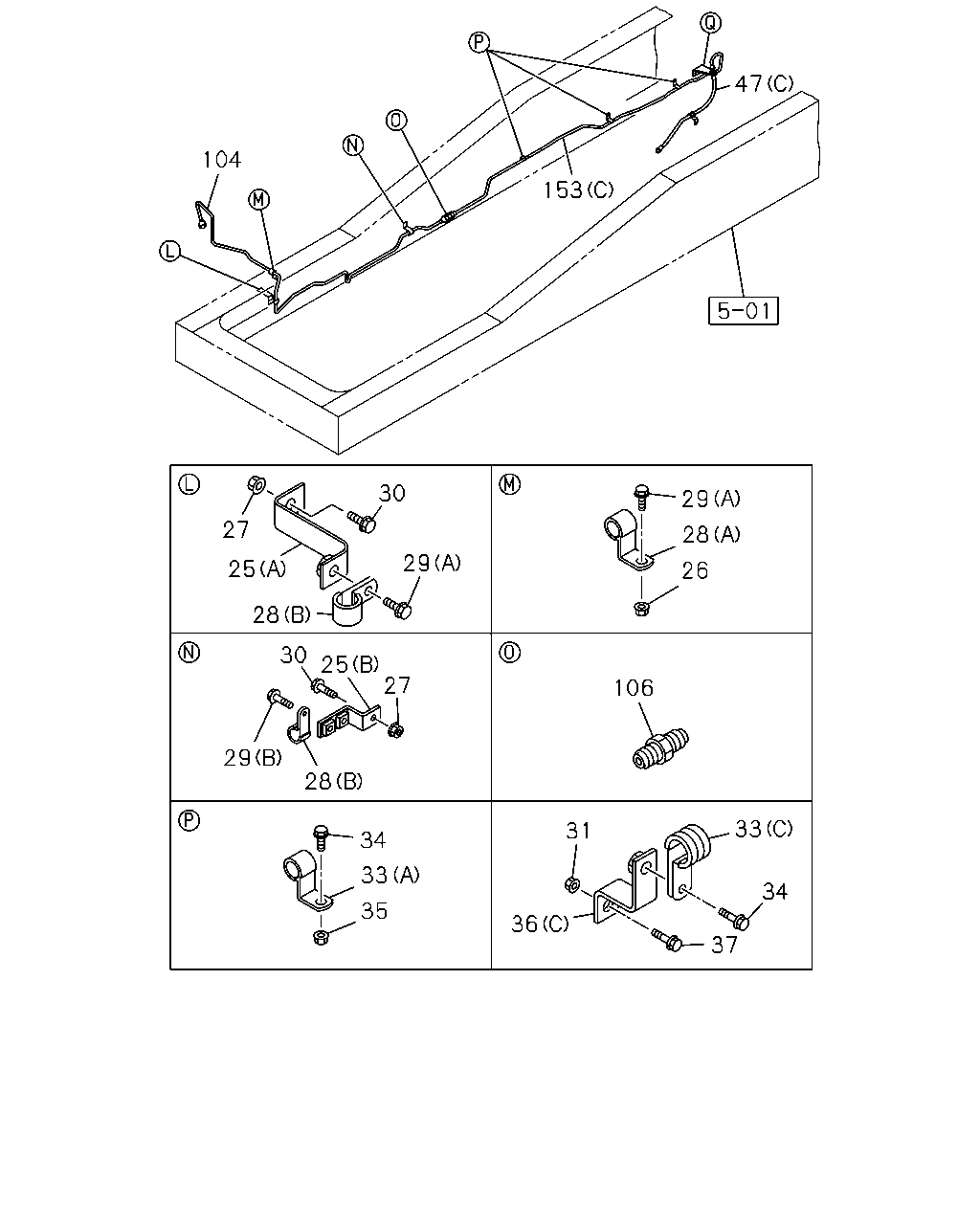

47 153 104 30 29 28 25 27 29 28 26 106 27 25 30 29 28 34 33 35 31 36 33 34 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1504-
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1504-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1504-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1504-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1504-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1504-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1504-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1504-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1504-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	1504-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1504-
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1507-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (C) ID=9 L=20	0-95234-835-0	01	1	1507-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1507-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1504-1506
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1507-
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1504-1506
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1507-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28050-820-0	02	1	1507-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1504-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1504-1506
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	1507-
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	03	1	1507-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	1504-1506
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	02	1	1507-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	1507-
36	BRACKET; CLIP (B)	1-47475-774-0	01	1	1504-1506
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47475-774-0	01	1	1507-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1504-
37	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1504-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=600	1-09364-705-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (A) L=445	1-09364-478-0	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1507-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1389 SERVICED BY L=1400	1-47428-765-0	01	1	1504-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1504-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1504-1506
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2108 SERVICED BY L=2150	1-47428-770-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98149-220-0	01	1	1504-

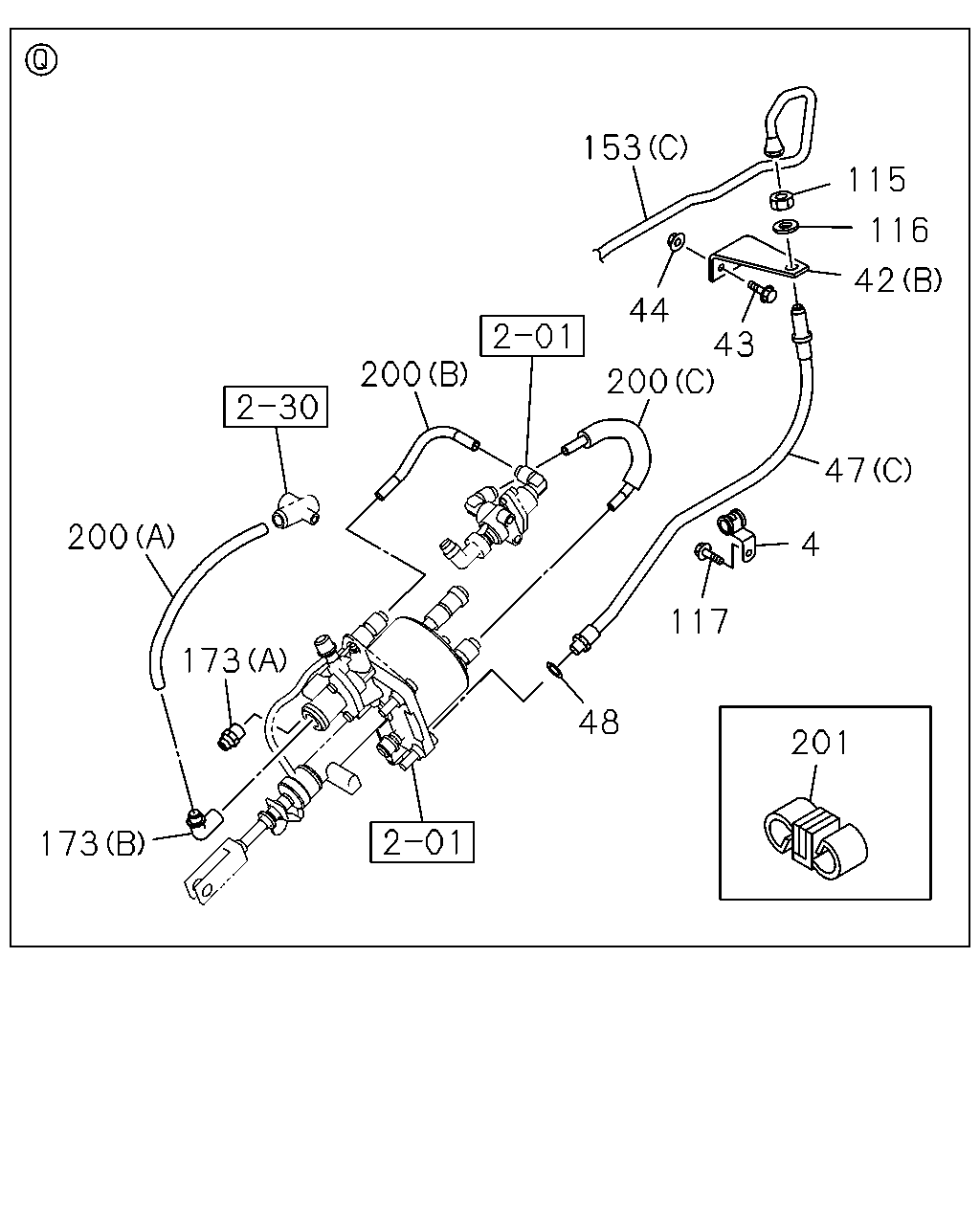

201 48 117 4 47 42 116 115 153 44 43 200 200 173 173 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	1507-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98293-729-0	01	1	1507-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47478-511-0	01	1	1504-1506
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47478-511-0	01	1	1507-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1504-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1504-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=600	1-09364-705-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (A) L=445	1-09364-478-0	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	1507-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1504-1506
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=550	1-09365-377-1	01	1	1507-
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	1507-
115	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	1507-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	1504-1506
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) M14	0-91111-514-0	02	1	1507-
116	WASHER; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	1507-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	1504-1506
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=14.2	0-91510-514-0	02	1	1507-
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1504-1506
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1669 SERVICED BY L=1700	1-47428-767-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (C) L=2108 SERVICED BY L=2150	1-47428-770-0	01	1	1507-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98149-220-0	01	1	1504-
173	CONNECTOR MJX16P M/T(Y3Z) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	1507-
173	CONNECTOR MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	1507-
200	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1507-
200	TUBE; NYLON MJX16P M/T(Y3Z) (B)	8-98241-307-0	01	1	1507-
200	TUBE; NYLON MJX16P M/T(Y3Z) (C)	8-98241-308-0	01	1	1507-
201	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=6.35 & 12	1-09709-275-1	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
