◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-46 - DEF TANK AND PIPING ▶
1-46 — DEF TANK AND PIPING (#160204) — 223 parça

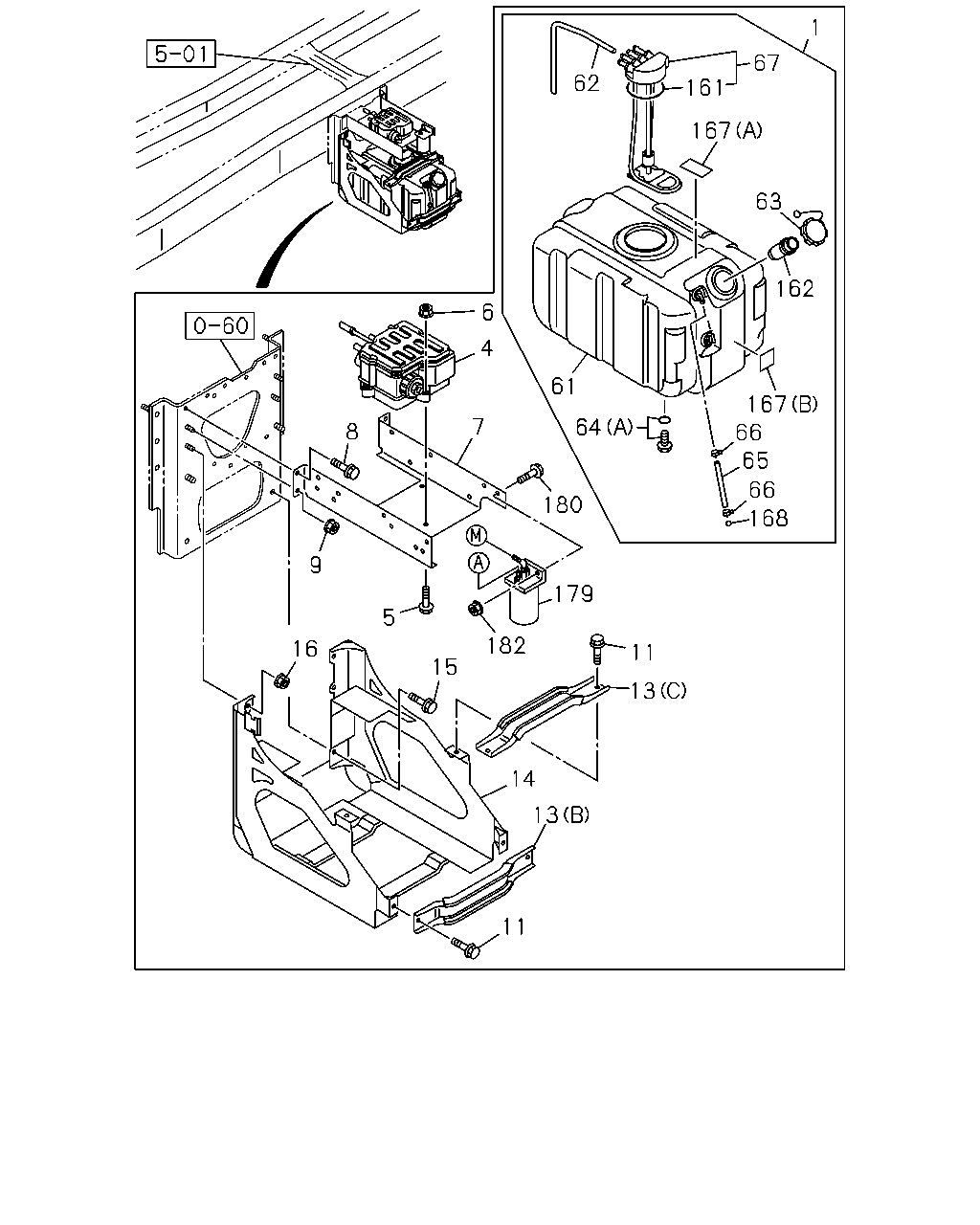

çizim 471292
1 67 161 167 63 162 167 66 65 66 168 64 61 6 4 7 180 179 11 13 13 11 14 15 182 5 16 9 8 62
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98307-060-0 01 1 1504-1505
1 TANK ASM; DEF 8-98295-877-1 01 1 1506-
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1504-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X45 FLANGE 		0-28050-845-0 03 1 1504-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1504-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1504-
8 BOLT; BRKT,DEF DCM SPLY
M10X30 FLANGE 		0-28051-030-0 02 1 1504-
9 NUT; BRKT,DEF DCM SPLY
M10 FLANGE 		0-91180-210-0 02 1 1504-
11 BOLT; DEF TANK 8-98157-936-0 02 1 1504-1505
11 BOLT; DEF TANK
M10X25 FLANGE 		0-28051-025-0 04 1 1506-
13 RETAINER; DEF TANK
(B) 		8-98295-879-0 01 1 1506-
13 RETAINER; DEF TANK
(A) 		8-98156-747-0 01 1 1504-1505
13 RETAINER; DEF TANK
(C) 		8-98295-878-1 01 1 1506-
14 BRACKET ASM; DEF TANK 8-98101-914-0 01 1 1504-1505
14 BRACKET ASM; DEF TANK 8-98295-880-2 01 1 1506-
15 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 04 1 1504-1505
15 BOLT; BRKT,DEF TANK
M14X35 FLANGE 		0-28851-435-0 02 1 1506-
16 NUT; BRKT,DEF TANK
M14 FLANGE 		0-91180-214-0 04 1 1506-
61 BODY ASM; DEF TANK 8-98120-260-1 01 1 1504-1505
61 BODY ASM; DEF TANK 8-98296-972-1 01 1 1506-
62 HOSE; VENT,DEF TANK 8-98120-261-0 01 1 1504-1505
62 HOSE; VENT,DEF TANK 8-98296-533-0 01 1 1506-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1504-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1505-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1504-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1504-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1504-
67 SENSOR ASM; DEF TANK 8-98294-465-0 01 1 1504-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1504-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1504-
167 PLATE; CAUTION,DEF
(A) 		8-98231-935-0 01 1 1504-
167 PLATE; CAUTION,DEF
(B) 		8-98296-524-0 01 1 1504-
168 INDICATOR; WATER LEVEL 8-98296-527-0 01 1 1504-1505
168 INDICATOR; WATER LEVEL 8-98204-163-0 01 1 1506-
179 SEPARATOR ASM 8-98261-587-1 01 1 1504-
180 BOLT; SEPARATOR ASM
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
182 NUT; SEPARATOR ASM
M8 FLANGE 		0-91180-108-0 02 1 1504-

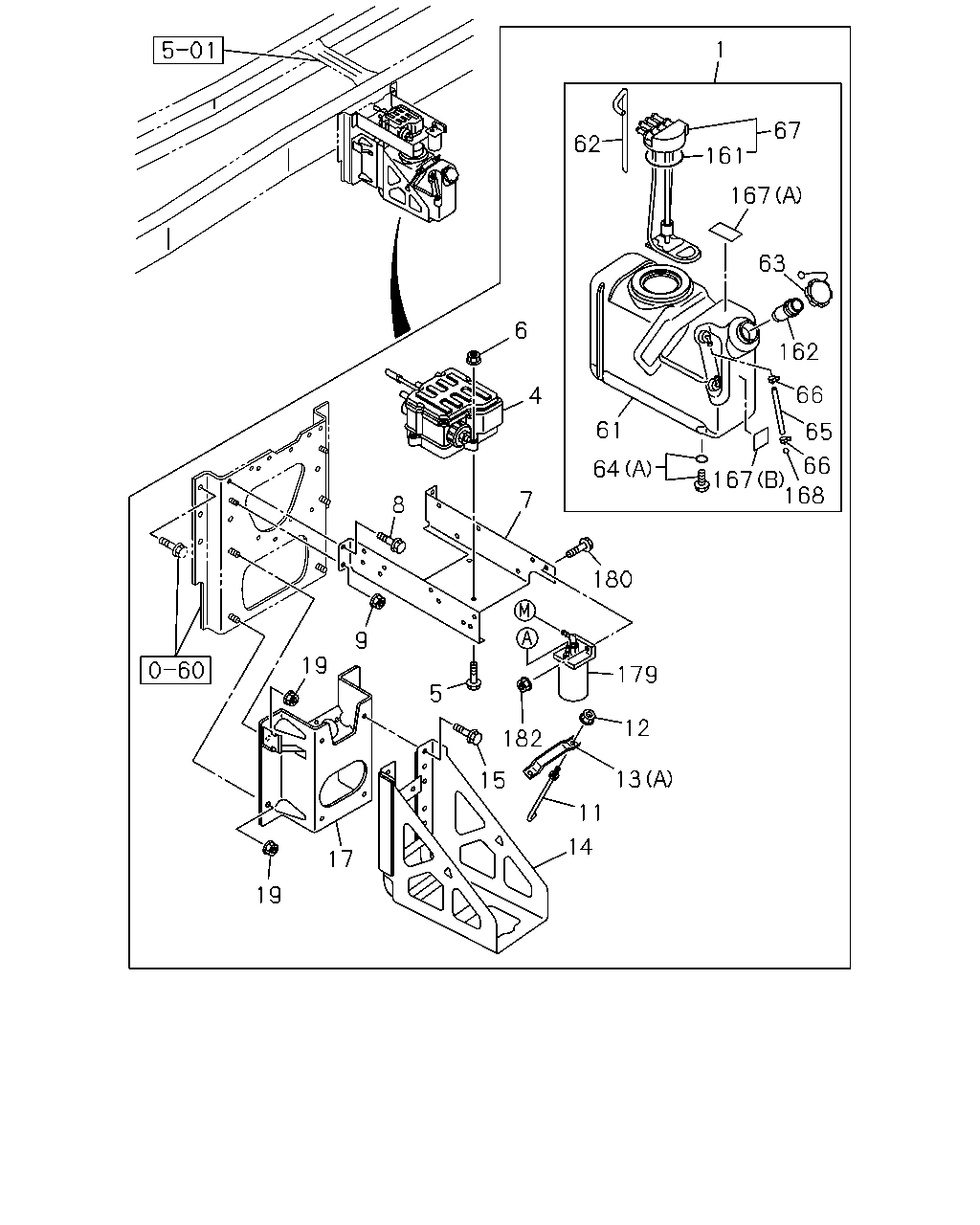

çizim 471307
1 62 67 161 167 63 162 66 65 66 168 167 64 61 180 7 4 6 8 9 19 19 17 5 15 182 14 11 13 12 179
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98307-060-0 01 1 1504-1505
1 TANK ASM; DEF 8-98295-877-1 01 1 1506-
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1504-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X45 FLANGE 		0-28050-845-0 03 1 1504-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1504-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1504-
8 BOLT; BRKT,DEF DCM SPLY
M10X30 FLANGE 		0-28051-030-0 02 1 1504-
9 NUT; BRKT,DEF DCM SPLY
M10 FLANGE 		0-91180-210-0 02 1 1504-
11 BOLT; DEF TANK 8-98157-936-0 02 1 1504-1505
11 BOLT; DEF TANK
M10X25 FLANGE 		0-28051-025-0 04 1 1506-
12 NUT; DEF TANK
M10 FLANGE 		0-91180-210-0 02 1 1504-1505
13 RETAINER; DEF TANK
(B) 		8-98295-879-0 01 1 1506-
13 RETAINER; DEF TANK
(A) 		8-98156-747-0 01 1 1504-1505
13 RETAINER; DEF TANK
(C) 		8-98295-878-1 01 1 1506-
14 BRACKET ASM; DEF TANK 8-98101-914-0 01 1 1504-1505
14 BRACKET ASM; DEF TANK 8-98295-880-2 01 1 1506-
15 BOLT; BRKT,DEF TANK
M10X40 FLANGE 		0-28651-040-0 04 1 1504-1505
15 BOLT; BRKT,DEF TANK
M14X35 FLANGE 		0-28851-435-0 02 1 1506-
17 BRACKET; DEF TANK 8-98307-059-2 01 1 1504-1505
19 NUT; BRKT,DEF TANK
M14 FLANGE 		0-91180-214-0 04 1 1504-1505
61 BODY ASM; DEF TANK 8-98120-260-1 01 1 1504-1505
61 BODY ASM; DEF TANK 8-98296-972-1 01 1 1506-
62 HOSE; VENT,DEF TANK 8-98120-261-0 01 1 1504-1505
62 HOSE; VENT,DEF TANK 8-98296-533-0 01 1 1506-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1504-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1505-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1504-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1504-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1504-
67 SENSOR ASM; DEF TANK 8-98294-465-0 01 1 1504-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1504-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1504-
167 PLATE; CAUTION,DEF
(A) 		8-98231-935-0 01 1 1504-
167 PLATE; CAUTION,DEF
(B) 		8-98296-524-0 01 1 1504-
168 INDICATOR; WATER LEVEL 8-98296-527-0 01 1 1504-1505
168 INDICATOR; WATER LEVEL 8-98204-163-0 01 1 1506-
179 SEPARATOR ASM 8-98261-587-1 01 1 1504-
180 BOLT; SEPARATOR ASM
M8X30 FLANGE 		0-28650-830-0 02 1 1504-
182 NUT; SEPARATOR ASM
M8 FLANGE 		0-91180-108-0 02 1 1504-

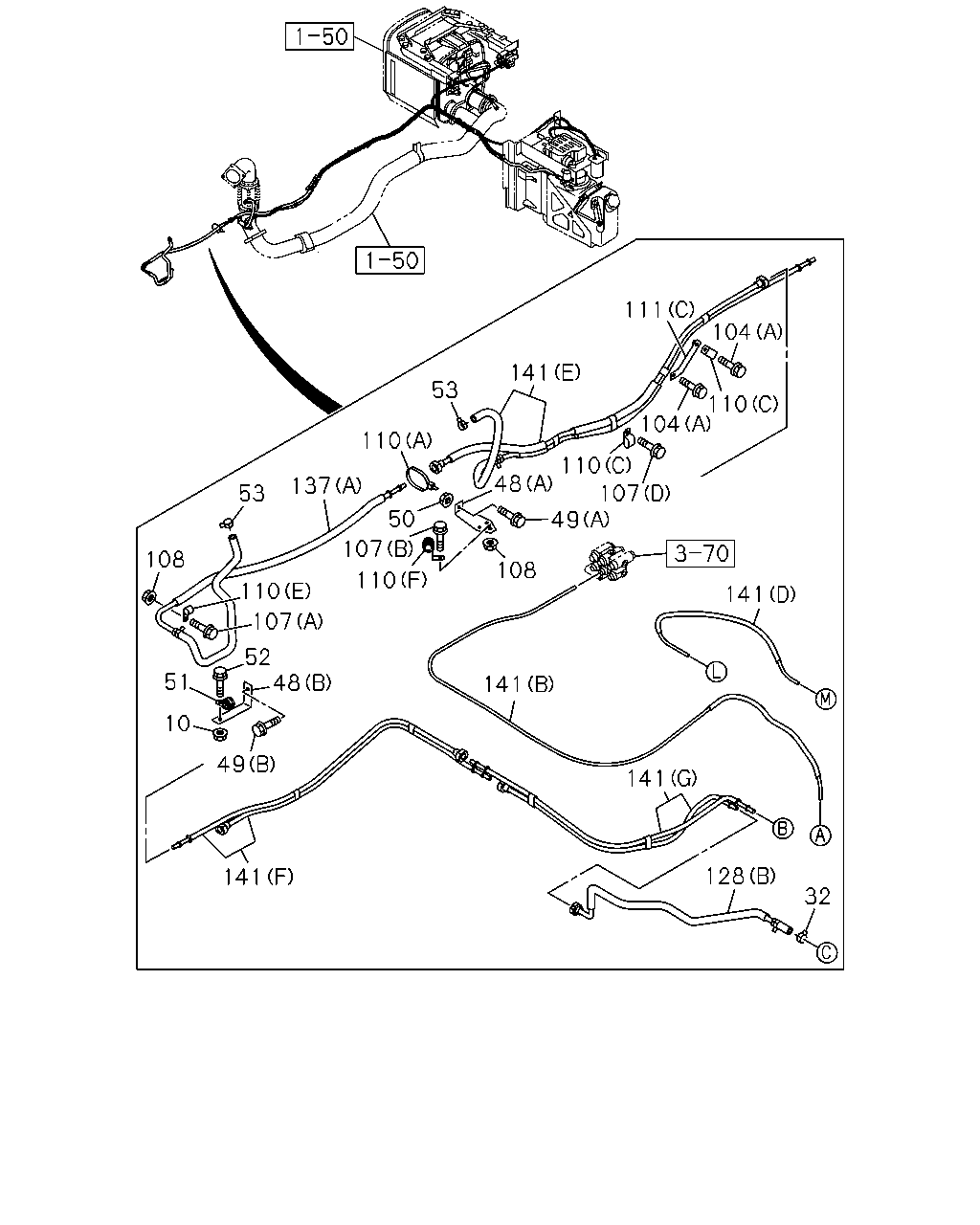

çizim 471317
104 111 110 104 107 110 49 48 141 53 110 137 53 108 110 107 52 48 49 10 51 141 50 107 110 141 108 141 141 128 32
BalonParca AdiParca NoAdetTipApplied Date
10 NUT; DEF DCM MDL COOL DLVY HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1504-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1504-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(A) 		1-47479-779-0 01 1 1504-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(B) 		8-97631-637-1 01 1 1504-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1504-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1504-
50 NUT; DEF DCM MDL COOL DLVY HOSE CLIP B
M8 FLANGE 		0-91180-108-0 01 1 1504-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
ID=21 L=24 		8-98019-191-0 01 1 1504-
52 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1504-
53 CLAMP; DEF DCM MDL COOL DLVY HOSE
ID=18.9 		8-94478-875-0 02 1 1504-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1504-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1504-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 08 1 1504-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1504-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1504-1506
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 13 1 1507-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1504-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1504-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1504-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1504-
110 CLIP; TUBE ASM
(G) ID=15 L=28 		1-09701-216-0 01 1 1504-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1504-
111 BRACKET; CLIP,TUBE ASM
(F) 		8-97645-073-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(E) 		1-82698-358-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97629-329-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98294-836-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1504-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1504-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98309-898-0 01 1 1504-1505
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1506-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98309-900-0 01 1 1504-1505
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1506-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1504-
141 TUBE ASM; DEF DCM
(B) 		8-98315-976-0 01 1 1504-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1504-
141 TUBE ASM; DEF DCM
(G) 		8-98309-901-0 01 1 1504-1505
141 TUBE ASM; DEF DCM
(G) 		8-98323-148-0 01 1 1506-
141 TUBE ASM; DEF DCM
(A) 		8-98305-884-0 01 1 1504-
141 TUBE ASM; DEF DCM
(F) 		8-98294-803-0 01 1 1504-
141 TUBE ASM; DEF DCM
(E) 		8-98294-814-0 01 1 1504-1507
141 TUBE ASM; DEF DCM
(E) 		8-98323-803-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1504-

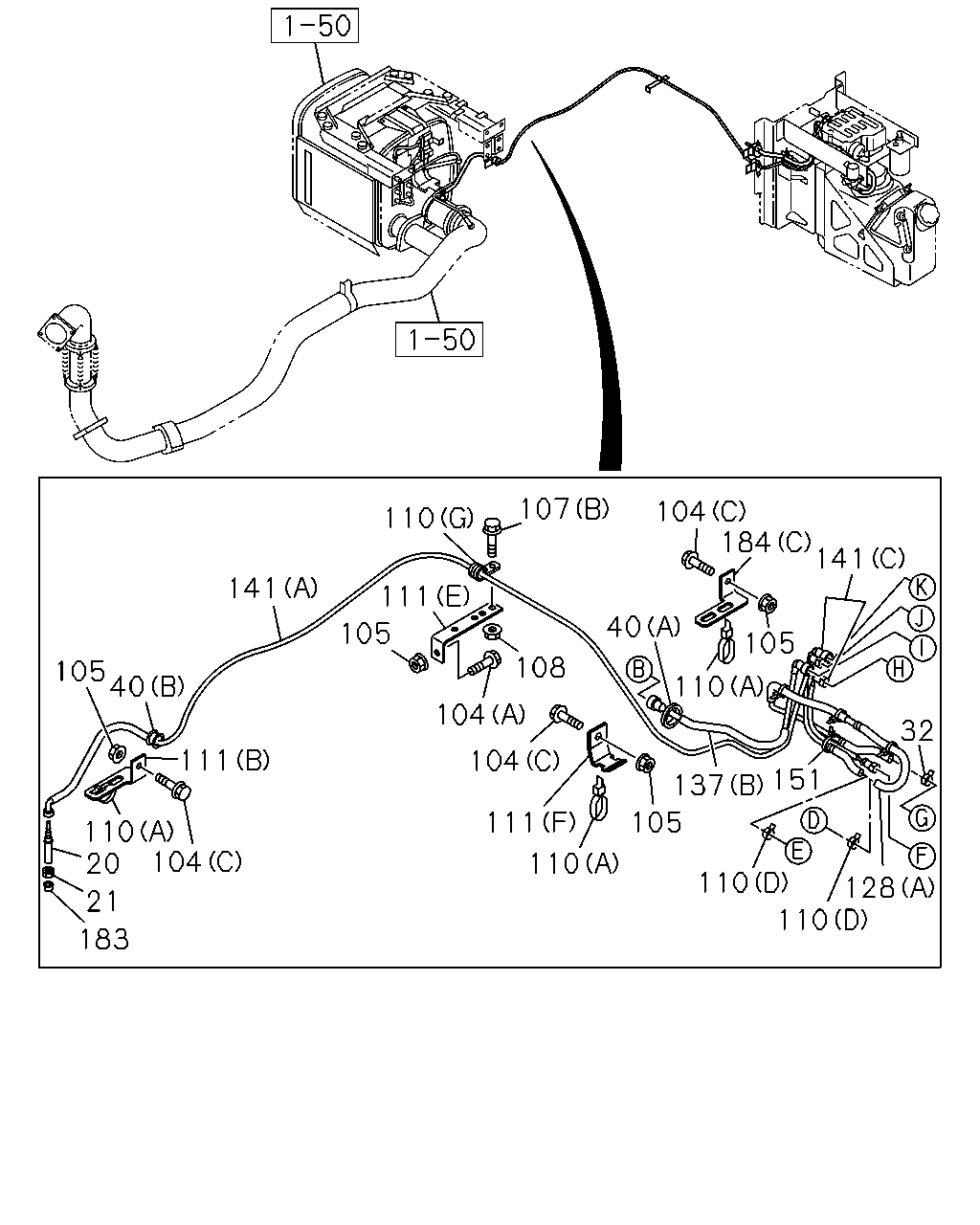

çizim 471838
105 40 111 110 104 20 21 183 141 110 111 105 104 104 111 110 105 108 107 104 184 141 32 128 110 110 137 151 110 40 105
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98221-258-0 01 1 1504-
21 NUT; INJECTOR ASM,DEF DCM 8-98221-270-0 01 1 1504-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1504-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1504-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 01 1 1504-
40 GROMMET
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1504-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1504-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1504-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1504-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 08 1 1504-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1504-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1504-1506
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 13 1 1507-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1504-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1504-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1504-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1504-
110 CLIP; TUBE ASM
(G) ID=15 L=28 		1-09701-216-0 01 1 1504-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1504-
111 BRACKET; CLIP,TUBE ASM
(F) 		8-97645-073-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(E) 		1-82698-358-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97629-329-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98294-836-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1504-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1504-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98309-898-0 01 1 1504-1505
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1506-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98309-900-0 01 1 1504-1505
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1506-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1504-
141 TUBE ASM; DEF DCM
(B) 		8-98315-976-0 01 1 1504-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1504-
141 TUBE ASM; DEF DCM
(G) 		8-98309-901-0 01 1 1504-1505
141 TUBE ASM; DEF DCM
(G) 		8-98323-148-0 01 1 1506-
141 TUBE ASM; DEF DCM
(A) 		8-98305-884-0 01 1 1504-
141 TUBE ASM; DEF DCM
(F) 		8-98294-803-0 01 1 1504-
141 TUBE ASM; DEF DCM
(E) 		8-98294-814-0 01 1 1504-1507
141 TUBE ASM; DEF DCM
(E) 		8-98323-803-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1504-
151 CLIP; COVER
L=350 		1-09707-183-0 01 1 1504-
183 SPACER 8-98221-271-0 01 1 1504-
184 BRACKET; TUBE ASM
(A) L=100 H=30 		1-47477-645-2 01 1 1504-
184 BRACKET; TUBE ASM
(B) 		1-47477-694-0 01 1 1504-
184 BRACKET; TUBE ASM
(C) 		8-97636-092-0 01 1 1504-

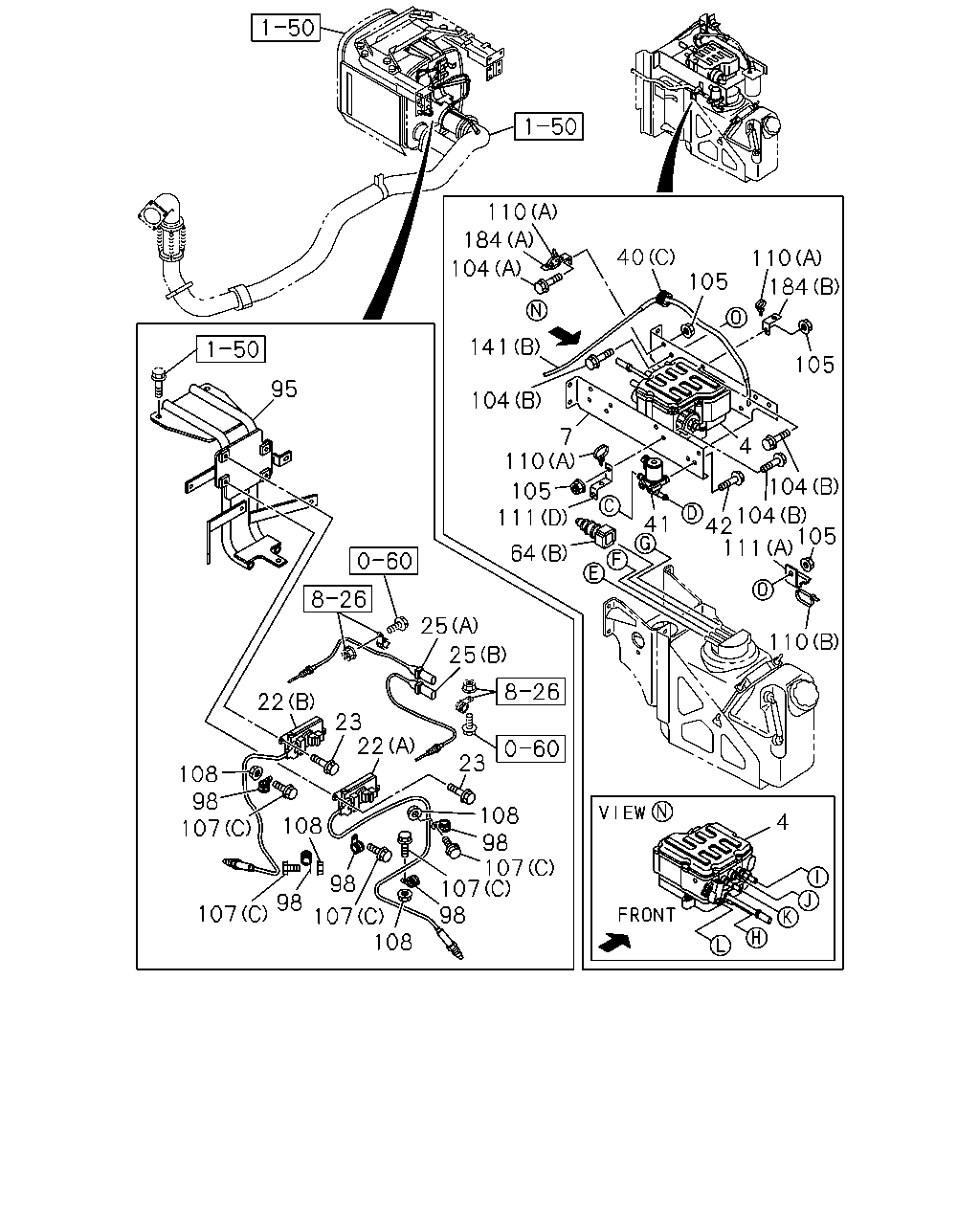

çizim 498542
110 184 104 141 104 110 7 105 111 64 41 42 111 104 105 104 105 184 110 105 40 4 110 4 25 25 23 108 98 107 107 98 108 107 98 98 107 108 107 98 108 22 23 22 95
BalonParca AdiParca NoAdetTipApplied Date
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1504-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1504-
22 SENSOR; DEF DCM EXH NOX
(A) 		8-98257-391-0 01 1 1504-
22 SENSOR; DEF DCM EXH NOX
(B) 		8-98257-392-1 01 1 1504-
23 BOLT; SENSOR,DEF DCM EXH NOX 8-98155-181-0 04 1 1504-
25 SENSOR; DEF DCM EXH TEMP
(A) 		8-98221-262-0 01 1 1504-
25 SENSOR; DEF DCM EXH TEMP
(B) 		8-98221-263-0 01 1 1504-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1504-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 01 1 1504-
40 GROMMET
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1504-
41 VALVE ASM; DEF TANK HTR DLVY 8-97628-956-1 01 1 1504-
42 BOLT; DEF RSVR HTR DLVY VLV
M8X16 FLANGE 		0-28050-816-0 02 1 1504-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1505-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1504-
95 BRACKET; HARN,DEF DCM EXH NOX SEN 8-98310-041-0 01 1 1504-
98 CLIP; DEF DCM EXH NOX SEN HARN
ID=10 L=16.5 		8-98082-034-0 08 1 1504-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1504-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1504-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1504-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1504-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 08 1 1504-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1504-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1504-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1504-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1504-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1504-1506
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 13 1 1507-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1504-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1504-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1504-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1504-
110 CLIP; TUBE ASM
(G) ID=15 L=28 		1-09701-216-0 01 1 1504-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1504-
111 BRACKET; CLIP,TUBE ASM
(F) 		8-97645-073-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(E) 		1-82698-358-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97629-329-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98294-836-0 01 1 1504-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1504-
141 TUBE ASM; DEF DCM
(B) 		8-98315-976-0 01 1 1504-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1504-
141 TUBE ASM; DEF DCM
(G) 		8-98309-901-0 01 1 1504-1505
141 TUBE ASM; DEF DCM
(G) 		8-98323-148-0 01 1 1506-
141 TUBE ASM; DEF DCM
(A) 		8-98305-884-0 01 1 1504-
141 TUBE ASM; DEF DCM
(F) 		8-98294-803-0 01 1 1504-
141 TUBE ASM; DEF DCM
(E) 		8-98294-814-0 01 1 1504-1507
141 TUBE ASM; DEF DCM
(E) 		8-98323-803-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1504-
184 BRACKET; TUBE ASM
(A) L=100 H=30 		1-47477-645-2 01 1 1504-
184 BRACKET; TUBE ASM
(B) 		1-47477-694-0 01 1 1504-
184 BRACKET; TUBE ASM
(C) 		8-97636-092-0 01 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
