Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#1602) — 409 parça

12 64 3 5 5 166 10 10 5 20 35 23 17 7 11 6 6 5 10 1 12 10 1 166 5 3 166 39 39 42 45 28 28 172 37 67 43 64 43 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

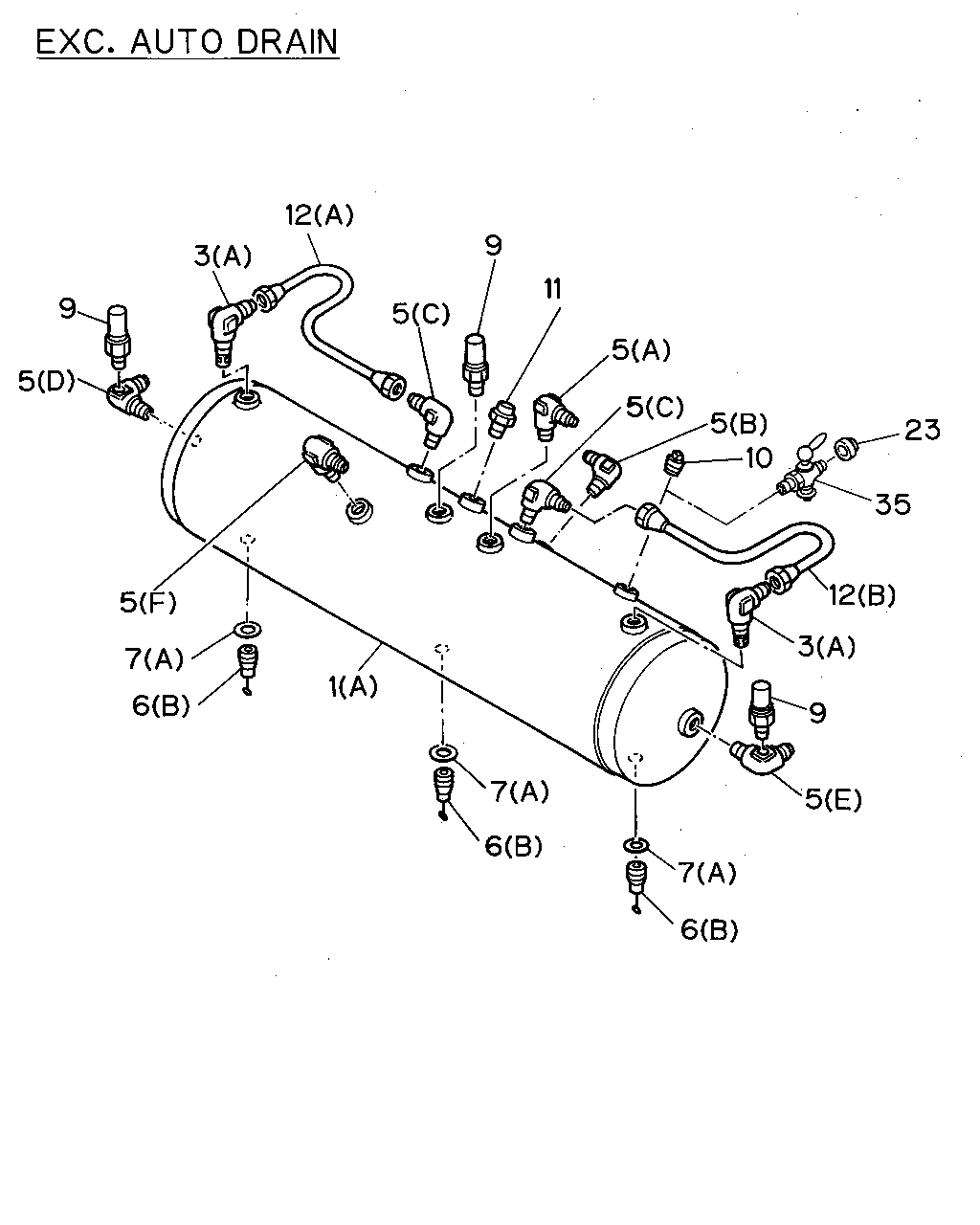

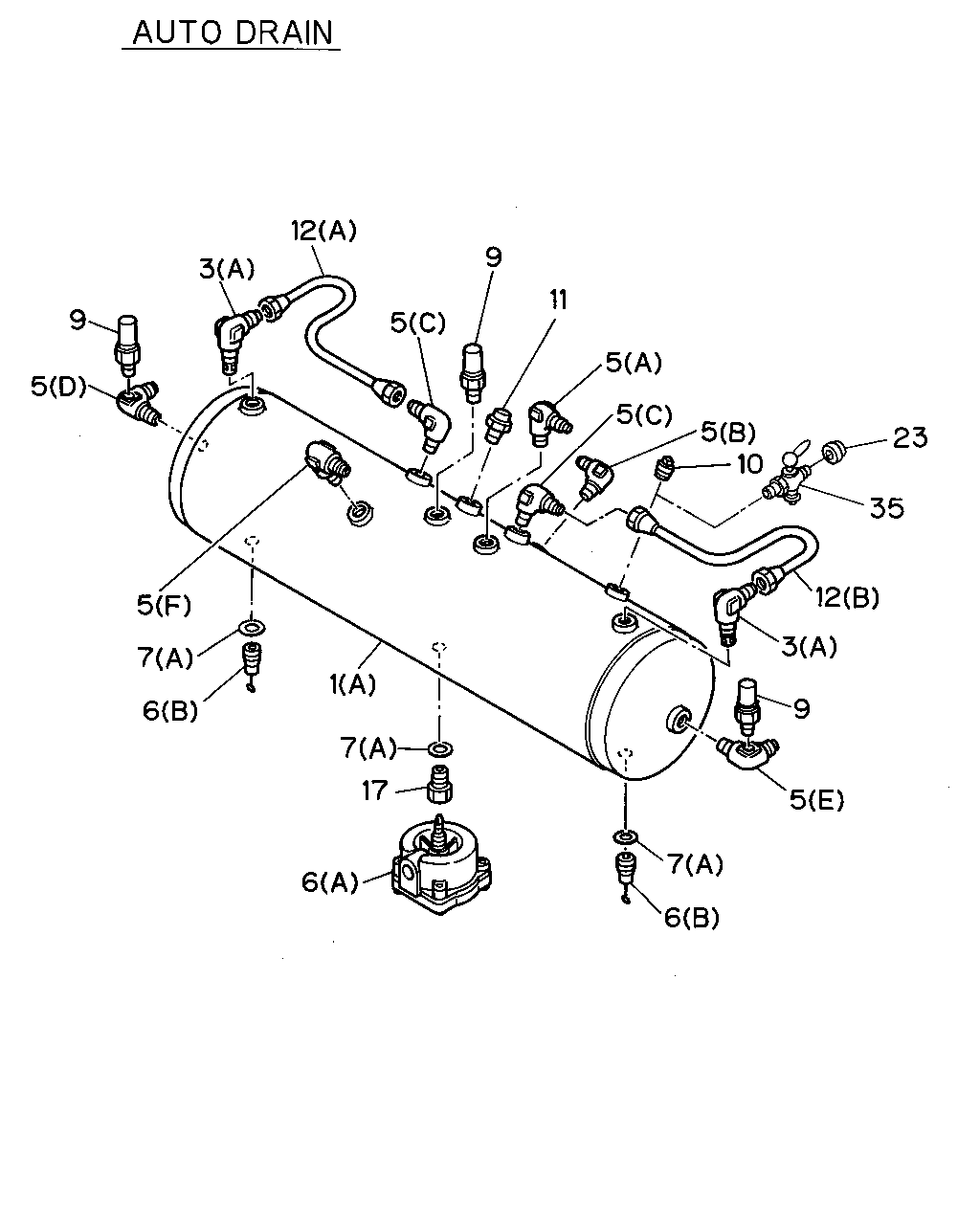

1	TANK ASM; AIR (A)	1-48330-685-1	01	1	9207-	●	●

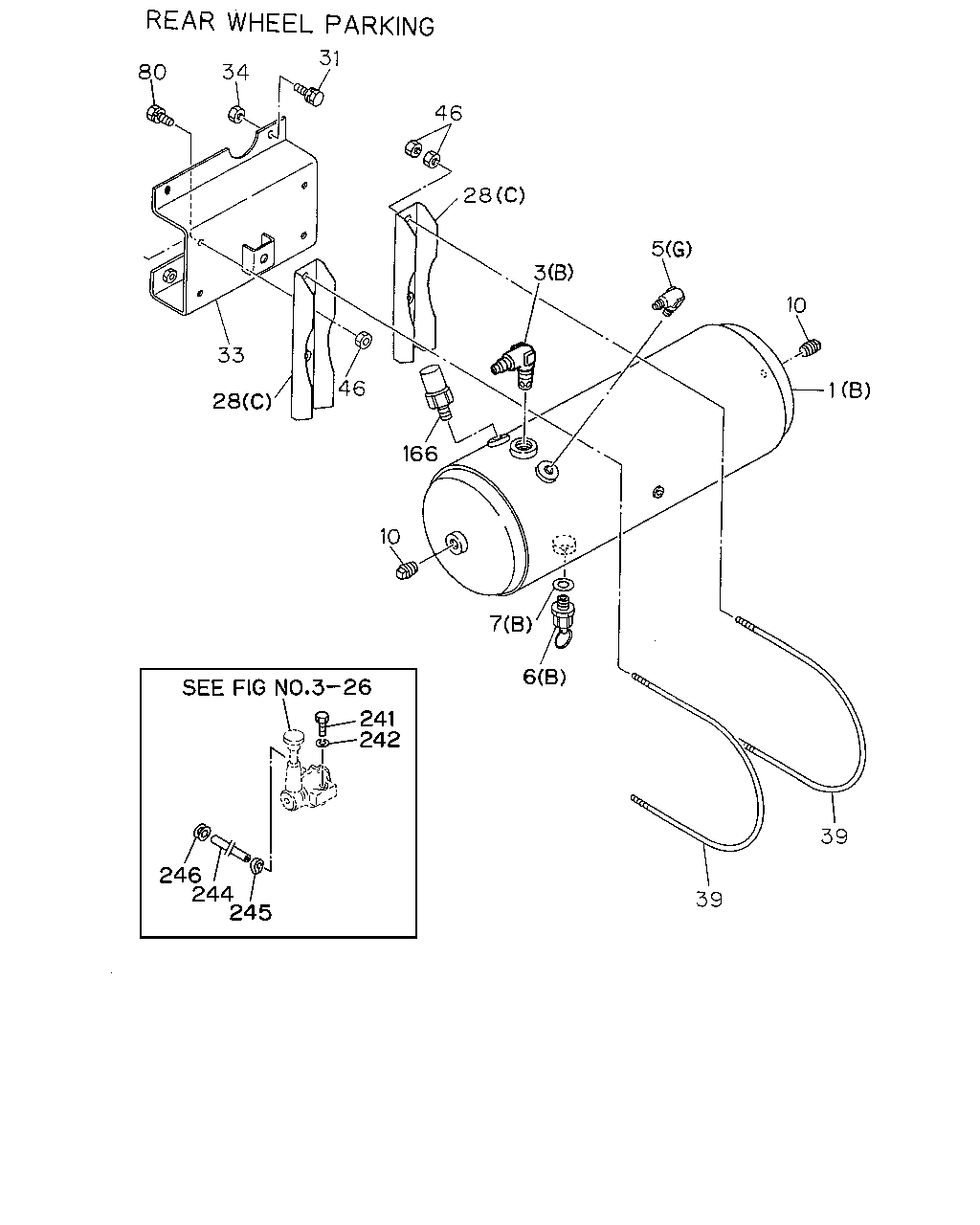

1	TANK ASM; AIR REAR WHEEL PARKING(B3A) (B)	1-48330-150-2	01	1	9207-		●

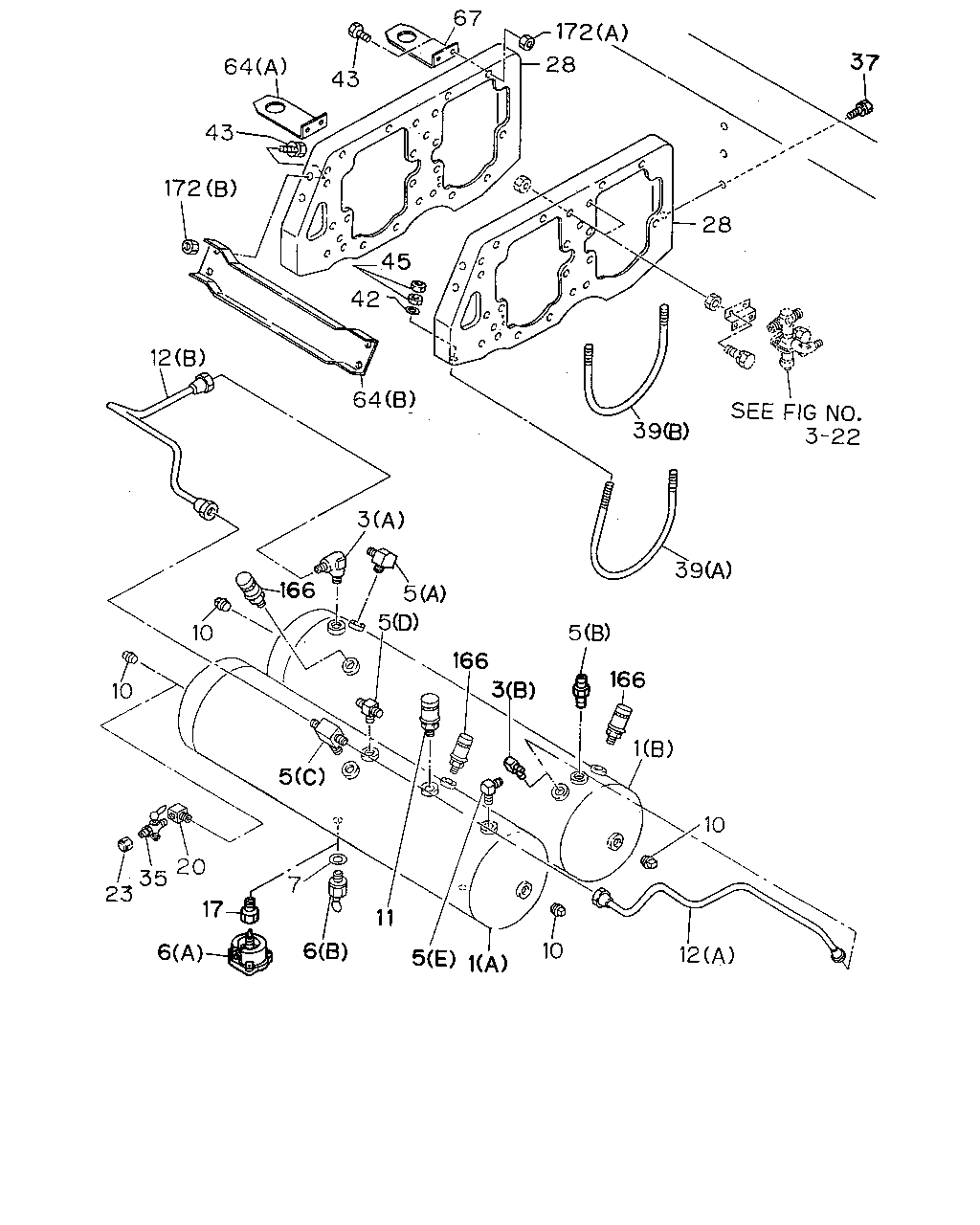

1	TANK ASM; AIR (A) MAIN	1-48330-197-1	01	1	9207-			●	●	●
1	TANK ASM; AIR (B) SUB	1-48330-206-1	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9207-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48410-132-3	01	1	9207-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9207-			●	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-033-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
5	UNION; AIR TANK (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9207-9302	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
5	UNION; AIR TANK (D) M16	1-09656-437-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (D)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M16	1-09656-504-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (E)	1-09656-674-0	01	1	9303-	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9207-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
5	UNION; AIR TANK (A)	1-09650-221-1	01	1	9207-9302			●	●	●
5	UNION; AIR TANK (A) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-			●	●	●
5	UNION; AIR TANK (B) M16	1-09650-245-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (E) FLARE M22 PT1/2	9-09231-815-1	01	1	9207-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	02	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	02	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9207-	●	●	●	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B) W/COVER	1-48312-004-1	01	1	9207-9509		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48312-015-0	01	1	9510-		●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	04	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	04	1	9510-			●	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	03	1	9209-9302	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9209-9512		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9209-9512			●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-			●	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	01	1	9207-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	9207-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING(B3A) PT1/4	9-99204-513-0	02	1	9207-		●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	03	1	9207-			●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9207-	●	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=400	1-47447-927-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=393	1-47497-006-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=400	1-47486-453-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=389	1-47497-007-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47481-349-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47497-011-0	01	1	9301-			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47482-864-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47497-012-0	01	1	9301-			●	●	●
17	ADAPTER; AUTO DRAIN AUTO DRAIN<J78> M14 & PT1/4	9-48319-149-0	01	1	9207-	●	●	●	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-09903-738-0	01	1	9207-			●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9207-	●	●	●	●	●
28	BRACKET; AIR TANK (A)	1-48317-352-6	01	1	9207-	●	●
28	BRACKET; AIR TANK (B)	1-48317-389-4	01	1	9207-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING(B3A) (C)	1-48317-430-0	02	1	9207-		●
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9207-			●	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9207-	●	●	●	●	●
37	BOLT; AIR TANK M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9503	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9207-9601			●	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9602-			●	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9207-9501	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9502-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=250	1-48317-308-0	02	1	9502-		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=245	1-48317-004-0	02	1	9207-9501		●
39	U-BOLT; AIR TANK (A)	1-48317-323-1	02	1	9207-			●	●	●
39	U-BOLT; AIR TANK (B)	1-48317-367-2	02	1	9207-			●	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9207-			●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 W/LK WASHER	0-50040-820-0	02	1	9207-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	04	1	9207-			●	●	●
43	BOLT; STAY,AIR TANK,MAIN M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9207-			●	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9207-			●	●	●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	9207-	●	●
64	STAY; AIR TANK,MAIN (A)	1-48317-349-0	01	1	9207-			●	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-224-2	01	1	9207-9207			●	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9208-			●	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9207-			●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING(B3A)	1-48340-040-0	01	1	9207-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING(B3A) 530KPA	1-48340-054-0	01	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9207-9411			●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-			●	●	●
172	NUT; STAY,AIR TANK,MAIN	9-09110-408-0	02	1	9207-	●	●
172	NUT; STAY,AIR TANK,MAIN (B)	9-09110-408-0	04	1	9207-			●	●	●
172	NUT; STAY,AIR TANK,MAIN (A)	9-09110-510-0	04	1	9207-			●	●	●

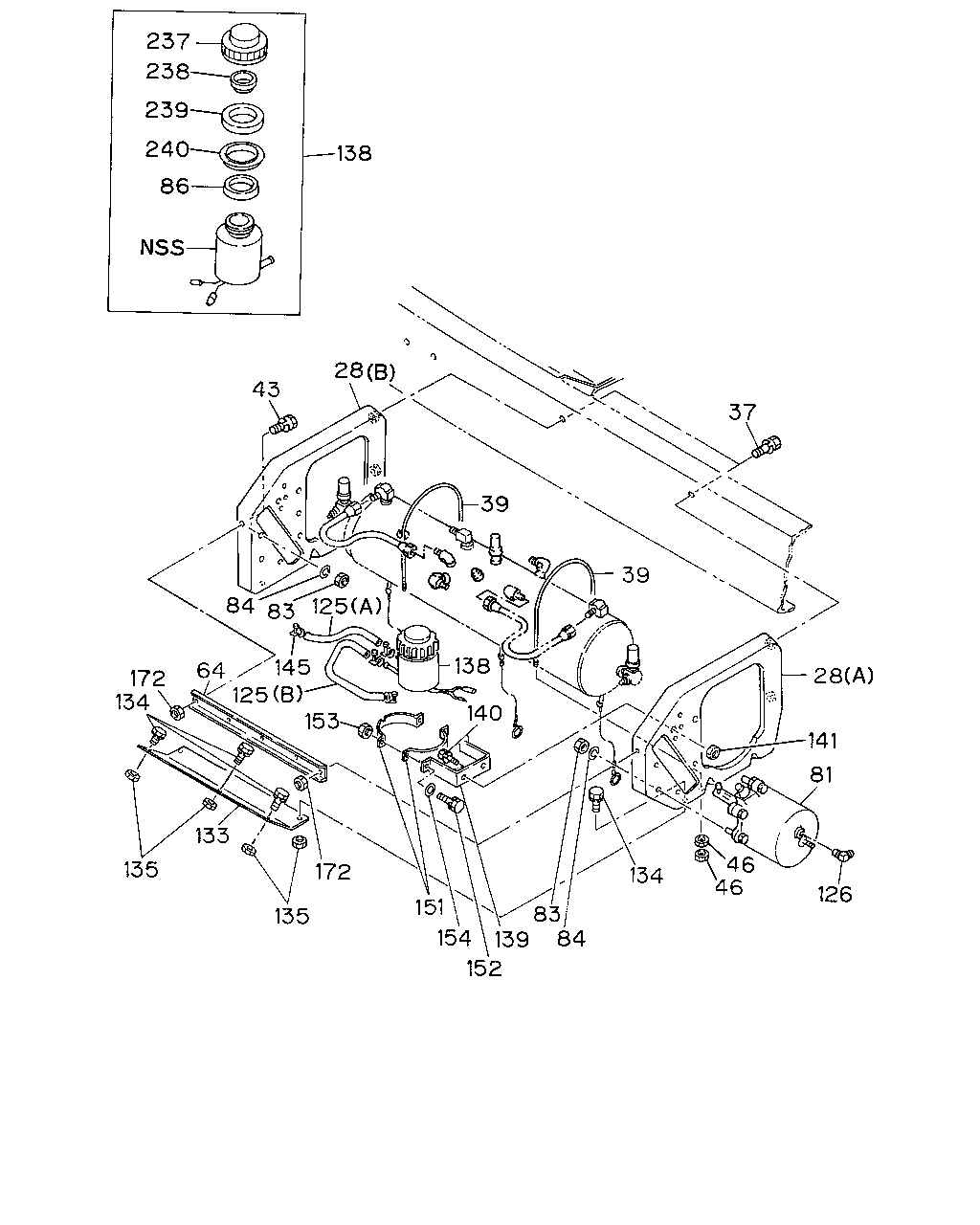

237 238 239 240 86 138 28 43 84 83 125 145 125 64 172 134 135 133 172 135 151 154 139 84 83 134 46 46 81 141 126 140 153 138 39 39 37 152 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
28	BRACKET; AIR TANK (A)	1-48317-352-6	01	1	9207-	●	●
28	BRACKET; AIR TANK (B)	1-48317-389-4	01	1	9207-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING(B3A) (C)	1-48317-430-0	02	1	9207-		●
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9207-			●	●	●
37	BOLT; AIR TANK M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9503	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9207-9601			●	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9602-			●	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9207-9501	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9502-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=250	1-48317-308-0	02	1	9502-		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=245	1-48317-004-0	02	1	9207-9501		●
39	U-BOLT; AIR TANK (A)	1-48317-323-1	02	1	9207-			●	●	●
39	U-BOLT; AIR TANK (B)	1-48317-367-2	02	1	9207-			●	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 W/LK WASHER	0-50040-820-0	02	1	9207-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	04	1	9207-			●	●	●
43	BOLT; STAY,AIR TANK,MAIN M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9207-			●	●	●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9207-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING(B3A) M8	9-09110-408-0	08	1	9207-		●
46	NUT; U-BOLT REAR WHEEL PARKING(B3A) M10	9-09110-510-0	04	1	9207-		●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	9207-	●	●
64	STAY; AIR TANK,MAIN (A)	1-48317-349-0	01	1	9207-			●	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-224-2	01	1	9207-9207			●	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9208-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A)	1-47800-413-0	02	1	9207-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A)	1-47800-398-1	02	1	9207-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-395-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-396-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A) SECONDARY	1-47800-382-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A) PRIMARY	1-47800-397-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-508-1	01	1	9207-				●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-509-1	01	1	9207-				●	●
83	NUT; AIR MASTER M8	9-09110-408-0	08	1	9207-9211	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9212-	●	●
83	NUT; AIR MASTER M10	9-09110-410-0	10	1	9207-9212			●	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9301-			●	●	●
84	WASHER; LK,AIR MASTER ID=8.2	9-09150-508-0	08	1	9207-9211	●	●
84	WASHER; LK,AIR MASTER ID=10.2	9-09150-510-0	10	1	9207-9212			●	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9207-	●	●	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9207-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	9207-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9207-			●	●	●
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9207-9302	●	●
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-	●	●
133	COVER; AIR MASTER	1-48317-388-1	01	1	9207-	●	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28080-820-0	06	1	9207-	●	●
135	NUT; COVER M8	9-09110-408-0	06	1	9207-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9207-	●	●	●	●	●
139	BRACKET; OIL TANK	1-47537-069-1	01	1	9207-	●	●
139	BRACKET; OIL TANK	1-47537-112-1	01	1	9207-9212			●	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9301-			●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9207-	●	●	●	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9207-	●	●	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9207-	●	●	●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9207-	●	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
154	WASHER; PL,OIL TANK TO BAND ID=8.4	9-09160-508-0	02	1	9207-	●	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN	9-09110-408-0	02	1	9207-	●	●
172	NUT; STAY,AIR TANK,MAIN (B)	9-09110-408-0	04	1	9207-			●	●	●
172	NUT; STAY,AIR TANK,MAIN (A)	9-09110-510-0	04	1	9207-			●	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9207-	●	●	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9207-	●	●	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9207-	●	●	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9207-	●	●	●	●	●

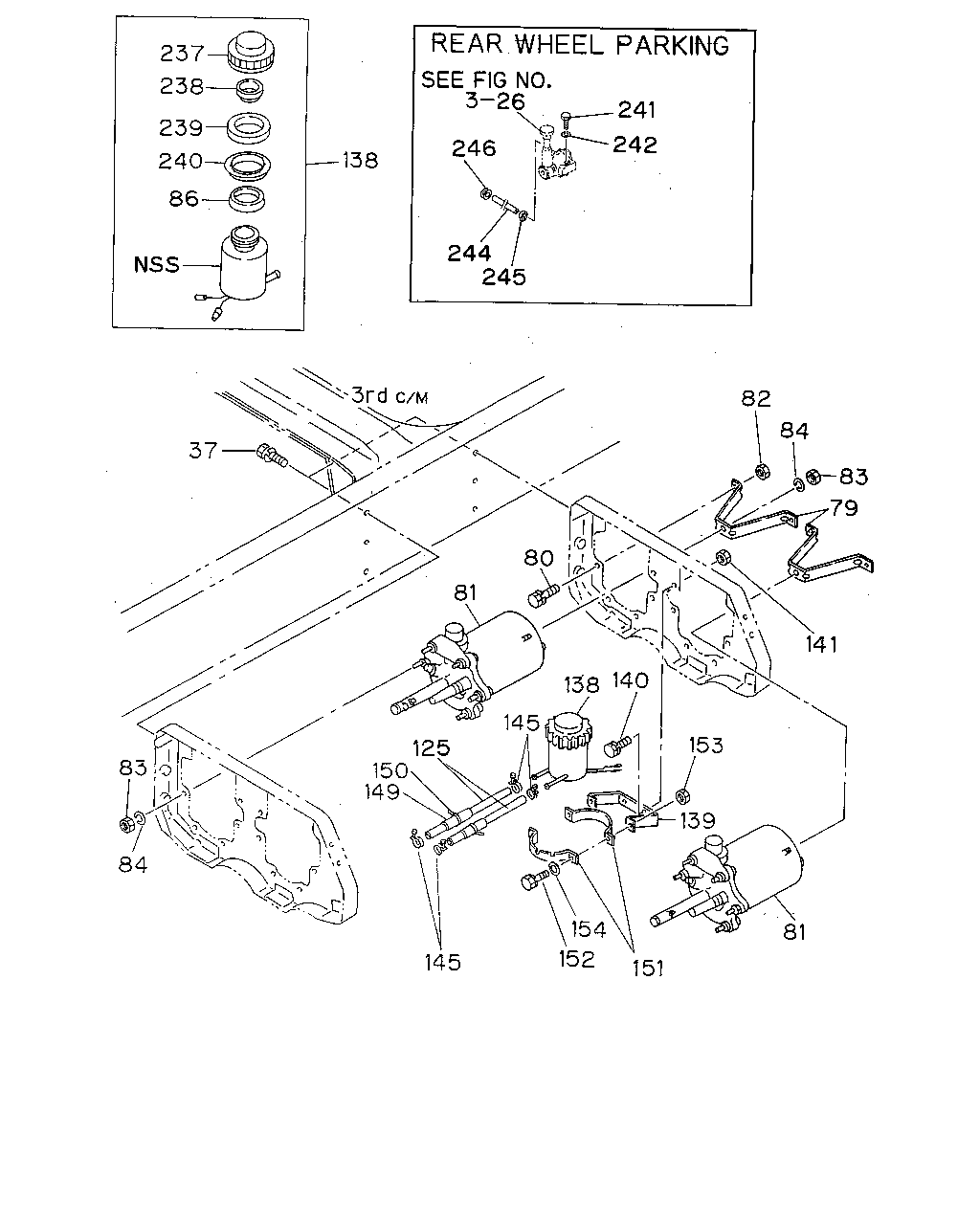

237 238 239 240 86 138 246 241 242 244 245 82 84 83 79 141 80 81 138 140 145 125 150 149 83 84 145 154 152 151 81 139 153 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	BOLT; AIR TANK M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9503	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9207-9601			●	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9602-			●	●	●
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9207-			●	●	●
80	BOLT; BRKT REAR WHEEL PARKING(B3A) M10X20 W/LK WASHER	0-50041-020-0	04	1	9207-		●
80	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	04	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A)	1-47800-413-0	02	1	9207-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A)	1-47800-398-1	02	1	9207-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-395-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-396-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A) SECONDARY	1-47800-382-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING(B3A) PRIMARY	1-47800-397-2	01	1	9207-			●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-508-1	01	1	9207-				●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING(B3A) AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-509-1	01	1	9207-				●	●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-510-0	04	1	9207-			●	●	●
83	NUT; AIR MASTER M8	9-09110-408-0	08	1	9207-9211	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	9212-	●	●
83	NUT; AIR MASTER M10	9-09110-410-0	10	1	9207-9212			●	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9301-			●	●	●
84	WASHER; LK,AIR MASTER ID=8.2	9-09150-508-0	08	1	9207-9211	●	●
84	WASHER; LK,AIR MASTER ID=10.2	9-09150-510-0	10	1	9207-9212			●	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9207-	●	●	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9207-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	9207-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9207-			●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9207-	●	●	●	●	●
139	BRACKET; OIL TANK	1-47537-069-1	01	1	9207-	●	●
139	BRACKET; OIL TANK	1-47537-112-1	01	1	9207-9212			●	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9301-			●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9207-	●	●	●	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9207-	●	●	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9207-	●	●	●	●	●
149	SLEEVE; RUBBER,HOSE ID=15 OD=19 L=50	1-09337-014-0	02	1	9207-9209			●	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9210-			●	●	●
150	CLIP; BAND,RUBBER SLEEVE L=100	5-09707-036-0	02	1	9207-9209			●	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9210-			●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9207-	●	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9207-	●	●	●	●	●
154	WASHER; PL,OIL TANK TO BAND ID=8.4	9-09160-508-0	02	1	9207-	●	●	●	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9207-	●	●	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9207-	●	●	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9207-	●	●	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9207-	●	●	●	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING(B3A) M8X65	0-10805-865-0	02	1	9207-		●	●	●	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING(B3A) ID=8.2	9-09150-508-0	02	1	9207-		●	●	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9207-		●	●	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING(B3A) ID=15	9-09715-098-0	01	1	9207-		●	●	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING(B3A) OD=24	9-61166-007-0	01	1	9207-		●	●	●	●

12 3 9 5 5 9 11 5 5 5 10 23 35 12 3 9 5 7 6 6 17 7 1 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK ASM; AIR (A)	1-48330-685-1	01	1	9207-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING(B3A) (B)	1-48330-150-2	01	1	9207-		●
1	TANK ASM; AIR (A) MAIN	1-48330-197-1	01	1	9207-			●	●	●
1	TANK ASM; AIR (B) SUB	1-48330-206-1	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9207-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48410-132-3	01	1	9207-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9207-			●	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-033-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
5	UNION; AIR TANK (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9207-9302	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
5	UNION; AIR TANK (D) M16	1-09656-437-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (D)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M16	1-09656-504-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (E)	1-09656-674-0	01	1	9303-	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9207-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
5	UNION; AIR TANK (A)	1-09650-221-1	01	1	9207-9302			●	●	●
5	UNION; AIR TANK (A) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-			●	●	●
5	UNION; AIR TANK (B) M16	1-09650-245-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (E) FLARE M22 PT1/2	9-09231-815-1	01	1	9207-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	02	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	02	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9207-	●	●	●	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B) W/COVER	1-48312-004-1	01	1	9207-9509		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48312-015-0	01	1	9510-		●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	04	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	04	1	9510-			●	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	03	1	9209-9302	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9209-9512		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9209-9512			●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-			●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9207-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	01	1	9207-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	9207-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING(B3A) PT1/4	9-99204-513-0	02	1	9207-		●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	03	1	9207-			●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9207-	●	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=400	1-47447-927-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=393	1-47497-006-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=400	1-47486-453-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=389	1-47497-007-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47481-349-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47497-011-0	01	1	9301-			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47482-864-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47497-012-0	01	1	9301-			●	●	●
17	ADAPTER; AUTO DRAIN AUTO DRAIN<J78> M14 & PT1/4	9-48319-149-0	01	1	9207-	●	●	●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9207-	●	●	●	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9207-	●	●	●	●	●

246 244 245 242 241 7 6 39 39 1 10 3 166 10 46 28 33 5 28 46 31 34 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK ASM; AIR (A)	1-48330-685-1	01	1	9207-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING(B3A) (B)	1-48330-150-2	01	1	9207-		●
1	TANK ASM; AIR (A) MAIN	1-48330-197-1	01	1	9207-			●	●	●
1	TANK ASM; AIR (B) SUB	1-48330-206-1	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9207-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48410-132-3	01	1	9207-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9207-			●	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-033-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
5	UNION; AIR TANK (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9207-9302	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
5	UNION; AIR TANK (D) M16	1-09656-437-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (D)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M16	1-09656-504-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (E)	1-09656-674-0	01	1	9303-	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9207-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
5	UNION; AIR TANK (A)	1-09650-221-1	01	1	9207-9302			●	●	●
5	UNION; AIR TANK (A) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-			●	●	●
5	UNION; AIR TANK (B) M16	1-09650-245-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (E) FLARE M22 PT1/2	9-09231-815-1	01	1	9207-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	02	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	02	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9207-	●	●	●	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B) W/COVER	1-48312-004-1	01	1	9207-9509		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48312-015-0	01	1	9510-		●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	04	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	04	1	9510-			●	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	03	1	9209-9302	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9209-9512		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9209-9512			●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-			●	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	01	1	9207-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	9207-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING(B3A) PT1/4	9-99204-513-0	02	1	9207-		●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	03	1	9207-			●	●	●
28	BRACKET; AIR TANK (A)	1-48317-352-6	01	1	9207-	●	●
28	BRACKET; AIR TANK (B)	1-48317-389-4	01	1	9207-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING(B3A) (C)	1-48317-430-0	02	1	9207-		●
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9207-			●	●	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING(B3A) M10X35 W/LK&PL WASHER	0-50141-035-0	04	1	9207-		●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING(B3A)	1-48317-431-2	01	1	9207-		●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING(B3A) M10	9-09110-510-0	02	1	9207-		●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9207-9501	●	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	9502-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=250	1-48317-308-0	02	1	9502-		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING(B3A) L=245	1-48317-004-0	02	1	9207-9501		●
39	U-BOLT; AIR TANK (A)	1-48317-323-1	02	1	9207-			●	●	●
39	U-BOLT; AIR TANK (B)	1-48317-367-2	02	1	9207-			●	●	●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	9207-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING(B3A) M8	9-09110-408-0	08	1	9207-		●
46	NUT; U-BOLT REAR WHEEL PARKING(B3A) M10	9-09110-510-0	04	1	9207-		●
80	BOLT; BRKT REAR WHEEL PARKING(B3A) M10X20 W/LK WASHER	0-50041-020-0	04	1	9207-		●
80	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	04	1	9207-			●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING(B3A)	1-48340-040-0	01	1	9207-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING(B3A) 530KPA	1-48340-054-0	01	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9207-9411			●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-			●	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING(B3A) M8X65	0-10805-865-0	02	1	9207-		●	●	●	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING(B3A) ID=8.2	9-09150-508-0	02	1	9207-		●	●	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9207-		●	●	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING(B3A) ID=15	9-09715-098-0	01	1	9207-		●	●	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING(B3A) OD=24	9-61166-007-0	01	1	9207-		●	●	●	●

9 5 5 7 6 1 7 6 7 6 5 9 3 12 35 23 10 5 5 5 11 5 9 12 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK ASM; AIR (A)	1-48330-685-1	01	1	9207-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING(B3A) (B)	1-48330-150-2	01	1	9207-		●
1	TANK ASM; AIR (A) MAIN	1-48330-197-1	01	1	9207-			●	●	●
1	TANK ASM; AIR (B) SUB	1-48330-206-1	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	02	1	9207-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48410-132-3	01	1	9207-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9207-			●	●	●
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9207-			●	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-033-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
5	UNION; AIR TANK (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9207-9302	●	●
5	UNION; AIR TANK (C) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
5	UNION; AIR TANK (D) M16	1-09656-437-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (D)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M16	1-09656-504-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (E)	1-09656-674-0	01	1	9303-	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9207-9302	●	●
5	UNION; AIR TANK (F) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9207-9302		●
5	UNION; AIR TANK REAR WHEEL PARKING(B3A) (G) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-		●
5	UNION; AIR TANK (A)	1-09650-221-1	01	1	9207-9302			●	●	●
5	UNION; AIR TANK (A) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-			●	●	●
5	UNION; AIR TANK (B) M16	1-09650-245-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9207-			●	●	●
5	UNION; AIR TANK (E) FLARE M22 PT1/2	9-09231-815-1	01	1	9207-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	02	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	02	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	03	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	1-48312-015-0	03	1	9510-			●	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9207-	●	●	●	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B) W/COVER	1-48312-004-1	01	1	9207-9509		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING(B3A) (B)	1-48312-015-0	01	1	9510-		●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	04	1	9207-9509			●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	04	1	9510-			●	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=23.0	9-09572-014-0	03	1	9209-9302	●	●
7	GASKET; DRAIN COCK (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9209-9512		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING(B3A) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9209-9512			●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-			●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9207-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	01	1	9207-	●	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	9207-	●	●
10	PLUG; AIR TANK REAR WHEEL PARKING(B3A) PT1/4	9-99204-513-0	02	1	9207-		●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	03	1	9207-			●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9207-	●	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=400	1-47447-927-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=393	1-47497-006-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=400	1-47486-453-0	01	1	9207-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=389	1-47497-007-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47481-349-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B) L=583	1-47497-011-0	01	1	9301-			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47482-864-0	01	1	9207-9212			●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A) L=515	1-47497-012-0	01	1	9301-			●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9207-	●	●	●	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9207-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
