◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#160196) — 47 parça
çizim 471117
570 571 1 420 482
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 8-98212-215-1 01 1 1504- ● ● ●
420 GUIDE; AIR,RAD 8-98223-595-1 01 1 1504- ● ● ●
482 NUT; AIR GUIDE
M10 FLANGE 		0-91180-210-0 02 1 1504- ● ● ●
570 SCREEN ASM; RADIATOR 8-98211-143-1 01 1 1504- ● ● ●
571 SPRING; RADIATOR SCREEN 8-98211-362-0 02 1 1504- ● ● ●
çizim 471141
528 21 1 526 529 232 267 89 528 267 235 89 51 21 527 529
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 8-98212-215-1 01 1 1504- ● ● ●
21 SEAL; RAD
(A) 		8-98219-021-1 01 1 1504- ● ● ●
21 SEAL; RAD
(B) 		8-98230-111-0 01 1 1504- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1504- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1504- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1504- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1504- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1504- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1504- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1504- ● ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-041-2 01 1 1504- ● ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-042-2 01 1 1504- ● ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98211-500-1 01 1 1504- ● ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98211-501-1 01 1 1504- ● ● ●
529 GASKET; CORE,RADIATOR 1-21439-142-0 02 1 1504- ● ● ●

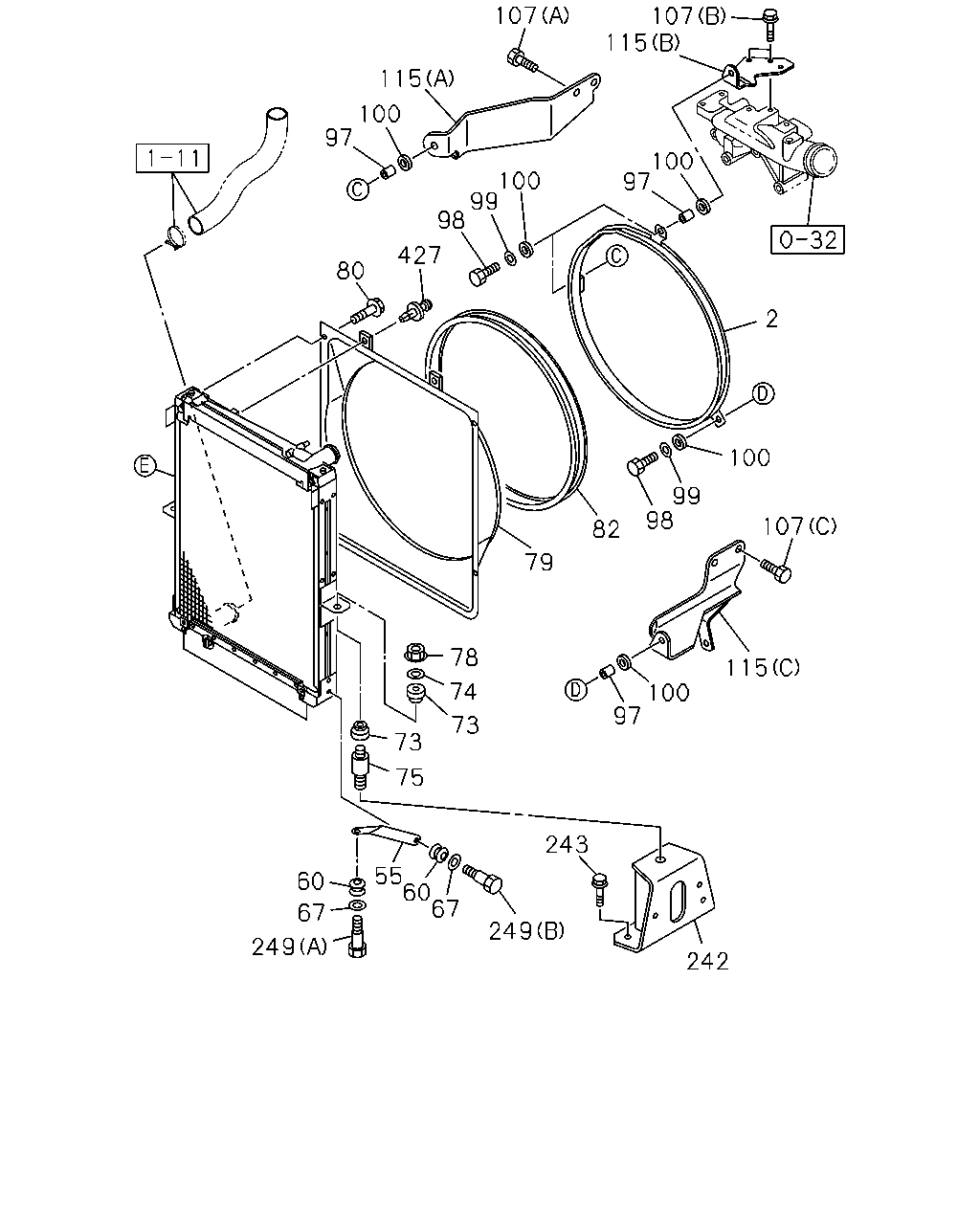

çizim 472013
107 115 100 97 80 78 74 73 73 75 60 67 249 55 60 67 249 242 243 97 100 115 107 79 82 98 99 100 2 427 98 99 100 97 100 115 107
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-98246-413-0 01 1 1504- ● ● ●
55 STAY; RAD TO UPR MBR 8-98198-387-0 01 1 1504- ● ● ●
55 STAY; RAD TO UPR MBR 8-98198-386-0 01 1 1504- ● ● ●
60 GROMMET 1-09332-117-0 04 1 1504- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 1504- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 1504- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1504- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X27.5,M10X16 L=82 		8-98240-336-0 02 1 1504- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 1504- ● ● ●
79 GUIDE; FAN,RAD 8-98283-608-0 01 1 1504- ● ● ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 1504- ● ● ●
82 COVER; FAN,RAD 8-98283-609-0 01 1 1504- ● ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 1504- ● ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 1504- ● ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 1504- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 1504- ● ● ●
107 BOLT; BRKT TO STAY
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1504- ● ● ●
107 BOLT; BRKT TO STAY
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1504- ● ● ●
107 BOLT; BRKT TO STAY
(C) M14X25 FLANGE 		0-28951-425-0 02 1 1504- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		8-98246-522-0 01 1 1504- ● ● ●
115 BRACKET; FAN GUIDE
(C) 		8-98246-523-1 01 1 1504- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		8-98246-524-1 01 1 1504- ● ● ●
242 BRACKET; RAD 8-98197-994-1 02 1 1504- ● ● ●
243 BOLT; BRKT
M12X35 FLANGE 		0-28661-235-0 04 1 1504- ● ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 1504- ● ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 1504- ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1504- ● ● ●
