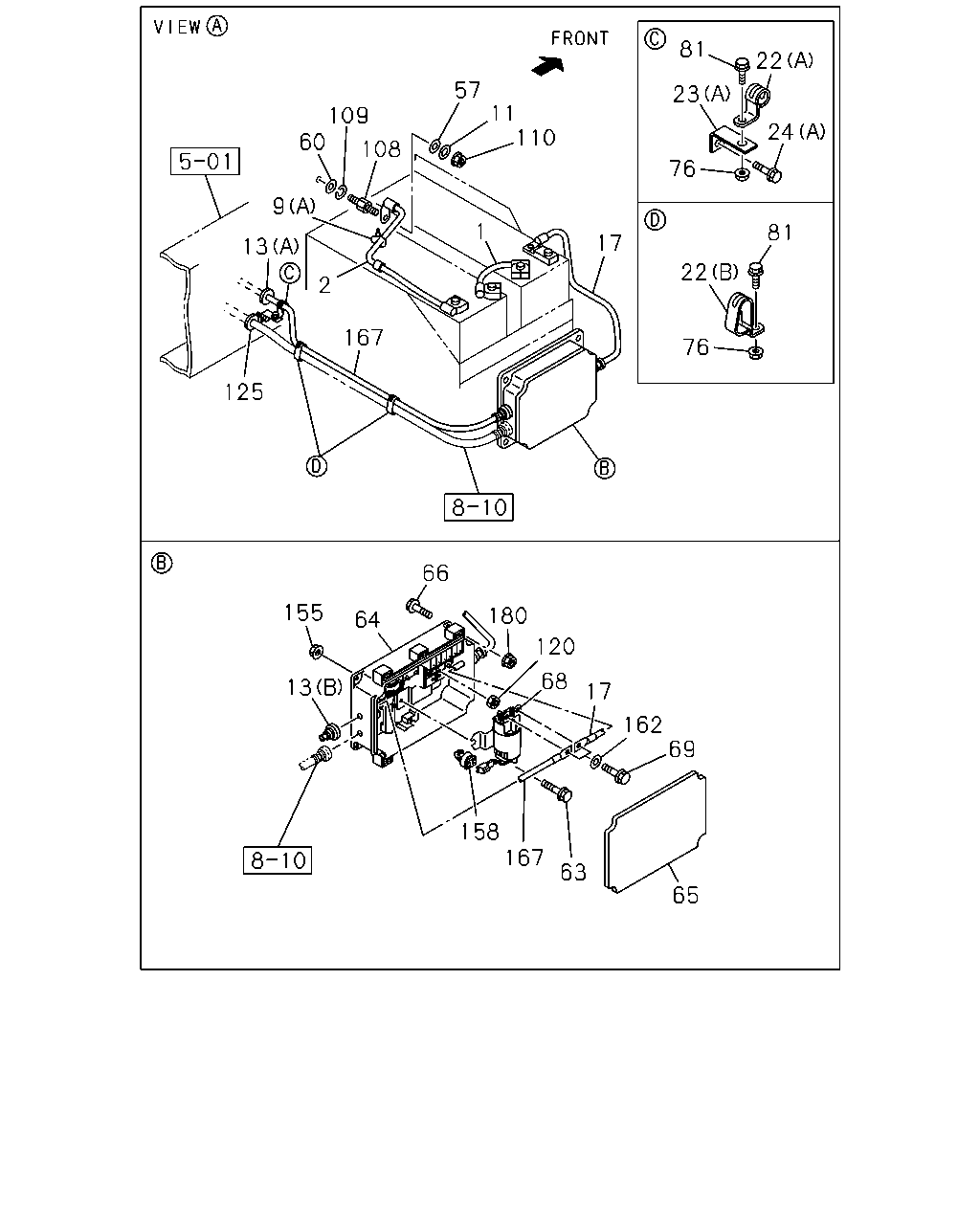

1 |
CABLE; BATTERY
L=265
|
1-82650-388-1 |
01 |
1 |
1504- |
| |
2 |
CABLE; BATTERY
L=640
|
8-98223-230-0 |
01 |
1 |
1504- |
| |
9 |

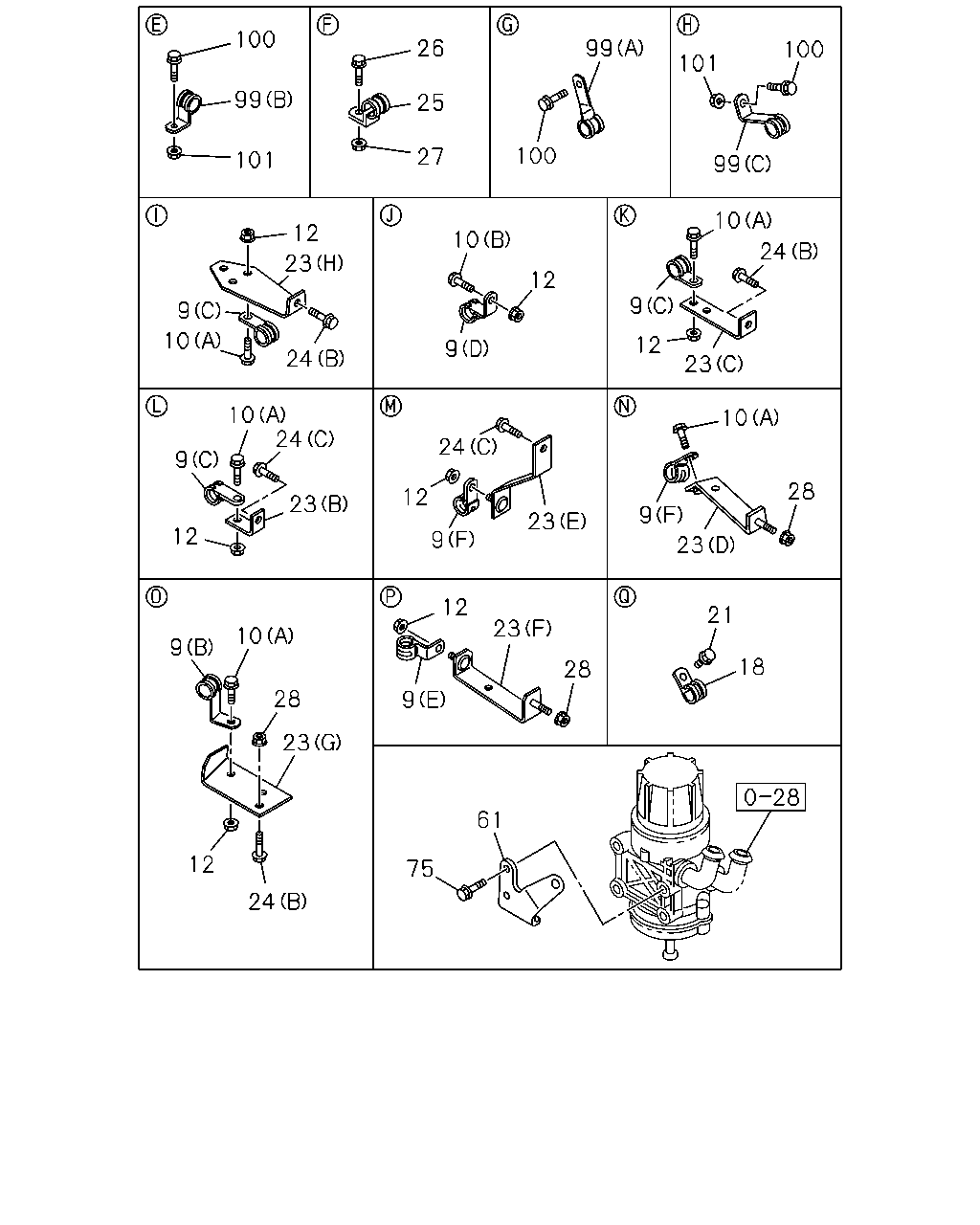

CLIP; BATTERY CABLE
(E)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
1504- |
| |
9 |
CLIP; BATTERY CABLE
(B)
ID=21 L=30 H=40
|
1-09700-991-1 |
01 |
1 |
1504- |
| |
9 |
CLIP; BATTERY CABLE
(C)
ID=18 L=28
|
1-09701-067-0 |
03 |
1 |
1504- |
| |
9 |
CLIP; BATTERY CABLE
(D)
ID=18 L=28 H=30
|
1-09701-110-0 |
02 |
1 |
1504- |
| |
9 |
CLIP; BATTERY CABLE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1504- |
| |
9 |
CLIP; BATTERY CABLE
(F)
ID=21 L=24
|
8-94176-807-1 |
02 |
1 |
1504- |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22
|
0-91614-708-0 |
01 |
1 |
1504- |
| |
13 |
GROMMET; BATTERY CABLE
(A)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
1504- |
| |
13 |
GROMMET; BATTERY CABLE
(B)
ID=26
|
1-09333-140-0 |
01 |
1 |
1504- |
| |
17 |
CABLE; BATTERY (+) TO RELAY
L=480
|
8-98239-412-0 |
01 |
1 |
1504- |
| |
22 |
CLIP; BATTERY CABLE
(A)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
1504- |
| |
22 |
CLIP; BATTERY CABLE
(B)
ID=11 & 13 H=26 L=48
|
1-09701-270-0 |
02 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
L=40
|
1-47478-410-0 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=95
|
1-82698-557-0 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(D)
|
1-82698-574-0 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(E)
|
1-82698-575-1 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(F)
|
1-82698-589-0 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(G)
|
8-98062-598-0 |
01 |
1 |
1504- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(H)
|
8-98171-604-0 |
01 |
1 |
1504- |
| |
24 |
BOLT; BRKT TO FRAME
(C)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1504- |
| |
24 |
BOLT; BRKT TO FRAME
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
1504- |
| |
24 |
BOLT; BRKT TO FRAME
(A)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
1504- |
| |
57 |
WASHER; PL,BATTERY CABLE
ID=6.4
|
0-91614-506-0 |
01 |
1 |
1504- |
| |
60 |
WASHER; LK,BATTERY CABLE
ID=6.1
|
0-91510-606-0 |
01 |
1 |
1504- |
| |
63 |
BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER
|
0-50640-830-0 |
02 |
1 |
1504- |
| |

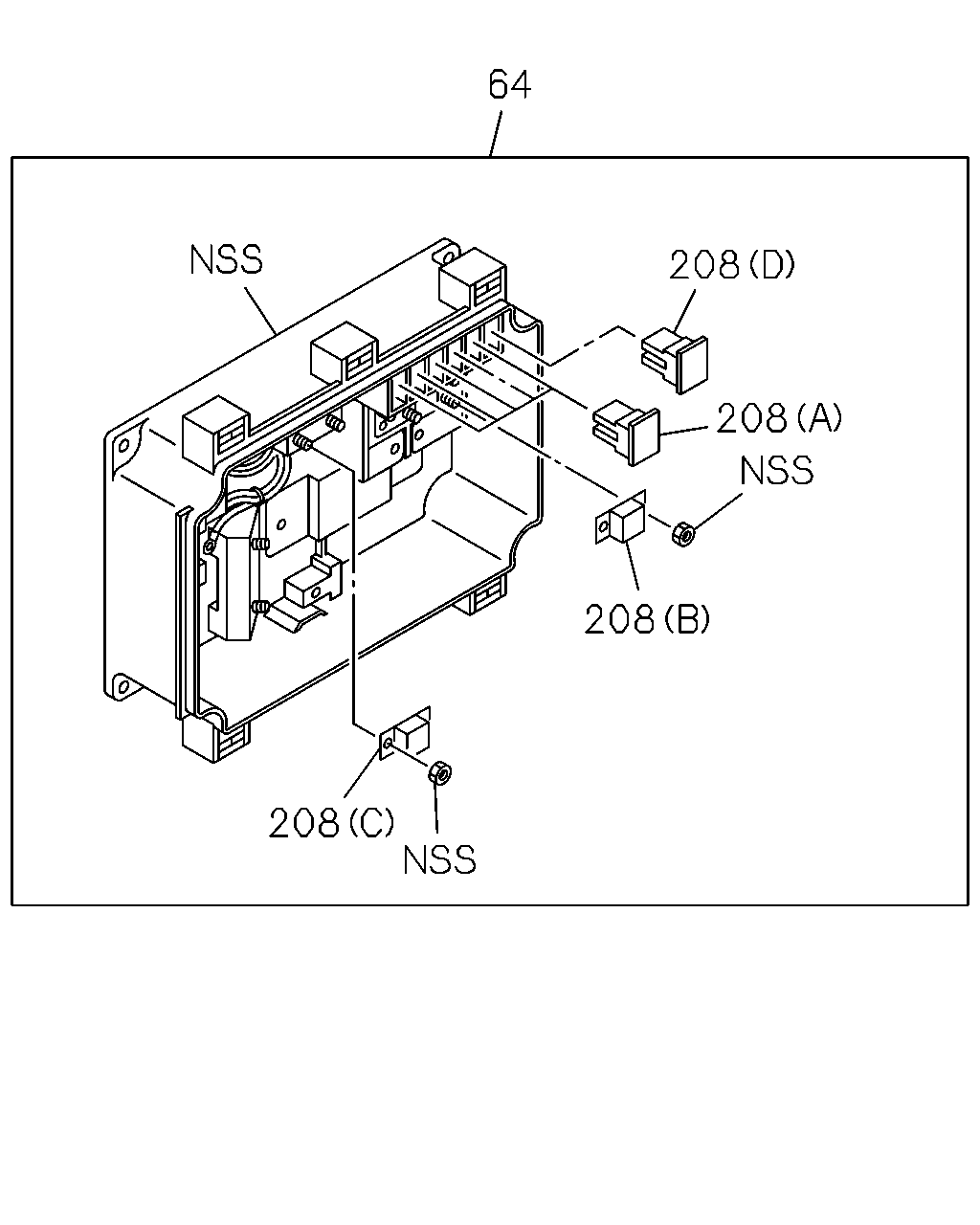

64 |
BOX; BATTERY RELAY
SMOOTHER-G(C1W)
|
8-97628-723-0 |
01 |
1 |
1507- |
| |
64 |
BOX; BATTERY RELAY
|
8-97628-721-0 |
01 |
1 |
1504-1506 |
| |
64 |
BOX; BATTERY RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A)
|
8-97628-721-0 |
01 |
1 |
1507- |
| |
65 |
COVER; BATTERY RELAY
|
8-97628-726-0 |
01 |
1 |
1504- |
| |
66 |
BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER
|
0-50640-830-0 |
02 |
1 |
1504- |
| |
68 |
RELAY; BATTERY
|
8-98104-749-0 |
01 |
1 |
1504- |
| |
69 |
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
|
0-50640-820-0 |
02 |
1 |
1504- |
| |
76 |
NUT; BATTERY CABLE
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1504- |
| |
81 |
BOLT; BATTERY CABLE
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1504- |
| |
108 |
STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42
|
5-09309-006-1 |
01 |
1 |
1504- |
| |
109 |
WASHER; LK,EARTH BATTERY CABLE
ID=8.2
|
0-91510-808-0 |
01 |
1 |
1504- |
| |
110 |
NUT; HARNESS TO BATTERY EARTH
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
1504- |
| |
120 |
NUT; RELAY BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1504- |
| |
125 |
GROMMET; CABLE BATTERY
ID=39 OD=45 T=13
|
1-09332-076-0 |
01 |
1 |
1504- |
| |
155 |
NUT; RELAY,BATTERY
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1504- |
| |
158 |
CLIP; RELAY
OD=7 H=1.2
|
8-94364-750-0 |
02 |
1 |
1504- |
| |
162 |
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
|
0-91614-608-0 |
02 |
1 |
1504- |
| |

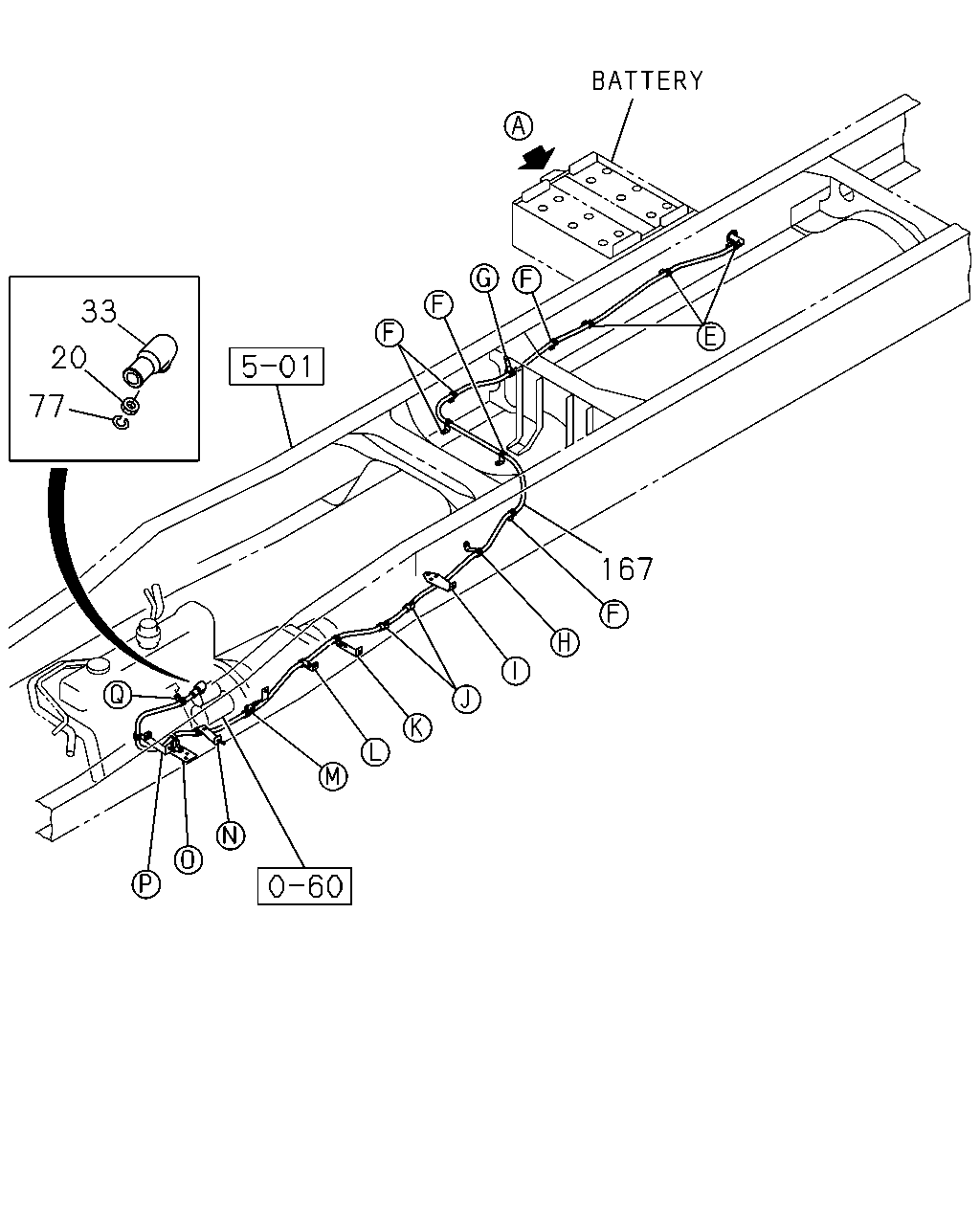

167 |
CABLE; BATTERY RELAY TO STARTER
|
8-98289-459-0 |
01 |
1 |
1504- |
| |
180 |
NUT; COVER
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1504- |
