Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11678 - CYJ RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#160186) — 39 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-C
C - 6WG1 TC-S
◀

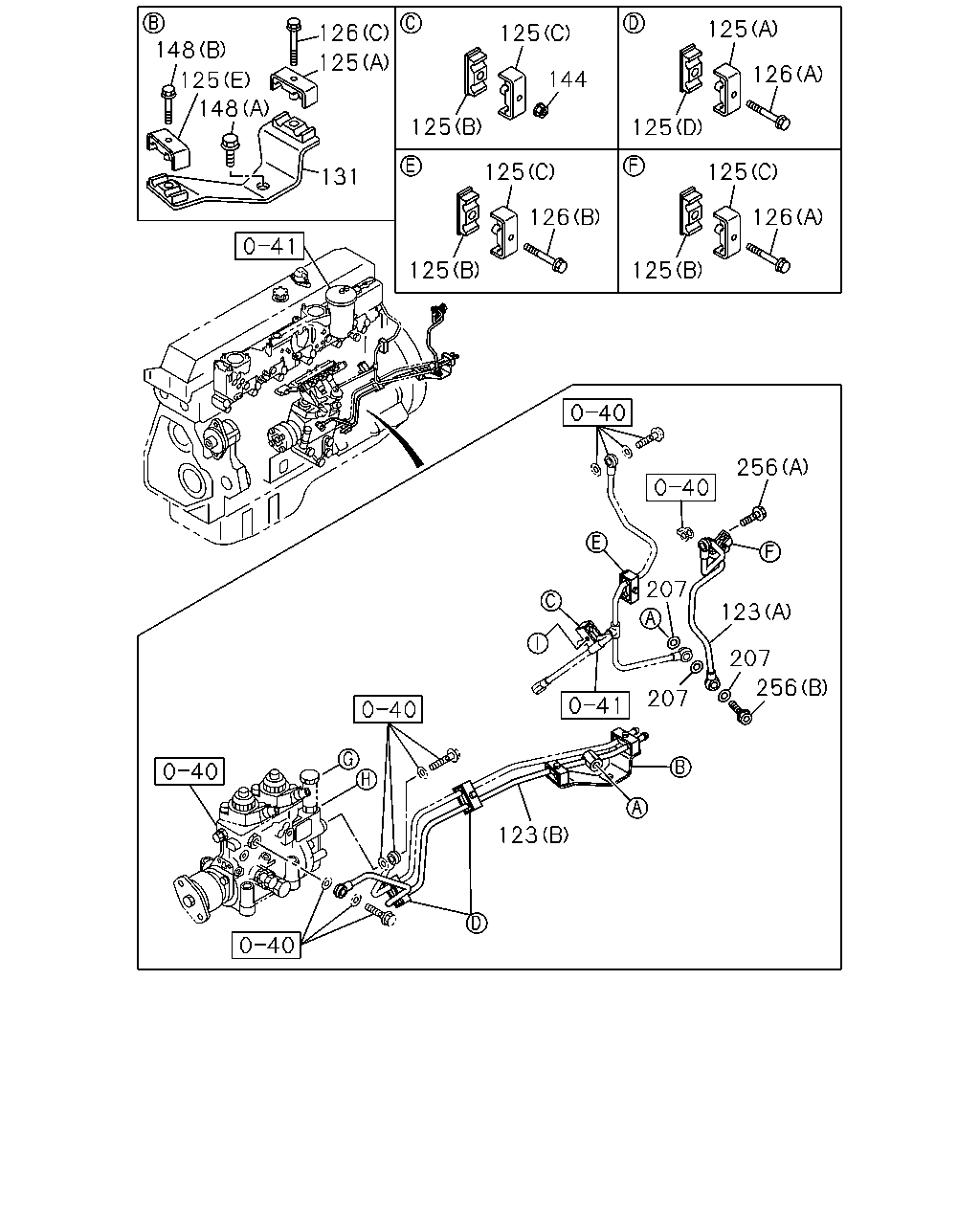

[042A] NO.2 (20 parça)

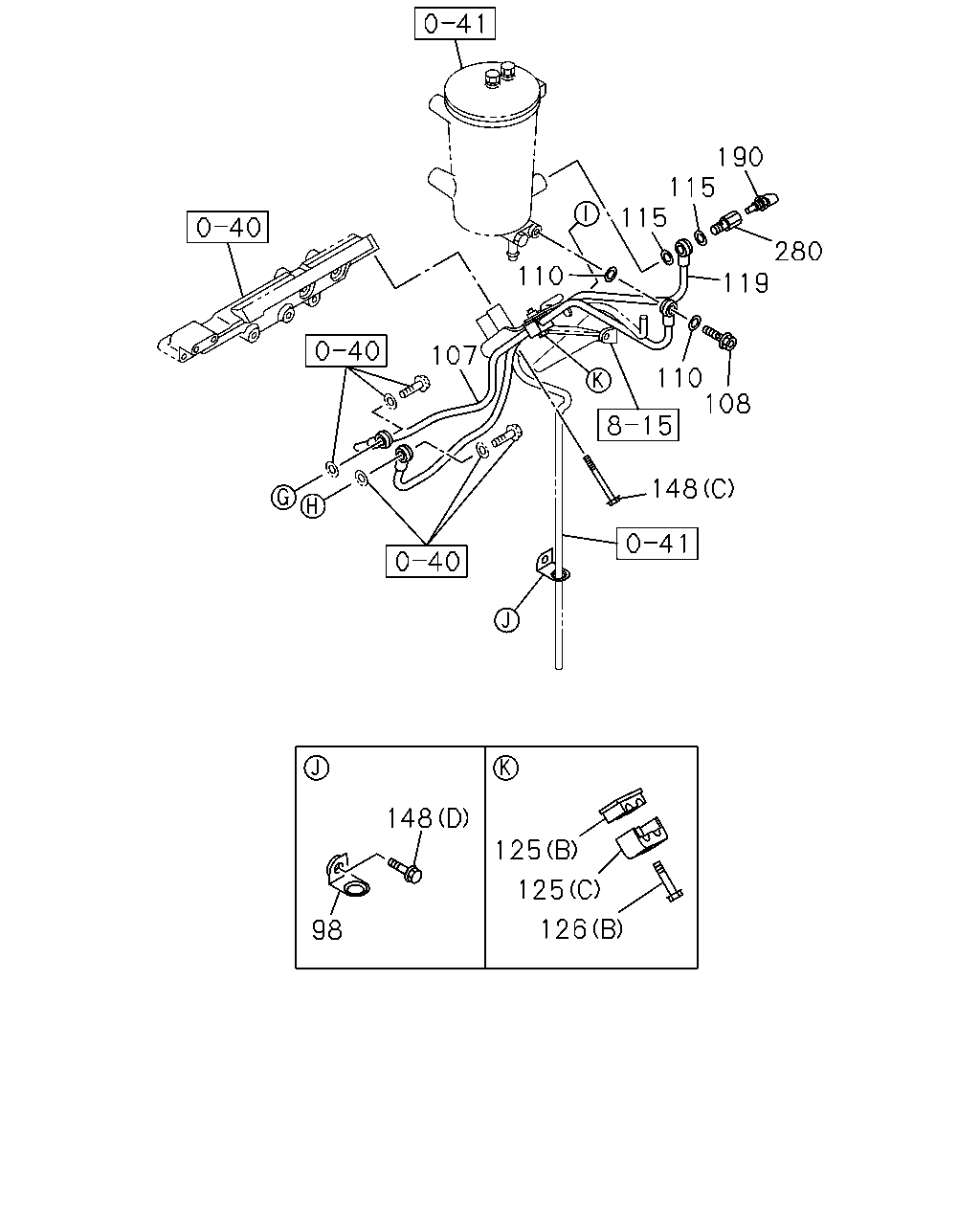

[042A] NO.1 (19 parça)
▶
107
110
115
115
190
280
119
110
148
108
125
125
126
148
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
98
BRACKET; FUEL DRAIN HOSE
8-98132-638-0
01
1
1504-
●
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-98247-253-1
01
1
1504-
●
●
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
1504-
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
1504-
●
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
1504-
●
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-98247-262-2
01
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
04
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-193-1
03
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-194-1
02
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(E) ID=9 & 9 L=25
1-09701-212-2
01
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(C) M6X30 FLANGE
0-28050-630-0
01
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(A) M6X40 FLANGE
0-28050-640-0
03
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(B) M6X35 FLANGE
0-28050-635-0
02
1
1504-
●
●
●
148
BOLT; BRKT
(B) M6X35 FLANGE
0-28050-635-0
01
1
1504-
●
●
●
148
BOLT; BRKT
(C) M8X70 FLANGE
0-28050-870-0
02
1
1504-
●
●
●
148
BOLT; BRKT
(D) M10X16 FLANGE
0-28151-016-0
01
1
1504-
●
●
●
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28751-025-0
01
1
1504-
●
●
●
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1504-
●
●
●
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1504-
●
●
●
148
148
125
131
125
126
125
125
144
125
125
126
125
125
125
125
126
126
256
123
207
207
207
256
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97608-901-1
01
1
1504-
●
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-98210-487-0
01
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
04
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-193-1
03
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-194-1
02
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(E) ID=9 & 9 L=25
1-09701-212-2
01
1
1504-
●
●
●
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(C) M6X30 FLANGE
0-28050-630-0
01
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(A) M6X40 FLANGE
0-28050-640-0
03
1
1504-
●
●
●
126
BOLT; CLIP,FUEL PIPE
(B) M6X35 FLANGE
0-28050-635-0
02
1
1504-
●
●
●
131
BRACKET; FUEL PIPE CLIP
8-98270-562-0
01
1
1504-
●
●
●
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1504-
●
●
●
148
BOLT; BRKT
(B) M6X35 FLANGE
0-28050-635-0
01
1
1504-
●
●
●
148
BOLT; BRKT
(C) M8X70 FLANGE
0-28050-870-0
02
1
1504-
●
●
●
148
BOLT; BRKT
(D) M10X16 FLANGE
0-28151-016-0
01
1
1504-
●
●
●
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28751-025-0
01
1
1504-
●
●
●
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
1504-
●
●
●
256
BOLT; EYE,FUEL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
1504-
●
●
●
256
BOLT; EYE,FUEL PIPE
(B) M14X43 EYE-BOLT
8-98037-829-0
01
1
1504-
●
●
●
