0-41 — FUEL FILTER AND BRACKET (#160185) — 27 parça

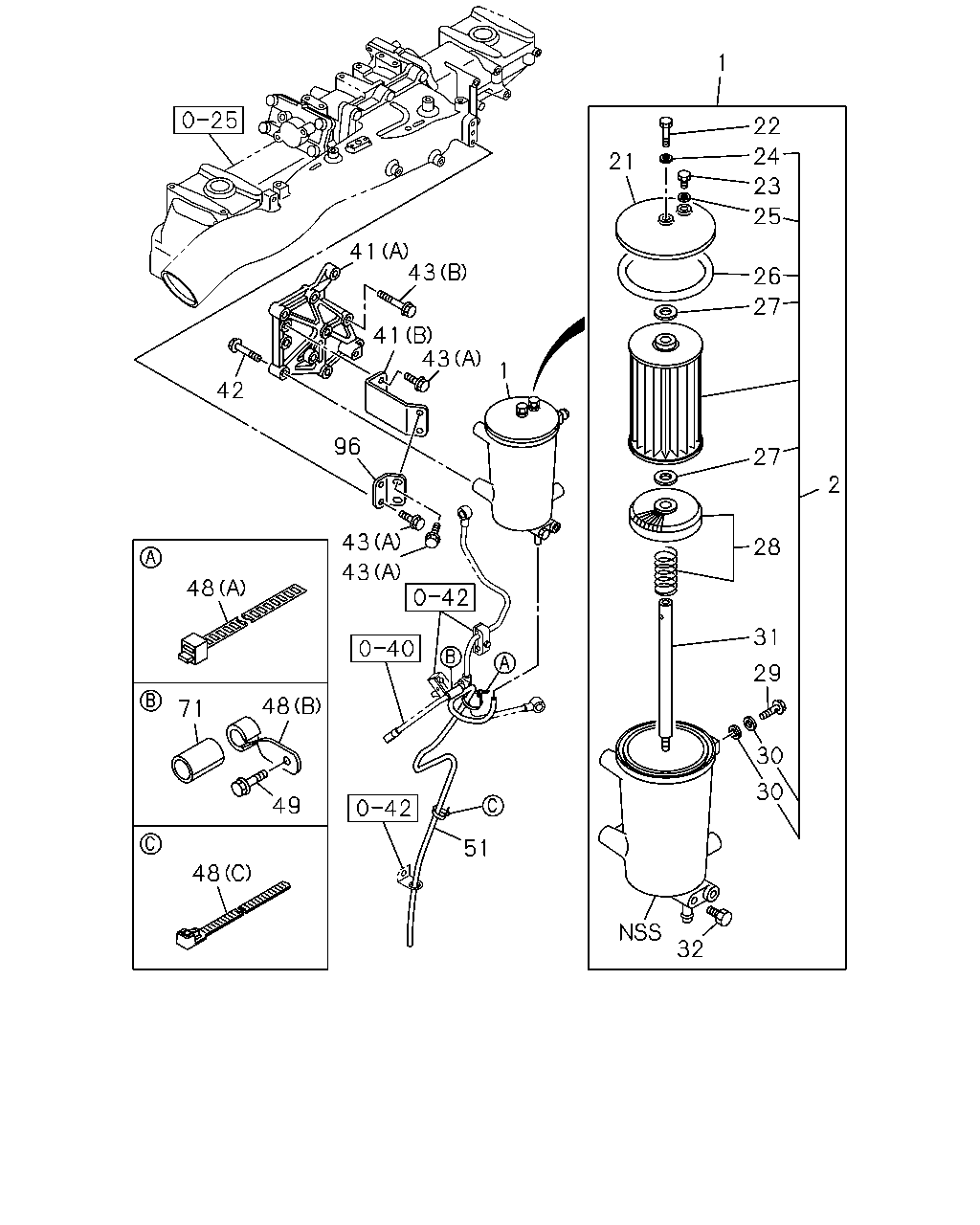

çizim 471060
1 21 22 25 23 24 26 27 27 28 31 29 2 30 30 32 51 49 48 71 48 42 96 43 43 48 41 41 43 43 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 8-98175-164-0 01 1 1504- ● ● ●
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-152-0 02 1 1504- ● ● ●
2 ELEMENT KIT; FUEL FILTER 8-98174-903-0 01 1 1504- ● ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 1504- ● ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 1504- ● ● ●
23 PLUG; COVER 1-13219-074-0 01 1 1504- ● ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 1504- ● ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 1504- ● ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 1504- ● ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 1504- ● ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 1504- ● ● ●
29 VALVE; OVERFLOW 1-13260-116-0 01 1 1504- ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1504- ● ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 1504- ● ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 1504- ● ● ●
41 BRACKET; FUEL FILTER
(A) 		8-97608-898-1 01 1 1504- ● ● ●
41 BRACKET; FUEL FILTER
(B) 		8-97613-237-1 01 1 1504- ● ● ●
42 BOLT; FUEL FILTER
M10X45 FLANGE 		0-28051-045-0 04 1 1504- ● ● ●
43 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 06 1 1504- ● ● ●
43 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 1504- ● ● ●
48 CLIP; VINYL PIPE
(B) L=250 		8-98216-430-0 01 1 1504- ● ● ●
48 CLIP; VINYL PIPE
(C) ID=11 L=40 		8-94123-171-1 01 1 1504- ● ● ●
48 CLIP; VINYL PIPE
(A) L=500 		8-98216-422-0 01 1 1504- ● ● ●
49 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1504- ● ● ●
51 PIPE; VINYL
L=1000 SERVICED BY L=10000 		9-09914-909-0 01 1 1504- ● ● ●
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1504- ● ● ●
96 STAY; FUEL FILTER 8-97613-183-0 01 1 1504- ● ● ●
